This is the 5V variant of the 5V 6 Channel Low Level Relay Module with Light Coupling in Relay Modules. Available at ₹286.74 (₹243.00 + GST) with free shipping across India.

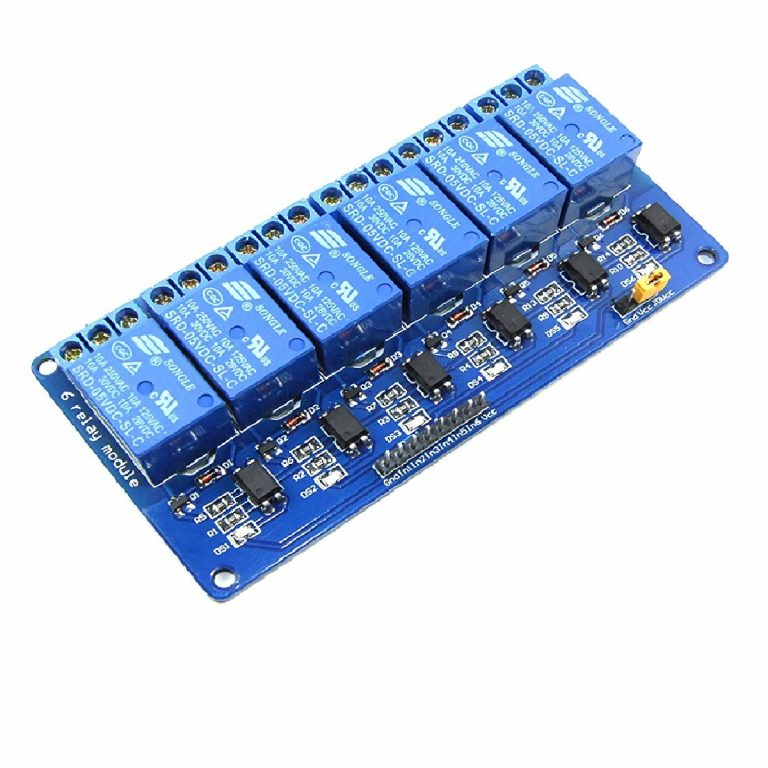

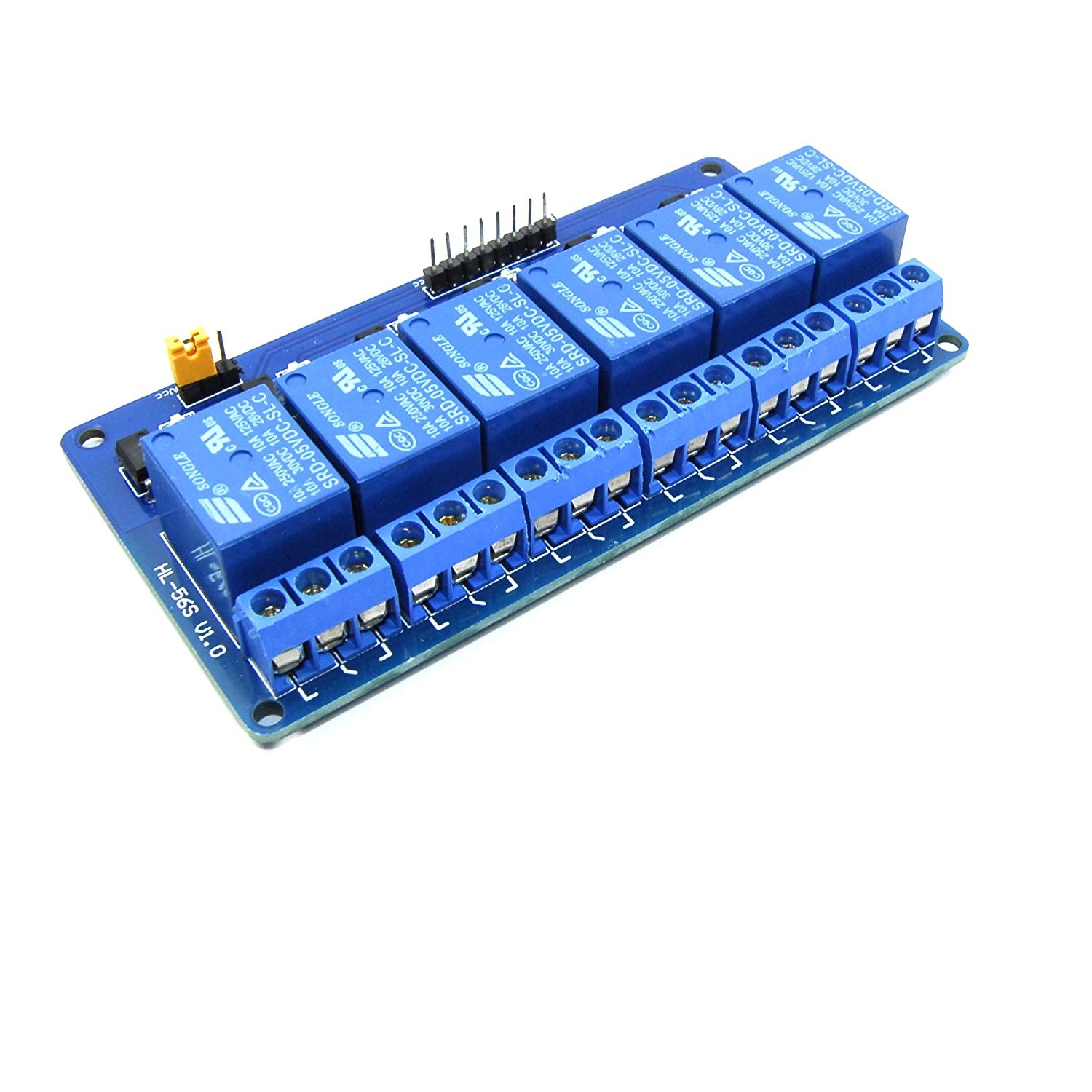

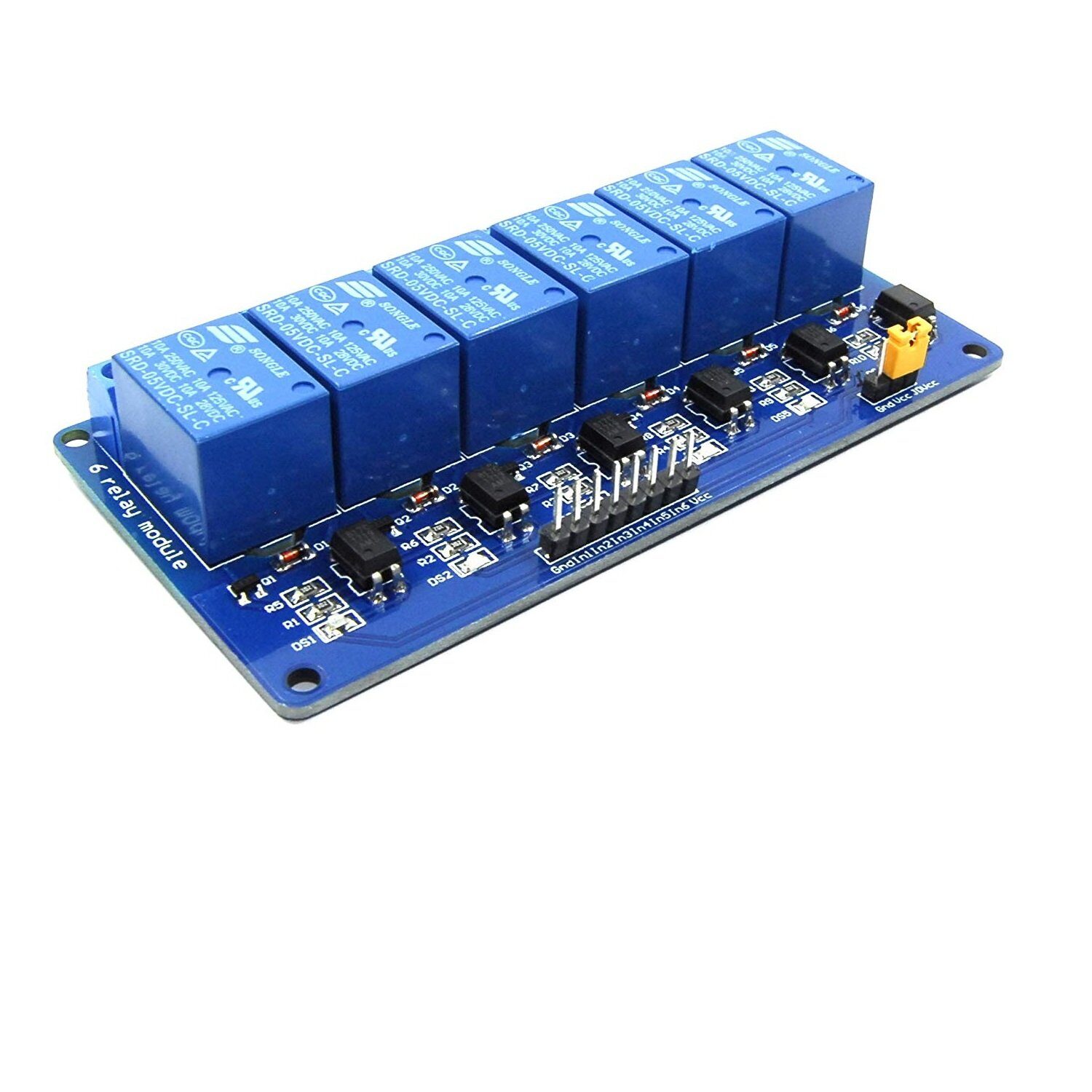

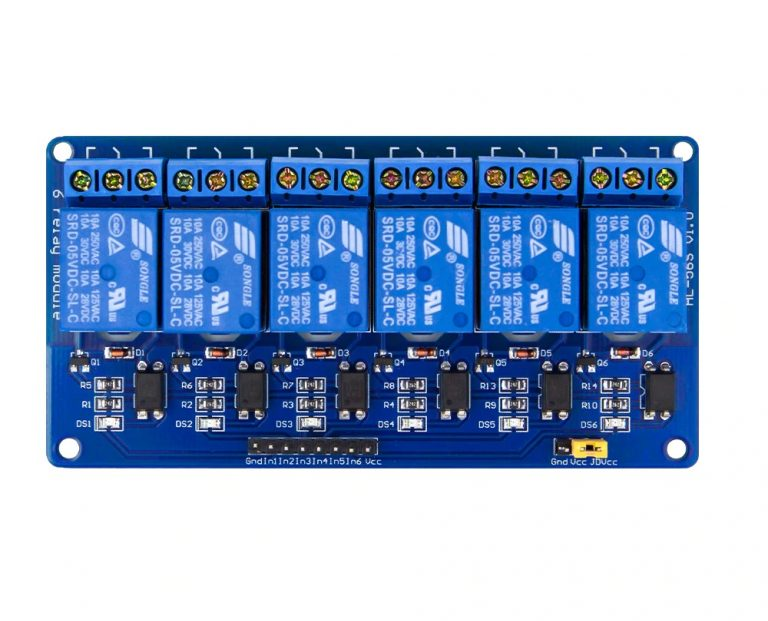

5V 6 Channel Low Level Relay Module with Light Coupling
It is a 5V 6 Channel Low-Level Relay Module with Light Coupling. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA, module working voltage: DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical.
Features:
- 6-way relay output module contact capacity is 10A 250V.
- input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective.
- Using single-chip design, reliable performance, strong anti-interference, no false triggering, superior performance.
- The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated.
- Each relay has an activity indicator light. With 4 fixed bolt holes, easy installation.
- Support all SCM control. It is applicable to the industrial sector, PLC control and home intelligent control.
Specification:
| Operating Voltage (VDC) | 3.3 ~ 5 |
|---|---|
| Supply Current (A) | 20mA |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C): | -40 to 85 |
| Storage condition (℃) | – 65 to 125 |
| Length (mm): | 104 |
| Width (mm): | 53 |
| Height (mm): | 17 |
| Weight (g): | 78 |
Package Includes:
1 x 5V 6 Channel Low-Level Relay Module with Light Coupling.
Machine Learning for IoT: Anomaly Detection on ESP32
Table of Contents ML for IoT Overview Anomaly Detection Algorithms Training Data Collection Building the ML Pipeline Deploying...
Read More →
NodeMCU ESP8266 Tutorial: WiFi IoT Made Easy
The NodeMCU ESP8266 is where most Indian makers begin their IoT journey — and for good reason. For...
Read More →
Smart Hospital IoT: Patient Monitoring and Asset Tracking
Table of Contents IoT in Healthcare Overview Patient Monitoring Sensors Asset Tracking with BLE Environmental Monitoring Data Security...
Read More →Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Channels | 6-channel |
| SKU | AI2399 |
| Weight | 0.1 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5V 6 Channel Low Level Relay Module with Light Coupling is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
