Looking for Fr120n Module? FR120N MosEFT control Module Replacement Relay is available at Zbotic with fast shipping across India.
With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. PWM speed regulation widely used to control the start and stop of the motor. The signal input side can be welded to the terminal or pin itself, compatible breadboard output can be soldered to the terminal or direct wire.
Features:
- Compatible with MCU and control board, 3V or 5V signal.
- High-level start, low-level stop, PWM speed regulation.
- Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment.
- The signal input side can be welded to the terminal or pin itself, compatible breadboard.
- Output can be soldered to the terminal or direct wire.
Specifications:
- Model: FR120N
- MOS tube: 100V 9.4A
- Dimensions: 33mm X 17mm
- Mounting Holes Diameter: 2mm
Package Includes:

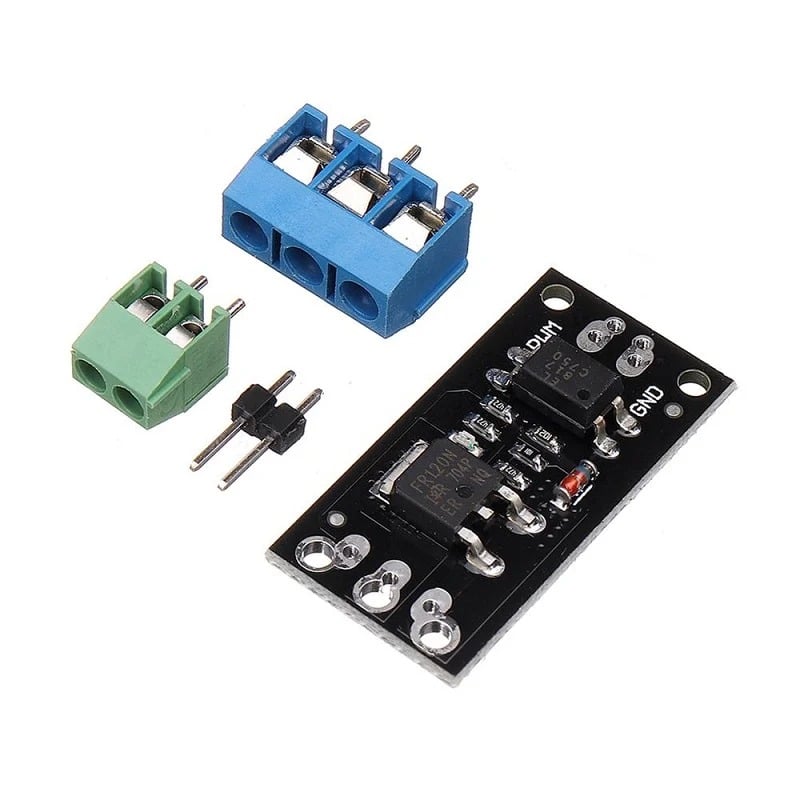

1 x FR120N MosFET Control Module Replacement Relay
FR120N MosEFT control Module Replacement Relay Overview
The FR120N MosEFT control Module Replacement Relay is a compact MOSFET-based switching module designed for PWM speed regulation and on/off control of DC loads. Featuring optocoupler isolation and compatibility with 3V or 5V MCU signals, it offers reliable, interference-resistant operation for motors, solenoids, and other equipment.
Key Features of FR120N MosEFT control Module Replacement Relay
- 100V, 9.4A MOSFET switch for high-current DC load control
- Optocoupler isolation separates control signal from power, enhancing noise immunity
- Compatible with 3V and 5V logic levels; supports high-level start and low-level stop
- PWM input for precise speed regulation of motors and variable loads
- Compact footprint (33mm × 17mm) with two 2mm mounting holes for easy installation
- Fast shipping from Zbotic across India ensures quick project deployment
Applications and Use Cases
- DC motor speed control in robotic platforms and automation systems
- Actuation of solenoid valves in fluid control and pneumatic systems
- LED dimming and power regulation for lighting installations
- Control of cooling fans and blowers in electronic enclosures
- Interfacing with microcontroller boards for DIY electronics projects
- Switching resistive and inductive loads in prototyping and testing setups
How to Use FR120N MosEFT control Module Replacement Relay
Mount the FR120N module using the 2mm holes and connect your DC power source to the V+ and GND terminals. Interface the control signal pin to your MCU’s 3V/5V output, ensuring proper optocoupler orientation. Apply a high-level logic signal to start the load and a low-level signal to stop; for speed control, feed a PWM waveform to the input. Secure wiring and verify connections before powering the system.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage and current can the FR120N module handle?
The module’s MOSFET switch is rated for up to 100V and 9.4A continuous current, making it suitable for most low- to mid-power DC applications.
How do I connect the module to a microcontroller?
Use the signal input pin for your 3V or 5V MCU output. The optocoupler isolates the control circuitry—simply wire your microcontroller ground to the module ground and drive the input pin with a high or PWM signal.
Does the module protect against electrical noise and interference?
Yes, the built-in optocoupler isolation separates the control signal from the high-power side, significantly improving noise immunity and protecting your MCU from voltage spikes.
