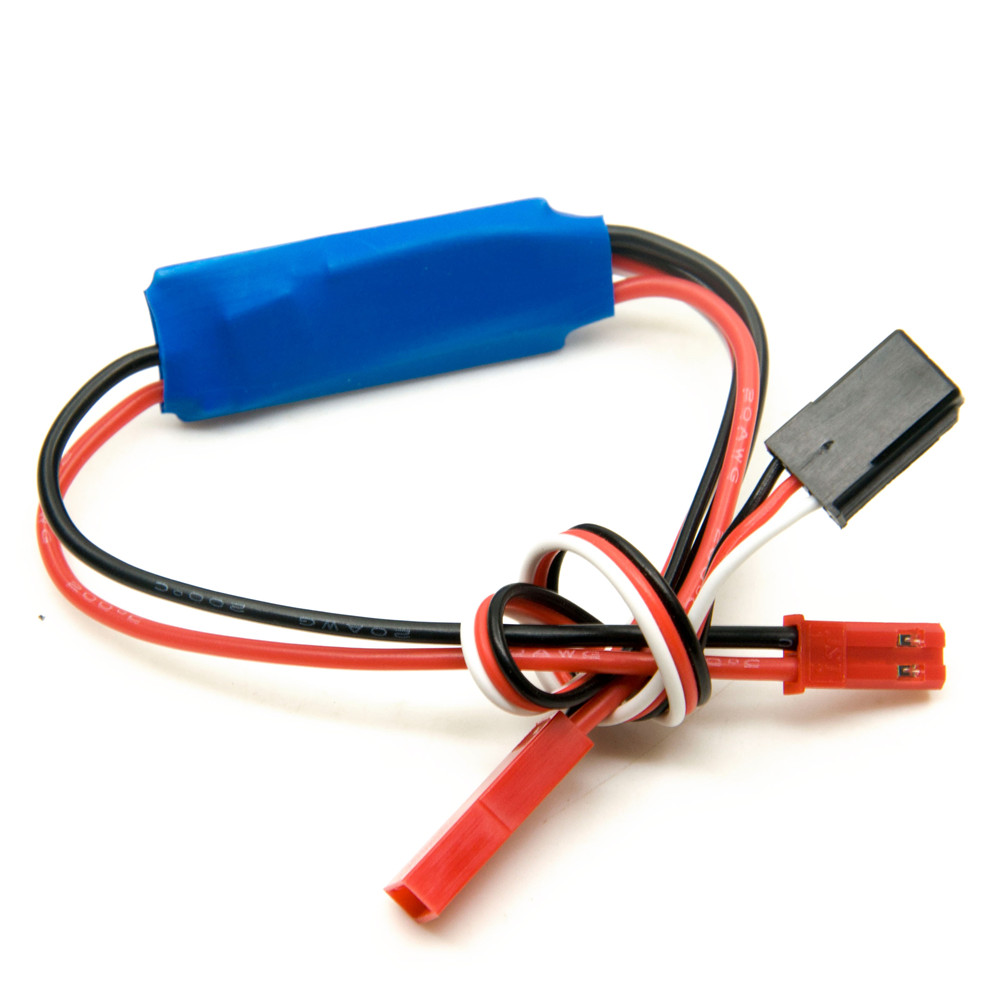

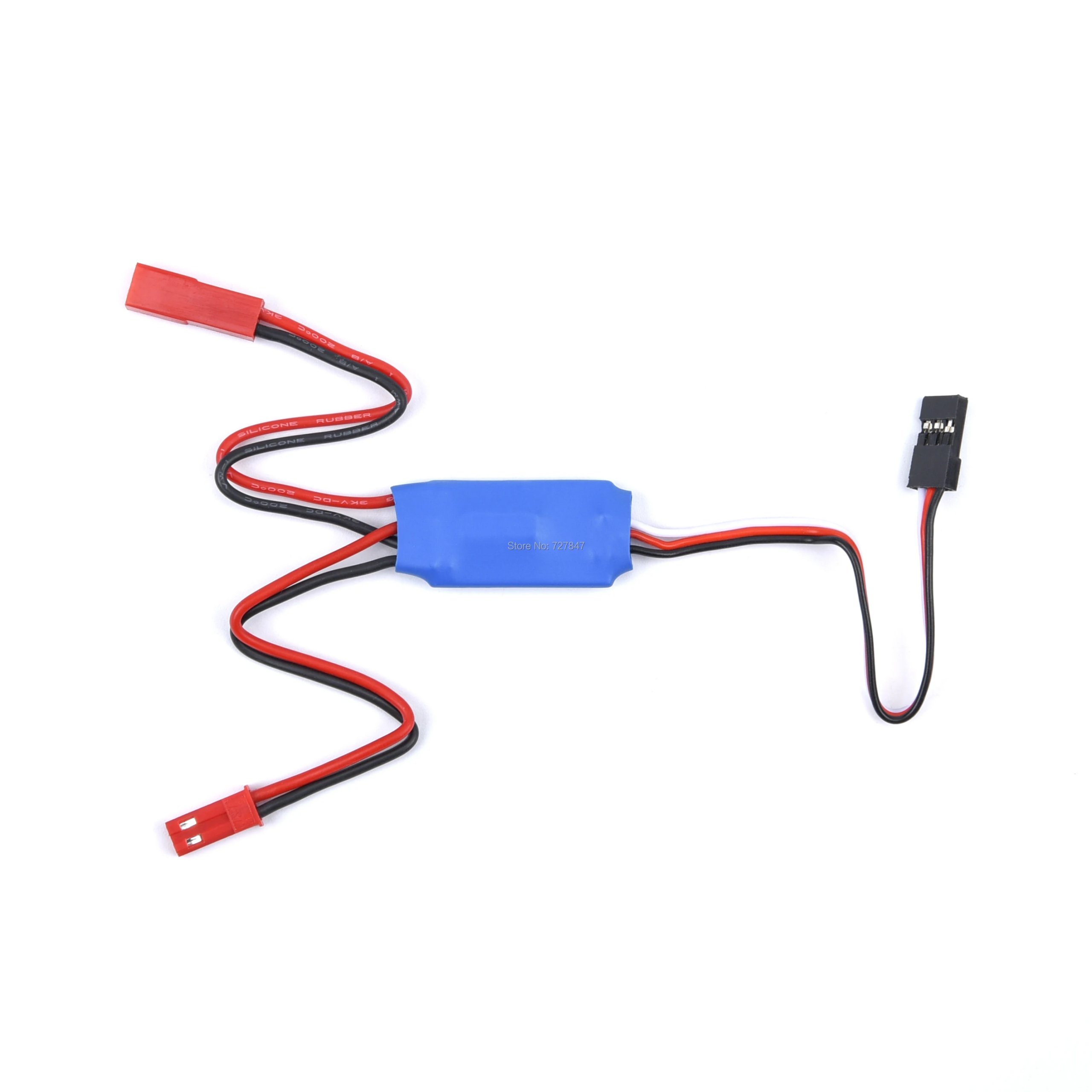

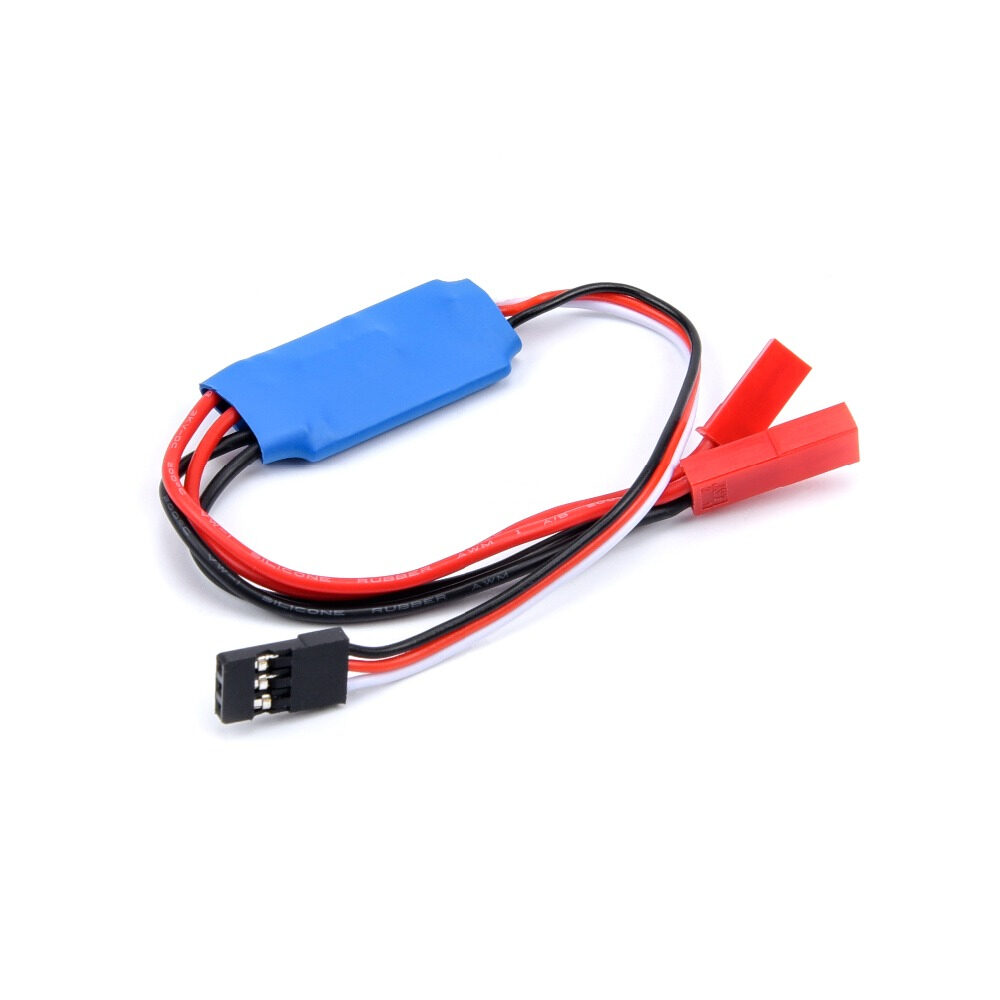

This is a NEW 10A RC TX Controlled Relay Switch PWM Receiver LED Control Spray Switch
Normal Mode:
The module can read a pulse width that can range from 400 to 2600us.
If the width of the pulse is more than 1800us, the MOSFET switch will close, if less than 1200us, the MOSFET switch will open.
Safe-protection Function:
This module has a safe-protection feature that reduces the likelihood of unexpected activation.
In the below 2 conditions the Safe-protection mode will active:
1. The pulse is more than 1800us at first power-up, the MOSFET switch open. The LED will blink, you should move the input to the off position, then normal more will active;
2. The signal is bad continuously for 500ms, the MOSFET switch open. The LED will blink. When the signal is good, the device will deactivate safe-protection mode.
LED:(Normal mode)
The LED will on when input pulse >1800us;
The LED will off when input pulse <1200us;
Safe-protection mode: the LED will fast blink.
Note:
When using the electronic switch, make sure to supply 5V to the receiver. If the voltage is greater than 5V, it will not work properly.
In addition, the remote control channel needs more than 3 channels.
Features:
- This module is a nice little relay switch controlled by a spare auxiliary channel on your receiver. Ideal for switching lights, sound, and any other auxiliary electrical items.
- When PWM duty is more than 1500us, the switch will turn on; when PWM duty is less than 1400us, the switch will turn off.
Specification:
| RX lead length | 100mm |
|---|---|
| Power lead length | 100mm |
| Cable Size (AWG) | 20 |
| Shipping Weight | 7.5g |
| Shipping Dimensions | 10 × 7 × 1 cm |
Package Includes:
1 x 10A RC TX Controlled Relay Switch PWM Receiver
ESP32 Zigbee Coordinator: Control Smart Devices Locally
Setting up an ESP32 Zigbee coordinator for local smart home control is the path to true independence from...
Read More →
IoT Smart Lock with ESP32 and Fingerprint Sensor
An IoT smart lock with ESP32 fingerprint sensor is one of the most impressive and practically useful home...
Read More →
NodeMCU ESP8266 Tutorial: WiFi IoT Made Easy
The NodeMCU ESP8266 is where most Indian makers begin their IoT journey — and for good reason. For...
Read More →Technical Specifications
| Current Rating | 10A |
|---|---|
| SKU | AI1255 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 10A RC TX Controlled Relay Switch PWM Receiver is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
