This is the 5V variant of the 2 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at Original price was: ₹286.74.₹210.04Current price is: ₹210.04. (₹178.00 + GST) with free shipping across India.

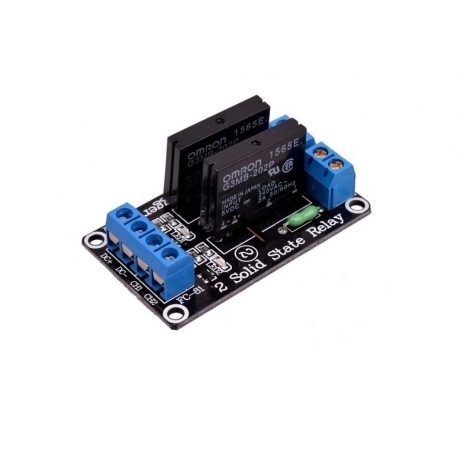

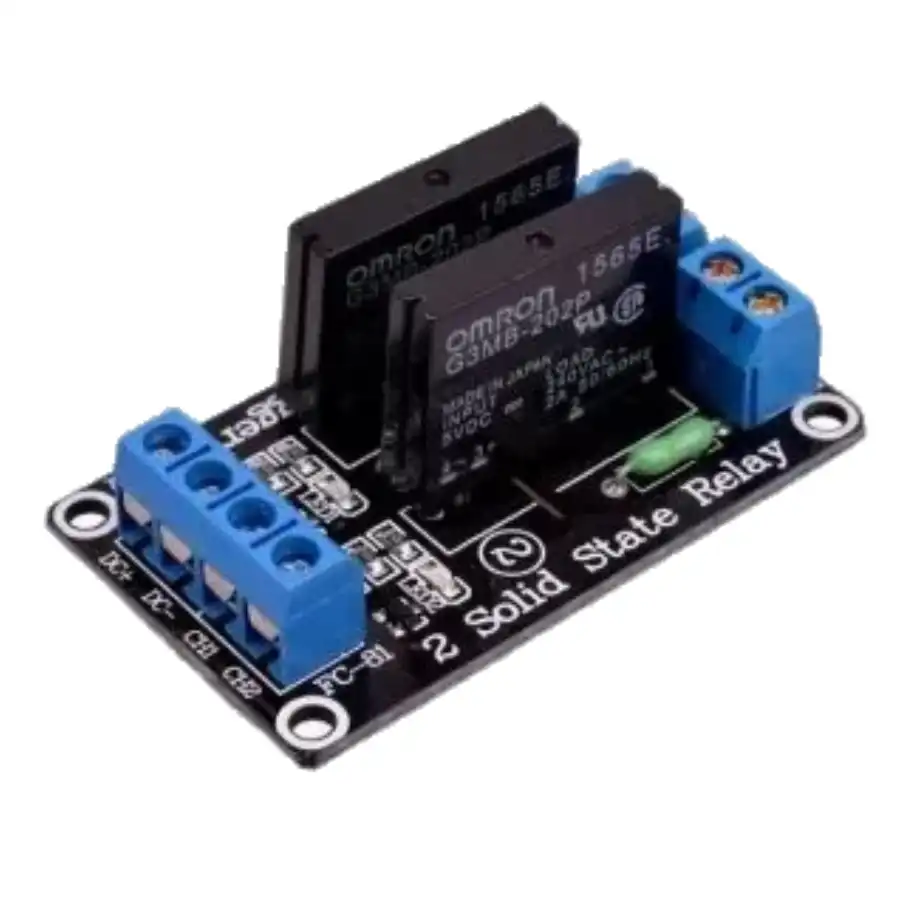

2 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
Upgrade your control system with the 2-Channel 5V Solid State Relay Module, providing reliable switching capabilities for high-voltage AC loads from lower voltage DC control circuitry. Utilizing solid-state relay (SSR) technology, this module offers noise-free operation and an extended lifespan compared to traditional mechanical relays.
Features:
- Solid State Relay Technology: Utilizes solid-state relay technology, featuring an IR LED and a photo Triac sealed in a compact enclosure for reliable performance.
- 2-Channel Configuration: Control up to 2 independent loads with ease, offering versatility in your applications.
- High Load Capacity: Each channel supports loads of up to 2 amps at 240VAC, making it suitable for various lighting, holiday displays, and other applications.
- LED Indicator: Equipped with LED indicators for each relay, allowing for easy status monitoring.
- Assembled and Tested: The module comes assembled and has undergone electrical testing to ensure reliable performance.
- Microcontroller Compatibility: Can be controlled directly by a microcontroller, offering seamless integration into your control setup.

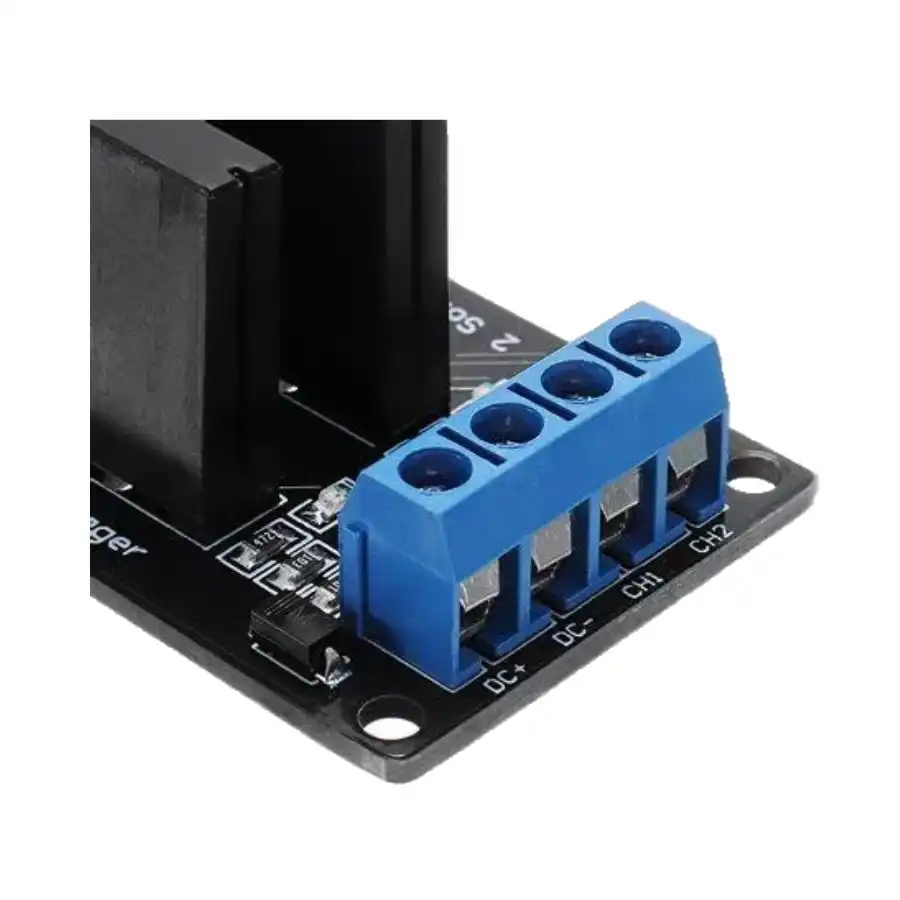

- Convenient Input Connectivity: Features DC and DC- terminals for power connection, as well as IN1 and IN2 terminals for input control signal connection.
- Versatile Applications: Ideal for controlling various appliances and equipment with large currents, providing flexibility in usage scenarios.
Input Parts:
- DC: Connects to VCC for power supply according to the relay voltage.
- DC-: Connects to GND for the ground connection.
- IN1 and IN2: Individual relay module signal trigger points, active at the high level, facilitating precise control over each channel.
Enhance your control capabilities with the 2-Channel 5V Solid State Relay Module, offering reliable switching performance and versatility for a wide range of applications. Whether you’re controlling lighting systems, holiday displays, or other equipment, this module provides an efficient and durable solution for your needs.
Specifications:
| Part Number | G3MB-202P |
|---|---|
| Power supply | 5VDC/160mA |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 240@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
Package Includes:
1 x 2 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
NodeMCU ESP32 Pinout: GPIO, PWM, ADC Reference Guide
Understanding the ESP32 NodeMCU pinout GPIO PWM ADC reference is the first and most important step before building...
Read More →
Best ESP32 Development Boards: WROOM vs WROVER vs S3
Choosing the best ESP32 development boards in 2026 can be genuinely confusing. Espressif's ESP32 family has expanded enormously...
Read More →
ESP32 Wakeup Sources: GPIO, Timer and Touch Triggers for Deep Sleep
Understanding ESP32 wakeup sources for deep sleep is essential for building battery-powered IoT devices that last weeks or...
Read More →Technical Specifications
| Voltage Range | 5V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 2-channel |
| SKU | AI3160 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The 2 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
