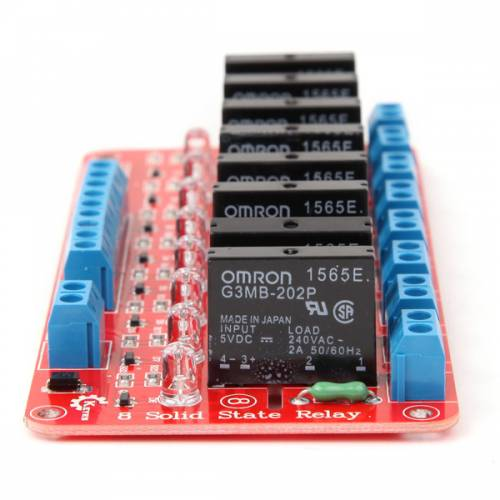

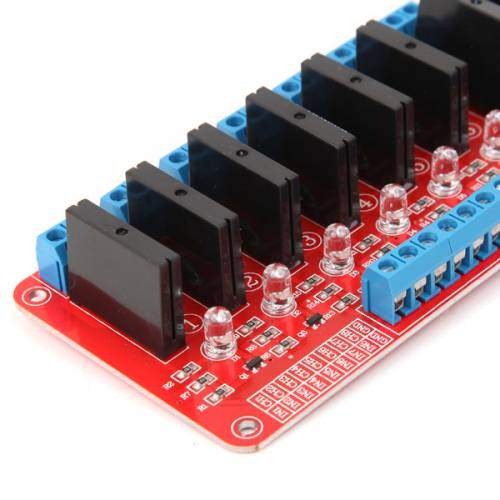

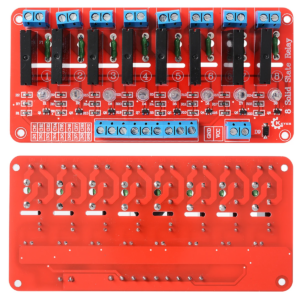

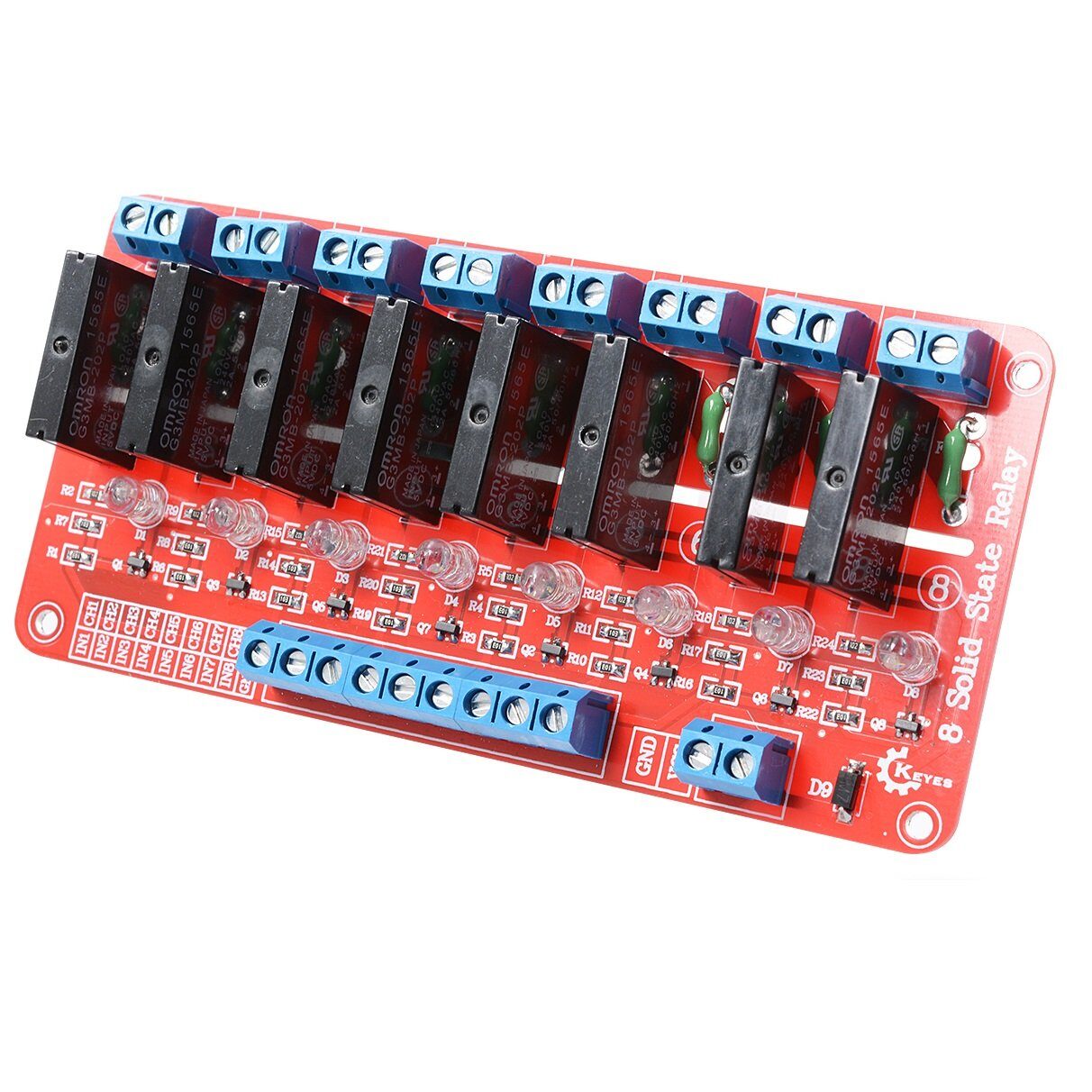

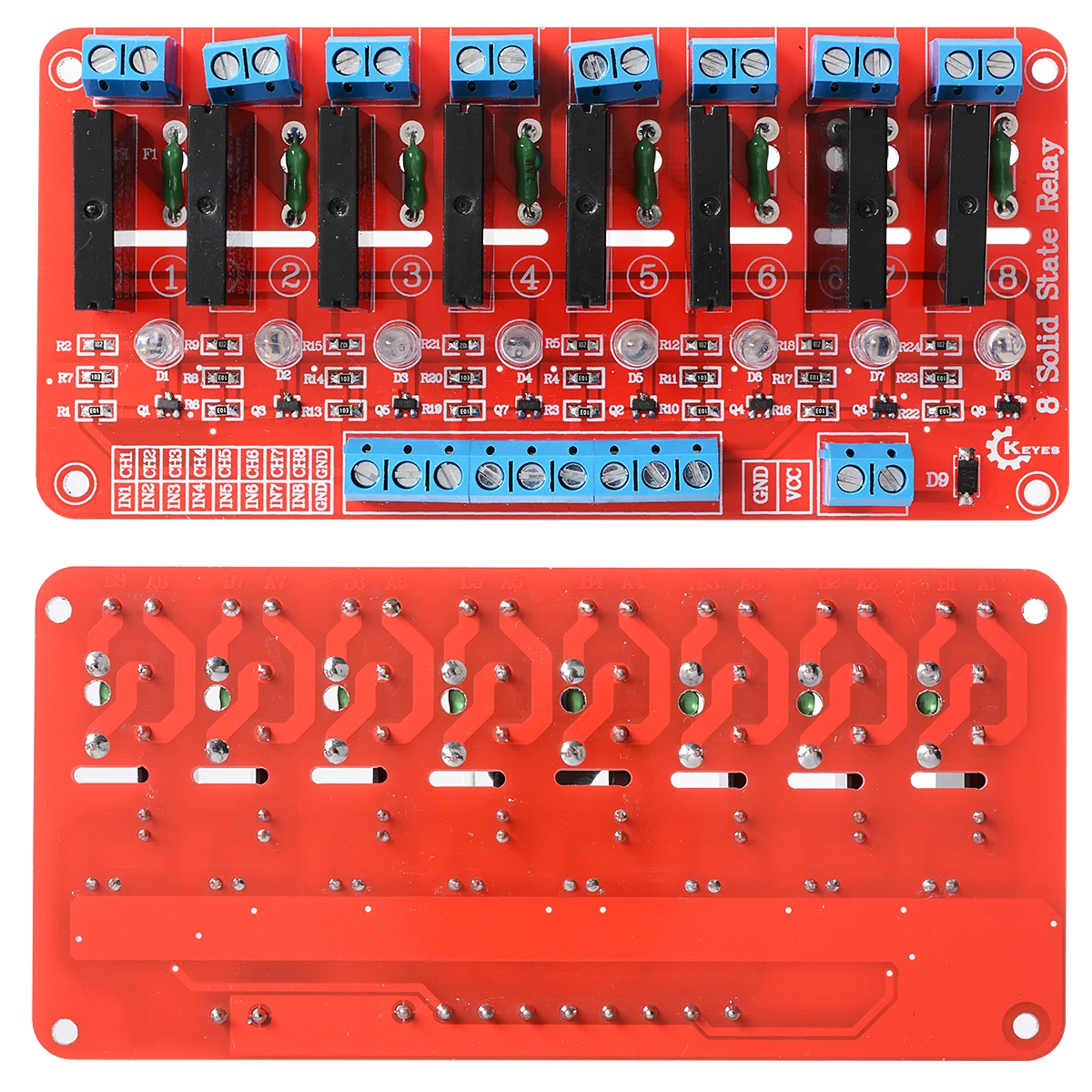

8 Channel 5V Solid State Relay Module Board OMRON for Arduino
This is 8 Channel 5V Solid State Relay Module Board OMRON for Arduino. A solid state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a photo triac sealed up into a little box. Solid state relays have several advantages over mechanical relays.
A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan in compared to the traditional mechanic relay.
One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.
Input Parts :
- DC: connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND.
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
- IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level)
- IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level)
- IN5: CH5 Signal triggering the end of 5-channel relay module (active at the high level)
- IN6: CH6 Signal triggering the end of 6-channel relay module (active at the high level)
- IN7: CH7 Signal triggering the end of 7-channel relay module (active at the high level)
- IN8: CH8 Signal triggering the end of 8-channel relay module (active at the high level)
Operating current:
1 WAY:13.8mA
2 WAY: 26.8mA
3 WAY: 37mA
4 WAY: 48mA
5 WAY: 59mA
6 WAY: 70mA
7 WAY: 81mA
8 WAY: 90mA
Features:
- 8-channel 2 AMP Solid State Relay board.
- Control 8 loads of up to 2 amps each at 120 V or 240 V AC.
- Good for lighting, Holiday displays etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with large current.
- It can be controlled directly by Microcontroller.
- Input control signal voltage.
- 0-0.5V low stage SSR is OFF
- 0.5V – 2.5V (unknown state).
- 2.5-20V high stage SSR is ON
Specification:
| Zero Cross | Yes |
|---|---|
| Length (mm): | 130 |
| Width (mm): | 62 |
| Height (mm): | 22 |
| Weight (g): | 70 |
Package Includes:
1 x 8 Channel 5V Solid State Relay Module Board OMRON for Arduino.
8 Channel 5V Solid State Relay Module Board OMRON for Overview
The 8 Channel 5V Solid State Relay Module Board OMRON for Arduino is an expansion board equipped with eight OMRON solid state relays. It enables you to switch AC loads up to 2 A (100–240 VAC) per channel using 3.3–5 V logic signals, making it ideal for Arduino and other microcontroller projects.
Key Features of 8 Channel 5V Solid State Relay Module Board OMRON for
- Eight OMRON solid state relays rated 2 A at 100–240 VAC (50/60 Hz)
- TTL-compatible trigger inputs (3.3 V–5 V) with 2 mA drive current
- 5 V DC supply (160 mA typical) for relay operation
- Zero-cross turn-on for reduced EMI and smooth switching
- LED indicators for each channel to monitor relay state
- Genuine components and fast shipping from Zbotic across India
Applications and Use Cases
- Controlling holiday and architectural lighting sequences
- Switching small AC motors and fans in home automation
- Automating aquarium heaters and temperature control devices
- Driving AC heating elements in DIY temperature rigs
- Managing multiple power outlets for lab or workshop setups
- Programming timed on/off cycles for signage or display lighting
How to Use 8 Channel 5V Solid State Relay Module Board OMRON for
Power the board with a regulated 5 V DC supply, connect each AC load between the relay’s output terminals, then tie the board’s ground to your microcontroller. Drive each input pin with a digital HIGH signal (3.3–5 V) to activate its corresponding relay. The on-board LEDs will light to indicate active channels, and zero-cross switching ensures smooth, low-noise operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What AC voltage and current can each channel handle?
Each OMRON solid state relay channel can switch 100–240 VAC at up to 2 A, suitable for lighting, heaters, and small motors.
Can I drive the inputs from a 3.3 V microcontroller?
Yes. The module’s trigger voltage range of 3.3–5 V and low 2 mA input current make it compatible with 3.3 V and 5 V logic devices.
Do I need to add any external components for safe operation?
No additional components are required for basic switching. For inductive loads, however, adding snubber circuits or fuses on the AC side is recommended to protect against voltage spikes.
