This is the 5V variant of the A03B 1 Road 5V Low Level Solid State Relay Module with Fuse SSR 250V 2A Fuse in Relay Modules. Available at ₹94.40 (₹80.00 + GST) with free shipping across India.
A03B 1 Road 5V Low Level Solid State Relay Module with Fuse SSR 250V 2A Fuse

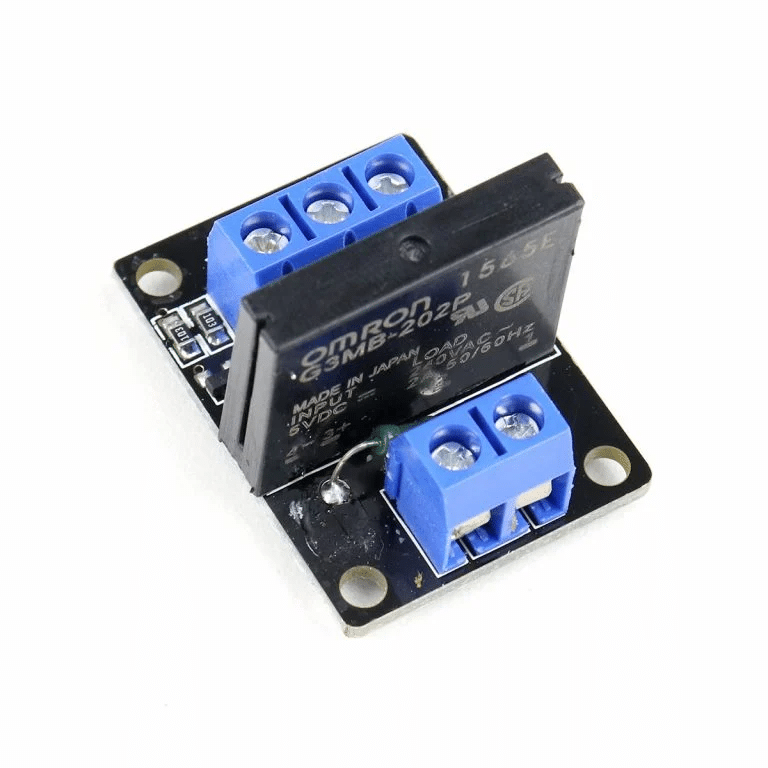

This is an OMRON 5V solid-state relay with a 240V, 2A output, featuring a resistance-type fuse rated for 240V and 2A. The input control signal voltage for this relay module operates as follows: a low-level state (0-2.5V) keeps the relay OFF, while a high-level state (3-5V) turns the relay ON.
The low-level trigger means that the triggering voltage between the input terminal and the negative electrode of the power supply is 0V, or that the trigger terminal voltage is lower than the positive supply voltage. When the voltage drops low enough, it triggers the relay, typically connecting the cathode of the power supply to the trigger terminal, which causes the relay to activate.

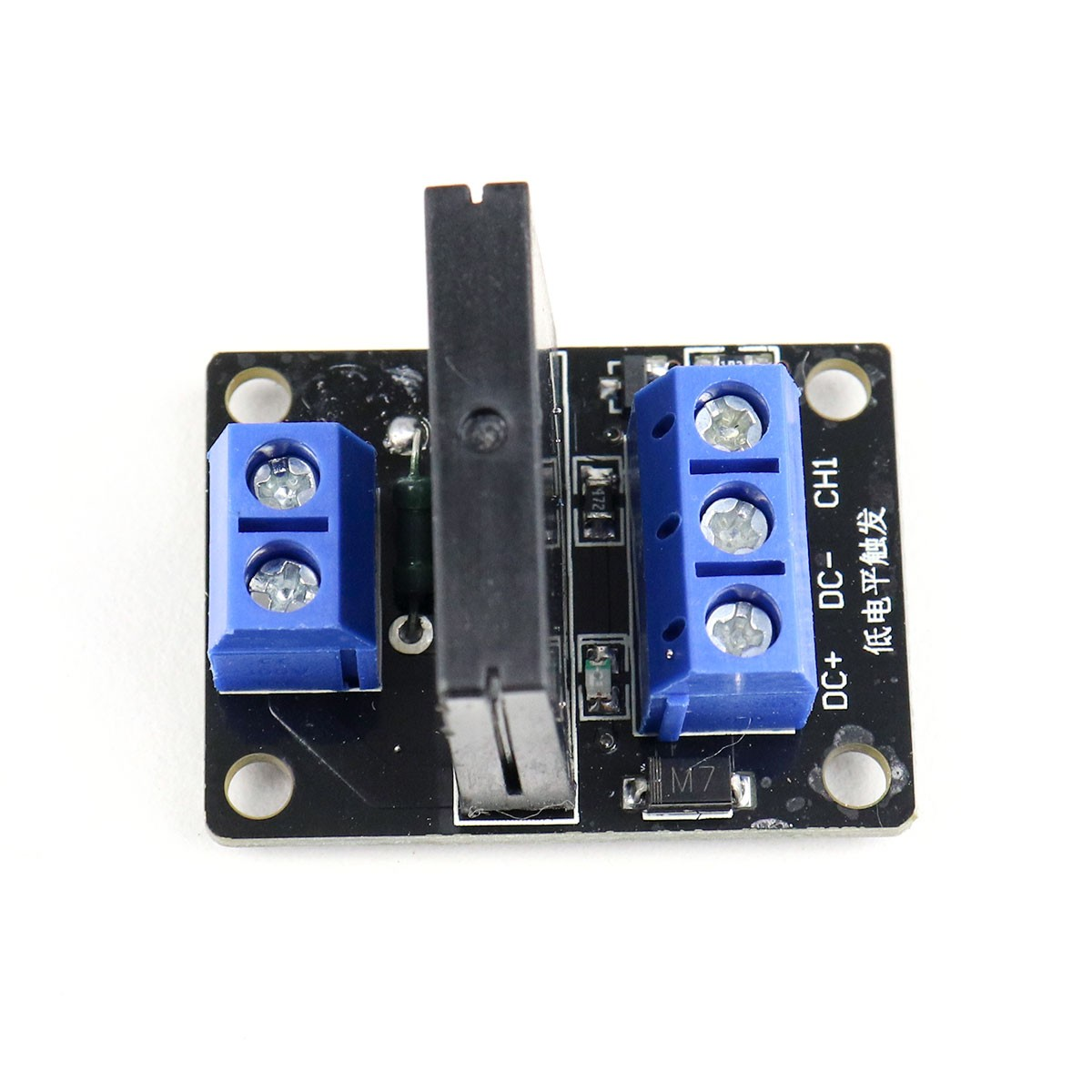

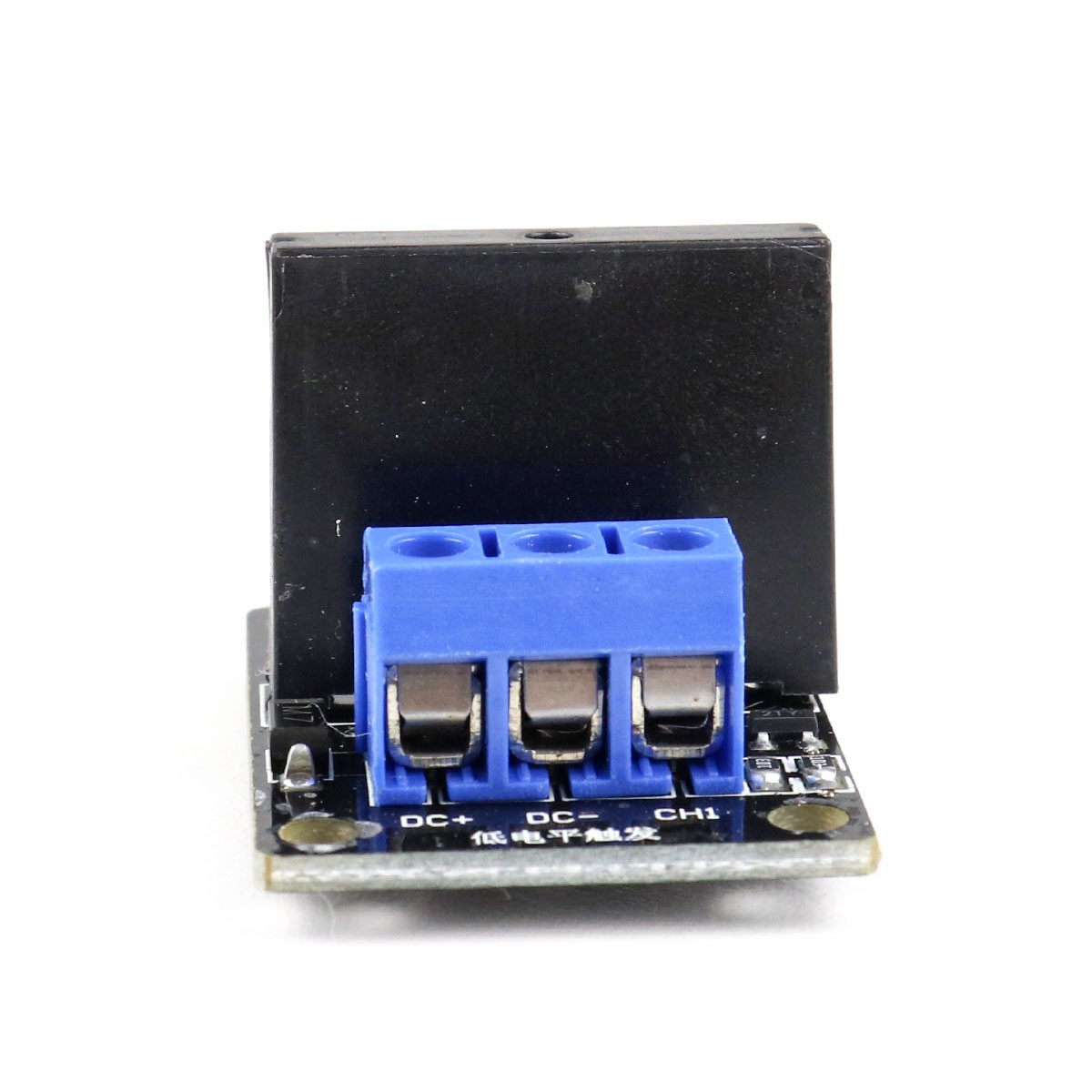

The module features blue KF301 terminals for easy connection to the control lines.
Specifications:
| Operating Voltage (VDC): | 3.3 ~ 5 |
|---|---|
| Trigger Voltage (VDC) | 5 |
| Supply Current (A) | 2mA |
| Switching Voltage (VAC) | 240@2A |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Length (mm): | 34 |
| Width (mm): | 26 |
| Height (mm): | 22 |
| Weight (g): | 10 |
Package Includes
1 x A03B 1 Road 5v Low-Level Solid State Relay Module with Fuse SSR 250V 2A Fuse
IoT Time-Series Forecasting: Predict Sensor Readings
Table of Contents Time-Series Data in IoT Forecasting Methods Overview ARIMA for Sensor Data Prophet for IoT Predictions...
Read More →
ESP32-S3 Complete Guide: Features, Pinout and Projects
ESP32-S3 Complete Guide: Features, Pinout and Projects The ESP32-S3 is Espressif's most powerful single-chip IoT solution — a...
Read More →
ESP32 NVS Flash Storage: Persist Settings Between Reboots
If you have ever built a project where your ESP32 NVS flash storage preferences were wiped every time...
Read More →Technical Specifications
| Model | A03B |
|---|---|
| Voltage Range | 5V - 250V |
| Current Rating | 2A |
| SKU | AI0320 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The A03B 1 Road 5V Low Level Solid State Relay Module with Fuse SSR 250V 2A Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
