This is the 5V variant of the ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch in Relay Modules. Available at ₹699.74 (₹593.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

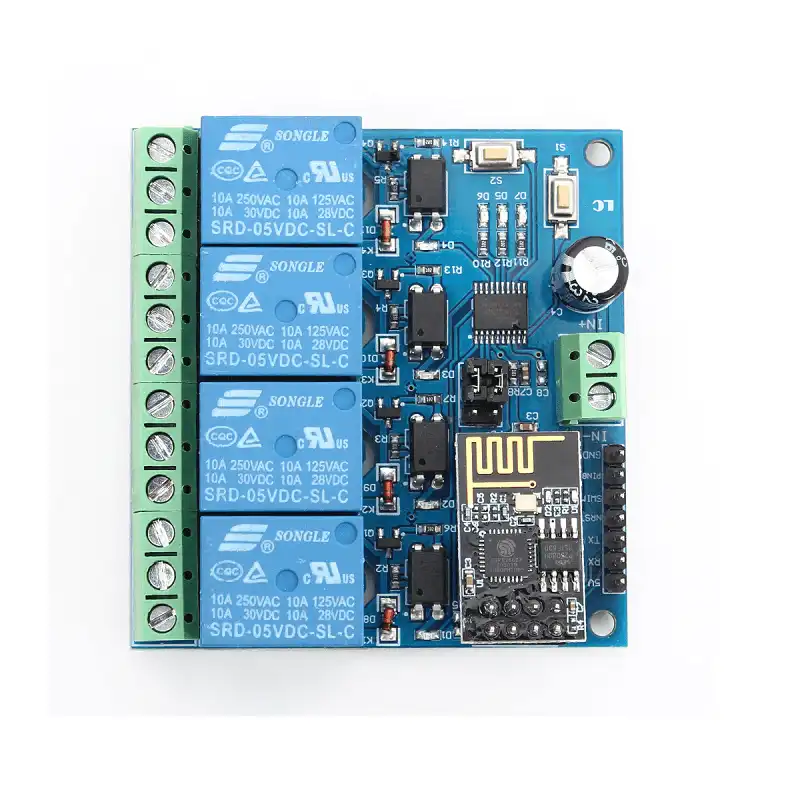

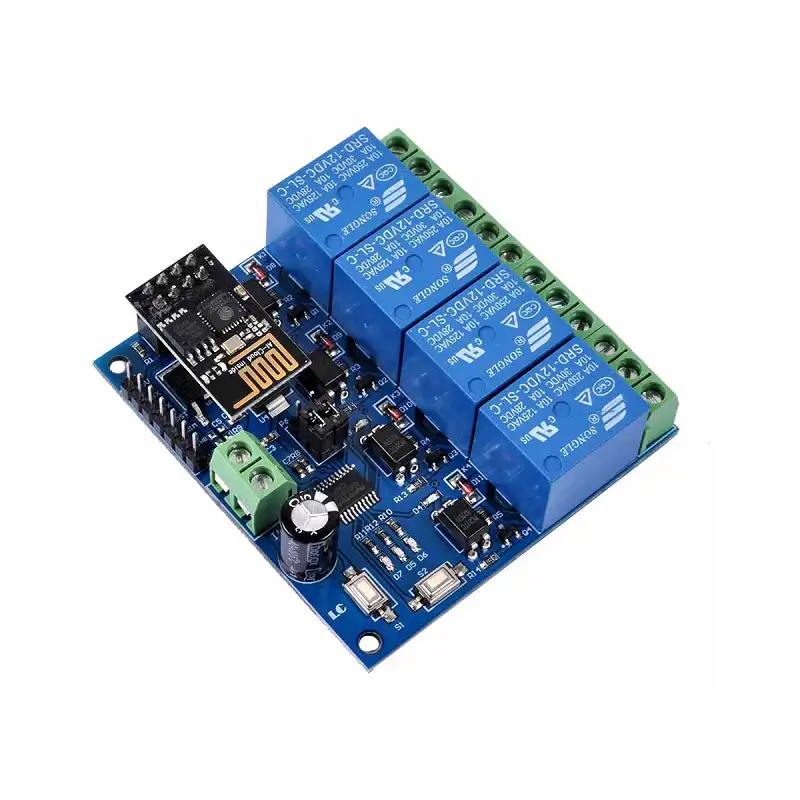

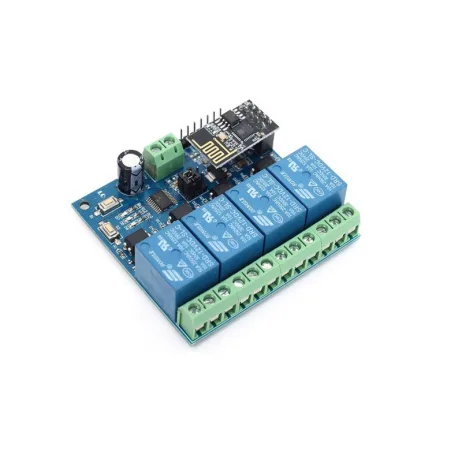

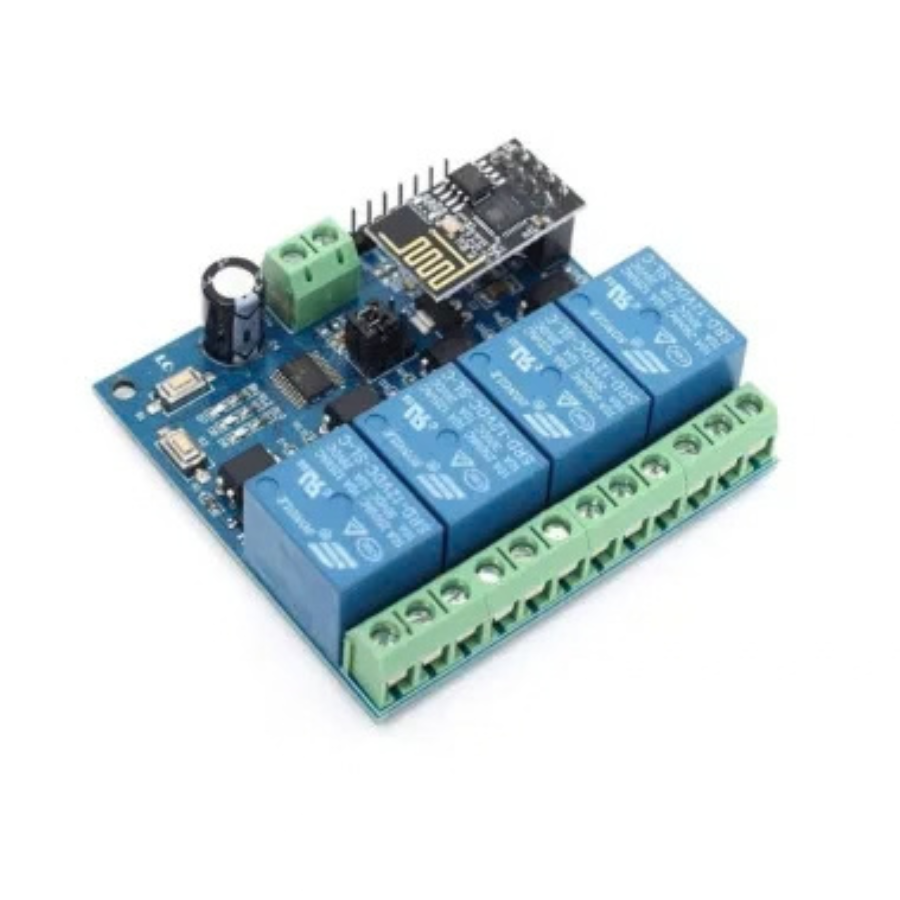

ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch is 4 channel WIFI relay module carrying an ESP8266 WIFI module and mature 8 bit MCU, with a Professional switching power supply circuit.It could control the relay by Android phone APP within the local area network (LAN). It is easy to set up.
Features:
- Integrated design.
- APP remote control.
- DC 5V work power supply.
- Onboard high-quality MCU and ESP8266 WIFI module.
- Support Two Work Mode:
- Mode 1:cellphone carry on WIFI module directly.
- Mode 2: Cellphone and WIFI modules carry on router together.
- Additional features: USB Relay Module(Without ESP8266).
- Transmission distance:
- In the open environment, when the mobile phone is carrying on the WIFI module, the maximum transmission distance is 100 meters.
- When the WIFI module and cell phone carrier on the router at the same time the signal transmission distance depends on the router signal.
- 7. Use the Smartconfig technology to complete the configuration of the account and password of the ESP8266 WIFI module on the mobile APP. The configured account and password will be memorized after power off.
- Optocoupler isolated output, safe and reliable.
- The board contains 220V,10A/250V AC 10A/30V DC Songle original relay, which can continuously absorb 100,000 times, with the protection of diode current and short response time.
- PCB material and manufacturing process meets the standards of RoHS.

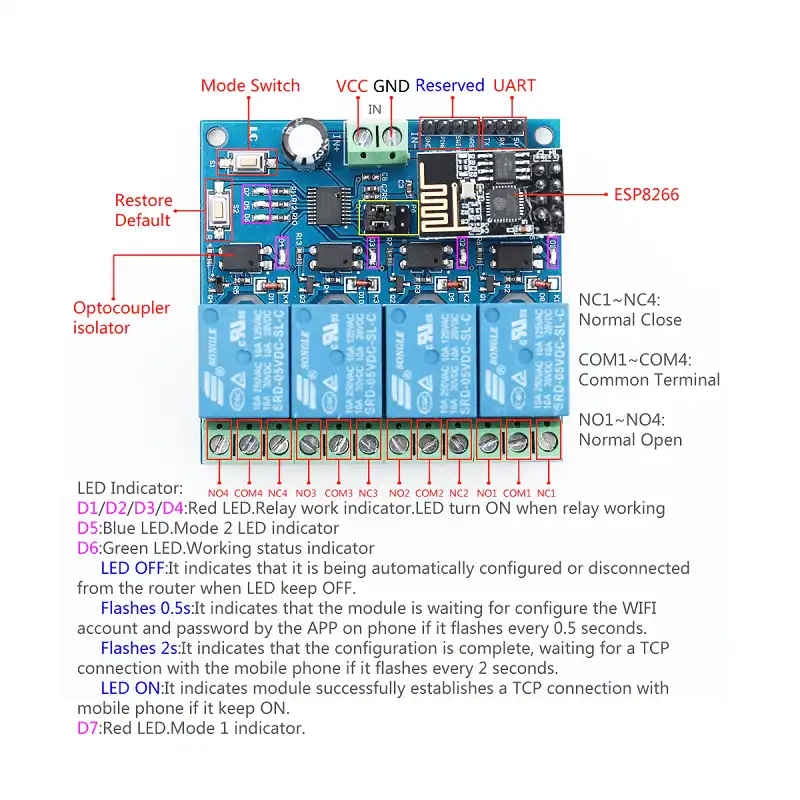

- Onboard relay LED indicator, mode option and working statue LED indicator.
- Reserved UART debug interface and MCU download port for the program.
Package Includes:
1 x ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch
ESP32 Complete Guide: Pinout, Projects & Getting Started
The ESP32 is arguably the most powerful microcontroller you can buy for under ₹500. With dual-core processing, built-in...
Read More →
Smart Classroom IoT: Attendance, Air Quality, Projector Control
Table of Contents Smart Classroom Concept Attendance Tracking with IoT Air Quality Monitoring Projector and AV Control Energy...
Read More →
ESP32 DAC Tutorial: Generate Analog Signals and Audio Output
The ESP32 DAC (Digital-to-Analog Converter) is a powerful built-in feature that sets the ESP32 apart from most other...
Read More →Technical Specifications
| Model | ESP8266 |
|---|---|
| Operating Voltage | 5V |
| Interface / Protocol | WiFi |
| SKU | AI3147 |
| Weight | 0.08 kg |
| Availability | Out of Stock |
Applications & Use Cases
The ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
