This is the 5V variant of the 2 Channel Relay Module 30A with Optocoupler Isolation 5V Supports High and Low Triger in Relay Modules. Available at ₹363.44 (₹308.00 + GST) with free shipping across India.

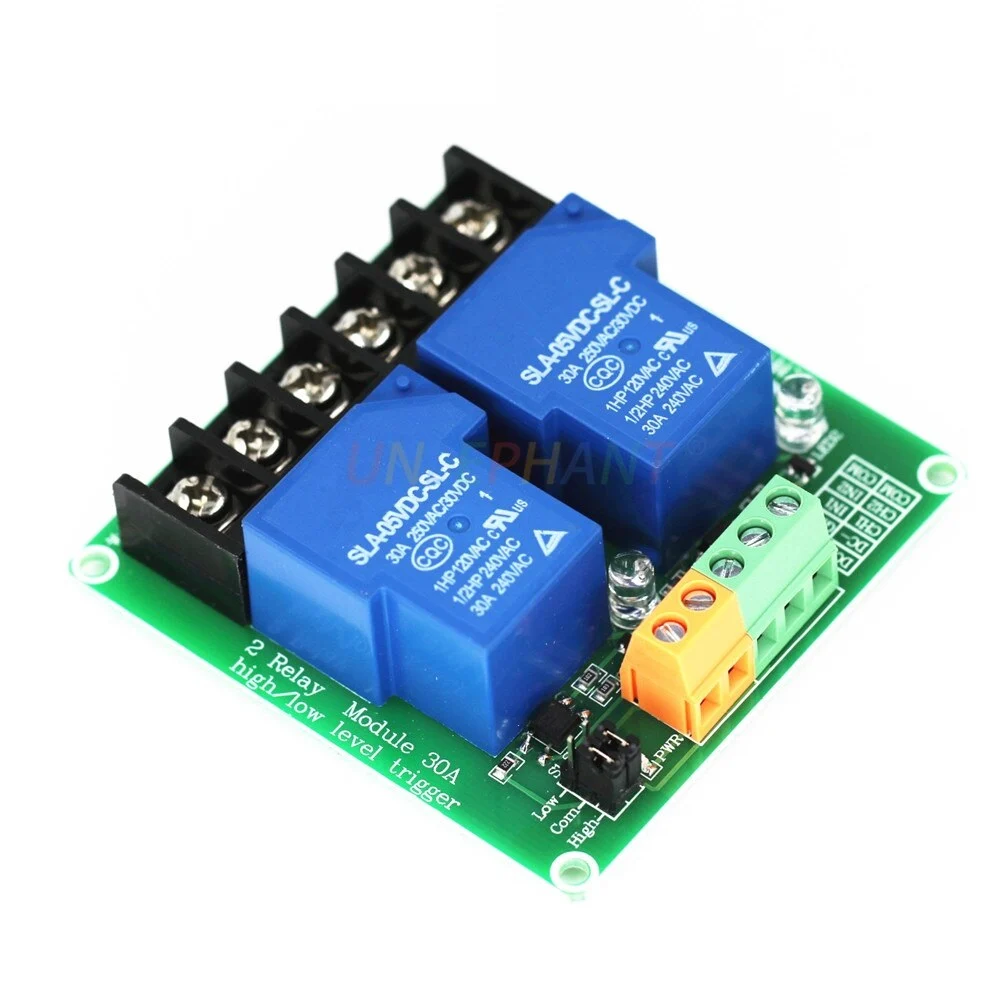

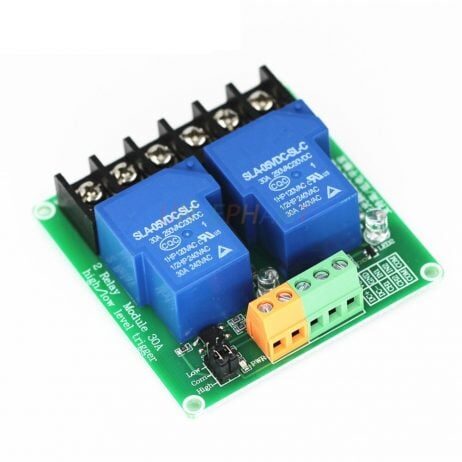

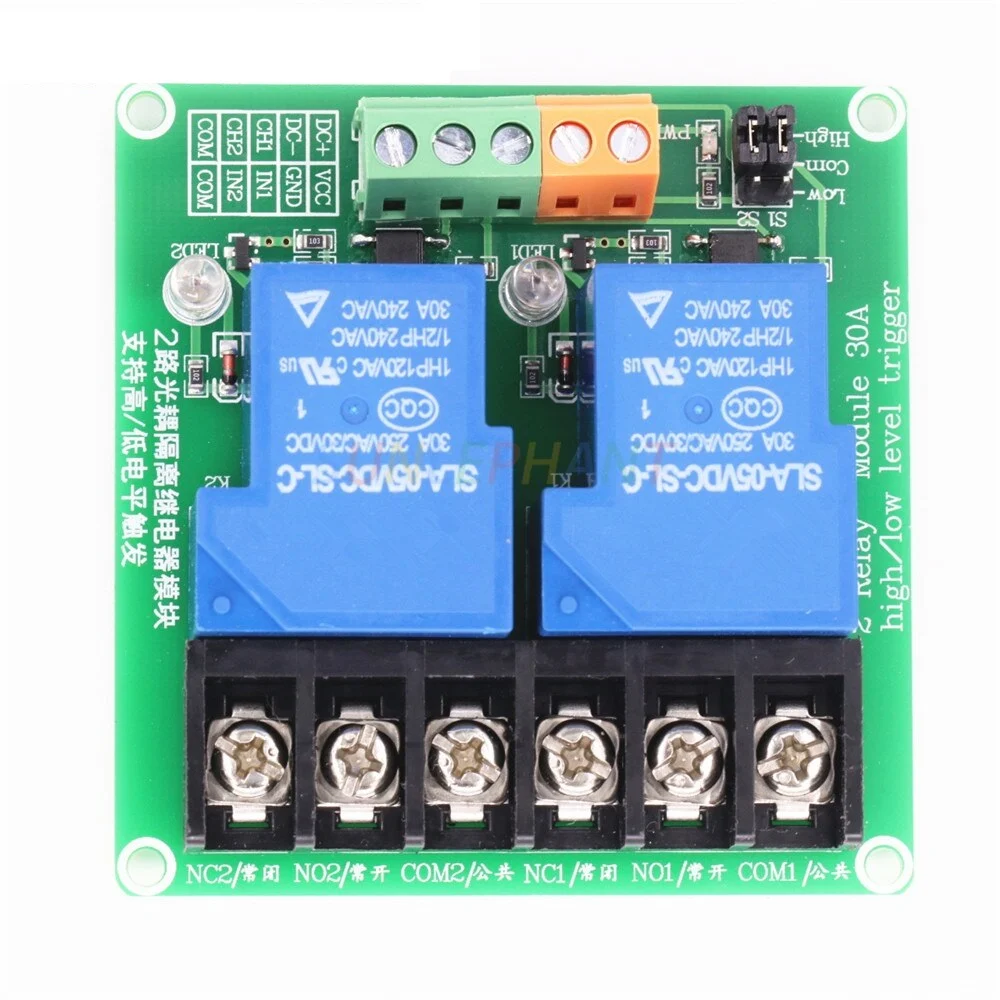

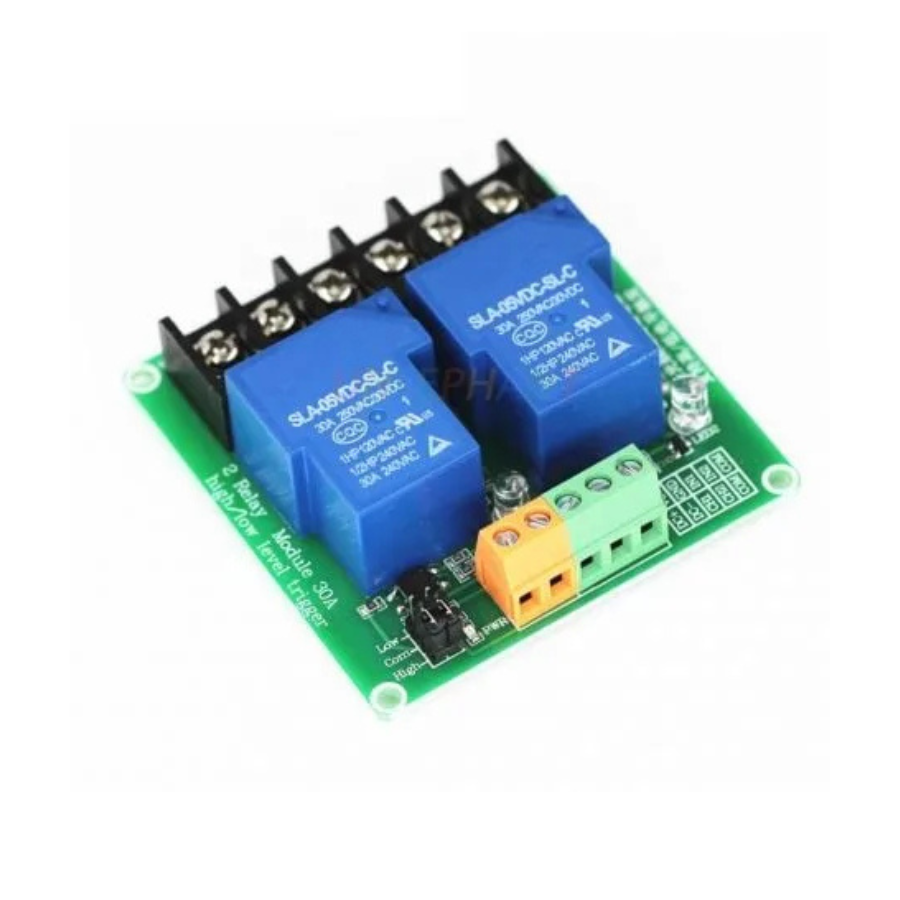

2 Channel Relay Module 30A with Optocoupler Isolation 5V Supports High and Low Triger
This relay module is capable of switching between two channels with optocoupler isolation and can be activated by either high or low voltage for PLC automation. It features a robust relay that can manage a maximum load of DC 5V 30A or AC 250V 30A. The module adheres to international safety standards, providing distinct slots for the control and load areas. Additionally, it offers optocoupler isolation for each channel to enhance its interference resistance.
Features:
- Using high-power relay, the maximum control load DC 5V 30A / AC 250V 30A;
- With each optocoupler isolation, anti-interference ability.
- In line with international safety standards, the control area and the load area with isolation slot.
- Each channel has a relay on the LED indication.
- Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, all kinds of circuit modification.

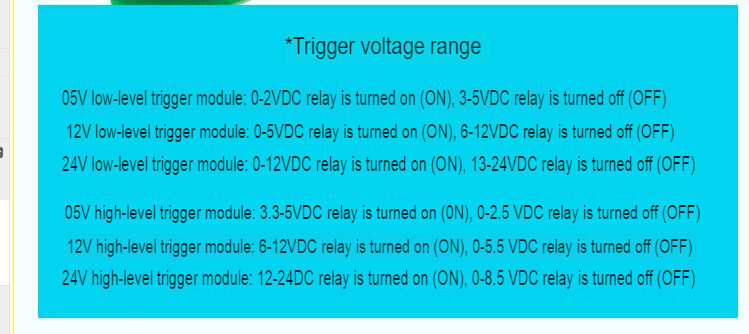

Trigger Voltage Range:
Specification:
- Supply Voltage: DC 5V
- Quiescent Current: 5mA
- Maximum Operating Current: 190mA
- Trigger Mode: High and low-level trigger
- Load Voltage: DC 30V / AC250
- Load Current: 30A
- Relay Life: more than 100,000 times
Package Includes:
1 x 2 Channel Relay Module, 30A 5V Supports High and Low Trigger Optocoupler
ESP32 Mesh Network: ESP-MESH for Large Sensor Arrays
When your IoT project outgrows a simple star network and you need sensors deployed across a wide area...
Read More →
IoT Soil Monitor for Farms: ESP32 + LoRa + Dashboard
Modern Indian agriculture is rapidly embracing technology, and an IoT soil monitor farm ESP32 LoRa system represents one...
Read More →
ESP32 Multiple WiFi Networks: Fallback Connection Logic
When building robust IoT projects with the ESP32 multiple WiFi networks fallback system, one of the most critical...
Read More →Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Current Rating | 30A |
| Channels | 2-channel |
| SKU | AI2963 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2 Channel Relay Module 30A with Optocoupler Isolation 5V Supports High and Low Triger is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
