This is the 24V variant of the 24V 8 Channel Relay Module in Relay Modules. Available at ₹416.54 (₹353.00 + GST) with free shipping across India.

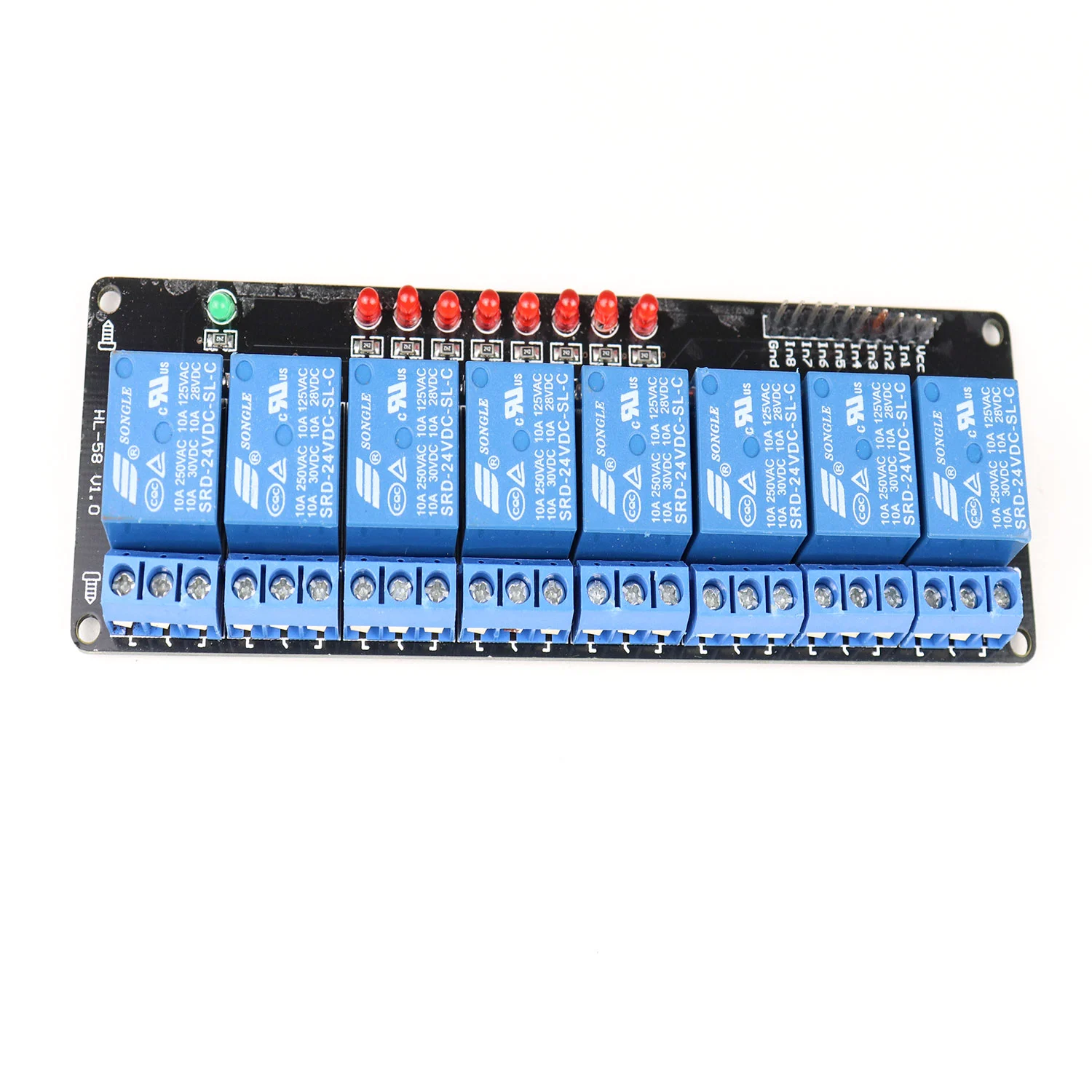

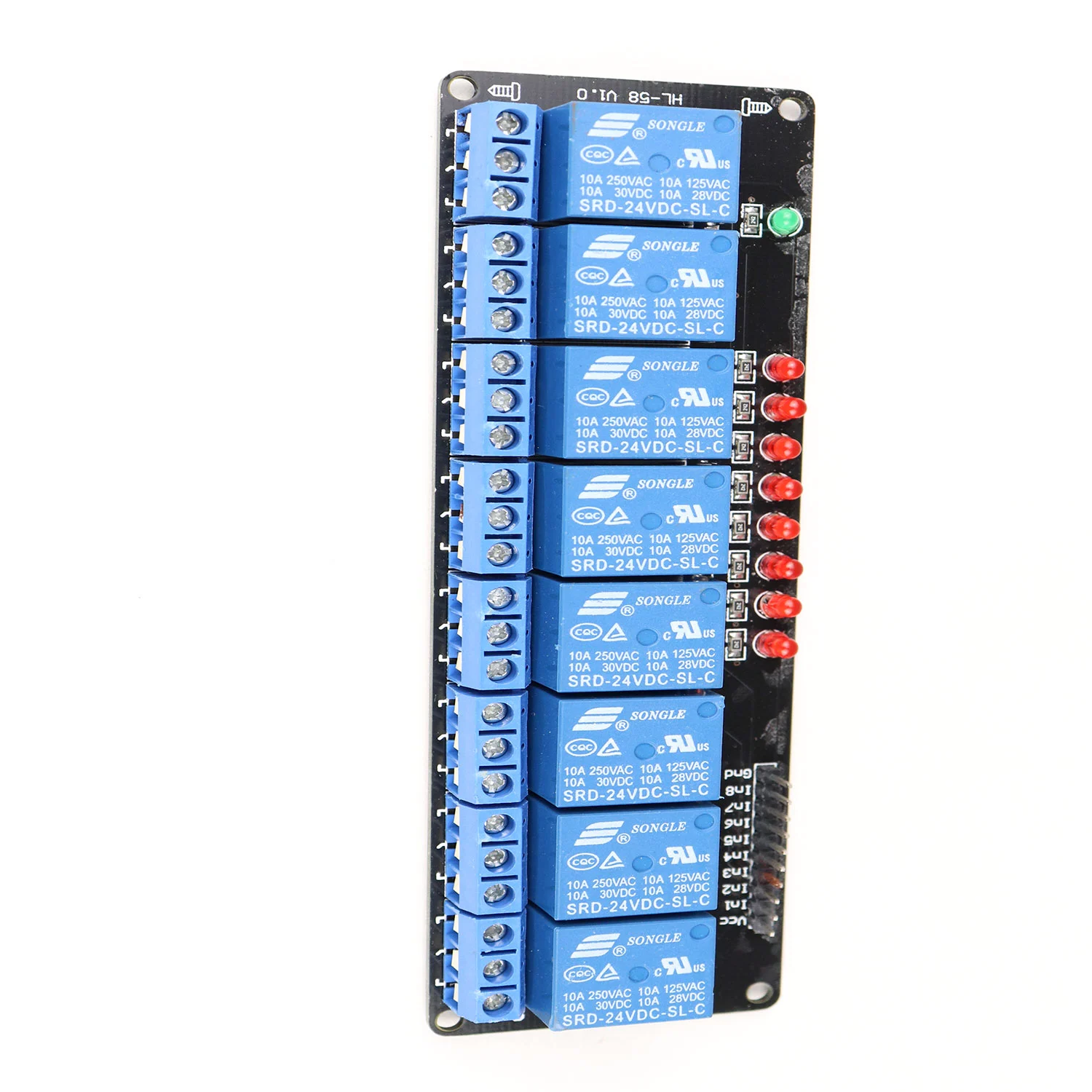

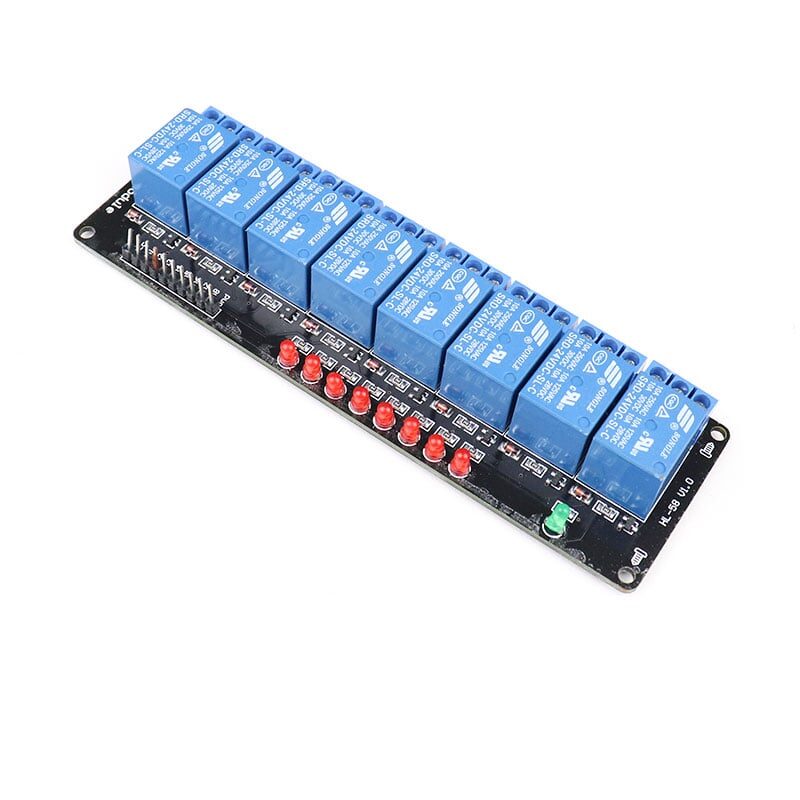

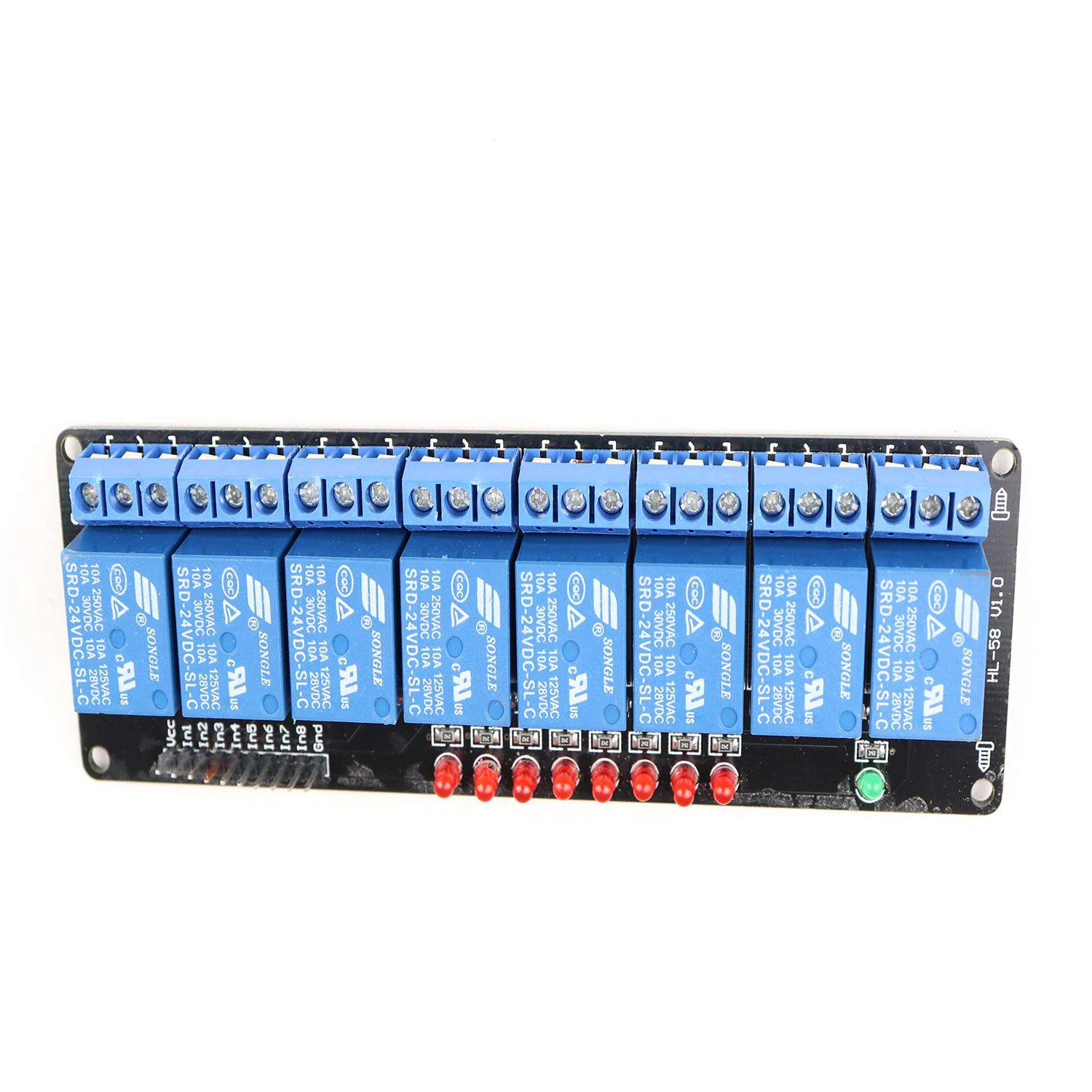

24V 8 Channel Relay Module
This relay board has 8 SPDT channels and can switch high-current electrical loads (AC or DC) such as motors, lights, pumps, contactors and more. It works with a 24VDC power supply and can be activated by any logic-level signal from 3V to 30V. It is compatible with microcontroller TTL logic and can be controlled directly by PIC, AVR, ARM, Raspberry PI, Arduino and other devices.
Features:
- Header connector for connecting power and trigger voltage.
- LED on each channel indicates relay status.
- Screw terminal connector for easy relay output and aux power connection.
Specification:
| Channel | 8 |
|---|---|
| Trigger Voltage (VDC) | 24 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature Range (°C): | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Length (mm): | 138 |
| Width (mm) | 43 |
| Height (mm) | 17 |
| Weight (gm) | 100 |
| Shipping Weight | 0.12 kg |
| Shipping Dimensions | 9 × 18 × 2 cm |
Package Includes:
1 x 24V 8 Channel Relay Module.
ESP32 SPIFFS File System: Store Web Pages On-Device
The ESP32 SPIFFS file system lets you store web pages, HTML, CSS, JavaScript, and configuration files directly on...
Read More →
AWS IoT Core with ESP32: Cloud-Connected Sensor Guide
Connecting your ESP32 to AWS IoT Core takes your IoT projects from local network experiments to enterprise-grade, globally...
Read More →
IoT Electricity Meter: Smart Grid Integration
Table of Contents Smart Metering in India Current and Voltage Sensing Building the Energy Monitor Data Logging and...
Read More →Technical Specifications
| Operating Voltage | 24V |
|---|---|
| Channels | 8-channel |
| SKU | AI3213 |
| Weight | 0.14 kg |
| Availability | In Stock |
Applications & Use Cases
The 24V 8 Channel Relay Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
