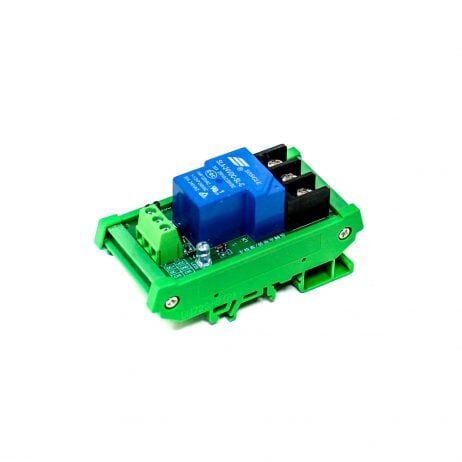

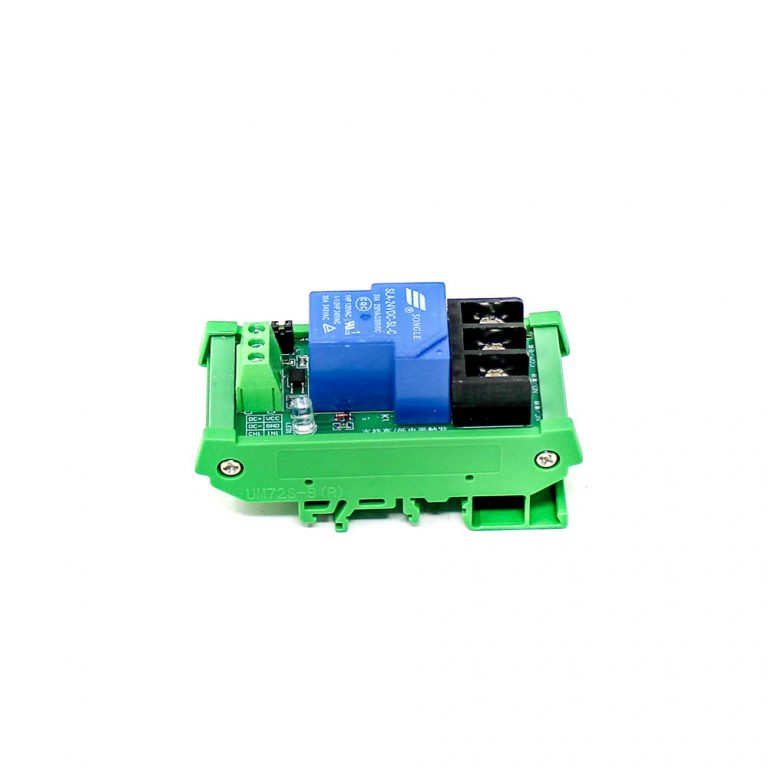

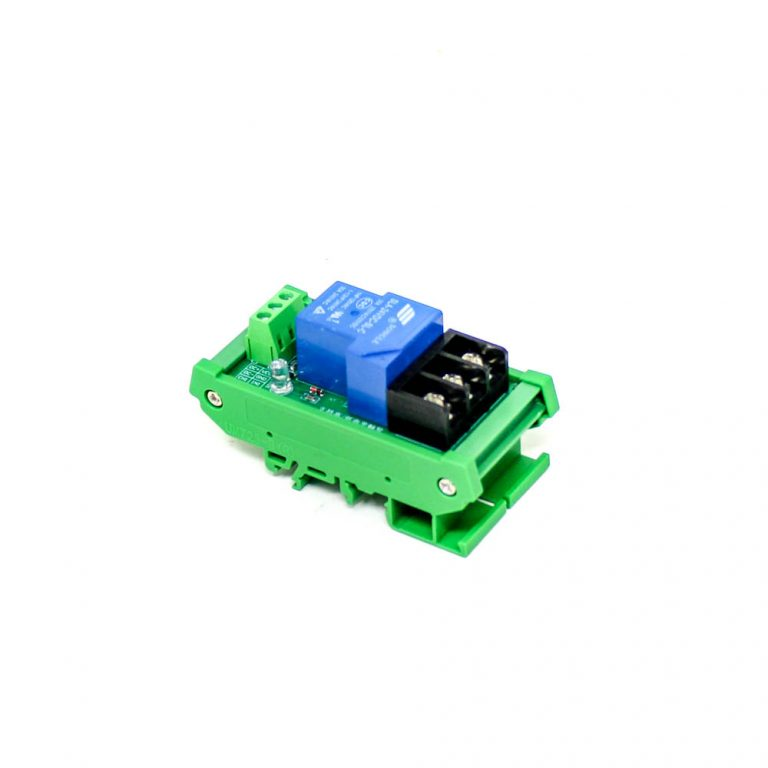

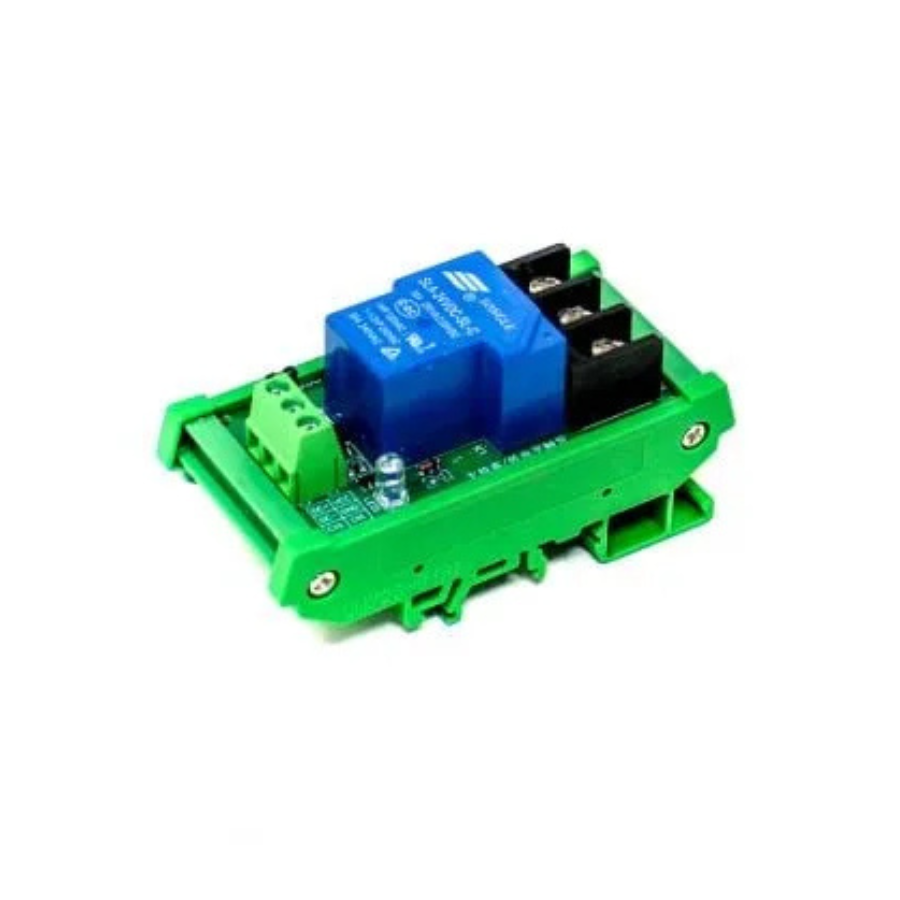

1 Channel Relay Module, 30A with Optocoupler, Isolation 24V Supports, High and Low Triger（with Guide Rail)
Introducing the 1-channel 24V 30A Relay Control Board Module with Optocoupler, compliant with international safety standards and featuring isolated control and load areas with isolation trenches. This module boasts a single genuine relay, designed to provide reliable control for various applications.
The inputs of the 1-channel 24V 30A Relay Module are isolated to protect delicate control circuitry, ensuring safe and reliable operation. It features clear indicators for power supply and relay instructions, with LEDs indicating the status of the relay.
This versatile module supports both DC and AC signals, allowing you to control 220V AC loads effortlessly. It is compatible with a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and more, making it suitable for various projects and applications.

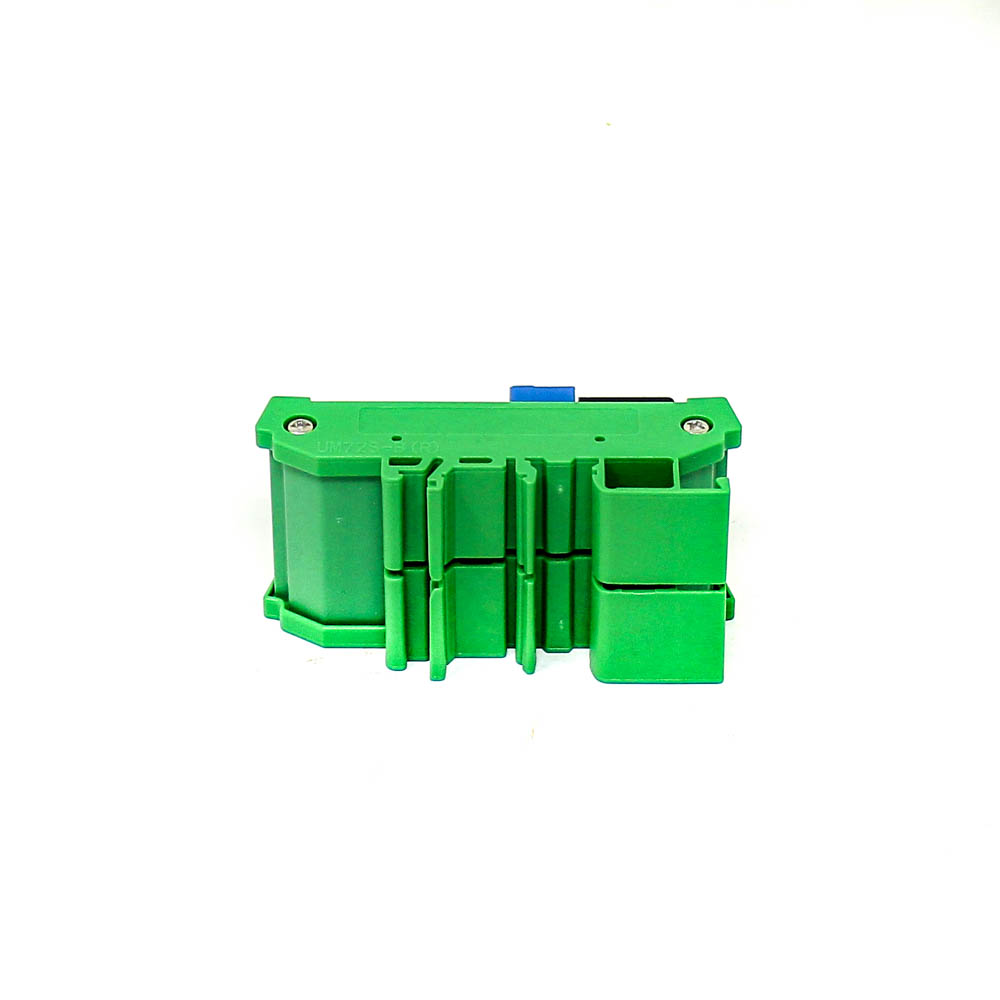

With its guide rail situated on the backside, installation and adjustment of the module to a superior location are made convenient. Additionally, features like high impedance controller pin, pull-down circuit for malfunction avoidance, and one normally closed and one normally open contact enhance its usability and reliability.
Features:
- High impedance controller pin
- Pull-down circuit for malfunction avoidance
- One normally closed contact and one normally open contact
- Triode drive for increased relay coil efficiency
- Power supply and control indicator lamps for clear status indication
- Four fixed screw holes with a diameter of 3.1mm for convenient installation and fixation
Enhance your control applications with the reliable performance and versatile features of the 1-channel 24V 30A Relay Control Board Module with Optocoupler. Ideal for a wide range of industrial and DIY projects.
Specifications:
| Trigger Voltage (VDC) | 24 |
|---|---|
| Switching Voltage (VAC) | 250@30A |
| Switching Voltage (VDC) | 30@30A |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 7 × 4 × 3 cm |
Package Include :
1 x 1 channel 24V 30A relay control board module (Guide rail)
1 Channel Relay Module, 30A with Optocoupler, Isolation 24V Overview
This single-channel 24V relay control board features a genuine 30A SPDT relay with optocoupler isolation trenches to separate the control and load circuits. Designed for reliable switching of high-current AC or DC loads, it mounts easily on a DIN guide rail and supports both high- and low-level triggers.
Key Features of 1 Channel Relay Module, 30A with Optocoupler, Isolation 24V
- Single genuine 30A SPDT relay rated for AC/DC switching
- 24V coil voltage with high-impedance input and built-in pull-down to avoid false triggers
- Optocoupler isolation and trench separation for enhanced electrical safety
- One normally open (NO) and one normally closed (NC) contact for versatile control
- Includes DIN guide rail bracket for quick, secure panel mounting
- Genuine product, fast shipping from Zbotic within 24 hours
Applications and Use Cases
- Controlling 220 VAC lighting circuits in industrial automation
- Switching DC motors, pumps or solenoids up to 30 A
- Home automation projects requiring safe isolation between microcontroller and mains
- Power distribution panels for HVAC or refrigeration systems
- Laboratory equipment requiring reliable on/off cycling of heaters
How to Use 1 Channel Relay Module, 30A with Optocoupler, Isolation 24V
Mount the module on a DIN guide rail, connect 24 V DC to VCC and GND, then wire your load between COM and NO (or NC). Apply a high or low signal to the IN pin—thanks to the built-in pull-down, the relay stays off until triggered. LED indicators show power and relay status for quick diagnostics.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I wire a load to the relay contacts?
Connect your device’s supply line to the COM terminal, then run the output from NO for normally-off operation or from NC for normally-on. Use appropriately rated wiring and secure the terminal screws firmly.
Does this module support both high and low trigger signals?
Yes. The high-impedance controller pin and onboard pull-down circuit let you activate the relay by applying a 24 V high signal or by pulling the input low, preventing unintended switching.
How does the optocoupler improve module performance?
The built-in optocoupler and isolation trenches electrically separate the 24 V control side from the high-current load side, reducing noise, preventing voltage spikes, and protecting your microcontroller or PLC.
