This is the 5V variant of the 5V 2 Channel Relay Module in Relay Modules. Available at ₹83.78 (₹71.00 + GST) with free shipping across India.
Product Description

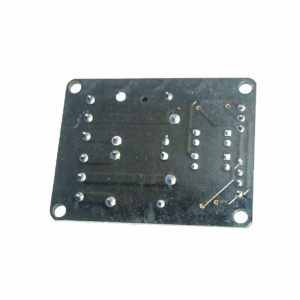

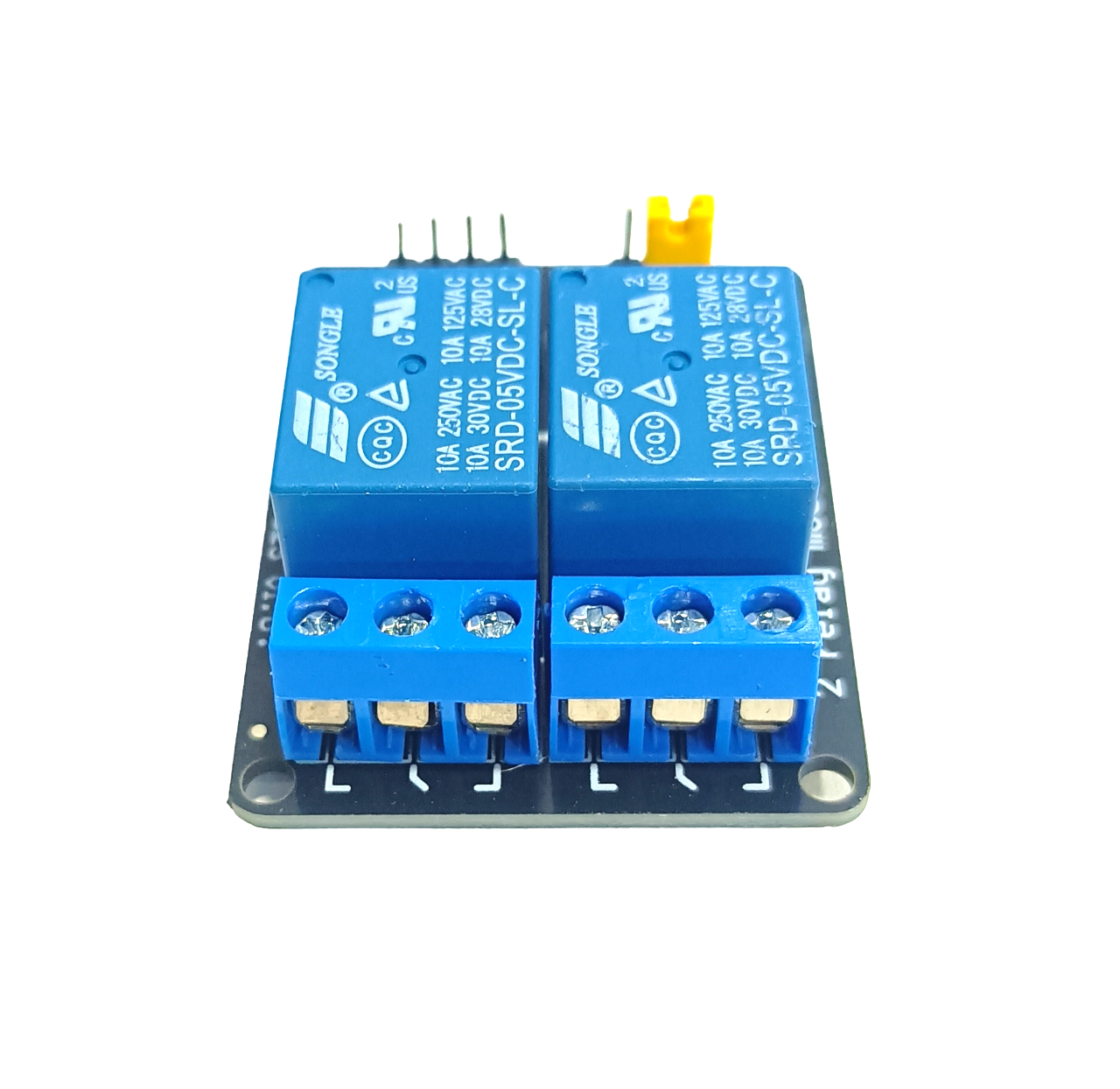

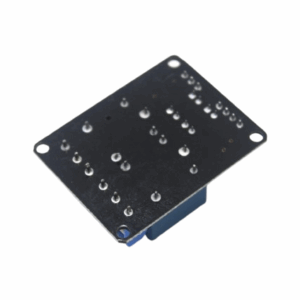

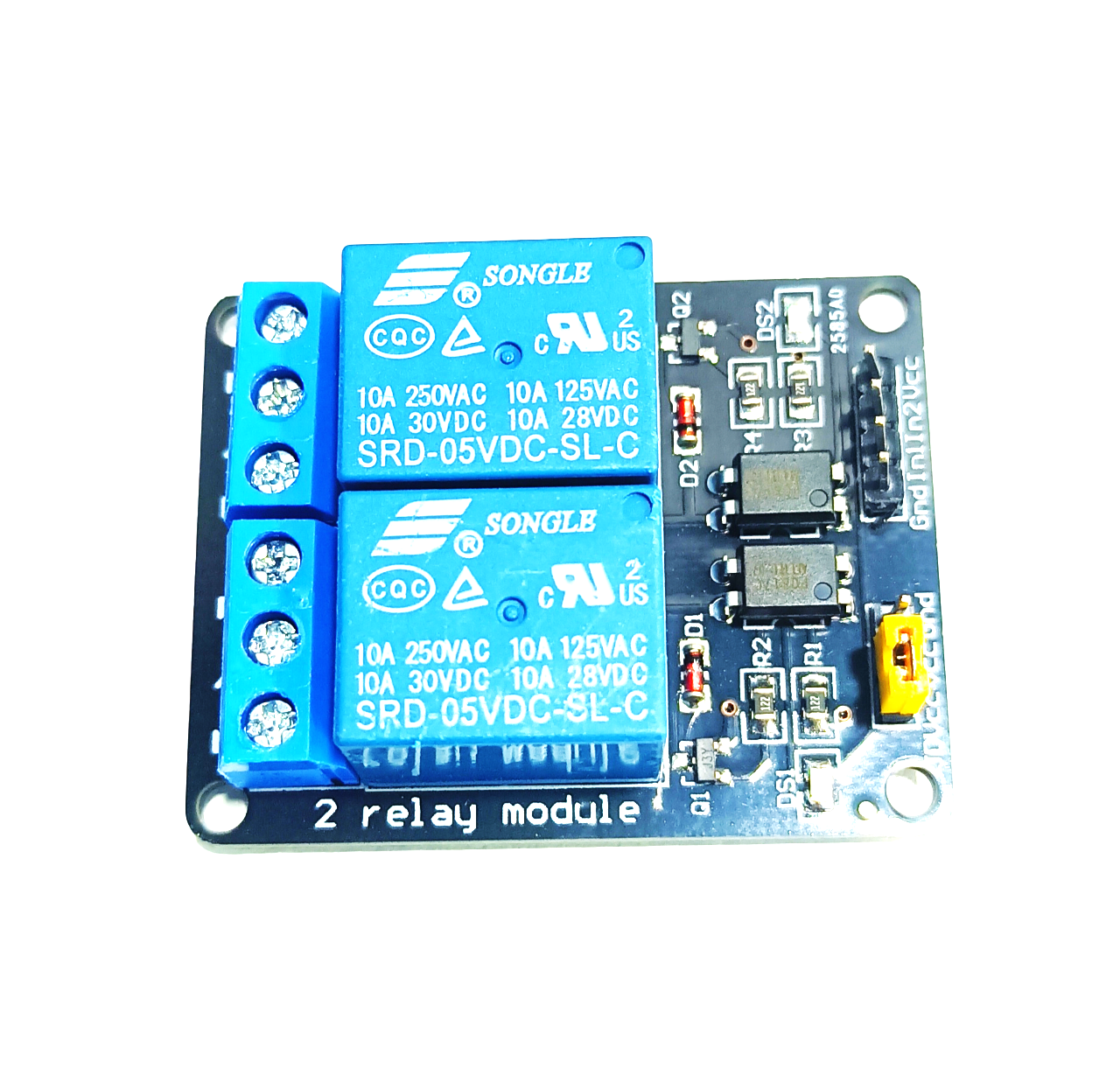

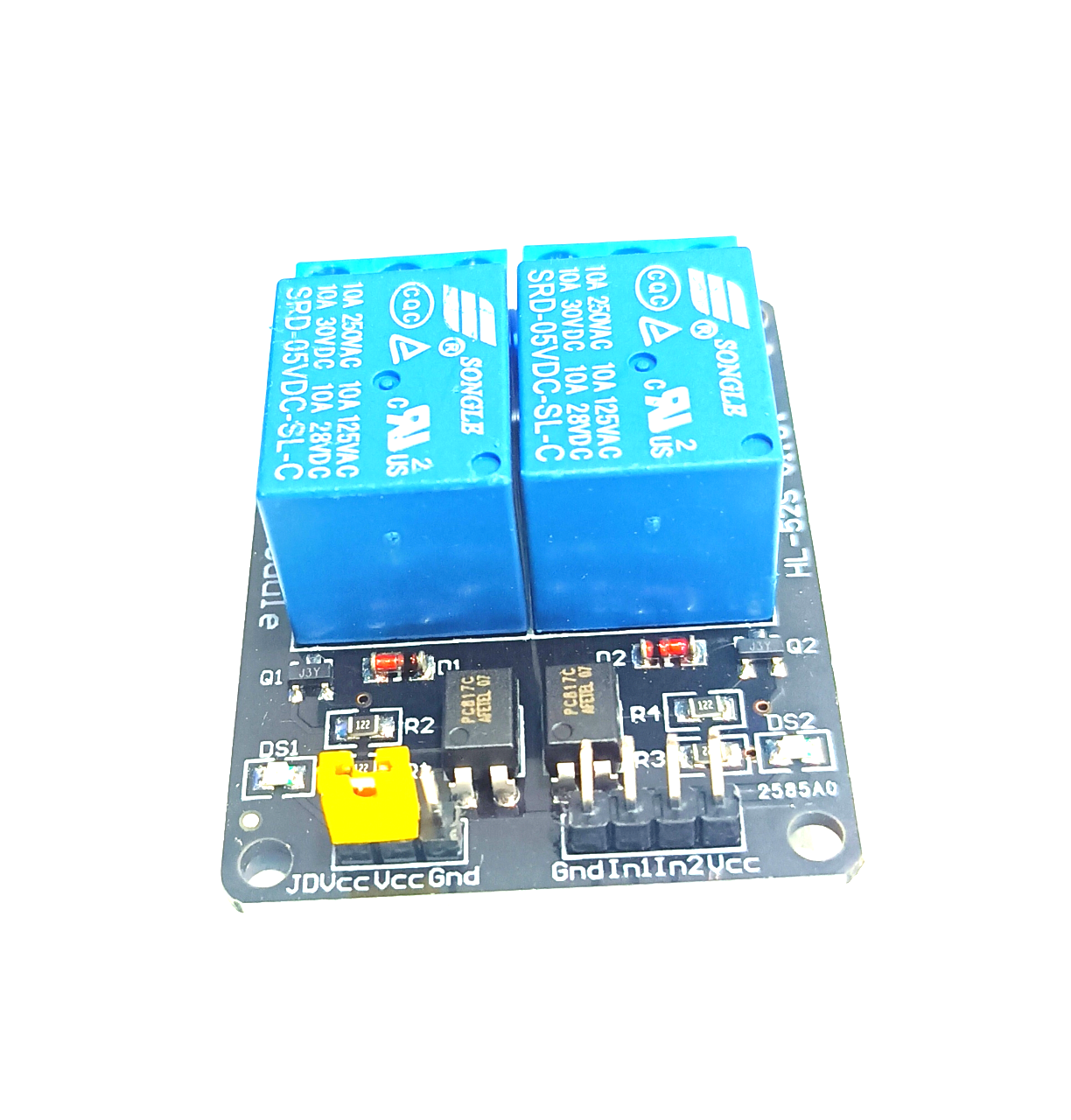

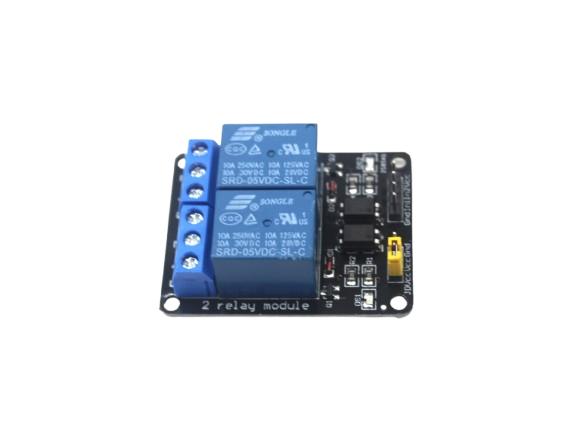

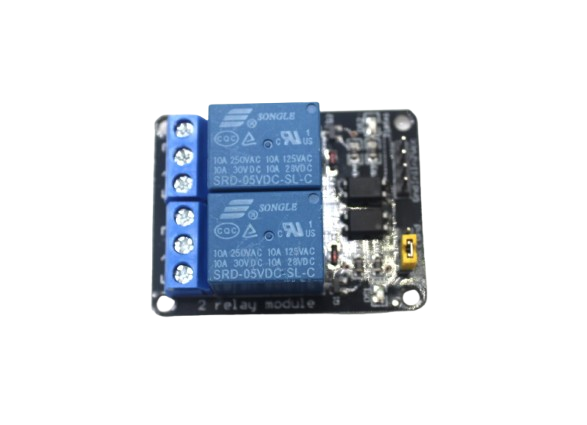

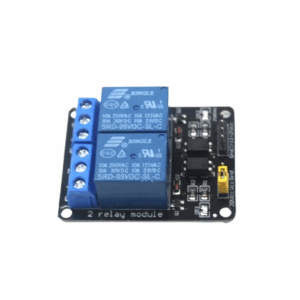

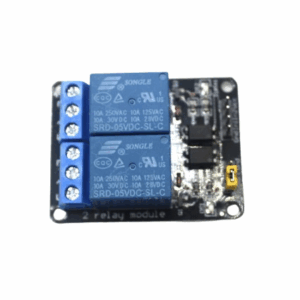

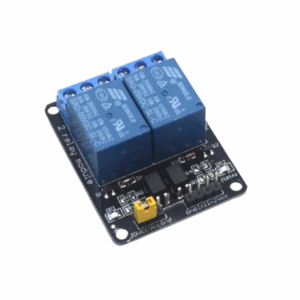

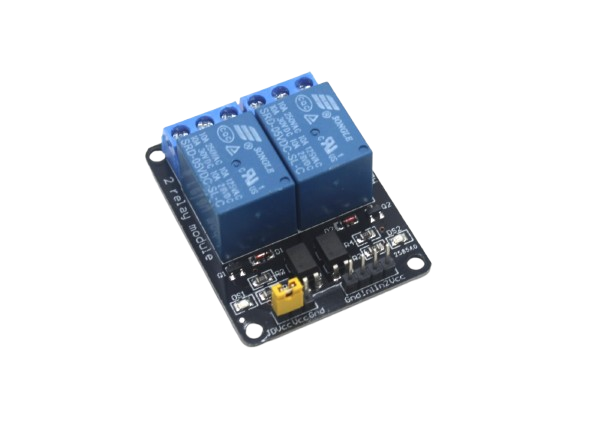

5V 2 Channel Relay Module
- The active low relay board features 5V relays that can be switched on and off via an opto-isolated digital input, ensuring electrical isolation between the control circuit and the relay mechanism. To activate the relays, connect a microcontroller to the output pin, which requires a minimum input voltage of 1V to turn the relays ON.
- These relay boards are versatile and support both 5V and 3.3V devices, making them suitable for a variety of applications, including Raspberry Pi, Arduino, and PIC microcontrollers. Their compatibility and ease of integration make them an excellent choice for numerous electronic projects and automation tasks.
Features:
- 2 Channels
- Maximum switching voltage: 250VAC / 30VDC
- Maximum switching current: 10A
- Each relay features an LED indicator.
- Dimensions: 51 x 39 x 18mm (Length x Width x Height)
Specification:
| Coil voltage | 5VDC |
| Number of channels | 2 |
| Terminal type | Pin Header |
Package Includes
- 1 x 5V 2 Channel Relay Module
IoT Composting Monitor: Temperature and Moisture Tracking
Table of Contents Why Temperature Monitoring Matters Sensor Selection Guide Hardware Assembly and Wiring Firmware Development Cloud Data...
Read More →
ESP32 Troubleshooting: Boot Loop, Brownout and Flash Fix
ESP32 troubleshooting boot loop brownout flash errors are among the most frustrating experiences for IoT developers and hobbyists...
Read More →
IoT Weather Alert System: Thunder, Rain and Flood Warning
India experiences some of the most severe weather events in the world — flash floods in Mumbai, cyclones...
Read More →Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Channels | 2-channel |
| SKU | AI0084 |
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5V 2 Channel Relay Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
