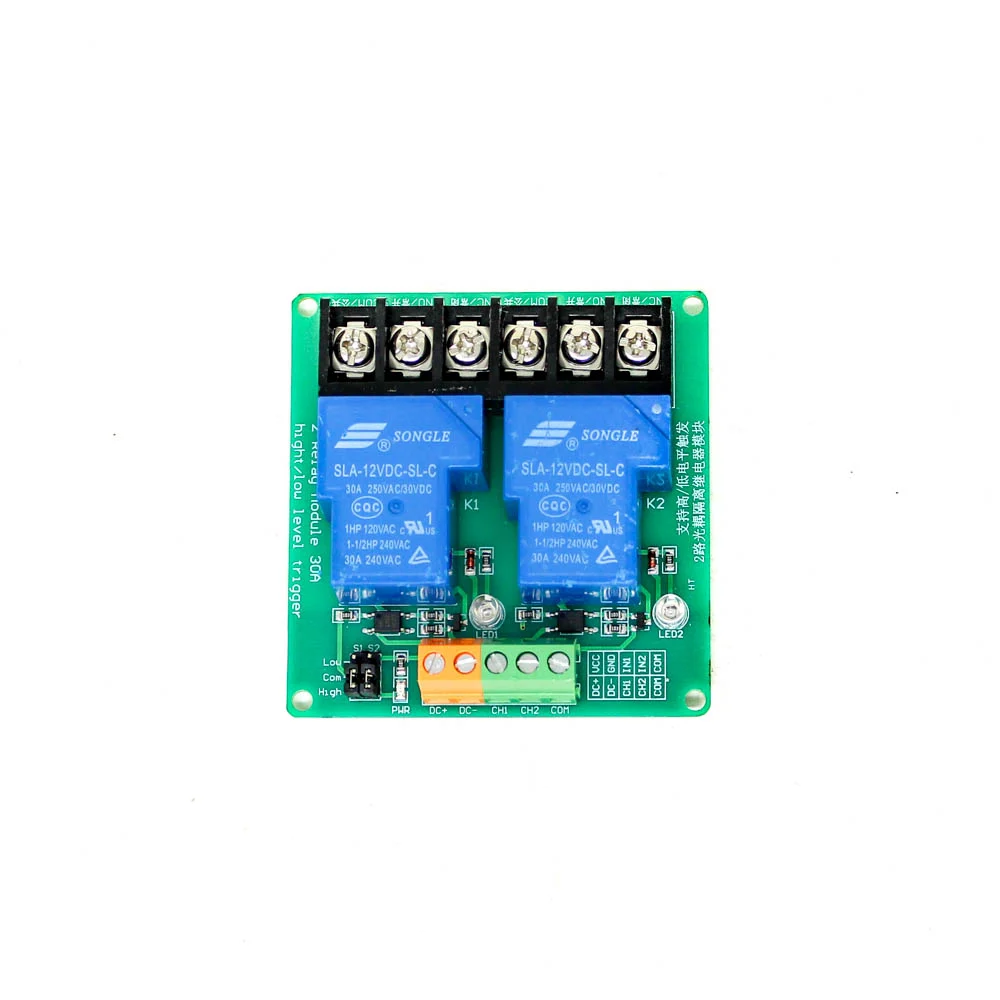

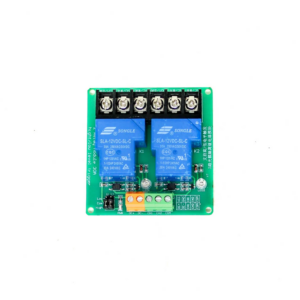

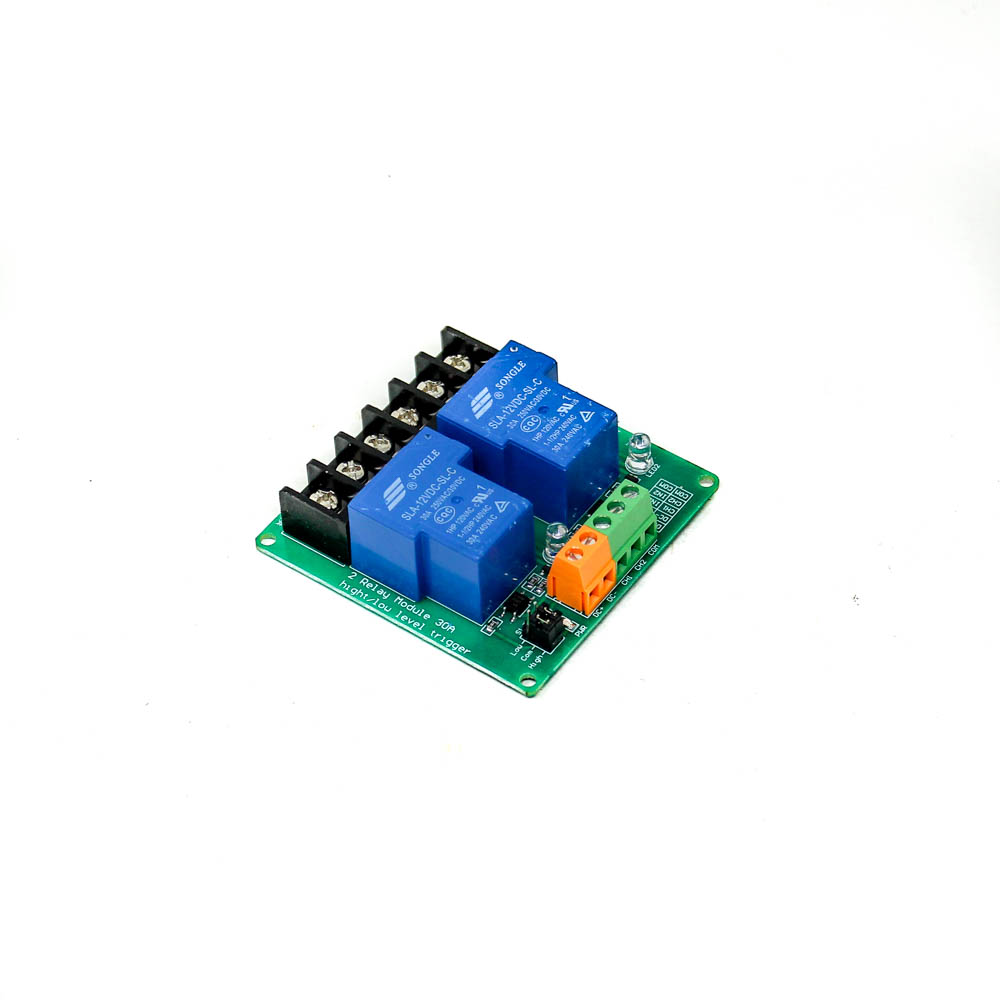

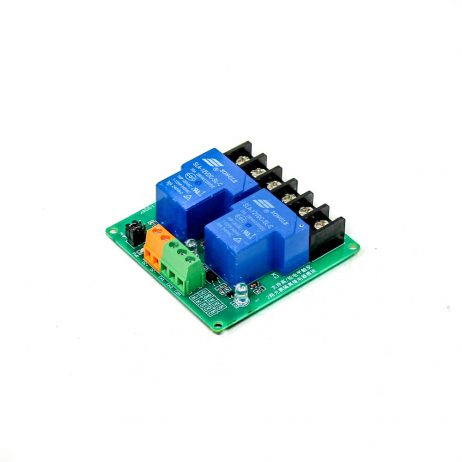

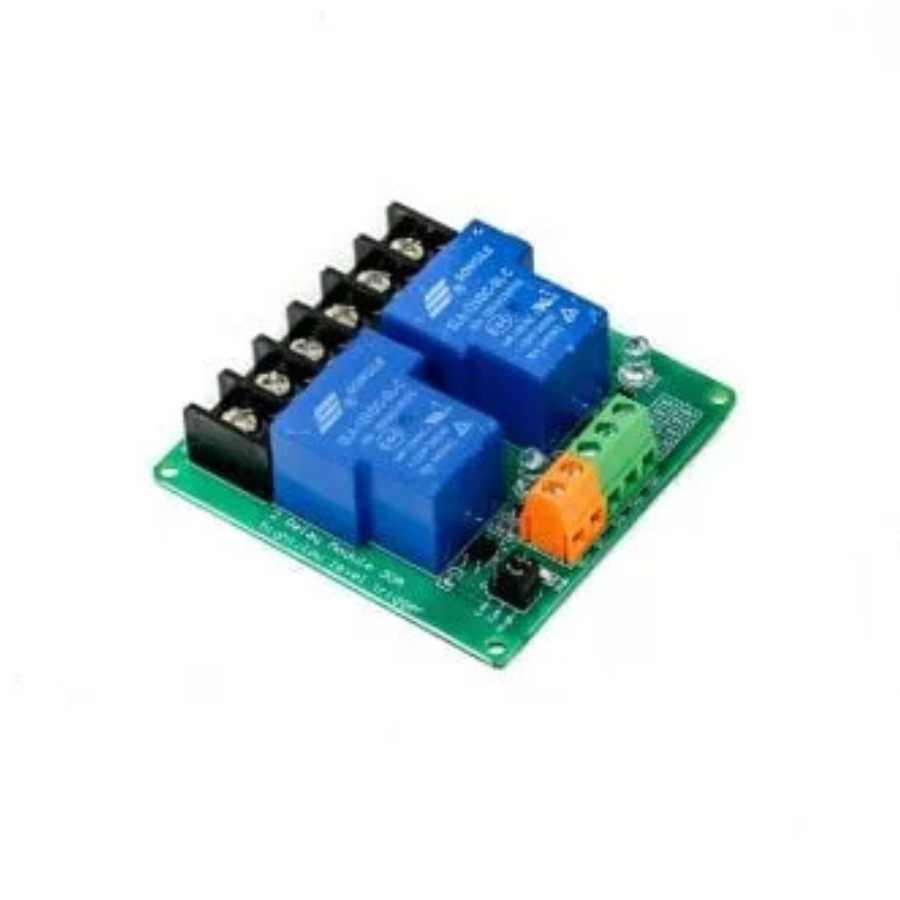

This is the 12V variant of the 2 Channel Relay Module, 30A with Optocoupler, Isolation 12V Supports, High and Low Triger in Relay Modules. Available at ₹310.34 (₹263.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This is a 2 Channel Relay Module 30A that supports high and low trigger for PLC automation. It has a 12V optocoupler isolation feature. The relay can control a maximum load of DC 12V 30A or AC 250V 30A. The control area and the load area are separated by an isolation slot for safety reasons. The optocoupler isolation also enhances the anti-interference ability of the product.
Features:
- Using high-power relay, the maximum control load DC 12V 30A / AC 250V 30A;
- With each optocoupler isolation, anti-interference ability.
- In line with international safety standards, the control area and the load area with isolation slot.
- Each channel has a relay on the LED indication.
- Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
Specification:
| Supply voltage(V) | DC 12V |
|---|---|
| Quiescent Current | 5mA |
| Maximum Operating Current | 190mA |
| Trigger Mode | High and low-level trigger |
| Load Voltage | DC 30V / AC 250 |
| Load Current | 30A |
| Relay Life | more than 100,000 times |
| Shipping Weight | 0.088 kg |
| Shipping Dimensions | 10 × 9 × 3 cm |
Package Includes:
1 x 2 Channel Relay Module 30A 12V Supports High and Low Trigger Optocoupler
ESP32 MicroPython Getting Started: Setup, Code and Projects
If you love Python, you are going to love ESP32 MicroPython. MicroPython is a lean implementation of Python...
Read More →
IoT Composting Monitor: Temperature and Moisture Tracking
Table of Contents Why Temperature Monitoring Matters Sensor Selection Guide Hardware Assembly and Wiring Firmware Development Cloud Data...
Read More →
IoT Cold Chain Monitoring: Temperature Tracking for Food
Table of Contents Why Temperature Monitoring Matters Sensor Selection Guide Hardware Assembly and Wiring Firmware Development Cloud Data...
Read More →Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Current Rating | 30A |
| Channels | 2-channel |
| SKU | AI2964 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2 Channel Relay Module, 30A with Optocoupler, Isolation 12V Supports, High and Low Triger is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
