This is the Red variant of the A4988 Stepper Motor Driver Controller Board- RED in Stepper Motor Drivers. Available at ₹56.64 (₹48.00 + GST) with free shipping across India.
Product Description
This is Red A4988 Stepper Motor Driver Controller Board. It is made of superior material, safe and stable, great for 3D printers. A4988/DRV8825 can also be used, but pay attention to direction when inserting, otherwise, the driver may be burned down.

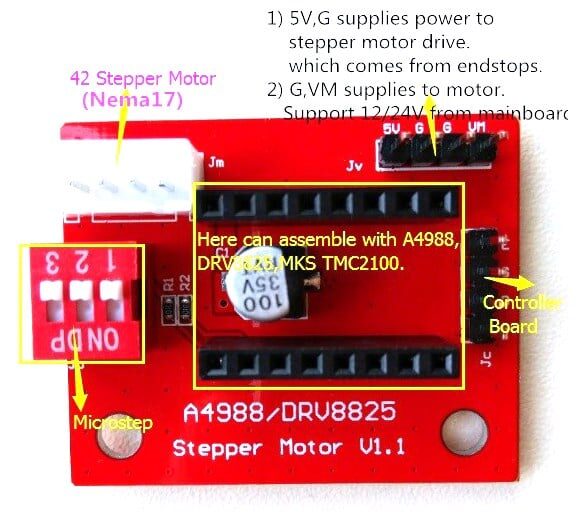

Pin Configurations:
Features:
- Compact size, easy to install and use.
- All jumpers hit the ON position to indicate 16 subdivisions (4988) or 32 subdivisions (8825).
- Jm connection motor; Jv Connects 5V and 12V-24V Power Supply.
- E /S /D /G of Jc corresponds to Enable /Step /Dir /Gnd driving signal output on the connection respectively.
Specification:
| Suggested Match | 3A004 |
|---|---|
| Color | Red |
| Material | Metal+PCB Board |
| Length (mm): | 41 |
| Width (mm) | 34 |
| Height (mm) | 11 |
| Weight (g): | 10 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
Package Includes:
1 x A4988 Stepper Motor Driver Controller Board- RED
Stepper Motor Half-Step vs Full-Step: Resolution & Torque Trade-offs
Stepper motors are the workhorse of precise motion control — used in 3D printers, CNC routers, laser cutters,...
Read More →
How to Run Stepper Motor Without Arduino Using EasyDriver
Most stepper motor tutorials assume you have an Arduino or microcontroller to generate the step pulses. But what...
Read More →
Motor Encoder Interfacing: Quadrature Encoder with Arduino
If you have ever tried to make a robot move in a straight line or position a robotic...
Read More →Technical Specifications
| Model | A4988 |
|---|---|
| Color | Red |
| SKU | AI2782 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The A4988 Stepper Motor Driver Controller Board- RED is a versatile stepper motor drivers used across a wide range of applications including CNC machines, 3D printers, robotics, camera sliders, and pick-and-place machines.
Common use cases:
- Driving NEMA 17 stepper motors in a 3D printer
- Building a CNC router
- Precise positioning in a robotic arm
This product is ideal for CNC builders, 3D printer makers, and robotics engineers.
Technical Tip: TMC2208/2209 drivers offer silent operation via StealthChop. A4988/DRV8825 are more affordable. Set current limit via the onboard potentiometer.
