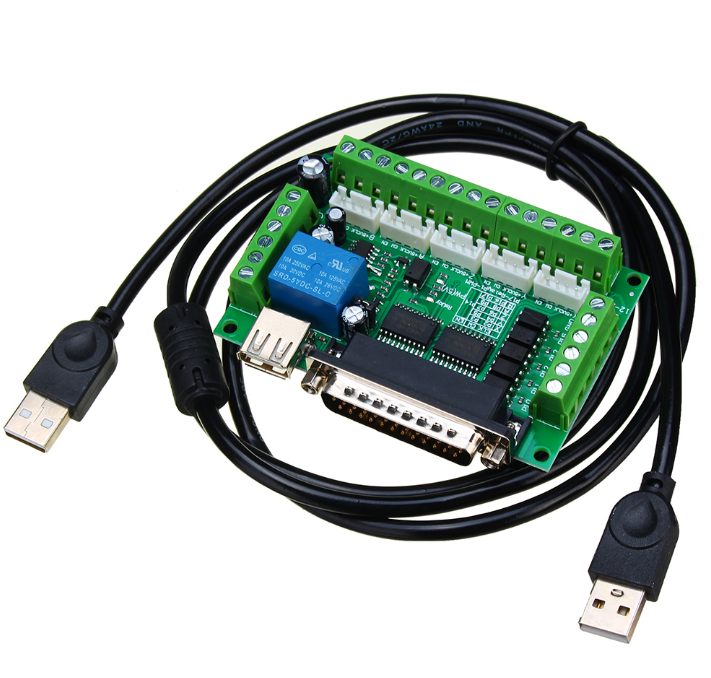

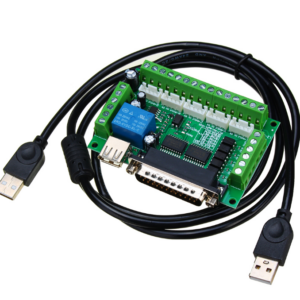

MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver and USB cable (Length-1.5m)

MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver and USB cable

The MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver is the most recent upgrade to the 5 axis breakout board. It is specifically designed for CNC single axis 2-phase stepper driver controllers, including series such as TB6560, M542, M542H, MA860H, 2M542, 2M982, DM542(A), and DM860(A). This board allows direct control of any 1-5 single axis stepper driver controllers from a PC using software like MACH3, EMC2, or KCAM4.

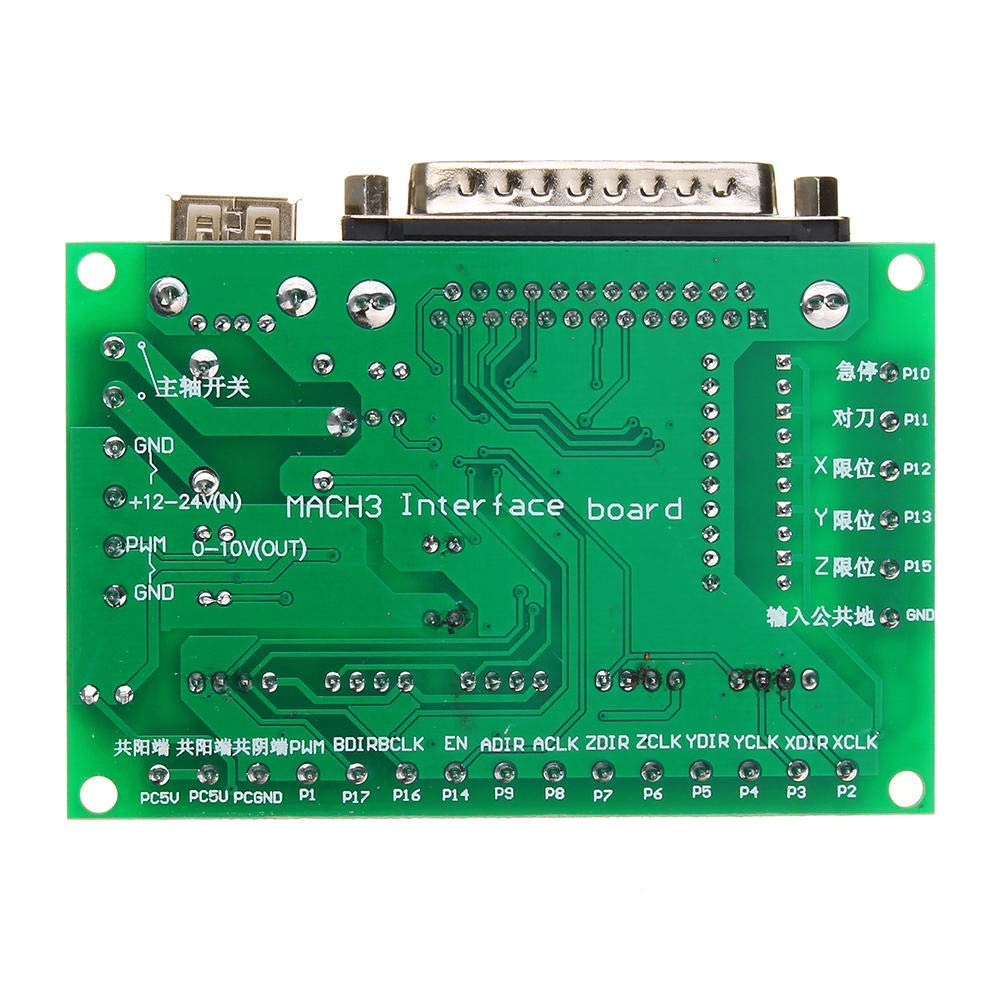

The board features a relay output port to control the spindle switch, designated as output port P17.

Additionally, it provides an optocoupler isolated 0-10V analog voltage output, which, when used with the appropriate analog interface converter, can manage the spindle speed. The output port P1 opens all 17 ports, enabling control of a 5-axis stepper motor through the optocoupler drive. The P1 port also serves as a PWM output, which can be managed by an optocoupler input spindle governor. This setup is compatible with both common cathode and common anode input levels at 5V drive.

Features

Maximum support 5-axis stepper motor driver controllers

Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.

USB power supply and peripherals powered phase are separated to protect computer security.

All the signals are opto-isolated which can protect your computer security.

5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.

Wide input voltage range: 12-24V, and with anti-reverse function.

One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.

Output 0-10V analog voltage for inverter to control the spindle speed.

Specifications

Package Includes

1 x MACH3 Interface Board.

1 x USB to USB Cable(1.5 mtr)
