Looking for L9110 Board? L9110 L9110S DC Stepper Motor Driver Board HBridge is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION

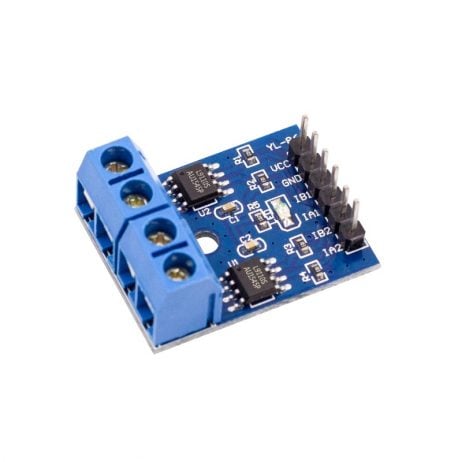

The L9110S dual-channel h-bridge motor driver module is a compact board that can be used to drive small robots. This module is based on the L9110 Motor Driver IC. This module has two independent motor driver chips which can each drive up to 800mA of continuous current. The boards can be operated from 2.5 V to 12 V enabling this module to be used with both 3.3 Volts and 5 Volts microcontrollers. A set of female header pins is used to connect this module to a microcontroller. The motors are attached via two sets of screw terminals.
A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four-line two-phase stepper motor. Four holes make this board easy to mount onto your robot or other projects.
Instructions:
- VCC external 2. 5V-12V voltage, GND external GND
- IA1 external MCU 10 port
- IB1 external MCU 10 port
- IA2 external MCU 10 port
- IB2 external MCU 10 port
- 0A1, 0B1 are connected to 2 pins of DC motor, no direction
- 0A2, 0B2 are connected to 2 pins of DC motor, no direction
- Turn on VCC, the GND module power indicator is on.
- IA1 input high level, IB1 input low level, [0A1 0B1] motor forward
- IA1 input low level, IB1 input high level, [0A1 0B1] motor reverse
- IA2 input high level, IB2 input low level, [0A2 0B2] motor forward
- IA2 input low level, IB2 input high level, [0A2 0B2] motor reverse
Features:
Package Includes:
1 x L9110 DC Stepper Motor Driver Board HBridge
About L9110 Board
L9110 L9110S DC Stepper Motor Driver Board HBridge is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI2225
- Category: Stepper Motor Drivers
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about L9110 Board and other products.
Applications
L9110 Board can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your L9110 Board today and start building.
L9110 L9110S DC Stepper Motor Driver Board HBridge Overview
The L9110 L9110S DC Stepper Motor Driver Board HBridge is a compact dual-channel driver module designed to control small DC and bipolar stepper motors. It integrates two independent H-bridge circuits, each capable of delivering up to 800 mA continuous current, and operates from 2.5 V to 12 V for seamless compatibility with 3.3 V and 5 V microcontrollers.
Key Features of L9110 L9110S DC Stepper Motor Driver Board HBridge
- Wide supply range: supports DC 2.5 V–12 V for flexible power options
- 800 mA continuous current per channel for reliable motor performance
- Low saturation voltage drop minimizes heat and maximizes efficiency
- TTL/CMOS compatible inputs directly interface with Arduino, Raspberry Pi, ESP32, and other CPUs
- Integrated control and drive circuitry simplifies wiring and reduces board space
- High-voltage protection on input pins safeguards the IC against voltage spikes
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Driving small DC geared motors in mobile robot platforms
- Controlling bipolar stepper motors for educational CNC or plotting machines
- Integrating into DIY 3D printer extruder or bed-leveling assemblies
- Prototyping automated door locks, camera sliders, or pan-tilt heads
- Implementing precise speed and direction control in robotics kits
How to Use L9110 L9110S DC Stepper Motor Driver Board HBridge
Connect the module’s VCC and GND pins to your 2.5 V–12 V power supply, attach each motor winding or DC motor leads to the screw terminals, and wire the logic inputs to your microcontroller’s GPIO pins. Use one input per channel for direction and apply a PWM signal to the other input to control speed. Ensure proper wiring of both channels when driving a bipolar stepper motor in full-step or micro-stepping modes.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I drive a bipolar stepper motor with this board?
Yes. By using both H-bridge channels and wiring the two motor coils to the screw terminals, you can control a bipolar stepper in full-step or wave-drive mode via separate direction and PWM signals.
What logic voltage levels are supported?
The inputs are TTL/CMOS compatible, so they accept 3.3 V and 5 V logic directly from popular microcontrollers like Arduino, ESP32, and Raspberry Pi.
How do I protect the board from voltage spikes?
The L9110S IC has built-in high-voltage protection on its input pins. For added safety, use decoupling capacitors on the power lines and avoid exceeding the 12 V supply rating.
