Product Description

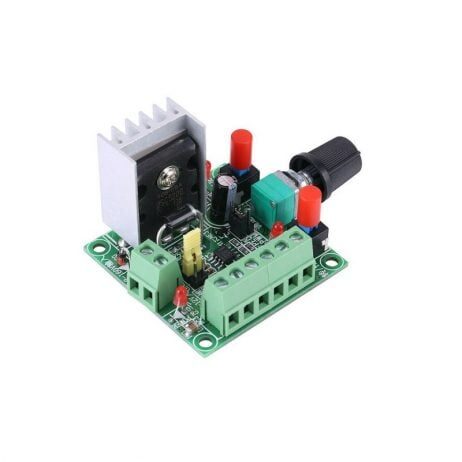

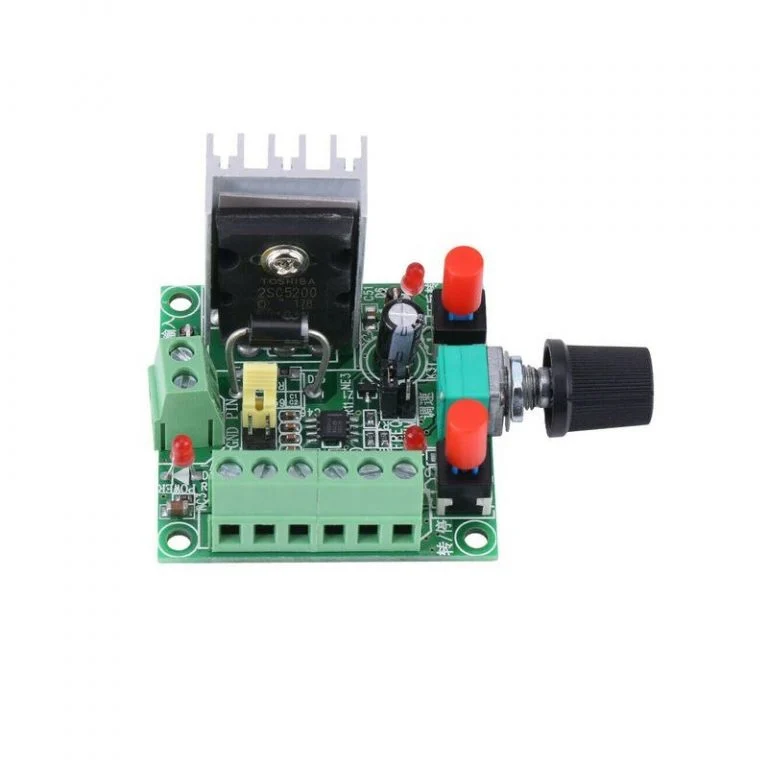

This board is a Stepper Motor Controller based on the TOSHIBA 2SC5200. It can generate PWM signals for the stepper motor driver and control the motor’s rotation direction (CW or CCW) with onboard buttons. The motor’s speed can be adjusted with the onboard potentiometer.
The board can also produce a frequency pulse signal, which can be switched between high and low frequency with the onboard jumper.
Note:
We also have a variety of 3D Printers and accessories from the Brand CREALITY at the best price in INDIA,
Features:

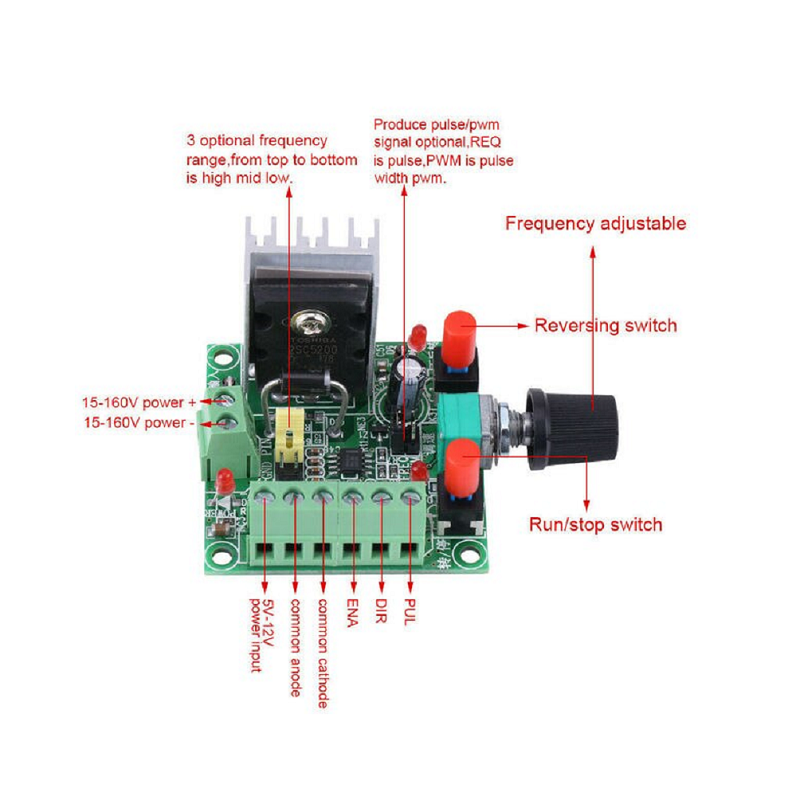

- It has three frequency ranges selectable via onboard jumpers.
- Frequency can be measured via PUL and common cathode (GND) ports.
- The board has two sets of power input
Package Includes:
1 x Stepper Motor Drive Simple Controller Speed Forward and Reverse Control Pulse Generation PWM Generation Controller
