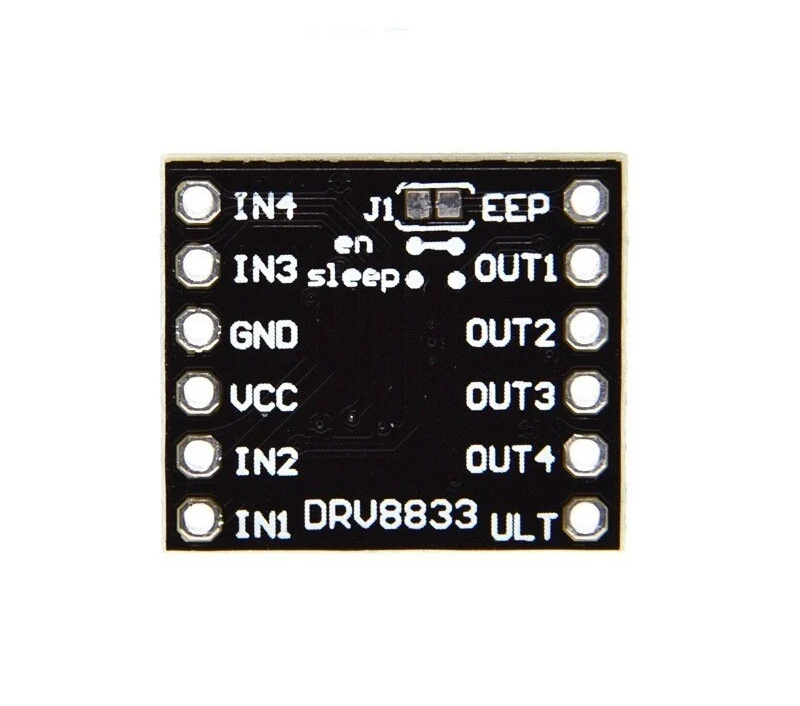

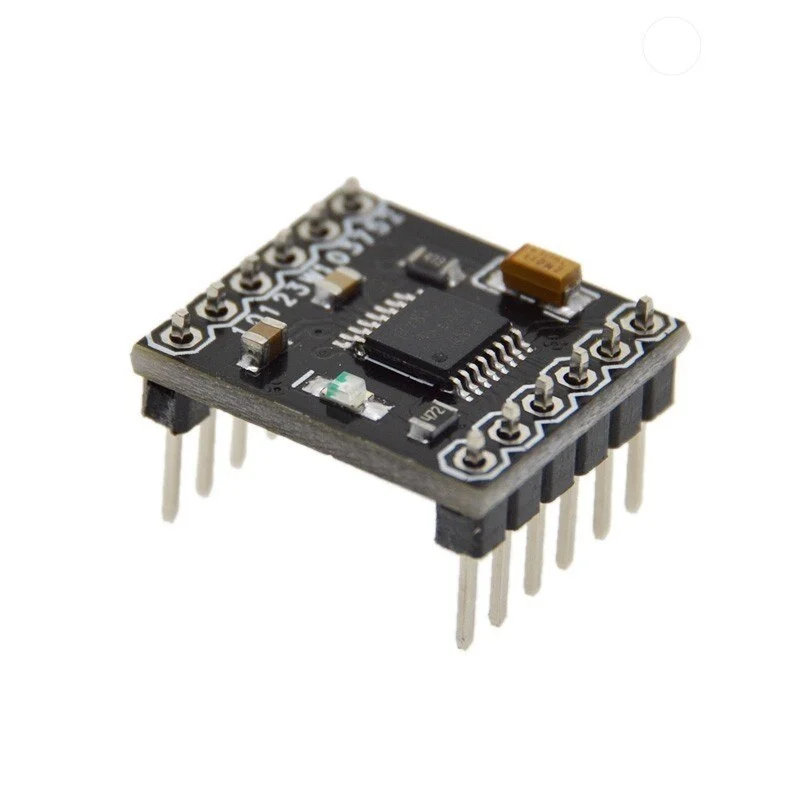

DRV8833 2 Channel DC Motor Driver

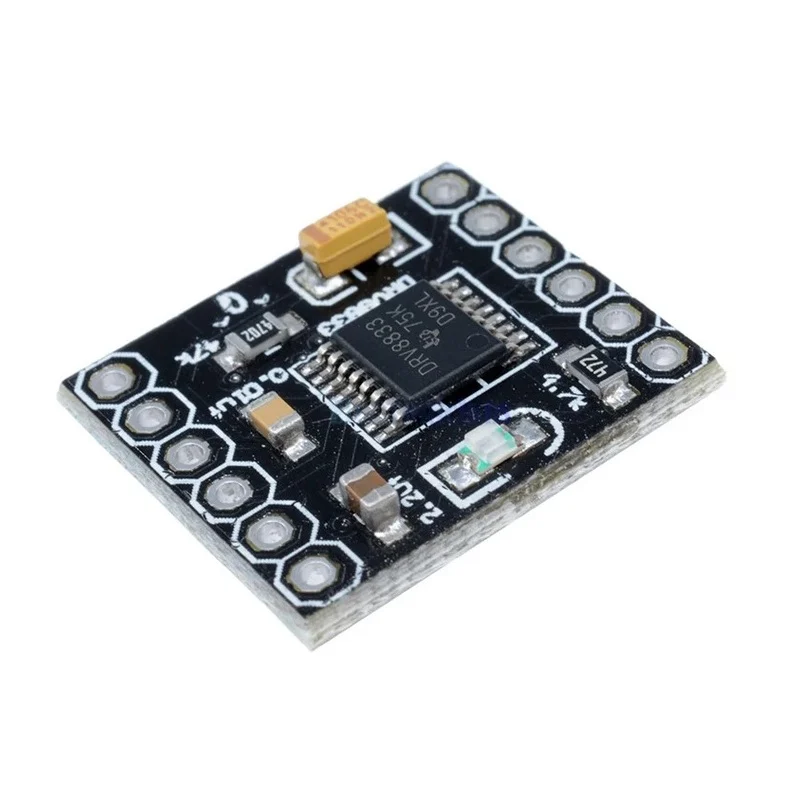

DRV8833 is a dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. It can supply up to about 1.2 A per channel continuously and can tolerate peak currents up to 2 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. The board ships populated with SMD components, including the DRV8833, and adds an FET for reverse battery protection.
The DRV8833 has a higher peak current rating (2 A per channel vs 1.5 A), optional built-in current-limiting, and no need for externally supplied logic voltage.
Features:
- Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor.
- Operating voltage: 2.7 V to 10.8 V
- Output current: 1.2 A continuous (2 A peak) per motor.
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
- Inputs are 3V- and 5V-compatible.
- Under-voltage lockout and protection against over-current and over-temperature
- Reverse-voltage protection circuit.
- Current limiting can be enabled by adding sense resistors (not included)
Specifications:
| Model Series: | DRV Series |
|---|---|
| Voltage Rating (V): | 2.7 to 10.8VDC |
| Current Rating (A): | 1.2 to 2 |
| Width (mm): | 18 |
| Height (mm): | 8 |
| Weight (g): | 5 |

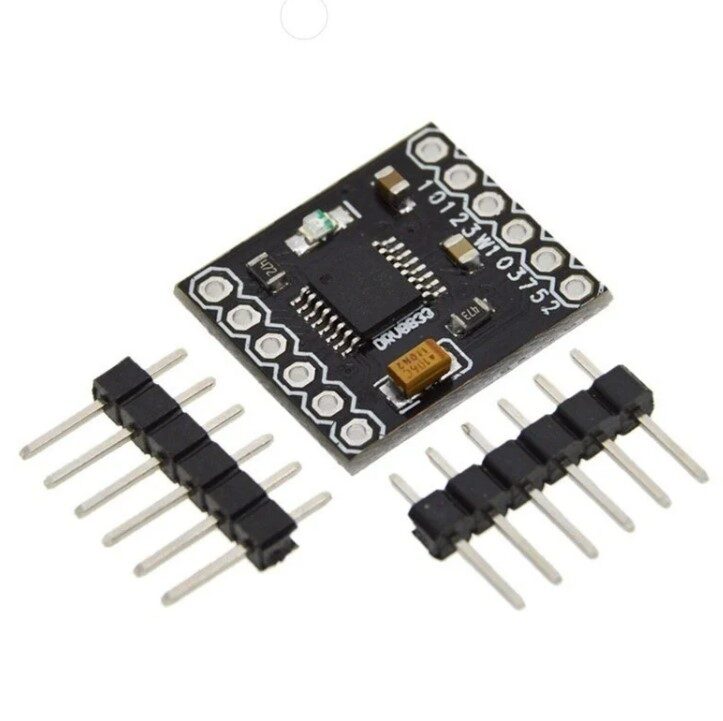

Package Includes:
1 x DRV8833 2 Channel DC Motor Driver Module
12 x Pin Headers
DC Gear Motor Buying Guide: RPM, Torque & Voltage
A gear motor is a DC motor paired with a gearbox that reduces the output shaft speed while...
Read More →
Build a Pan-Tilt Camera Mount with Servo Motors & Arduino
Table of Contents Project Overview Parts List Understanding the Pan-Tilt Mechanism Wiring the Servos to Arduino Basic Joystick...
Read More →
Mini Water Pump Guide: DC Submersible & Peristaltic Pumps for Arduino
A mini water pump opens up an enormous range of maker projects — from automated plant watering systems...
Read More →Technical Specifications
| Model | DRV8833 |
|---|---|
| Channels | 2-channel |
| SKU | AI0965 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DRV8833 2 Channel DC Motor Driver is a versatile stepper motor drivers used across a wide range of applications including CNC machines, 3D printers, robotics, camera sliders, and pick-and-place machines.
Common use cases:
- Driving NEMA 17 stepper motors in a 3D printer
- Building a CNC router
- Precise positioning in a robotic arm
This product is ideal for CNC builders, 3D printer makers, and robotics engineers.
Technical Tip: TMC2208/2209 drivers offer silent operation via StealthChop. A4988/DRV8825 are more affordable. Set current limit via the onboard potentiometer.
