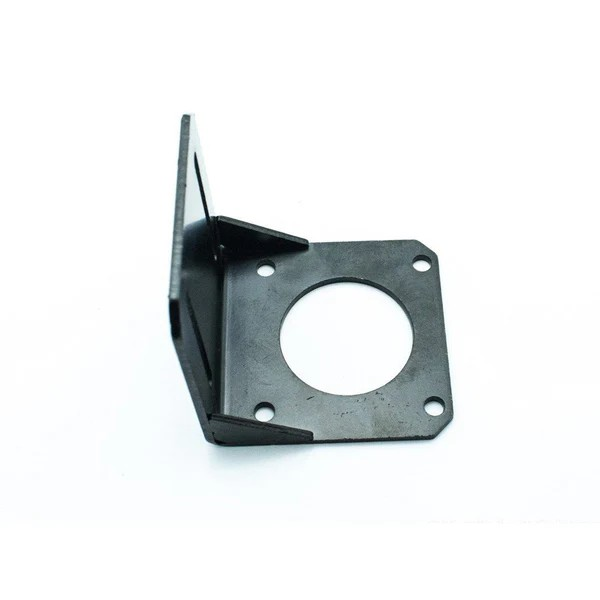

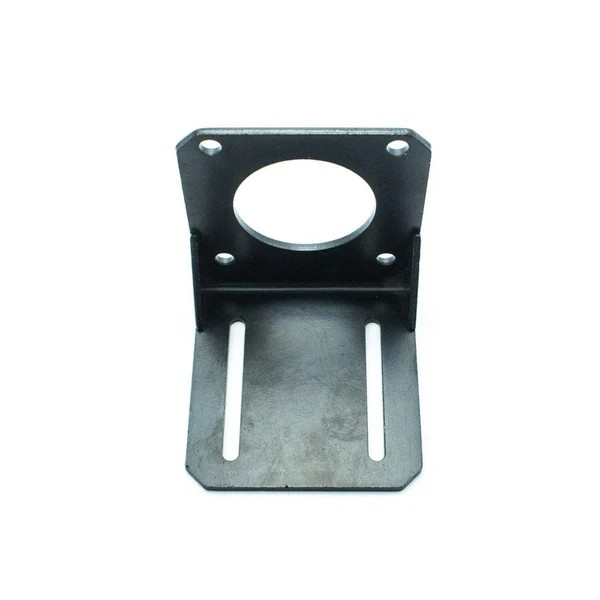

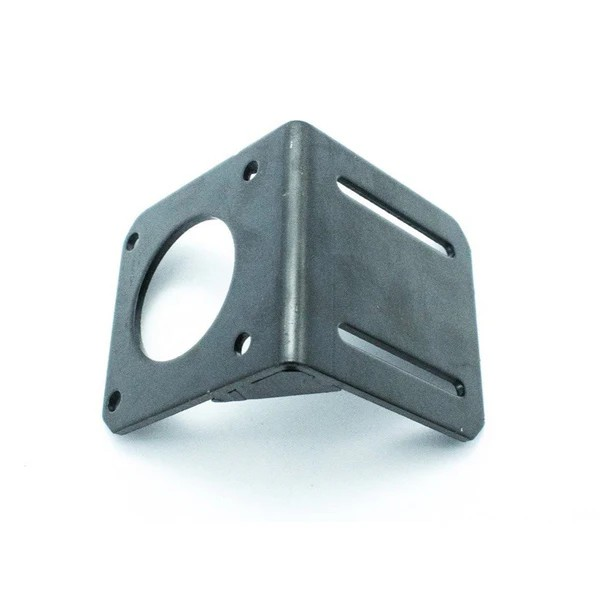

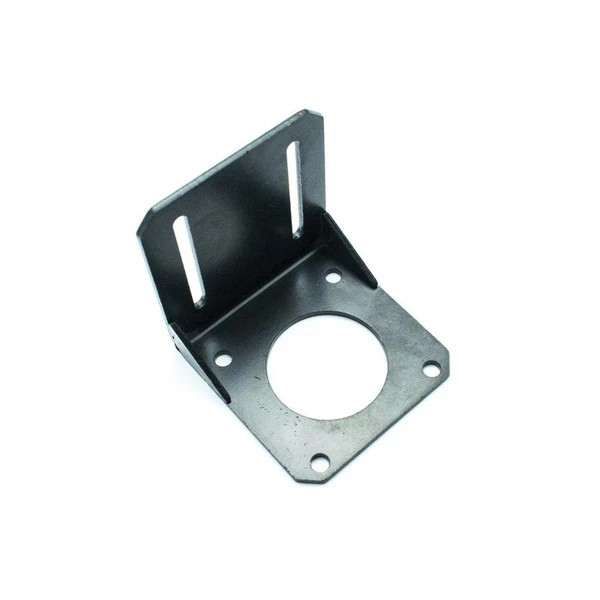

This is the 65mm variant of the NEMA23 L Shape Mounting Bracket for 65mm Stepper Motor in 3D Printers and Parts. Available at ₹125.08 (₹106.00 + GST) with free shipping across India.
Overview & Specs
These L‑brackets are commonly used to securely mount NEMA 23 (65 × 65 mm flange) stepper motors at a 90° angle. Here are typical specifications:
-
Material: Mild steel or alloy steel, often powder-coated or painted for anti‑rust protection.rees52.comWhizzYUYONG INDUSTRY –
-
Thickness: Around 3 mm.rees52.comYUYONG INDUSTRY –ElectroPeak
-
Dimensions: Many measure roughly 65 × 65 × 65 mm.Hatchnhack CartWhizzmiragegrove.com Others might span 50–60 mm each side.Handson Technologytemperosystems.com.au
-
Mounting Holes: Typically slotted or precision‑punched, with slots placed around 39 mm from the base. Compatible with M4 or M5 screws depending on design.rees52.comYUYONG INDUSTRY –anilestore.com
Where to Buy (India)
-
HatchnHack (HNHCart): Offers a 65 mm mild steel bracket using anti‑rust paint. Size matches 57 mm motors well. Currently out of stock, priced around ₹128.Hatchnhack Cart
-
REES52: Sells a similar bracket (RS5447) for ₹89—but also appears sold out.rees52.com
-
DeltaKit.net: Lists a right-angle NEMA 23 bracket in black steel (3 mm thick), priced around ₹236.deltakit.net
-
Anil Electronics (Ahmedabad): Offers a sturdy mild steel L‑bracket—flexible layout, accurate, and lightweight (~117 g), for around ₹285.anilestore.com
International Options
-
AccEncyc via Whizz (UAE): L‑bracket sized 65 × 65 × 69 mm, iron plate (3 mm thick), includes screws and nuts. Durable, anti‑rust finish.Whizz
-
YUYONG Industry: Similar bracket—3 mm alloy steel, black finish, precise punched holes at 39 mm height. Offers hardware recommendations (M4/M5 screws).YUYONG INDUSTRY –
-
HandsOn Tech: Right‑angle bracket for NEMA 23/57 priced at $3.50. Dimensions ~50 × 52 × 52 mm.Handson Technology
3D Print Threads: Print Screw Threads That Actually Work
Table of Contents Thread Profiles for 3D Printing Designing Threads in CAD Software Print Settings for Clean Threads...
Read More →
Resin Printer Comparison 2026: Anycubic vs Elegoo vs Bambu
The resin 3D printer market has evolved dramatically heading into 2026. What was once a niche technology requiring...
Read More →
Best Resin 3D Printers India 2026: Elegoo vs Anycubic
Resin 3D printers deliver unmatched detail that FDM cannot match, making them essential for jewellers, miniature painters, dental...
Read More →Technical Specifications
| Model | NEMA23 |
|---|---|
| Size | 65mm |
| SKU | AI7090 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The NEMA23 L Shape Mounting Bracket for 65mm Stepper Motor is a versatile 3d printers and parts used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
