Home Sensors Temperature & Humidity Sensors W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor Standard Quality
1×40 Berg Strip Male Connector – (Pack of 10) ₹67.0 ( +GST 18% )
Back to products
VNH2SP30 Monster Motor Driver Shield 14A (Peak 30A) ₹799.0 ( +GST 18% )

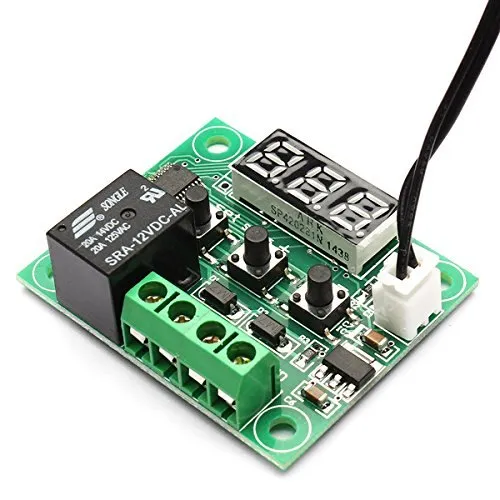

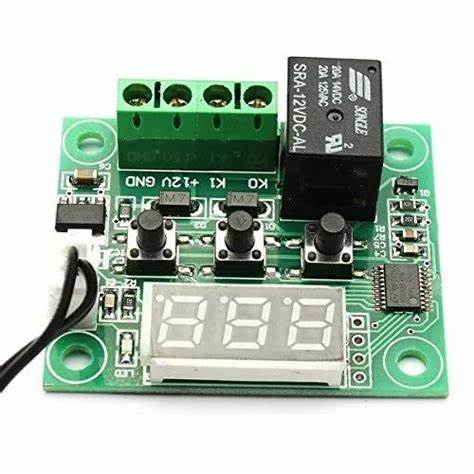

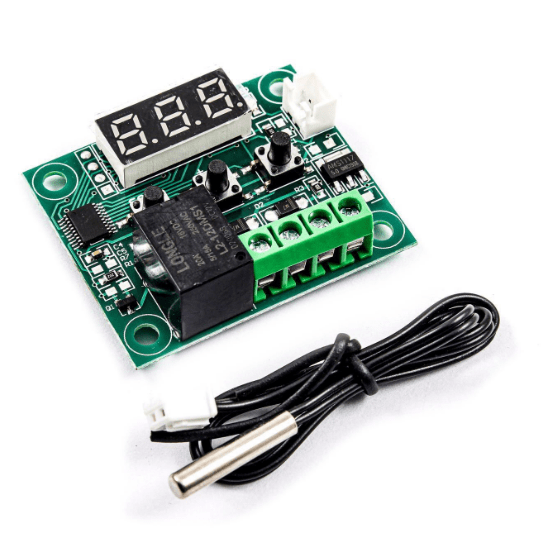

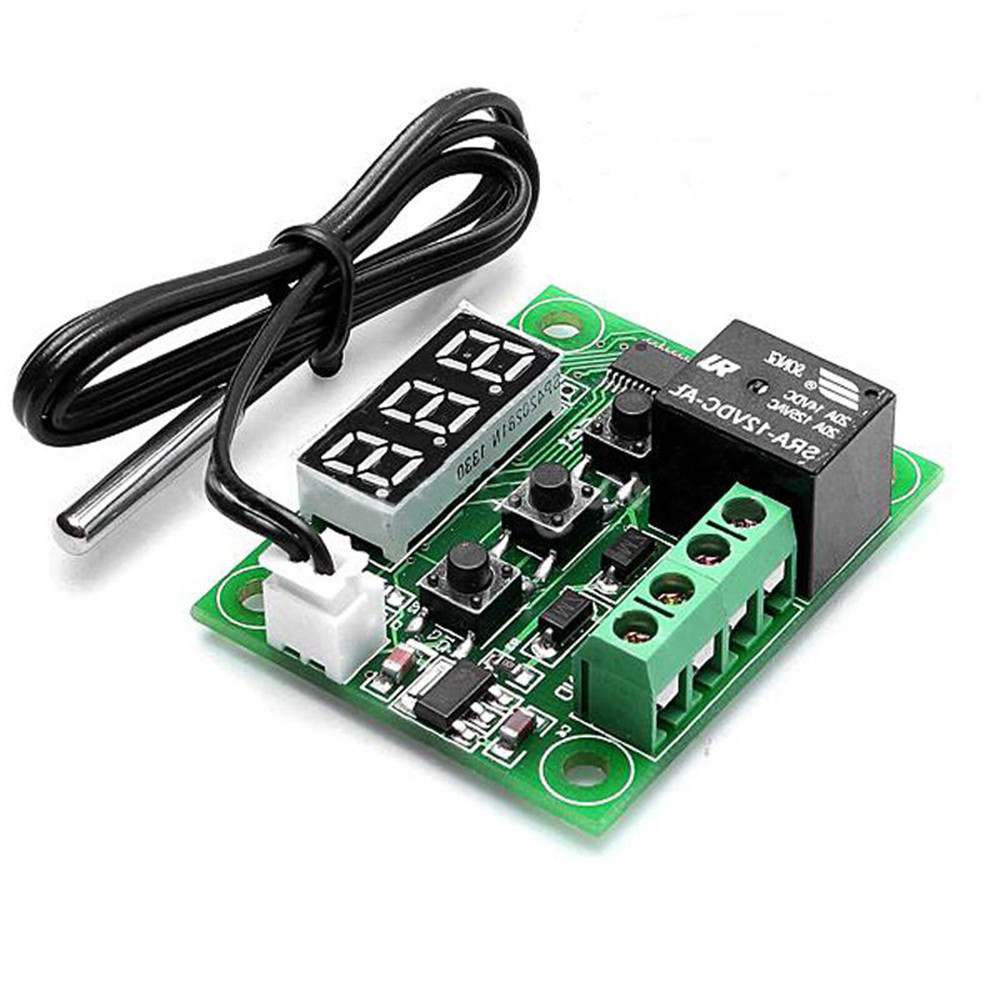

W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor Standard Quality

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

₹125.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Temperature Control Range(°C): -50 to +110
  • Resolution @-9.9°C to +99.9°C: 0.1°C
  • Resolution @all temperatures: 1°C
  • Accuracy: 0.1°C
  • Refresh Rate(s): 0.5
  • Supply Voltage(V): 12
  • Measuring Inputs: NTC10K
  • Cable Length: 0.5 Meter
  • Output Type: 1 Channel Relay Output
  • Capacity: 10A

For B2B Enquiry Email Us:- [email protected]

Out of stock

Compare
Add to wishlist
SKU: AI0478 Category: Temperature & Humidity Sensors Tags: NTC, Temperature Controller, Temperature Sensor, Thermistor, Thermostat, Waterproof Temperature Sensor, XH-W1209
Share:
  • Description
  • Additional information
  • Reviews (1)
  • COO Info
Description

Product Description

This is W1209 digital temperature controller Module With Display and NTC Waterproof Temperature Sensor.

W1209 Mini thermostat Temperature controller is low-cost 12V Temperature controller with 7-segment display and 3 switch keypad for setting temperature and other parameters. The module features an NTC thermistor temperature sensing and has an accuracy of 0.1 C.

The XH W1209 digital temperature controller Module W/ Display and NTC Waterproof Temperature Sensor is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor.

Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The onboard relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A.

We can display current temperature in degrees Centigrade via its 3 digit seven segment display and the current relay state by an onboard LED.

Displaying the current temperature

The thermostat will display the current temperature in °C by default. When in any other mode making no input for approximately 5 seconds will cause the thermostat to return to this default display.

Setting the trigger temperature

To set the trigger temperature press the button marked ‘SET’. The seven-segment display will flash. You can now set a trigger temperature (in °C) using the ‘+’ and ‘-‘ buttons in 0.1° increments. If we didn’t press any buttons for approximately 2 seconds the trigger temperature will be store and the display will return back to the current temperature.

Setting the parameters

To set any parameter first long press the ‘SET’ button for at least 5 seconds. The seven-segment display should now display ‘P0’. This represents parameter P0. Pressing the ‘+’ or ‘-‘ buttons will cycle through the various parameters (P0 to P6). Pressing the ‘SET’ button whilst any of these parameters are displayed will allow you to change the value for that parameter using the ‘+’ and ‘-‘ buttons. When finished setting a parameter press the set button to exit that option. If no buttons are pressed for approximately 5 seconds the thermostat will exit the parameter options and will return back to the default temperature display.

Setting the cooling or heating parameter P0

The parameter P0 has two settings, C and H. When setting to C (default) the relay will energize when the temperature is reached. Use this setting if connecting to an air-conditioning system. When set to H the relay will de-energize when the temperature is reached. Use this setting if controlling a heating device.

Setting the hysteresis parameter P1

This sets how much change in temperature must occur before the relay will change state. For example, if set to the default 2oC and the trigger temperature has been set to 25oC, it will not de-energize until the temperature falls back below 23oC. Setting this hysteresis helps stop the thermostat from continually triggering when the temperature drifts around the trip temperature.

Setting the upper limit of the thermostat parameter P2

This parameter limits the maximum trigger temperature that can be set. It is useful as a safety to stop an excessively high trigger temperature from accidentally being set by the user.

Setting the lower limit of the thermostat parameter P3

This parameter limits the minimum trigger temperature that can be set. It is useful as a safety to stop an excessively low trigger temperature from accidentally being set by the user.

Setting temperature offset correction parameter P4

Should you find there is a difference between the displayed temperature and the actual temperature; (for instance, if the temperature probe is on a long run of cable) you can make minor corrections to the temperature reading with this parameter.

Setting the trigger delay parameter P5

To reach trigger temperature this parameter allows for delaying switching of the relay. The parameter can be set in one-minute increments up to a maximum of 10 minutes.

Setting the high-temperature alarm parameter P6

Setting a value for this parameter will cause the relay to switch off when the temperature reaches this setting. The seven-segment display will also show ‘—‘ to indicate an alarm condition. The relay will not re-energize until the temperature falls below this value. The default setting is OFF.

Note: The 12v relay module may differ in the manufacturer’s name & type from the image.

Settings Chart

Long press the “SET” button to activate the menu.

(SET THE VALUES AS MENTIONED IN BRACKET)
Code Description Range Default Value
P0 Heat C/H (C)
P1 Backlash Set 0.1-15  (2)
P2 Upper Limit 110 (110)
P3 Lower Limit -39 (-39)
P4 Correction -7.0 ~ (0)
P5 Delay Start Time 0-10 mins  (0)
P6 High-Temperature Alarm 0-110  (OFF)
Long pressing “+/-” will reset all values to their default

APPLICATION

  1. To measure and display temperature
  2. To Turn any application ON/OFF based on temperature reading. (Both AC and DC)
  3. Example Project:- A. Fire alarm system . B. Auto cut off Electric Water Heater

Features

  1. Power Consumption
    1. Static Current: <=35mA
    2. Current: <=65mA
  2. Environmental Requirements
    1. Temperature: -10 ~ 60 C
    2. Humidity: 20-85%

Package Includes

  • 1 x W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor
Additional information
Weight 0.03 kg
Dimensions 3 × 4 × 2 cm
Reviews (1)

1 review for W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor Standard Quality

  1. Rated 5 out of 5

    Akshay Enterprises Shreemay (verified owner) – March 7, 2022

    ok

Only logged in customers who have purchased this product may leave a review.

COO Info

Country Of Origin – China

Related products

Sold out
Read more
Compare
Quick view
Add to wishlist

XH-M452 Temperature and Humidity Controller Module

Rated 4.50 out of 5
₹463.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

Temperature and Humidity Sensor Model AHT20

₹55.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

HR202 Humidity Detection Sensor Module

₹76.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

Flame Sensor Infrared Receiver Ignition Source Detection Module

Rated 5.00 out of 5
₹36.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

HTC-1 High Precision Large Screen Electronic Indoor Temperature, Humidity Thermometer with Clock Alarm

Rated 4.00 out of 5
₹189.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

XM-18 Temperature and Humidity Controller

Rated 3.00 out of 5
₹2,997.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

DHT22 Digital Temperature and Humidity Sensor-Standard Quality

₹199.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

LCD Electronic Fish Tank Water Detector Thermometer

Rated 2.50 out of 5
₹100.0 ( +GST 18% )
kisspng-computer-icons-scalable-vector-graphics-adobe-illu-thumb-svg-png-icon-free-download-148447-onlin-5c0598a80bc5f2.4617737315438706320482

High Quality

Buy high reliable products for your critical project.

kisspng-telephone-call-computer-icons-portable-network-gra-phone-call-svg-png-icon-free-download-518851-5b80a222402649.4360944515351567702628

Awesome Support

Our Support lines are open from 10 am to 6 pm, to support all your queries.

kisspng-delivery-computer-icons-encapsulated-postscript-5b1ed86cdf6f28.3572173215287481409152

Fast Delivery

99% of orders are shipped within 24Hours.

kisspng-computer-icons-padlock-icon-design-5b163a323d99c6.2970240315281833462523

Secure Payments

We follow highest security standards to make your transaction safe.

ZBOTIC
Goyal Industrial Complex
Above Jayaka Tea, J-514
Gawali Matha Chowk, Telco Road
Bhosari, Pune-411026, India


Phone: +91-7410737370
Email: [email protected]
Recent Posts
  • A preview image of Home automation using iot
    Home Automation Using IoT | IoT Project
    January 28, 2023 No Comments
  • Card Access Electronic Gate Lock RFID Access solenoid lock
    Door Security System Arduino RFID Project
    January 27, 2023 No Comments
My Account
  • My Account
  • Cart
  • Checkout
  • Wishlist
  • Payment Option
Information
  • About Us
  • Team
  • Career
  • Contact Us
  • FAQ
Policies
  • Privacy Policy
  • Terms and Conditions
  • GST Inputs Tax Credit
  • Shipping & Return Policy
  • Our Sitemap
© 2020 CREATED BY Zbotic. PREMIUM ELECTRONIC COMPONENTS SOLUTIONS.
payments
  • Menu
  • Categories
  • Development BoardsDevelopment Boards
  • Electronic ComponentsElectronic Components
  • Electronic ModulesElectronic Modules
  • SensorsSensors
  • IoT and WirelessIoT and Wireless
  • Display ModulesDisplay Modules
  • 3D Printer Parts3D Printer Parts
  • Motors and DriversMotors and Drivers
  • Wires and CablesWires and Cables
  • BatteriesBatteries
  • Drone PartsDrone Parts
  • Shop
  • Track order
  • Republic Day Sale
  • B2B
  • About Us
  • Blogs
  • Contact Us
  • Services
  • Wishlist
  • Compare
  • Login / Register
Shopping cart
close

Sign in

close

Lost your password?
Or login with
Google
OR
Don't have an account? Signup

No account yet?

Create an Account

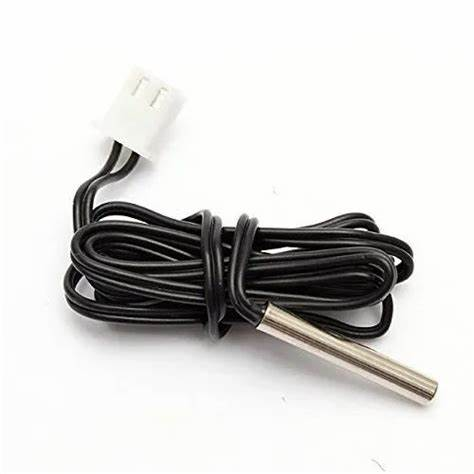

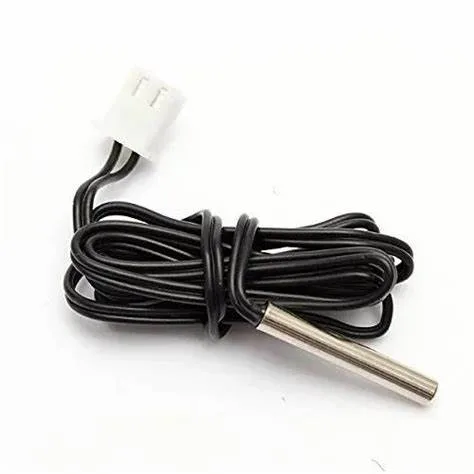

W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor Standard Quality

Rated 5.00 out of 5
₹125.0 ( +GST 18% )

Out of stock

Compare
Add to wishlist
Shop
0 Wishlist
0 items Cart
My account
×

Back
