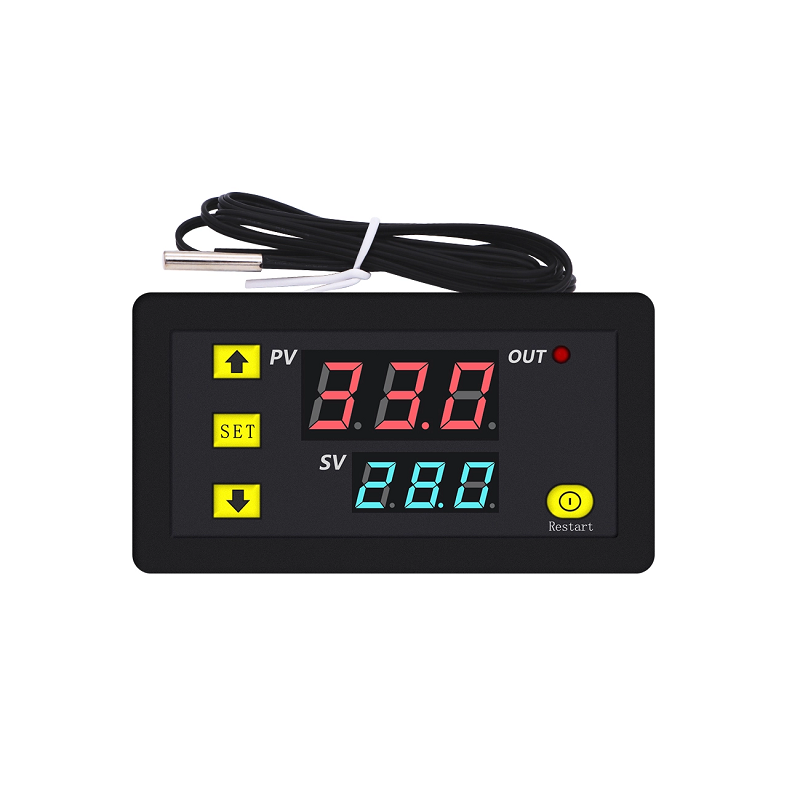

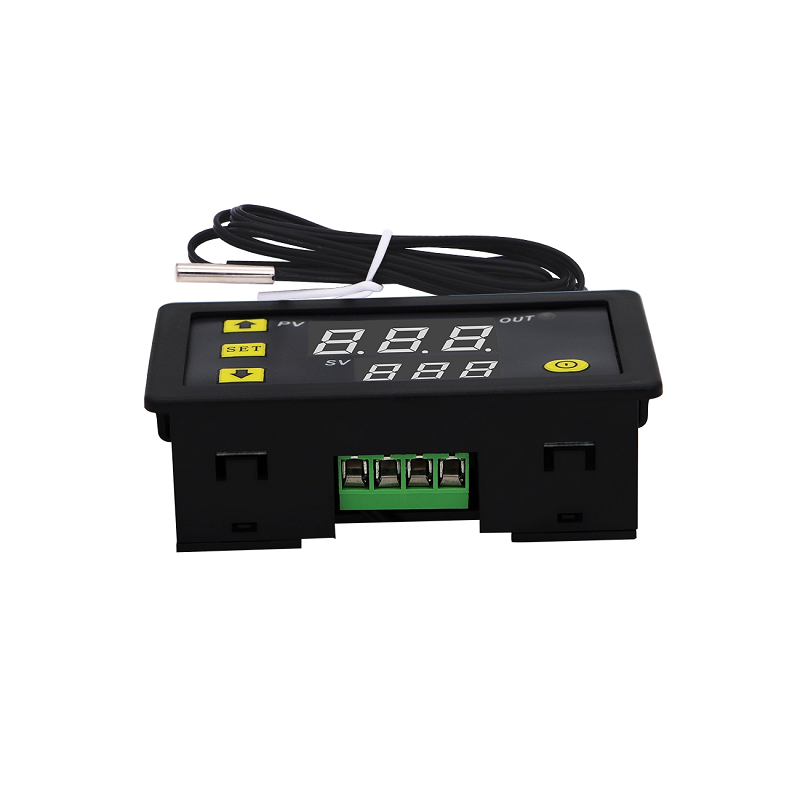

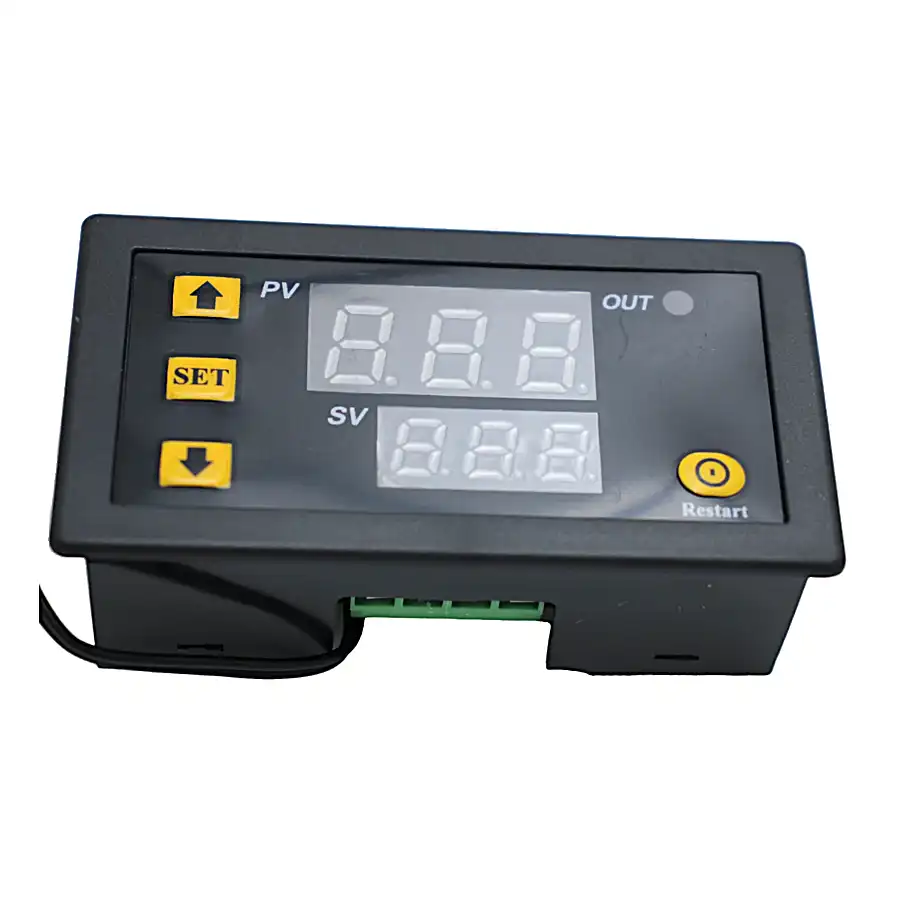

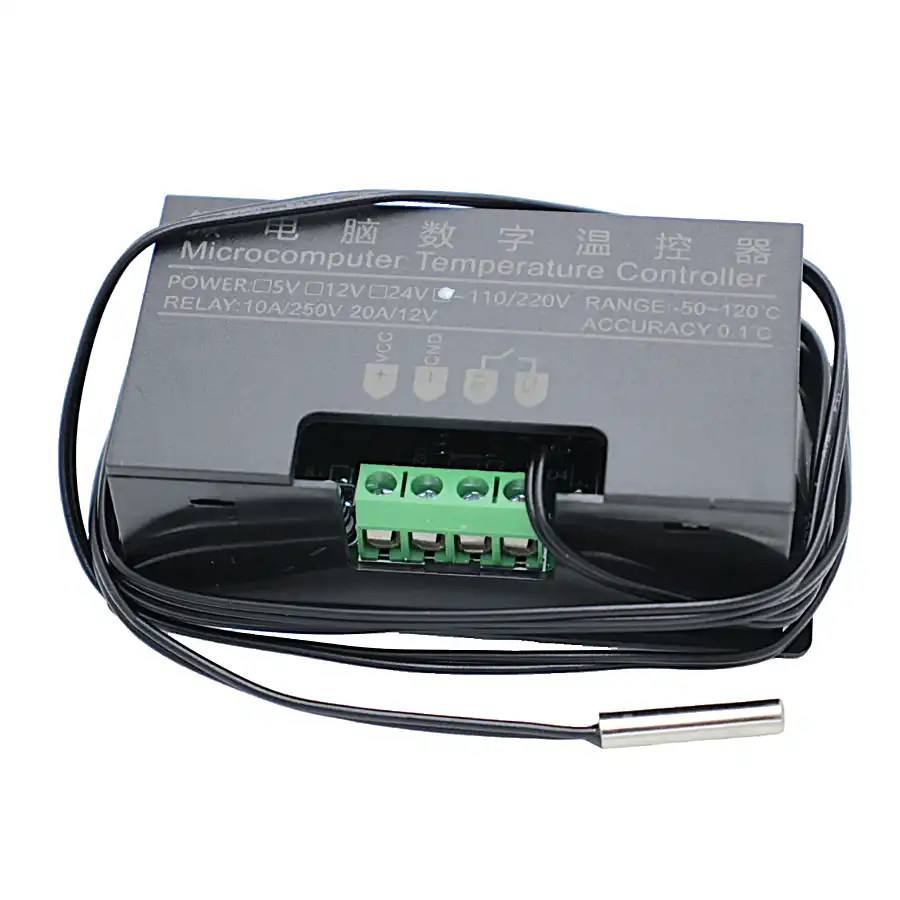

This is the 220V variant of the W3230 AC110-220V Digital Temperature Controller Microcomputer Thermostat Switch in Temperature Meter. Available at ₹236.00 (₹200.00 + GST) with free shipping across India.
This W3230 AC110-220V Digital Temperature Controller Microcomputer Thermostat Switch features an NTC 10K waterproof temperature sensor. When the temperature of the object reaches a certain set temperature at that time the microcomputer switches on the relay, in turn switching on the device connected to the output terminals.
Applications:
- Outdoor use uses involving potential chemical contamination or electrical interference
- Nuclear energy control systems, combustion systems, railroad systems, aviation systems
- Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
- Systems, machines, and equipment that could present a risk to life or property
- Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system
Features:
- Mini temperature controller.
- With a clear LED display for better readability.
- Wide temperature measuring range.
- Heating or cooling control.
- All parameters set can be saved after a short circuit.
- Relay output.
- High Control precision 0.1 centigrade
- Specification-
| Model | W3230 |
|---|---|
| Operating Voltage | AC110-220V |
| Output Relay Contact Capacity | 250v,10A 220V / 20A 12V / 20A 24V |
| Temperature Control Range (°C) | -50 ~ 120 |
| Display Color | red/blue |
| Resolution Ratio | 0.1°C(-9.9-99.9) |
| Control Accuracy | 0.1°C |
| Measurement Accuracy | ±0.1°C |
| Temperature Sensor | NTC10K Waterproof sensor |
| Operating Temperature (°C) | -10 ~ 60 |
| Working Humidity Range | 20%~85% |
| Length (mm): | 71 |
| Width (mm): | 39 |
| Height (mm): | 26 |
Package Includes:
1 x W3230 AC110-220V Digital Temperature Controller Microcomputer Thermostat Switch
Technical Specifications
| Model | W3230 |
|---|---|
| SKU | AI5965 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The W3230 AC110-220V Digital Temperature Controller Microcomputer Thermostat Switch is a versatile temperature meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
