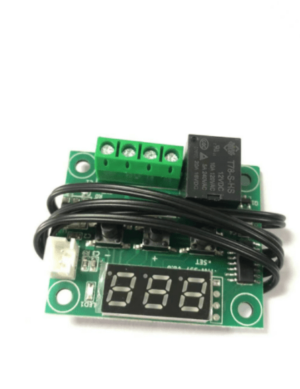

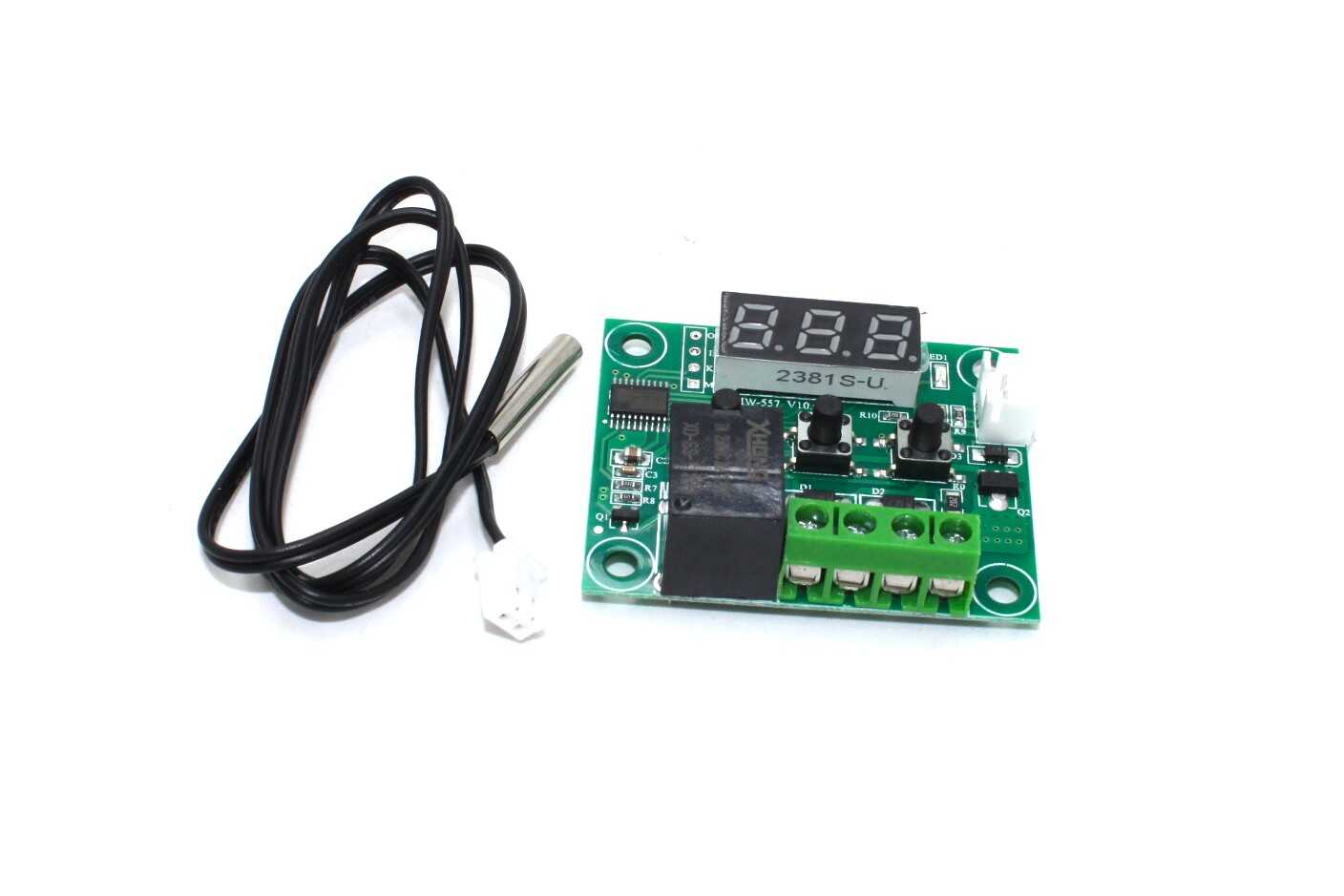

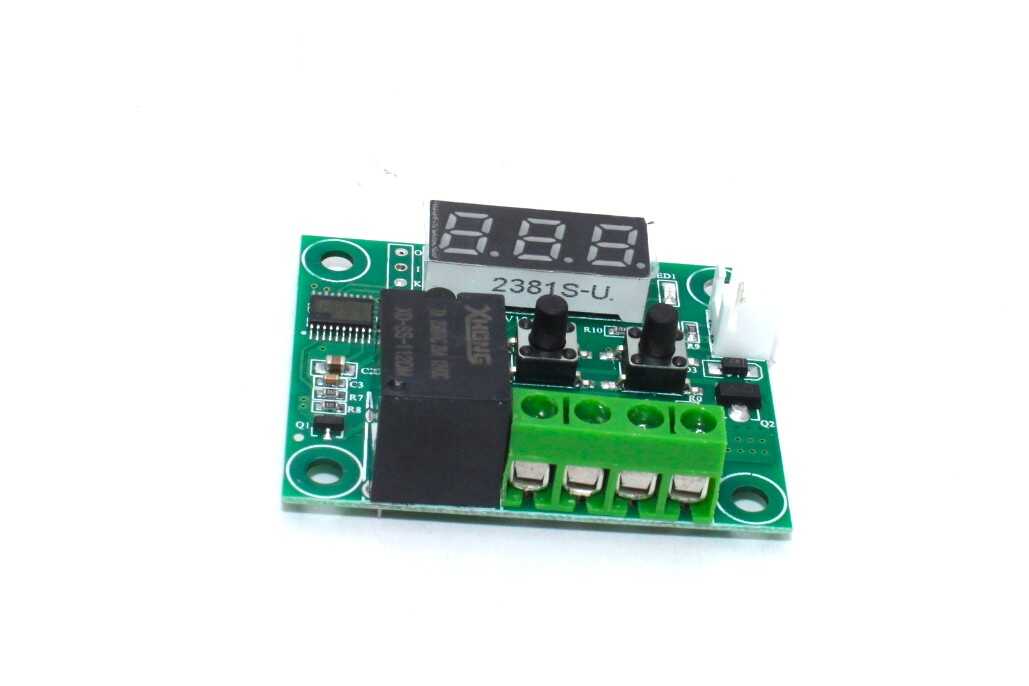

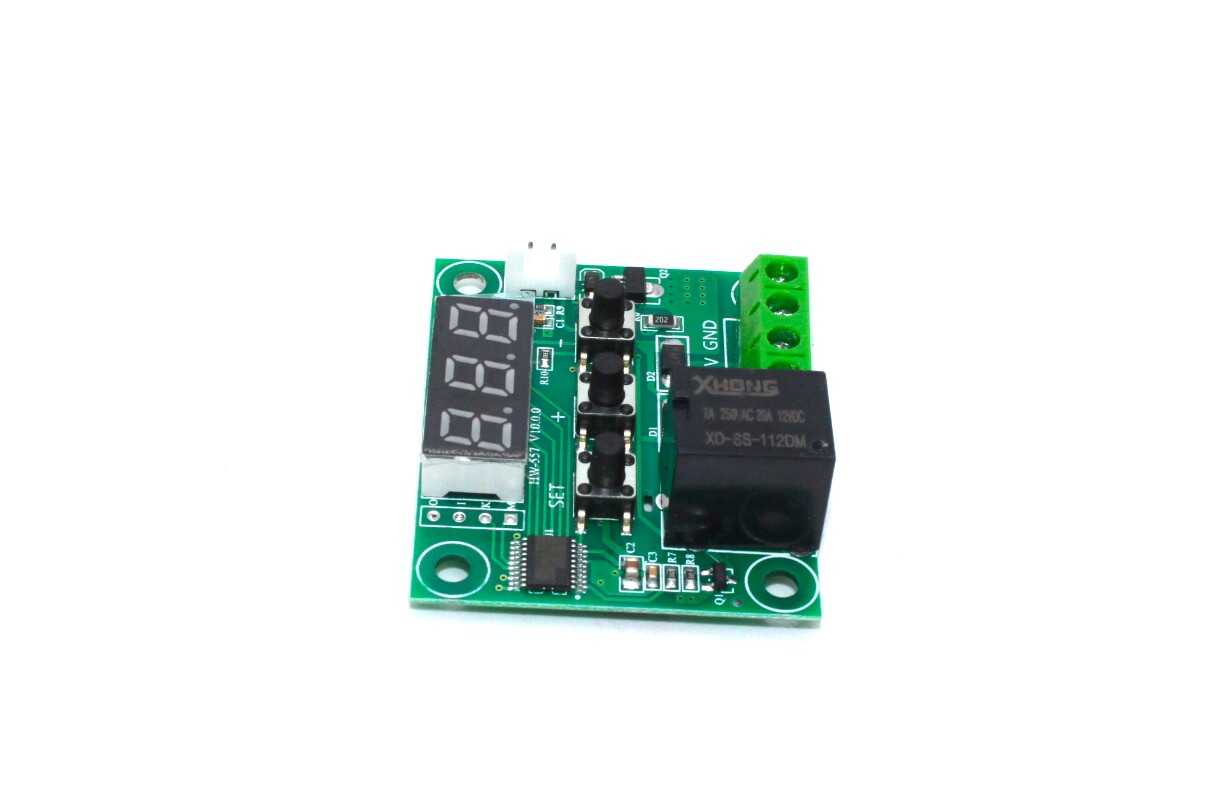

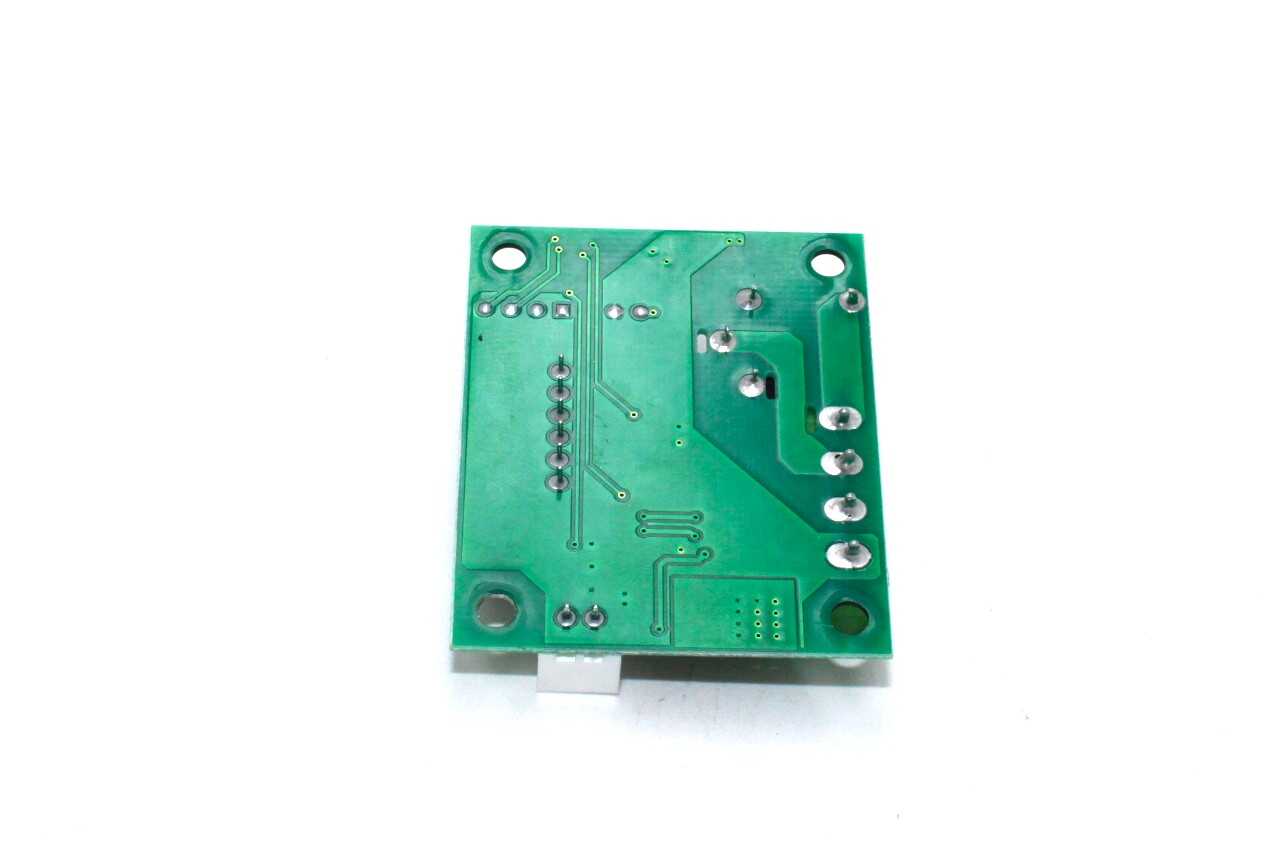

This is the 12V variant of the W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor in Temperature & Humidity Sensor. Available at ₹118.00 (₹100.00 + GST) with free shipping across India.
Description:
The W1209 Mini Thermostat Temperature Controller is an economical 12V controller featuring a 7-segment display and a 3-switch keypad for easy temperature and parameter adjustments. It employs an NTC thermistor temperature sensor with an impressive accuracy of 0.1°C.
This digital temperature controller module, known as the XH W1209, comes with a waterproof NTC temperature sensor and offers exceptional functionality at a very low cost. It allows for intelligent power control of various electrical devices based on temperature readings from the sensor.
No programming expertise is required to operate this module, thanks to its embedded microcontroller. Users can easily configure parameters such as trigger temperatures for switching devices on and off using the three tactile switches. The onboard relay can handle a maximum of 240V AC at 5A or 14V DC at 10A.
The module displays the current temperature in degrees Celsius on its 3-digit seven-segment display, while an onboard LED indicates the relay’s current state.
Displaying the current temperature
The thermostat will display the current temperature in °C by default. If no input is made for approximately 5 seconds while in any other mode, it will automatically revert to this default display.
Setting the trigger temperature
To set the trigger temperature, press the button labeled ‘SET.’ The seven-segment display will begin to flash, allowing you to adjust the trigger temperature (in °C) using the ‘+’ and ‘-’ buttons in 0.1° increments. If no buttons are pressed for approximately 2 seconds, the trigger temperature will be saved, and the display will return to showing the current temperature.
Setting the parameters
To set any parameter, first, long press the ‘SET’ button for at least 5 seconds. The seven-segment display will show ‘P0,’ indicating that you are in parameter mode. You can cycle through the various parameters (P0 to P6) by pressing the ‘+’ or ‘-’ buttons.
When a desired parameter is displayed, pressing the ‘SET’ button will allow you to change its value using the ‘+’ and ‘-’ buttons. Once you finish setting a parameter, press the ‘SET’ button to exit that option. If no buttons are pressed for approximately 5 seconds, the thermostat will automatically exit parameter mode and return to the default temperature display.
Parameter Details:
P0: Setting the cooling or heating parameter
-
Two settings: C and H
-
C (default): Relay activates when the specified temperature is reached (ideal for air-conditioning systems).
-
H: Relay deactivates at the target temperature (suitable for controlling heating devices).
P1: Setting the hysteresis parameter
-
Determines the amount of temperature change required before the relay switches state.
-
Example: If default is 2°C and trigger temperature is 25°C, the relay will not deactivate until the temperature drops below 23°C.
-
Prevents frequent switching when temperature fluctuates.
P2: Setting the upper limit of the thermostat
-
Sets the maximum trigger temperature to prevent accidental high settings.
P3: Setting the lower limit of the thermostat
-
Sets the minimum trigger temperature to prevent accidental low settings.
P4: Setting temperature offset correction
-
Adjusts for discrepancies between displayed and actual temperature.
P5: Setting the trigger delay
-
Allows a delay before relay switching (0–10 mins, in 1-min increments).
P6: Setting the high-temperature alarm
-
Turns off the relay when temperature reaches a configured value.
-
Display shows ‘—’ in alarm condition.
-
Relay reactivates when temperature drops below this value.
Settings Chart:
| Code | Description | Range | Default Value |
|---|---|---|---|
| P0 | Heat | C/H | C |
| P1 | Backlash Set | 0.1–15 | 2 |
| P2 | Upper Limit | 110 | 110 |
| P3 | Lower Limit | -39 | -39 |
| P4 | Correction | -7.0 ~ | 0 |
| P5 | Delay Start Time | 0–10 mins | 0 |
| P6 | High-Temperature Alarm | 0–110 | OFF |
Long pressing ‘+/-’ will reset all values to their default.
Application:
- To measure and display temperature
- To Turn any application ON/OFF based on temperature reading (Both AC and DC)
- Example Projects:
-
- A. Fire alarm system
- B. Auto cut-off Electric Water Heater
Features:
- Power Consumption:
- Static Current: <=35mA
- Current: <=65mA
- Environmental Requirements:
- Temperature: -10 ~ 60°C
- Humidity: 20–85%
Specification:
- Temperature Control Range (°C): -50 to +110
- Resolution @ -9.9°C to +99.9°C: 0.1°C
- Resolution @ all temperatures: 1°C
- Accuracy: 0.1°C
- Refresh Rate (s): 0.5
- Supply Voltage (V): 12
- Measuring Inputs: NTC10K
- Cable Length: 0.5 Meter
- Output Type: 1 Channel Relay Output
- Capacity: 10A
| Accuracy | ± 0.1°C |
|---|---|
| Refresh Rate(s) | 0.5 |
| Input Supply Voltage (VDC) | 12 |
| Measuring Inputs | NTC10K |
| Cable Length (cm) | 50 |
| Output Type | 1 Channel Relay Output |
| Capacity | 10A |
| Length (mm): | 48 |
| Width (mm): | 40 |
| Height (mm): | 14 |
Package Includes:
1 x W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor
Attachment’s:
Videos:
Indoor Positioning with Ultrasonic Sensor Array: Trilateration
GPS doesn't work indoors — signals are blocked by walls, ceilings, and structural steel. Yet countless applications demand...
Read More →
Capacitive Touch Sensor TTP223: Touch Button Project Build
Table of Contents What Is the TTP223 Capacitive Touch Sensor? How Capacitive Touch Sensing Works TTP223 Pinout and...
Read More →
Torque Sensor: Measuring Rotational Force on Motor Shaft
Table of Contents What Is Torque and Why Does It Matter? How Torque Sensors Work Types of Torque...
Read More →Technical Specifications
| Model | W1209 |
|---|---|
| Operating Voltage | 12V |
| SKU | AI0022 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The W1209 12V Digital Temperature Controller Module With Display and NTC Temperature Sensor is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
