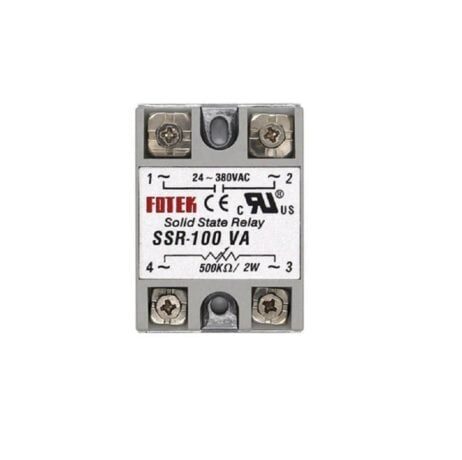

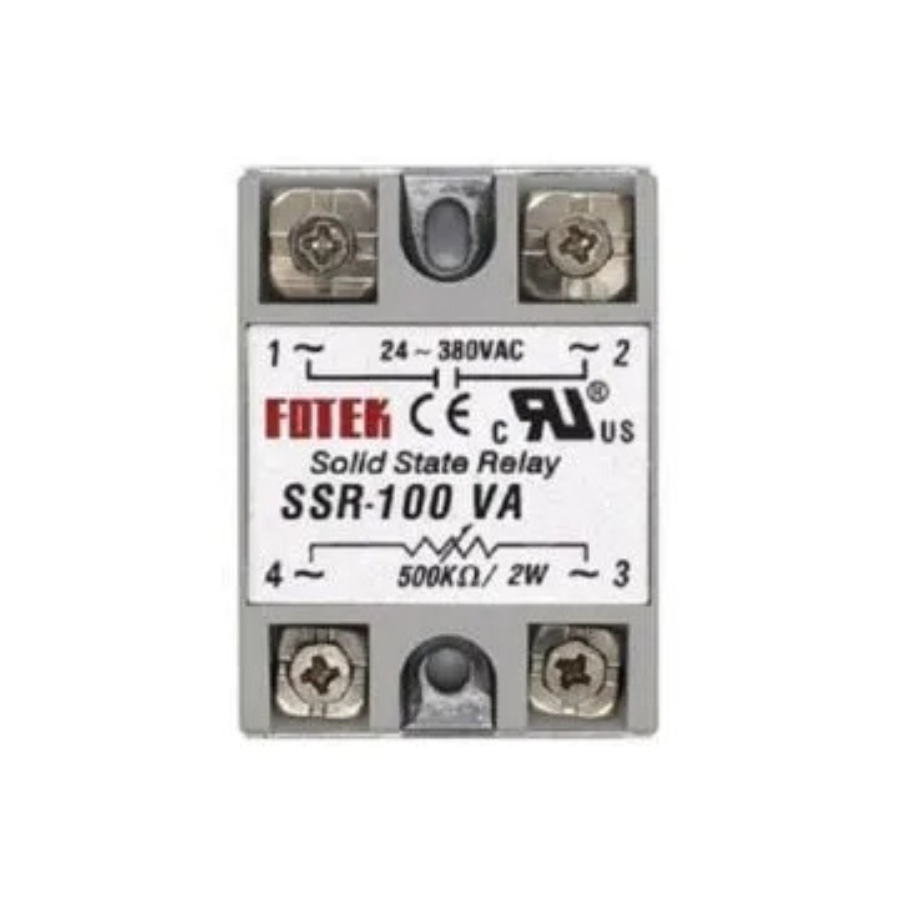

24-380V SSR-100VA Solid State Voltage Regulator
Features:
- Long service life and high reliability
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification:
Dielectric Strength: Over 2.5kVA / 1 min
Trigger resistance: 470-560KΩ
Switching Voltage (VAC):24-380
Operating Temperature Range (C):-20 to 85
Package Includes:
1 x 24-380V SSR-100VA Solid State Voltage Regulator
24-380V SSR-100VA Solid State Voltage Regulator Overview
The 24-380V SSR-100VA Solid State Voltage Regulator is a high-performance relay module designed to switch and regulate AC loads up to 100 VA across a wide voltage range of 24 VAC to 380 VAC. Using optical isolation and semiconductor switching elements, it provides silent, maintenance-free operation ideal for precise control in industrial and automation applications.
Key Features of 24-380V SSR-100VA Solid State Voltage Regulator
- Wide AC switching range of 24 VAC to 380 VAC for versatile voltage control
- 100 VA load capacity suitable for heating elements, lamps, motors, and more
- Dielectric strength over 2.5 kVAC for 1 minute ensures reliable isolation between input and output
- Optically isolated input with trigger resistance of 470–560 kΩ for noise immunity
- Operating temperature range from –20 °C to +85 °C for harsh environments
- Solid state design with no moving parts for long service life and silent switching
- Genuine product with fast shipping anywhere in India from Zbotic
Applications and Use Cases
- Temperature control in industrial ovens, furnaces, and heat tunnels
- Dimming and switching of AC lighting systems in studios and theatres
- Speed control of small AC motors, fans, and pumps
- Load management in UPS, inverter, and power backup systems
- Automation panels requiring silent, fast-response switching
How to Use 24-380V SSR-100VA Solid State Voltage Regulator

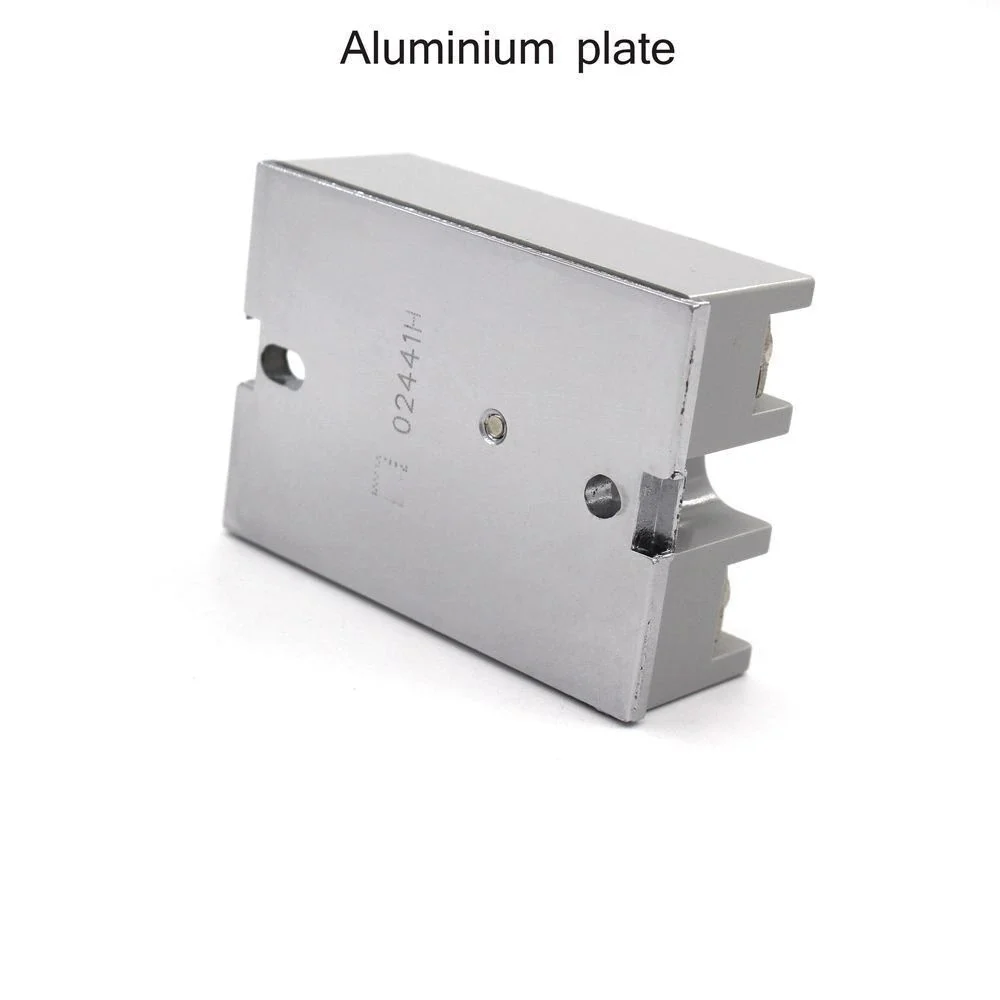

Mount the SSR-100VA on a suitable heatsink, wire the AC load across the output terminals, and connect your DC control signal to the input LED pins, ensuring polarity is correct. Use a fuse or circuit breaker on the AC side for safety, verify connections, then apply control voltage to switch the AC load on and off without mechanical wear.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I determine the maximum current this SSR can switch?
The SSR-100VA handles up to 100 VA of AC load. To calculate maximum current, divide 100 VA by your operating voltage (e.g., at 250 VAC, max current ≈0.4 A).
How is the control signal isolated from the load?
This module uses optical coupling to trigger internal thyristors or MOSFETs, providing over 2.5 kVAC dielectric strength between the low-voltage input and high-voltage output for safe, noise-free operation.
What ambient temperatures can the SSR-100VA operate in?
The regulator is rated for continuous operation from –20 °C up to +85 °C. Ensure adequate ventilation or heatsinking in high-temperature environments to maintain reliability.
