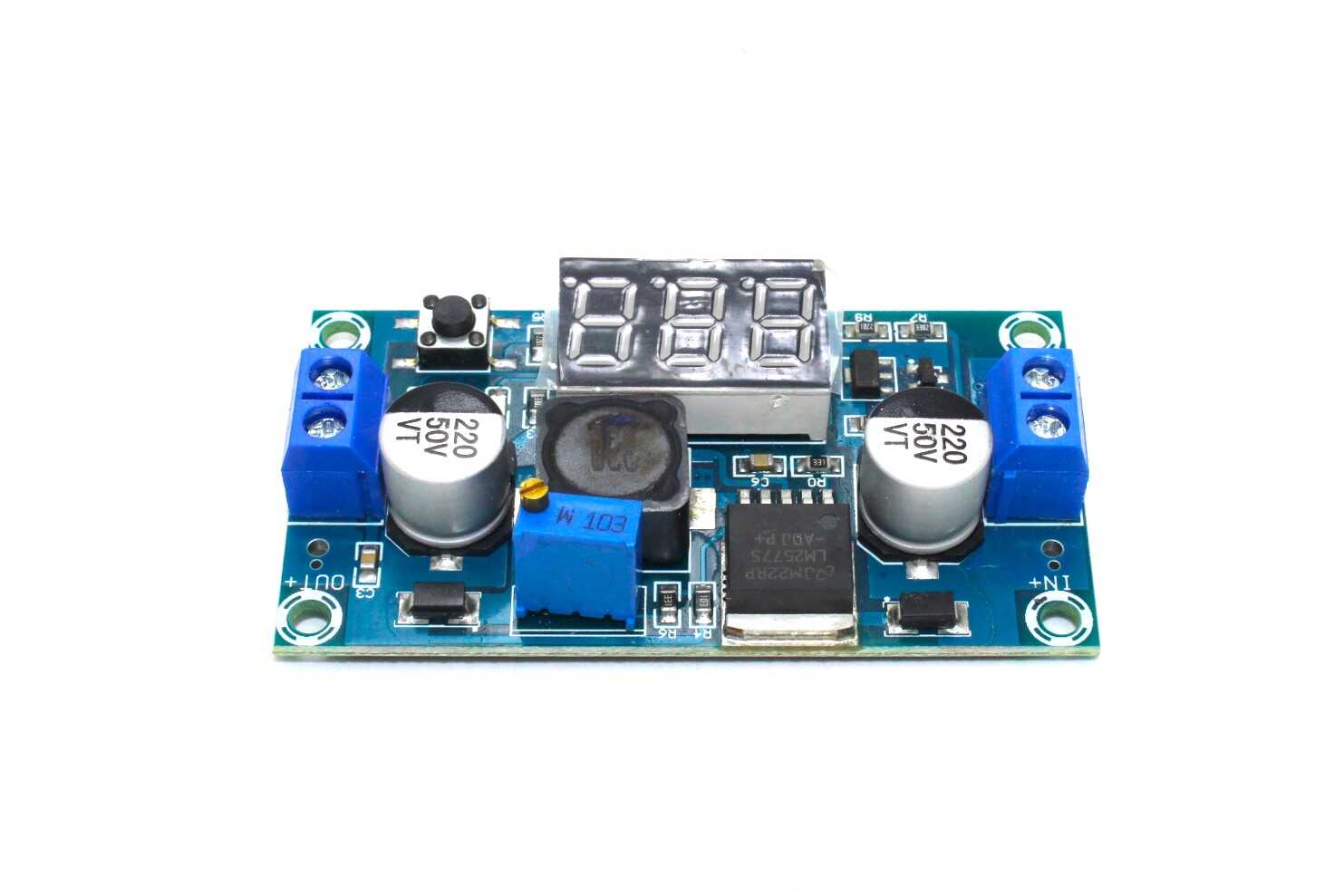

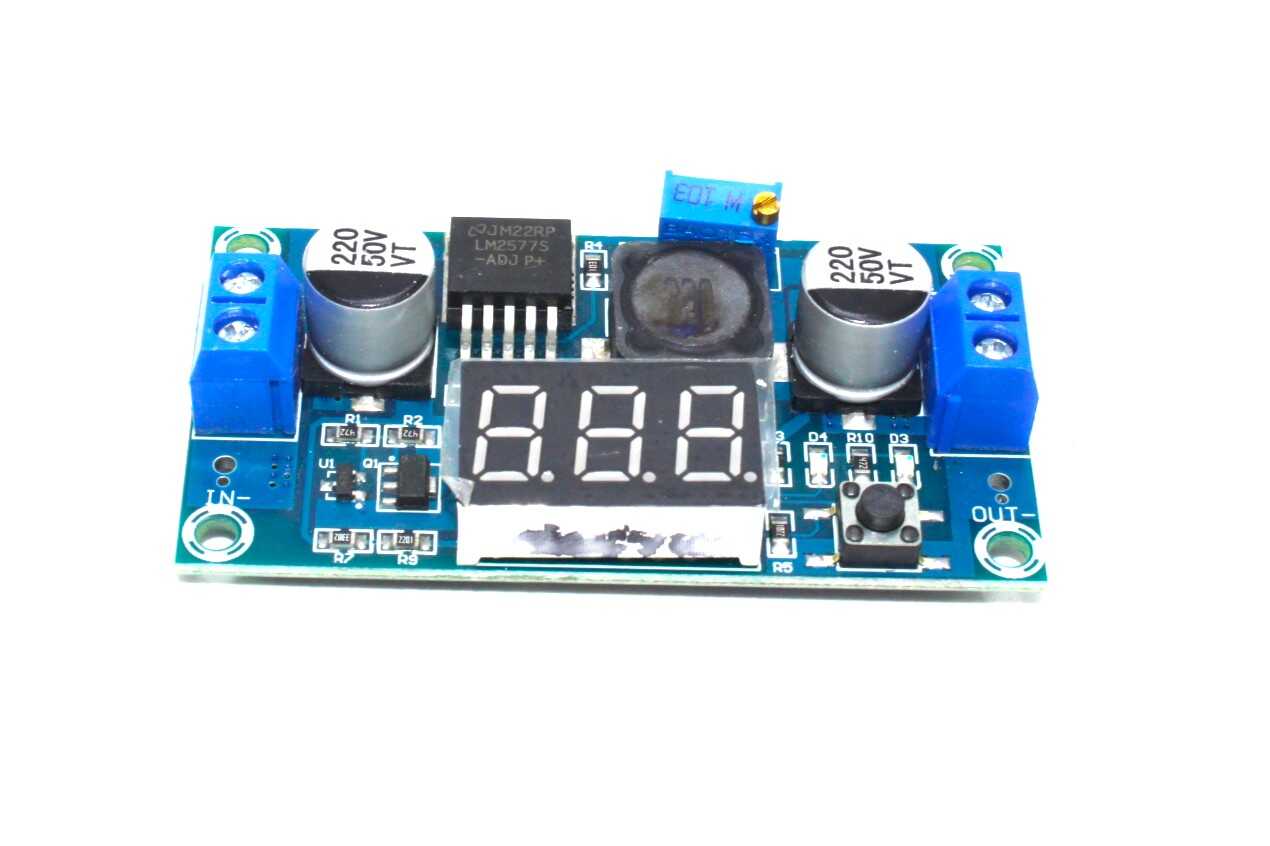

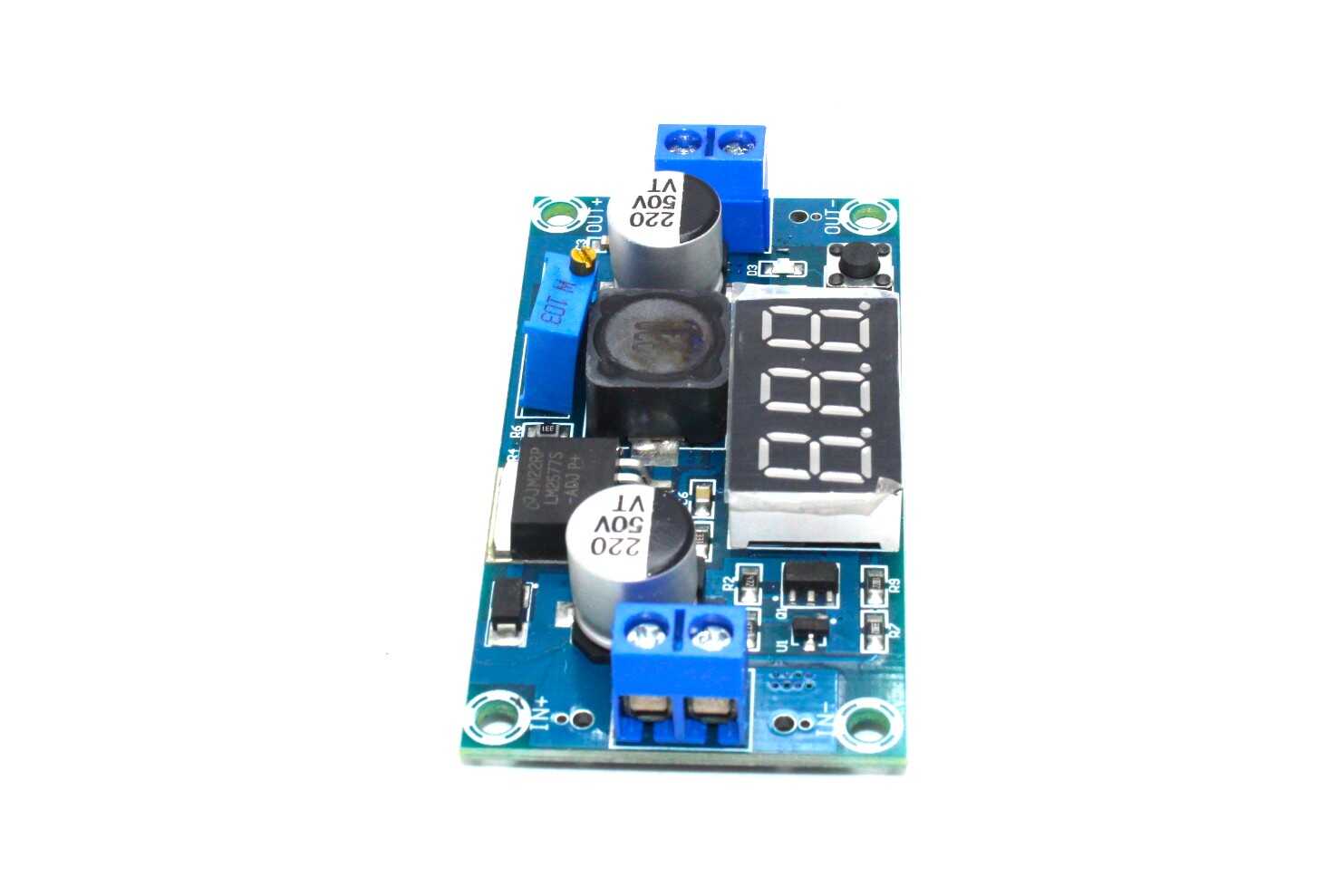

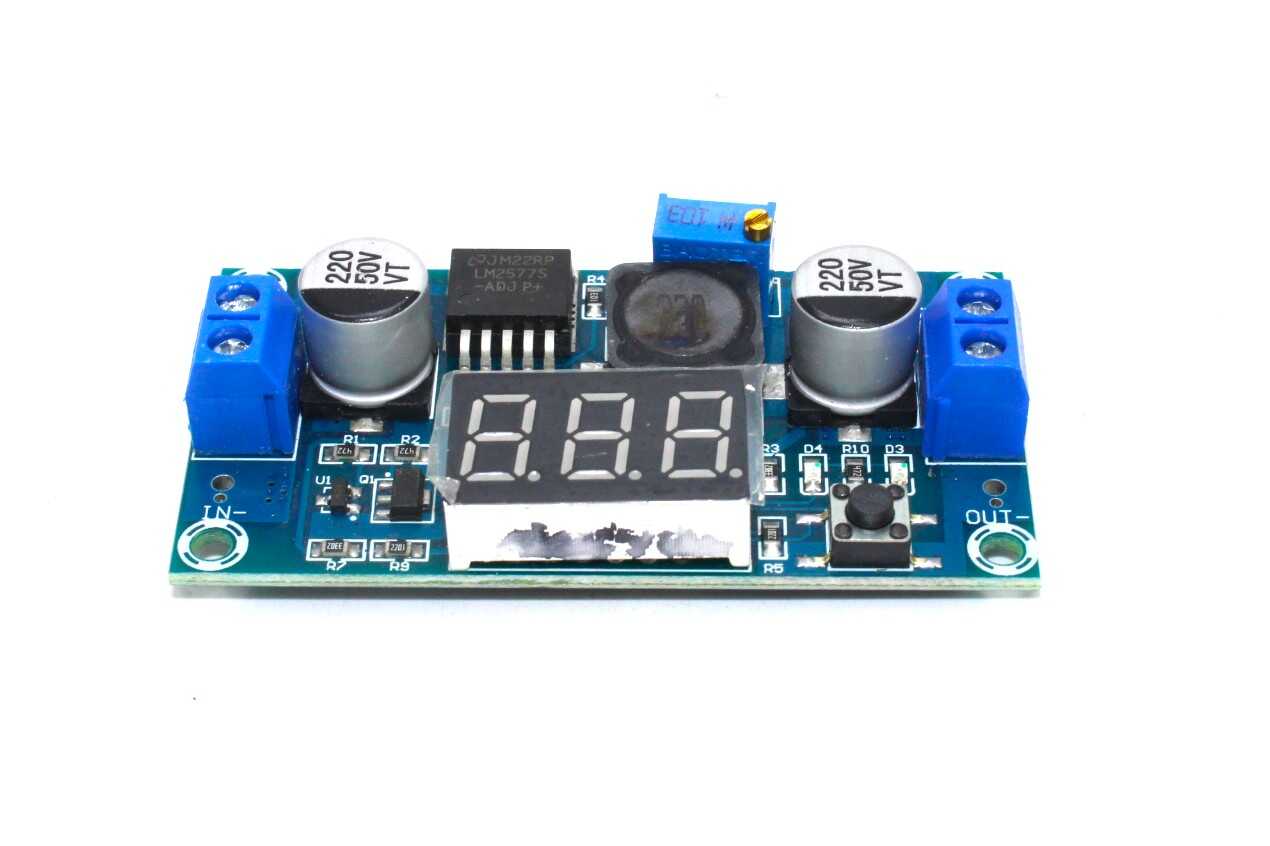

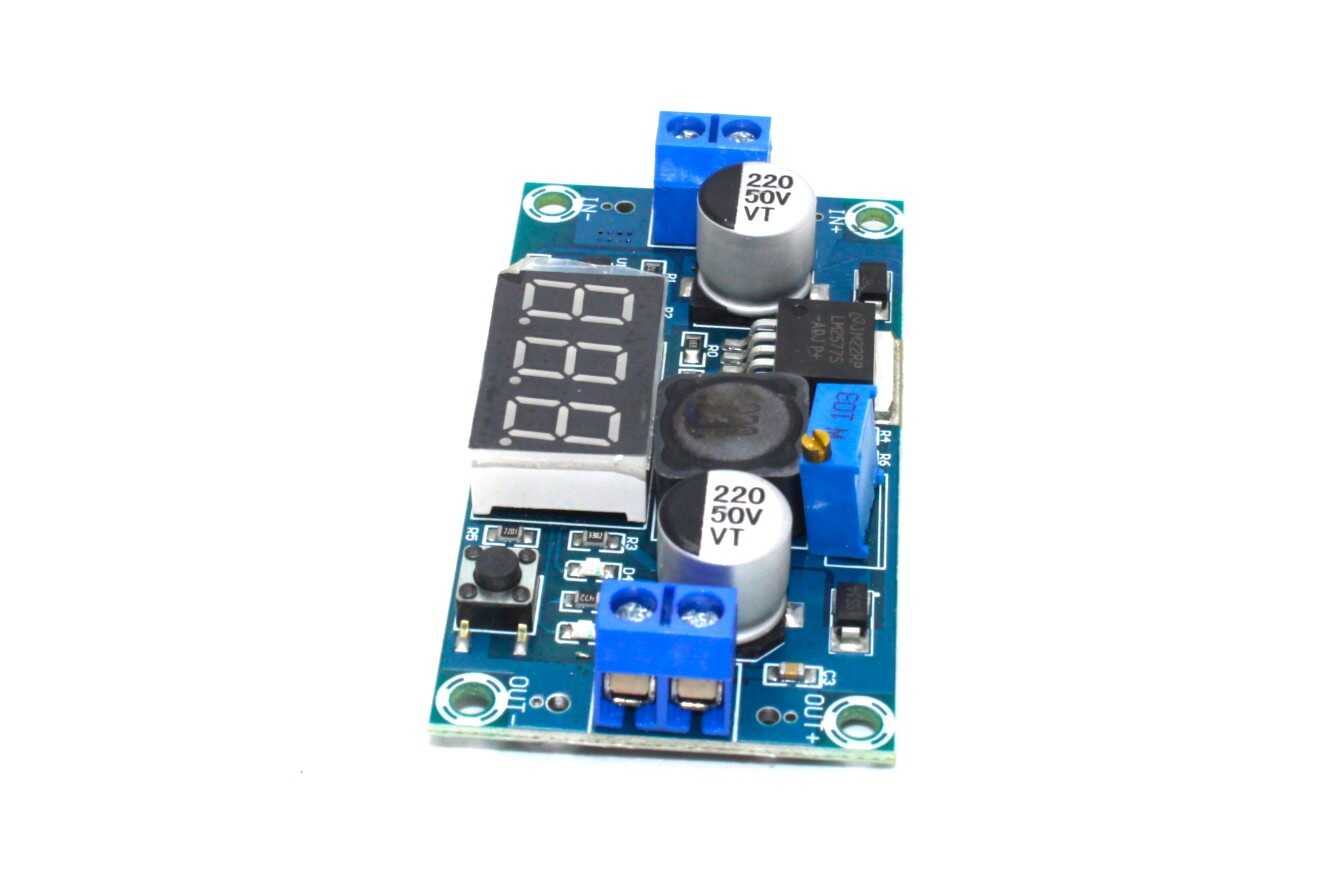

LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Boost Converter Module
The LM2577 3A DC-DC Step-Up LED Voltmeter, adjustable from 3-34V to 4-35V, is a boost converter module that operates using a fixed 150 KHz frequency PWM to reduce the input voltage. These regulators are user-friendly and need only a minimal number of external components, which makes them an economical choice.
Specifications
Input Voltage (V)
3 to 34
Output Voltage(V)
4 ~ 35
Max. Output Current (A)
3
Voltmeter Range(V)
0 to 40
Switching Frequency(KHz)
52
Operating Temperature (°C)
-40 to 90
Length (mm)
60
Width (mm)
35
Height (mm)
13.5
Weight (gm)
24
Features
Multiple output regulator.
One button to switch input and output voltage display.
Power-down memory function.
Press the button for 3 seconds can turn OFF/ON the LED display.
With wiring terminal.
When adjusting the blue potentiometer, please use a multimeter to monitor the voltage
Rotating Clockwise can raise the voltage while rotating counter clockwise could lower the voltage
When the module output voltage cannot be adjusted ( the output voltage is always equal to the input voltage ) Please adjust the potentiometer counter clockwise 20 laps (20 turns) or more till it works.
LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Overview
The LM2577 3A DC-DC Step UP LED Voltmeter module is a boost converter designed to step up input voltages between 3V and 34V to an adjustable output of 4V to 35V. It integrates a digital LED voltmeter for real-time monitoring and supports up to 3A load current, making it ideal for custom power supply applications.
Key Features of LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V
Wide input range: 3 – 34 V DC, configurable to suit various battery or adapter sources
Adjustable output voltage: 4 – 35 V DC with fine-tuning via onboard potentiometer
3 A maximum continuous output current for driving LEDs, motors, or other loads
Built-in LED voltmeter displays 0 – 40 V with ±0.1 V accuracy
One-button toggle to switch between input and output voltage readouts
Power-down memory and 3-second button press to turn the LED display ON/OFF
Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
Boosting low-voltage battery packs to power 12 V and 24 V automotive or LED lighting systems
DIY bench power supplies for electronics testing and prototyping
Portable charging boosters for devices requiring higher voltage inputs
Voltage regulation in solar-powered gadgets or remote sensor modules
Adjustable supply for hobbyist robotics, RC models, and motor drivers
How to Use LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V
Connect your DC source (3 – 34 V) to the module’s input terminals, then attach your load to the output. Use the onboard potentiometer to adjust the output voltage within the 4 – 35 V range while observing the LED display. Press the button briefly to toggle between input and output voltage readings; hold for 3 seconds to turn the display off or on as needed.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the module deliver a full 3A continuously?
Yes, the LM2577 boost converter can supply up to 3A continuous output current, provided adequate heat dissipation and proper input voltage range are maintained.
How do I view input voltage instead of output on the LED display?
Press the onboard push-button once to toggle the display between input voltage and output voltage readings.
What steps switch the LED display off to save power?
Press and hold the display button for 3 seconds. The LED voltmeter will power down and remember its state until you repeat the process to turn it back on.
The LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Boost Converter Module is a versatile boost converter used across a wide range of applications including voltage step-up for electronics, battery-powered LED drivers, USB power banks, and low-voltage to high-voltage conversion.
Common use cases:
Boosting 3.7V LiPo to 5V for USB output
Driving 12V LED strips from a 5V source
Building a portable power bank
This product is ideal for power electronics designers and DIY enthusiasts.
Technical Tip: Boost converters increase voltage at the cost of reduced current capacity. Total power (W) remains roughly constant minus efficiency losses.
