This is the 24V variant of the Hi-Link HLK 5M24 24V/5W Switch Power Supply Module in Hi-Link Power Supply Module. Available at ₹228.92 (₹194.00 + GST) with free shipping across India.
Looking for Hi-link Module 24v? Hi-Link HLK 5M24 24V/5W Switch Power Supply Module is available at Zbotic with fast shipping across India.

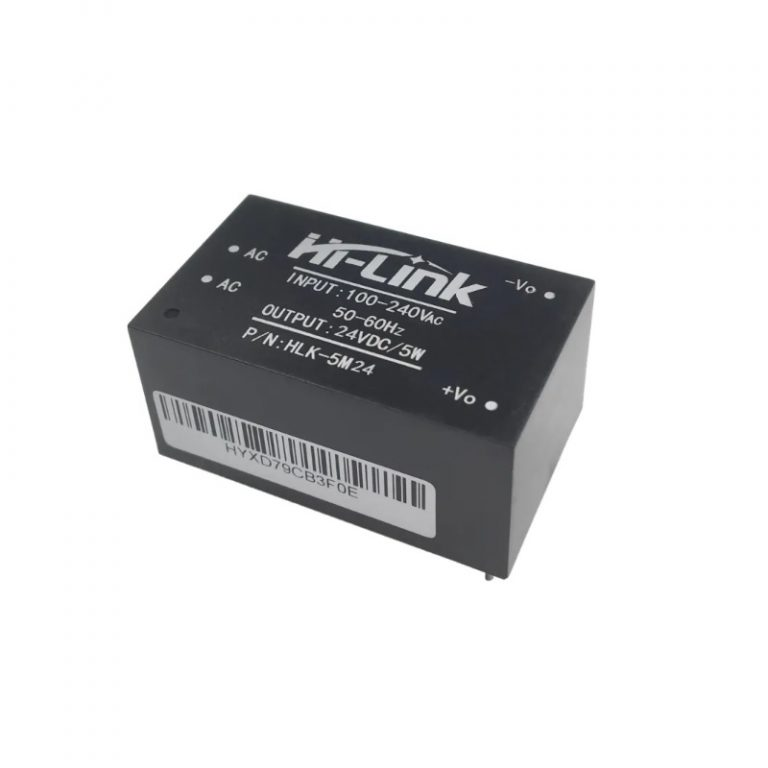

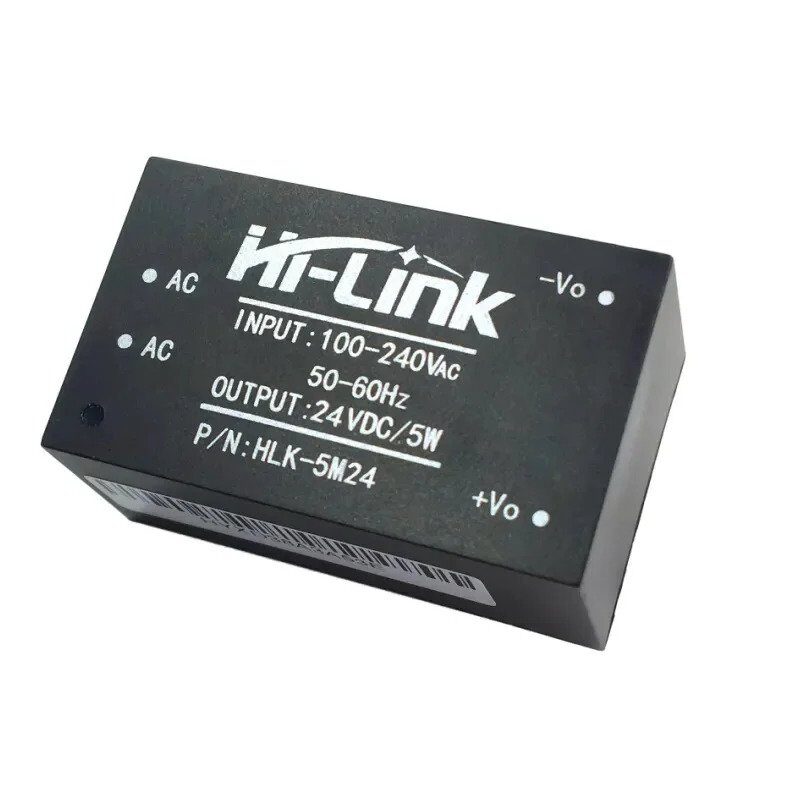

Hi-Link HLK 5M24 24V/5W Switch Power Supply Module
The HLK-5M24 5W Switch Power Supply Module is a compact, isolated step-down module designed for PCB mounting. It efficiently converts 100V AC to 240V AC into 24V DC with a power rating of 5 Watts, making it perfect for small projects that require a 24-volt supply from the mains.
This module provides several benefits, including low temperature rise, minimal power consumption, high efficiency, reliability, and strong isolation.
As a switching power supply, it ensures a stable output voltage even with input voltage fluctuations. Its design allows for straightforward installation on PCBs, making it ideal for powering portable devices. The module is versatile, finding applications in smart homes, automation, control systems, communication equipment, instrumentation, and various industrial sectors.
Specifications
Model No.
HLK-5M24
Brand
Hi-Link
Input Voltage (V AC)
100 ~ 240
Output Current(mA)
208mA
Stable Output Voltage (V DC)
24
Output Power(Watt)
5
Efficiency
69%
Color
Black
Dimensions (mm) LxWxH
44 x 20 x 25
Weight(g)
28
Features
Ultra-thin, ultra-small
All voltage input (AC: 100 ~ 240V)
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
The product is designed to meet the requirements of the EMC and Safety Test
Low power consumption, environmental protection, no-load loss <0.1W
Hi-Link HLK 5M24 24V/5W Switch Power Supply Module Overview
The Hi-Link HLK 5M24 is an ultra-thin, isolated switch-mode power supply module that converts 100–240VAC mains input into a regulated 24VDC output at up to 5W. Designed for PCB mounting, it delivers a compact and reliable 24-volt supply for small electronic and embedded applications.
Key Features of Hi-Link HLK 5M24 24V/5W Switch Power Supply Module
AC Input Range: 100–240VAC for global compatibility
24V DC Output at 5W, ideal for low-power 24V systems
Ultra-thin, ultra-small form factor for tight PCB layouts
Low ripple and low noise output for sensitive circuitry
Built-in overload and short-circuit protection
High efficiency and high power density, certified for EMC and safety tests
Fast shipping from Zbotic across India
Applications and Use Cases
Powering 24V sensors or control boards in automation projects
Embedded IoT nodes requiring a stable 24V rail
Industrial monitoring devices with PCB-mounted power modules
LED lighting drivers and small display panels
Backup power for low-power alarms and communications gear
How to Use Hi-Link HLK 5M24 24V/5W Switch Power Supply Module

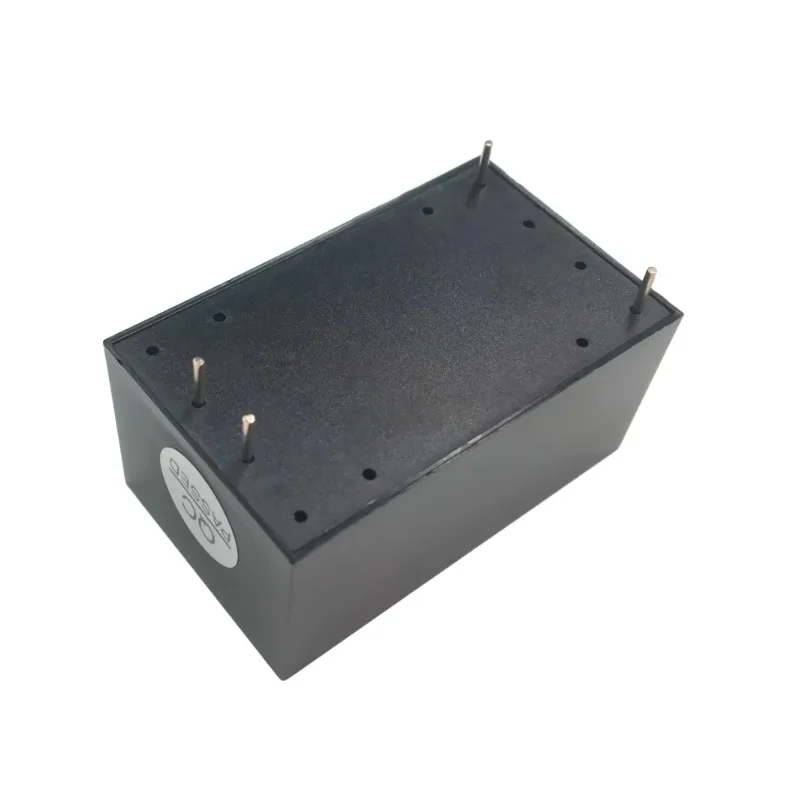

Mount the HLK-5M24 directly onto your PCB using its through-hole pins. Connect the AC input terminals to a 100–240VAC source, respecting mains safety practices, and route the 24VDC output to your load. Ensure adequate board clearance around the module for ventilation and verify output voltage with a multimeter before connecting sensitive devices.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What input voltage range does the HLK-5M24 support?
The HLK-5M24 accepts a wide AC input range from 100VAC up to 240VAC, making it suitable for use in regions with different mains voltages.
Does the module require an external heatsink?
No external heatsink is needed under normal load conditions (5W output). Ensure proper PCB spacing and ventilation to maintain low temperature rise.
How does the overload protection work?
If the output exceeds its 5W rating or a short circuit occurs, the built-in protection will shut down the output. Once the fault is cleared, the module will automatically restart.
The Hi-Link HLK 5M24 24V/5W Switch Power Supply Module is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
Powering a development board or test setup
Driving LED strip installations
Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
