This is the 380V variant of the 24-380V SSR-80DA Solid State Relay in Solid State Relays, Relays. Available at ₹424.80 (₹360.00 + GST) with free shipping across India.
Looking for Ssr-80da Relay? 24-380V SSR-80DA Solid State Relay is available at Zbotic with fast shipping across India.

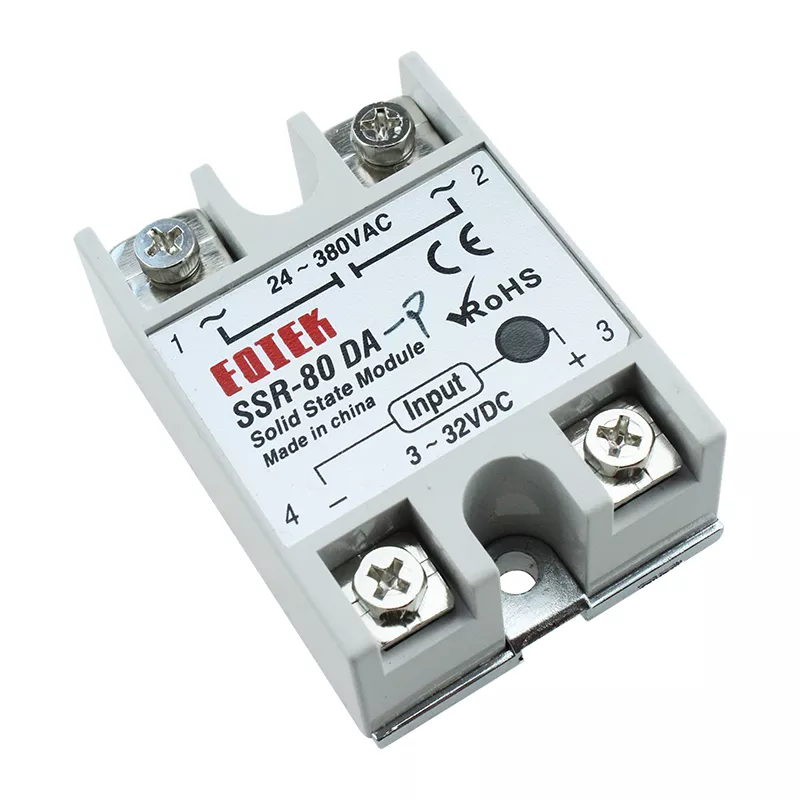

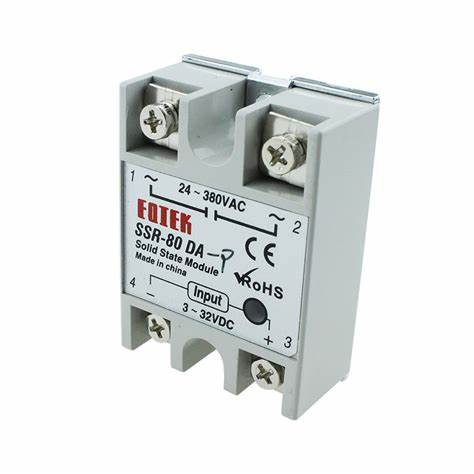

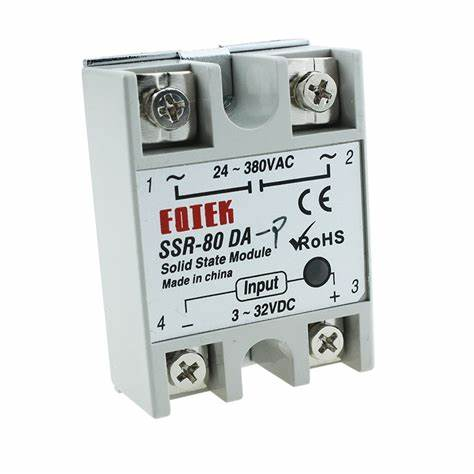

24-380V SSR-80DA Solid State Relay
The DC To AC SSR-80DA Solid State Relay Module is designed to enable the control of high-current AC loads using lower voltage DC control circuitry. Solid-state relays offer numerous advantages over mechanical relays, including lower voltage and current requirements for switching and faster switching speeds due to the absence of moving contacts.
This particular SSR is capable of switching current loads of up to 80A, making it suitable for a wide range of applications. It operates with a 3-32V DC input signal and utilizes a zero cross trigger control method for efficient and precise switching. Each relay is equipped with four screw terminals, compatible with ring or fork connectors, ensuring secure connections. Additionally, a plastic cover is provided to protect the terminals during operation.
The SSR-80DA is ideal for use in industrial automation, home automation, power distribution, renewable energy systems, and heating/cooling applications. Its solid-state design ensures reliability and durability, allowing for prolonged operation without wearing out. With its efficient switching capabilities and versatile compatibility, the SSR-80DA provides a dependable solution for controlling AC loads in various settings.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
specification –
| Model | SSR-80DA |
|---|---|
| Rated Load Current (A) | 80 |
| Trigger Voltage (VDC) | 3-32 |
| Switching Voltage (VAC) | 24-380 |
| Color | Light Gray |
| Length (mm) | 60 |
| Width (mm) | 45 |
| Height (mm) | 24 |
| Weight (gm) | 92 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 8 × 7 × 4 cm |
Note：-DA Means Direct Current Controlled Alternating Current
Package includes :
1 x24-380V SSR-80DA Solid State Relay
24-380V SSR-80DA Solid State Relay Overview
The 24-380V SSR-80DA Solid State Relay is a DC-to-AC switching module designed to control high-current AC loads up to 80A using a low-voltage DC input. It employs a zero-cross trigger method for precise, noise-free switching in industrial and automation systems.
Key Features of 24-380V SSR-80DA Solid State Relay
- Input Voltage Range: Operates with 3–32V DC control signal
- Load Capacity: Switches AC voltages from 24–380V at up to 80A
- Zero-Cross Triggering: Activates at AC waveform zero crossing to reduce noise
- Secure Connections: Four screw terminals for reliable wiring
- Fast Switching: Solid-state design enables rapid on/off cycles
- Genuine Product & Fast Shipping: Supplied by Zbotic with quick dispatch across India
Applications and Use Cases
- Temperature control in industrial ovens and furnaces
- Motor speed regulation for AC compressor and pump systems
- Automated lighting control in workshops and warehouses
- Power switching for resistive heaters in plastic processing
- AC load management in CNC and machine tools
How to Use 24-380V SSR-80DA Solid State Relay
Connect the DC control input (3–32V) to your controller or switch, and wire the AC load (24–380V) through the output terminals rated for 80A. Tighten all four screw terminals securely, mount the relay on a heat sink if operating near maximum current, then apply the DC signal to trigger clean zero-cross switching.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What DC input voltage does the SSR-80DA require?
The SSR-80DA accepts a DC control voltage between 3 and 32V, making it compatible with PLCs, microcontrollers, and manual switches.
What AC voltage and current can this relay switch?
This solid state relay handles AC load voltages from 24 to 380V and switches currents up to 80A, suitable for heavy-duty industrial applications.
How does zero-cross triggering benefit my application?
Zero-cross detection ensures the relay turns on at the AC waveform’s zero point, minimizing inrush current and electrical noise for safer, cleaner operation.
