This is the 380V variant of the 24-380V SSR-40VA Solid State Voltage Regulator in Solid State Relays. Available at ₹398.84 (₹338.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This is an SSR-40VA Solid State Relay Module 470-560KΩ/24-380VAC 25VA. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.
The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

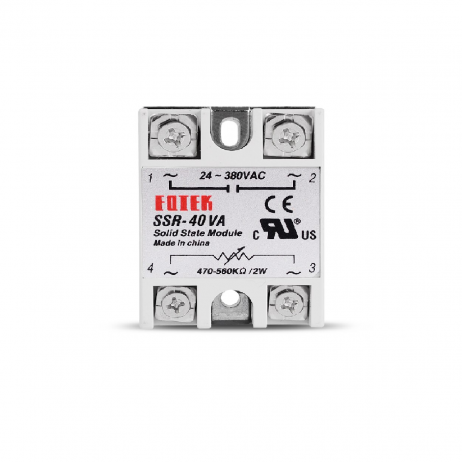

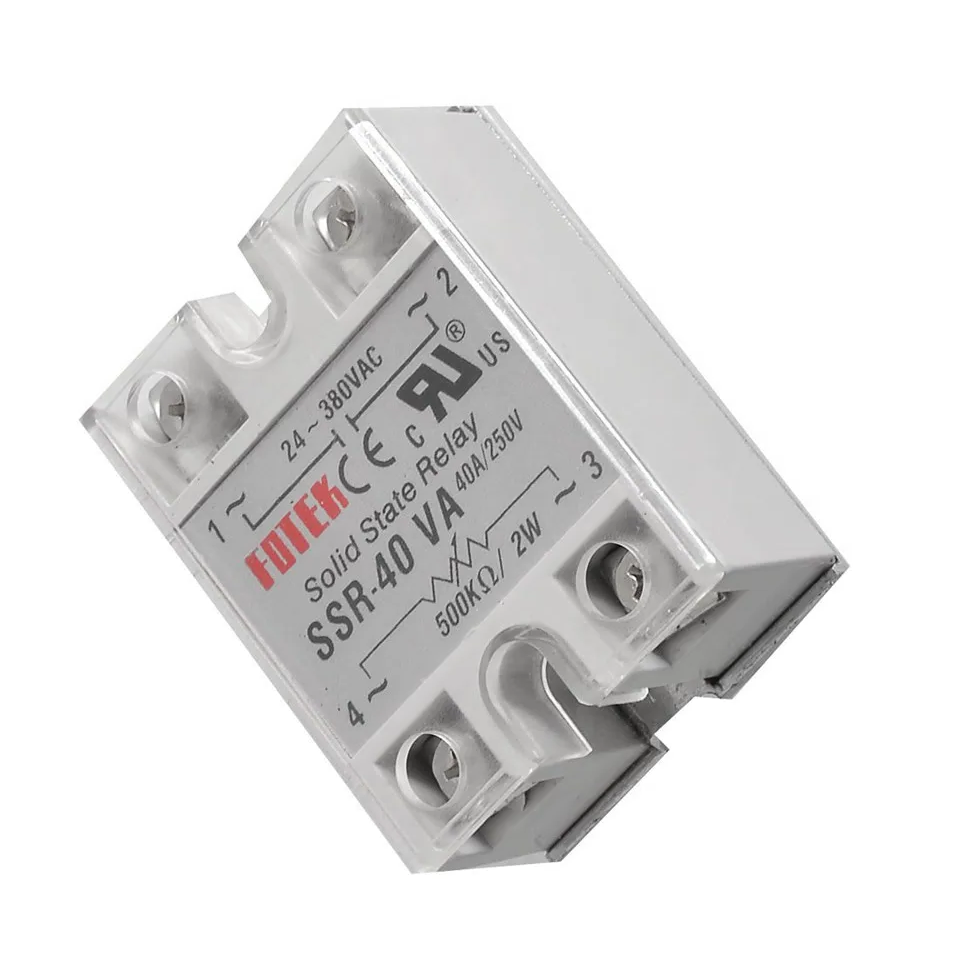

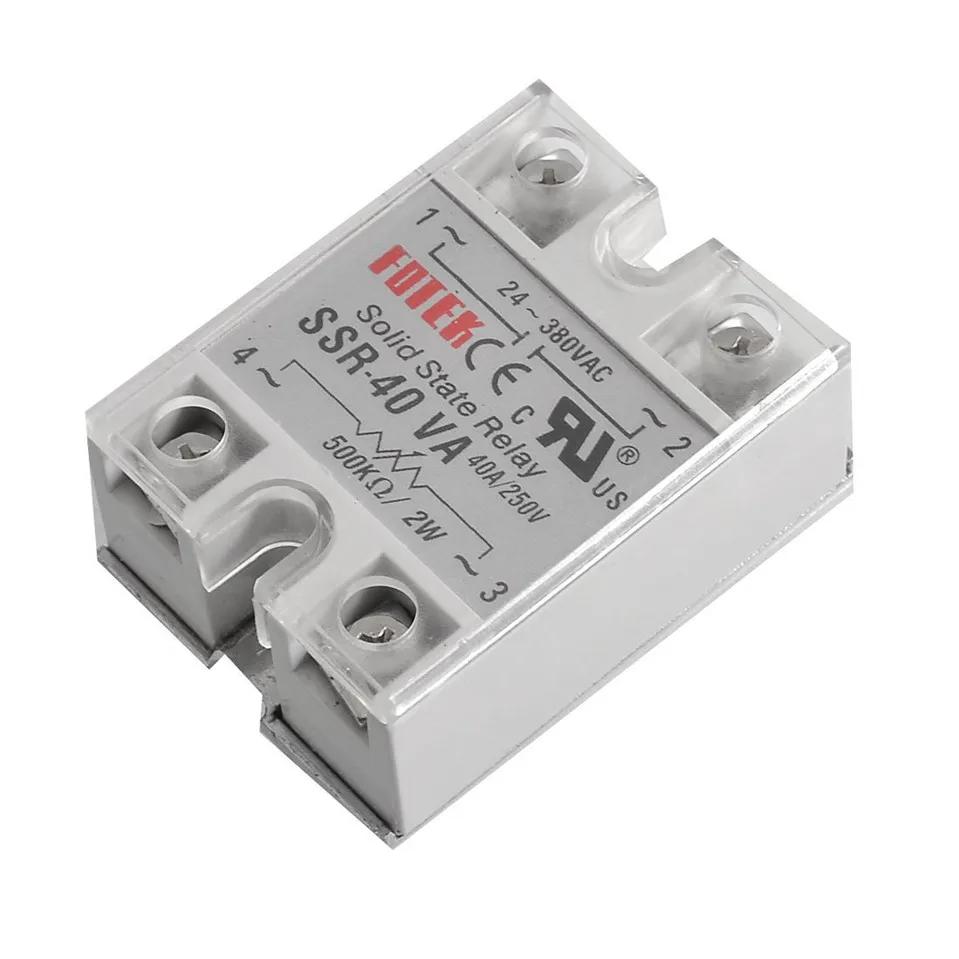

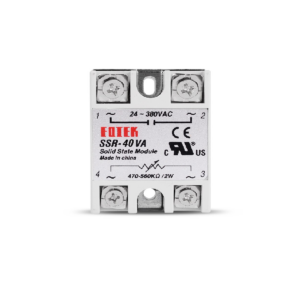

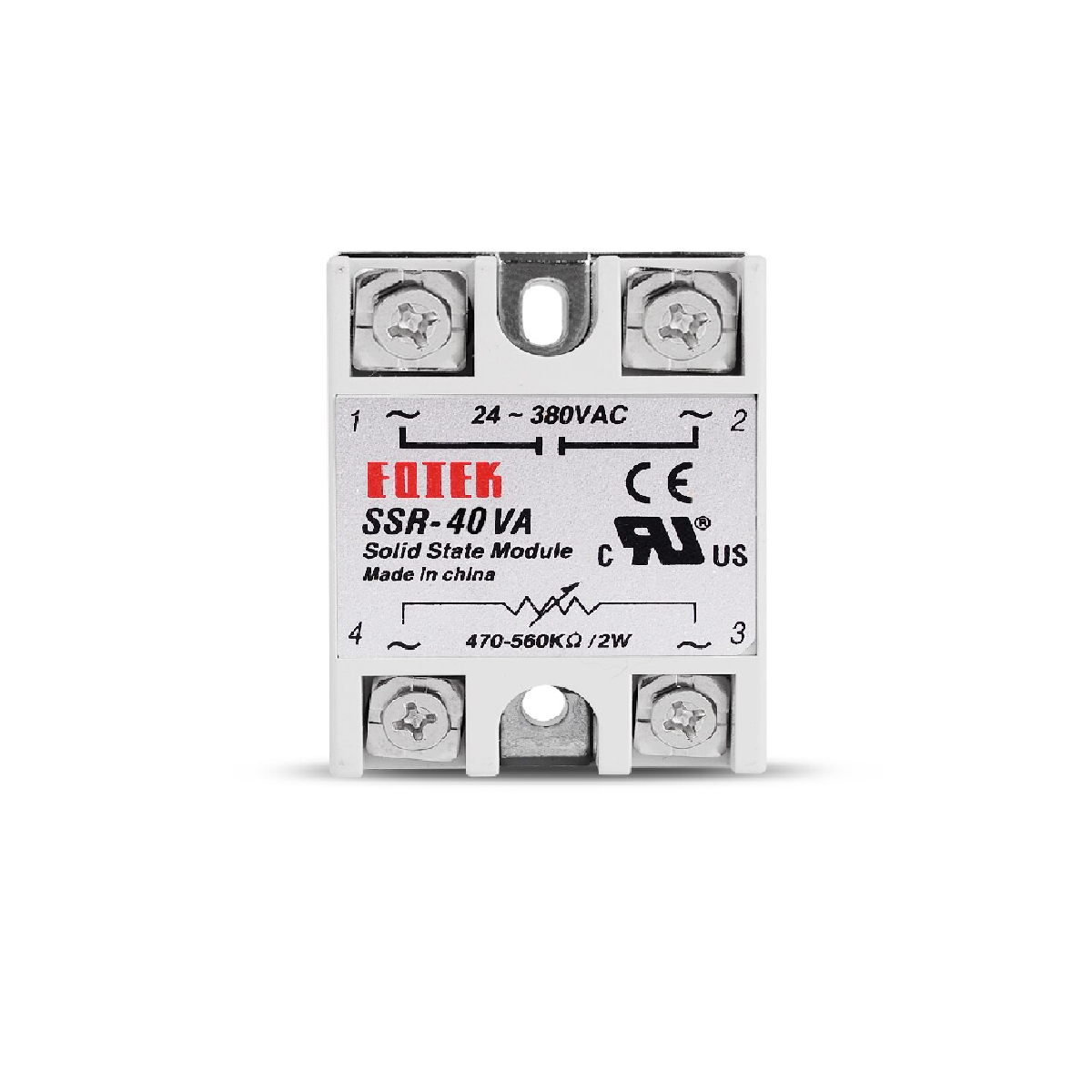

In this Particular SSR, the power output is controlled by the trigger angle of the triac with the variable resistor of 470-560KΩ. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification:
| Product Type | Voltage Regulator |
|---|---|
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger resistance | 470-560KΩ |
| Input Voltage (V) | 24-380 |
| Operating Temperature Range (°C): | -20 to 85 °C |
| Material | ABS |
| Length (mm): | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (gm) | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 1 cm |
Package Includes:
1 x 24-380V SSR-40VA Solid State Voltage Regulator
Grafana + InfluxDB: IoT Data Visualization Stack
Table of Contents Why Grafana and InfluxDB for IoT Installing InfluxDB on Ubuntu Setting Up Grafana Designing Your...
Read More →
ESP32-CAM: Build a WiFi Security Camera Step by Step
The ESP32-CAM is one of the most capable and affordable development boards available to Indian makers today. For...
Read More →
AWS IoT Core with ESP32: Cloud-Connected Sensor Guide
Connecting your ESP32 to AWS IoT Core takes your IoT projects from local network experiments to enterprise-grade, globally...
Read More →Technical Specifications
| Model | SSR-40VA |
|---|---|
| SKU | AI3257 |
| Weight | 0.12 kg |
| Availability | In Stock |
Applications & Use Cases
The 24-380V SSR-40VA Solid State Voltage Regulator is a versatile solid state relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
