Product Description

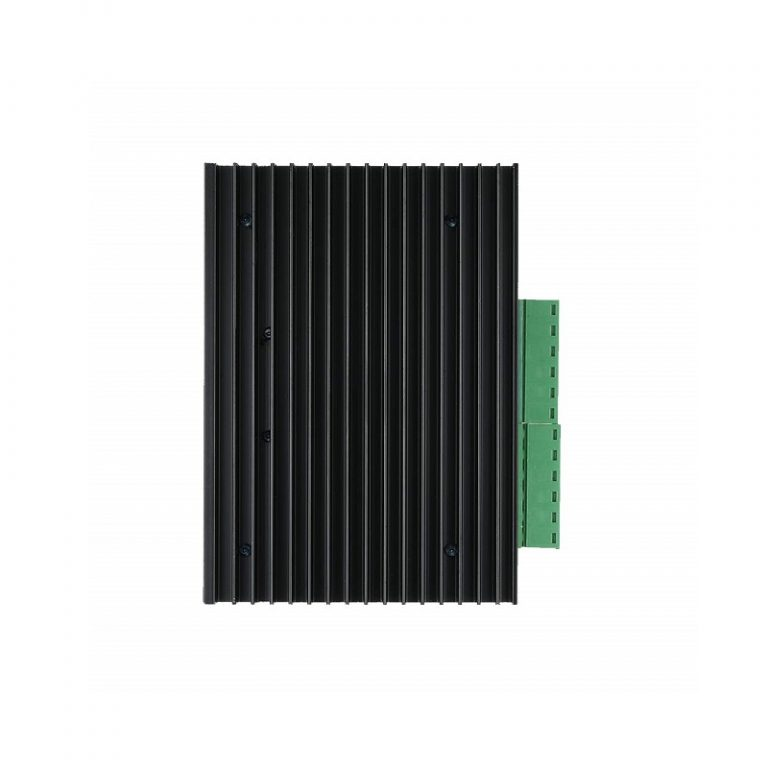

The TB6600 Stepper Motor Driver is a professional and easy-to-use device that can control a two-phase hybrid stepper motor. It works with Arduino and other microcontrollers that can produce a 5V digital pulse signal.
The TB6600 Stepper Motor Driver can accept a wide range of power input, from 12 to 48VDC. It can also output a peak current of 5A, which is sufficient for most stepper motors. The device allows speed and direction control for the stepper motor.
The output current of the device can be adjusted with 6 DIP switches. There are 8 current levels to choose from: 0.2A, 0.6A, 1.2A, 1.8A, 2.5A, 3.3A, 4.2A, and 5A. All the signal terminals use high-speed optocoupler isolation, which enhances the device’s resistance to high-frequency interference. The device is suitable for driving 57 and 42-type two-phase hybrid stepper motors.

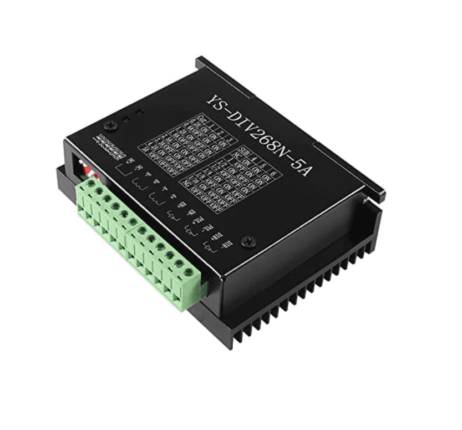

NOTE: YS-DIV268N-5A or HY-DIV268N-5A printed on casing working is same.
Features :
- H bridge bipolar constant current drive.
- The biggest 5.0 A Eight kinds of output current are optional.
- The biggest 32 To subdivide 6 kinds of subdivision modes selectable.
- Input signal high-speed photoelectric isolation.
- A total of standard single pulse interface.
- Offline retention function.
- The semi-enclosed casing can adapt to a more stringent environment.
- Provide energy saving half-automatic current lock function.
Specification-
| Input Supply Voltage (VDC) | 12 ~ 48 |
|---|---|
| Supply Current (A) | 1 to 5 |
| Max. Output Current (A) | 0.2 to 5 |
| Max Power Output (W) | 160 |
| Operating Temperature Range (°C): | -10 to 45 |
| Length (mm): | 105 |
| Width (mm) | 75 |
| Height (mm) | 35 |
| Weight (g): | 220 |
| Shipping Weight | 0.25 kg |
| Shipping Dimensions | 12 × 9 × 4 cm |
Package Includes :
1 x TB6600 0.2-5A CNC Controller Stepper Motor Driver Single Axes Two Phase Hybrid Stepper Motor for CNC
Planetary Gear Motor: How It Works & Applications in Robotics
When a robot arm lifts a payload, a mobile robot climbs a ramp, or an automated door opens...
Read More →
ESP32 Servo Control: Multiple Servos & Smooth PWM Guide
Table of Contents Why Use ESP32 for Servo Control? Servo Motor Basics: PWM and Angles ESP32 LEDC PWM...
Read More →
VNH5019 Motor Driver Shield: Pololu High Current Arduino Guide
Table of ContentsWhat Is the VNH5019 Motor Driver Shield?Key Specifications and FeaturesHardware Setup and WiringInstalling the Pololu LibraryBasic...
Read More →Technical Specifications
| Model | TB6600 |
|---|---|
| Current Rating | 5A |
| SKU | AI2617 |
| Weight | 0.29 kg |
| Availability | In Stock |
Applications & Use Cases
The TB6600 0.2-5A CNC Controller Stepper Motor Driver Single Axes Two Phase Hybrid Stepper Motor for CNC is a versatile stepper motor drivers used across a wide range of applications including CNC machines, 3D printers, robotics, camera sliders, and pick-and-place machines.
Common use cases:
- Driving NEMA 17 stepper motors in a 3D printer
- Building a CNC router
- Precise positioning in a robotic arm
This product is ideal for CNC builders, 3D printer makers, and robotics engineers.
Technical Tip: TMC2208/2209 drivers offer silent operation via StealthChop. A4988/DRV8825 are more affordable. Set current limit via the onboard potentiometer.
