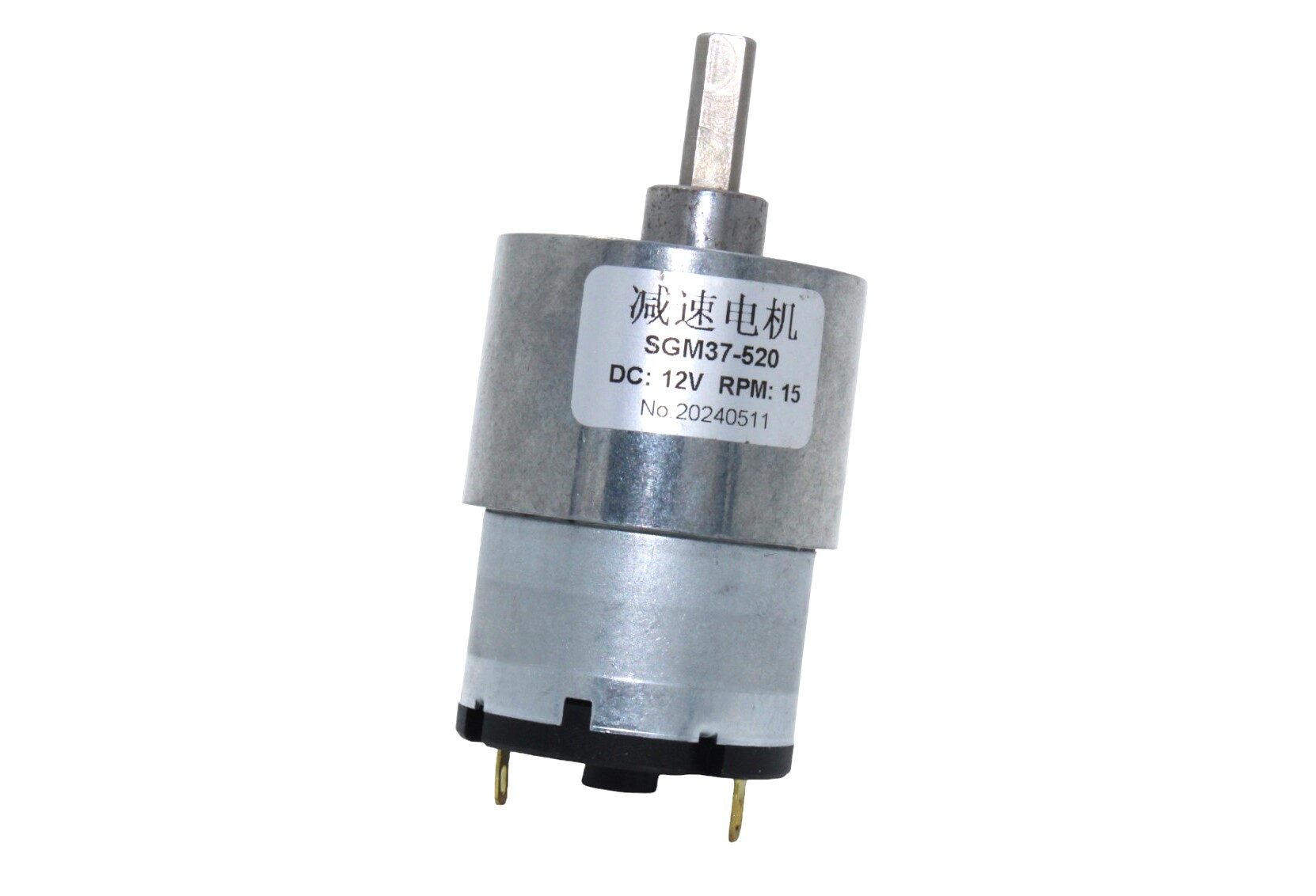

This is the Red variant of the JGB37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor in Brushed / Brushless DC motor Driver, Motor Drivers, Motors & Drivers & Pumps & Actuators. Available at Original price was: ₹591.18.₹503.86Current price is: ₹503.86. (₹427.00 + GST) with free shipping across India.
Looking for Dc Speed Reducer Motor? JGB37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor is available at Zbotic with fast shipping across India.
DC motor is equipped with a brushed motor, which makes the motor more stable and durable. This gearbox motor has high performance and excellent electrical conductivity, which can improve the service life of the product 12V Reduction motor for small smart device parts, like a Full vending machine, small lock, smart toy, etc.
This large and powerful JGB37-520 DC gear motor is available in a wide range of operating voltages and speeds, suitable for almost any project.
Features:
- Small gear motor with low speed, low noise, and high torque.
- The geared motor adopts pure copper winding, which has the characteristics of low heat generation and low loss.
- The metal gearbox has the characteristics of wear resistance and rust resistance, and the motor has a long service life.
- The high-torque gear motor has a thickened magnet with a strong magnetic field and strong anti-interference.
Specification:
- Model: PB37-520-7
- Rated Voltage: 12V
- Revolving Speed: 15 RPM
- Rated Torque: 0.15 kg. cm
- Stall Torque: 0.6 kg. cm
- Rated Current: 100 mA
- Stall Current: 1.2A
- Total Length(LxWxH) : 77x37x37mm
- Gear Material: Full Metal
- Shaft Size : 6 x 15mm(D*L)
- Gearbox length(L) :27mm
- Shaft Type : D Type
- Net Weight: 0.1911kg
Applications:
- Vending machines
- panoramic cameras
- Slot machines
- Money detectors
- Coin refund devices
- Automatic doors
- Peritoneal machines
- Toys, etc.
JGB37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Overview
The JGB37-520 is a compact 12V brushed DC speed reducer motor delivering 15 RPM in forward and reverse directions. Its integrated gearbox and pure copper winding ensure stable operation and long service life, making it ideal for precision low-speed tasks.
Key Features of JGB37-520 DC12V 15RPM/MIN Miniature Forward and Reverse
- Low-speed output of 15 RPM for precise motion control
- High torque performance at 12 V thanks to the integrated gearbox
- Durable brushed motor with pure copper winding for excellent conductivity
- Forward and reverse rotation by simple DC polarity reversal
- Quiet operation with minimal noise in low-speed applications
- Genuine JGB37-520 unit with fast shipping across India from Zbotic
Applications and Use Cases
- Automated vending machine dispensing mechanisms
- Miniature smart lock and latch actuation
- Gear-driven smart toys and educational robots
- DIY hobby projects requiring low-speed, high-torque motion
- Small conveyor or rotary display turntables
- Home automation devices with precise positioning needs
How to Use JGB37-520 DC12V 15RPM/MIN Miniature Forward and Reverse
Mount the JGB37-520 motor securely using its gearbox housing, connect a regulated 12 V DC power supply to the motor leads, and swap the connections to reverse rotation. For improved control, integrate a motor driver or PWM controller, and ensure the gearbox output shaft is coupled to your mechanical load with minimal misalignment.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I reverse the rotation of the JGB37-520 motor?
Simply swap the polarity of the 12 V DC power connections to change between forward and reverse rotation.
What maintenance does the JGB37-520 motor require?
Inspect brushes periodically and apply light lubrication to the gearbox gears to maintain smooth, reliable operation and extend service life.
Is the JGB37-520 suitable for continuous operation?
Yes, its robust brushed design and pure copper winding support continuous duty at 12 V under moderate loads; ensure adequate ventilation to prevent overheating.
