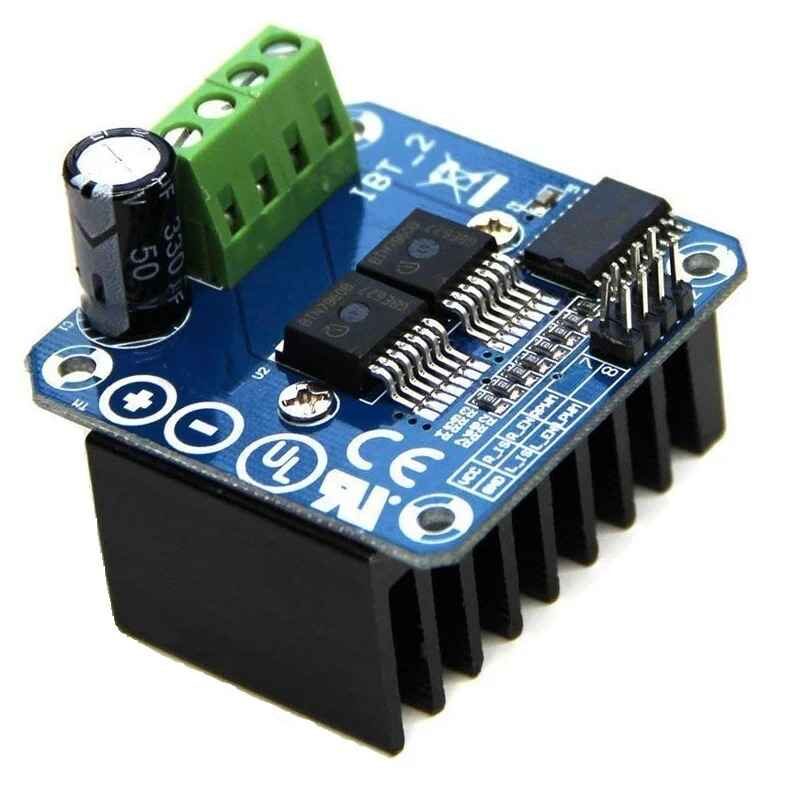

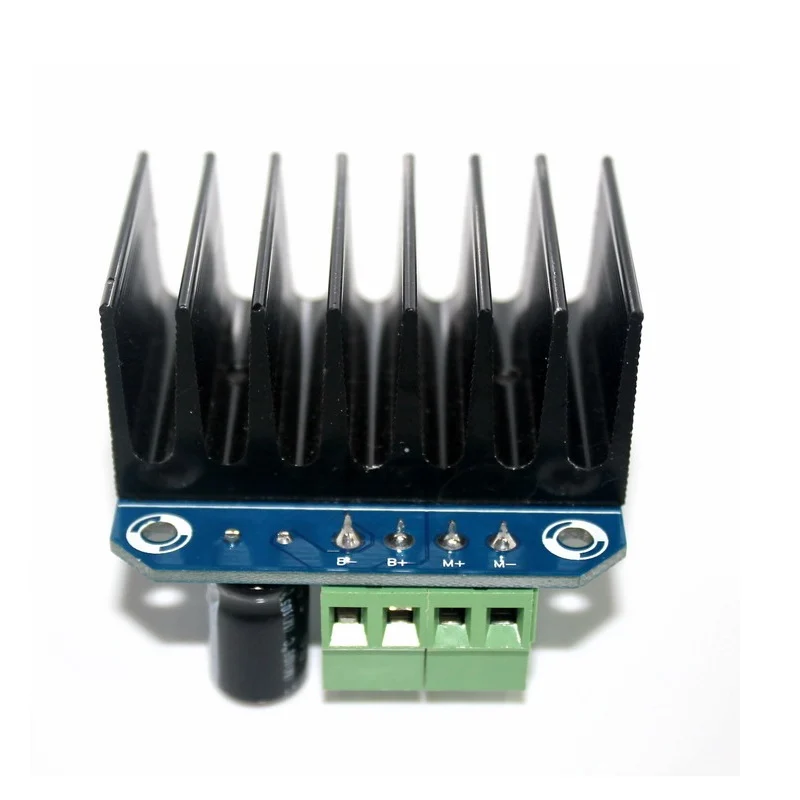

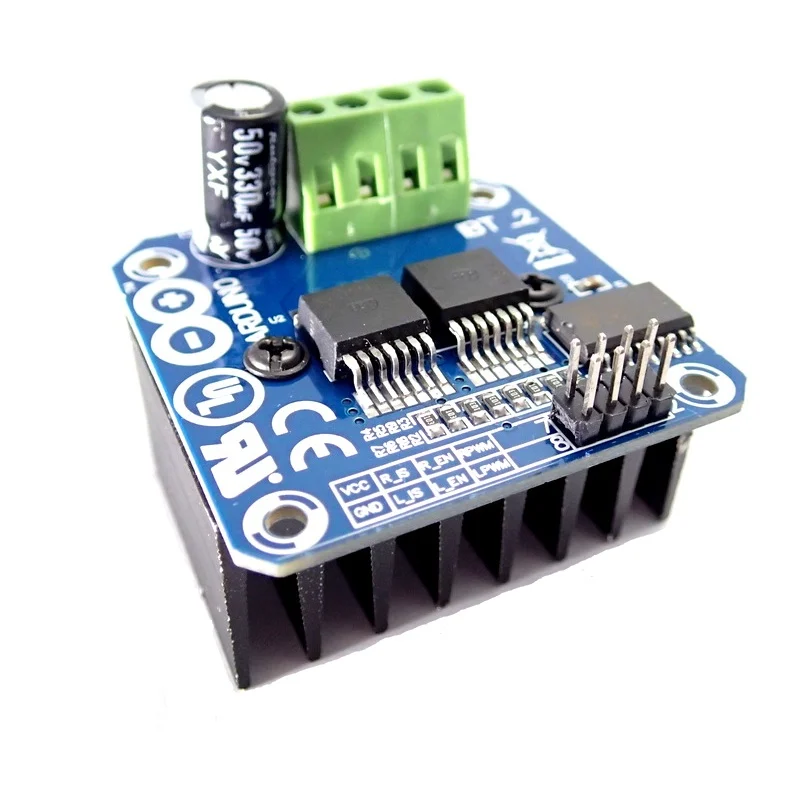

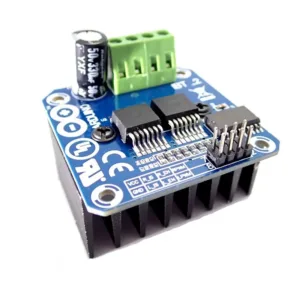

Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
Click to enlarge
Home Electronic Modules Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
Lora Antenna 868mhz ₹85.0 ( +GST 18% )
Back to products
1 Channel Relay Module, 30A with Optocoupler, Isolation 5V Supports, High and Low Triger, (with Guide Rail)
1 Channel Relay Module, 30A with Optocoupler, Isolation 5V Supports, High and Low Triger, (with Guide Rail) ₹355.0 ( +GST 18% )

Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module

₹406.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Input voltage(V): 6 – 27.
  • Maximum current(A): 43.
  • Input level(V): 3.3 – 5.
  • Duty cycle: 0 – 100%.
  • Path resistance: 16 mΩ at 25°C.
  • Low quiescent current: 7 µA at 25°C.

For B2B Enquiry Email Us:- [email protected]

Out of stock

Compare
Add to wishlist
SKU: AI1049 Categories: Back in Stock, Electronic Modules Tag: Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the Novalith ICTM family. This containing one p-channel high side MOSFET and one n-channel low side MOSFET; with an integrated driver IC in one package. Due to the p-channel high side switch; the need for a charge pump is eliminated thus minimizing EMI.

Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs; diagnosis with current sense, slew rate adjustment; dead time generation and protection against overtemperature, overvoltage, under voltage; overcurrent, and short circuit.
The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module provides; a cost-optimized solution for protected high current PWM motor drives with very low board space consumption.


Features :

  1. PWM capability of up to 25 kHz combined with active freewheeling.
  2. Switched mode current limitation for reduced power dissipation in overcurrent.
  3. Status flag diagnosis with current sense capability.
  4. Overtemperature shut down with latch behavior.
  5. Overvoltage lockout.
  6. Undervoltage shut down.
  7. Driver circuit with logic level inputs.
  8. Adjustable slew rates for optimized EMI.
  9. 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC).

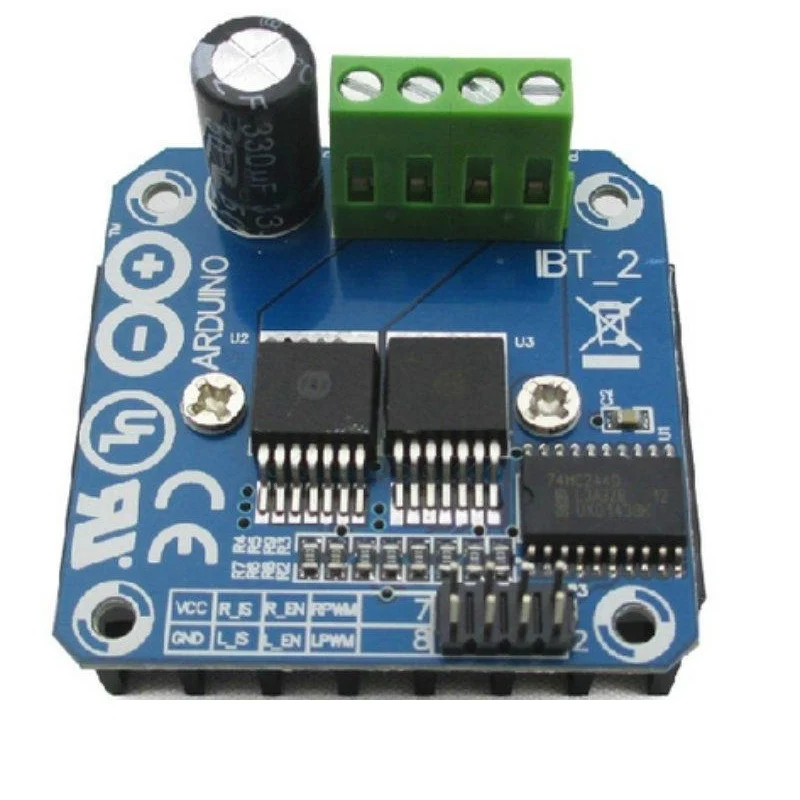

Input port:

  1. RPWM: forward level or PWM signal input, active high.
  2. LPWM: Reverse level or PWM signal input, active high.
  3. R_EN: forward drive enable input, high-level enable, low level off.
  4. L_EN: Reverse drive enable input, high-level enable, low level off.
  5. R_IS: forward drive current alarm output.
  6. L_IS: Reverse drive current alarm output.
  7. VCC: +5 V power output, 5V power supply connection with the microcontroller.
  8. GND: signal common low end.

Package Includes :

1 x Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module.
