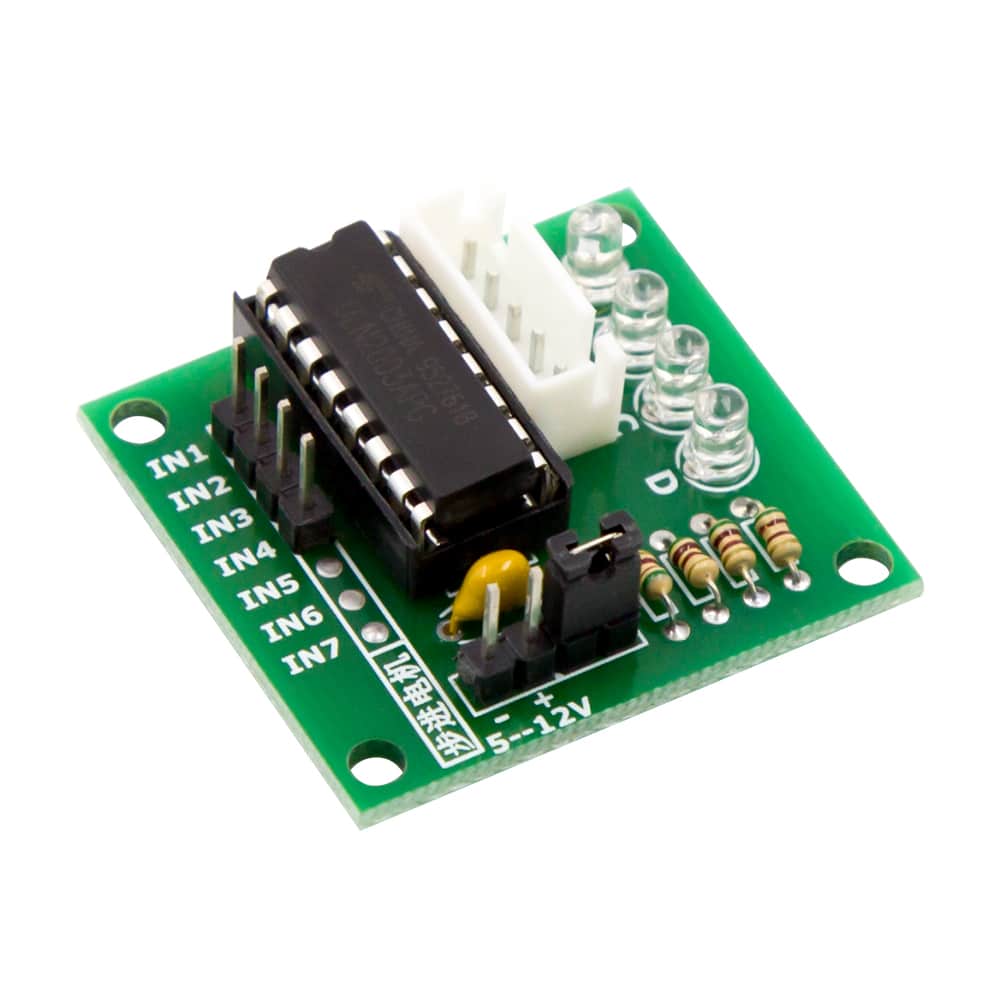

ULN2003 Stepper Motor Driver Board
The ULN2003 Stepper Motor Driver Board is compact and user-friendly, designed to amplify control signals from an Arduino using the ULN2003 driver chip. This lightweight and cost-effective solution is commonly used for running small stepper motors. It employs ULN2003 Darlington arrays to drive 4-phase, 5-wire stepper motors (operating at 5V-12V). With this driver board, it’s easy to control a stepper motor using Arduino or other development platforms.
How to Control a Stepper Motor:
A stepper motor converts pulse signals into angular displacement. By sending specific pulse signals to the driver, you can move the motor to a precise angle. The number of pulses determines how far the motor turns, while the frequency of the pulses controls its rotation speed.
Features
- 4-way signal indicator
- Chip all the pins have Input leads Mounted for easy connection to use.
- XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
- A. B. C. D LED indicating the four-phase stepper motor working condition.
- White jack is the four-phase stepper motor standard jack.
- Power pins are separated.
Specification:
| Model Series: | ULN Series |
|---|---|
| Voltage Rating (V): | 5 to 12VDC |
| Reduction ratio | 0.086111111 |
| No. of Phase | 4 |

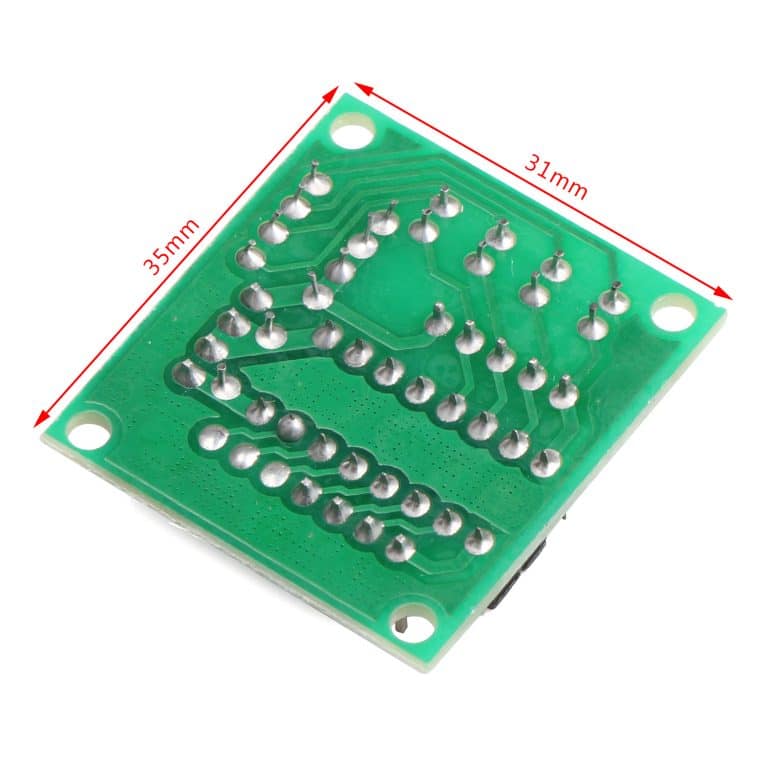

| Dimensions (LxWxH) mm | 35x32x10 |
Package Includes
1 x ULN2003 Stepper Motor Driver Board
Z-Axis Leadscrew Motor for CNC: Pitch, Nut & Drive Explained
The Z-axis on any CNC machine is arguably the most critical axis to get right. It controls cutting...
Read More →
MG996R Servo Motor: High Torque Projects & Control Guide
The MG996R servo motor is one of the most popular high-torque servos in the maker and robotics community....
Read More →
BLDC Motor Guide: How They Work & Where to Buy in India
If you have ever taken apart a drone, an electric bike, or a modern industrial fan, you have...
Read More →Technical Specifications
| Model | ULN2003 |
|---|---|
| SKU | AI0028 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The ULN2003 Stepper Motor Driver Board is a versatile stepper motor drivers used across a wide range of applications including CNC machines, 3D printers, robotics, camera sliders, and pick-and-place machines.
Common use cases:
- Driving NEMA 17 stepper motors in a 3D printer
- Building a CNC router
- Precise positioning in a robotic arm
This product is ideal for CNC builders, 3D printer makers, and robotics engineers.
Technical Tip: TMC2208/2209 drivers offer silent operation via StealthChop. A4988/DRV8825 are more affordable. Set current limit via the onboard potentiometer.
