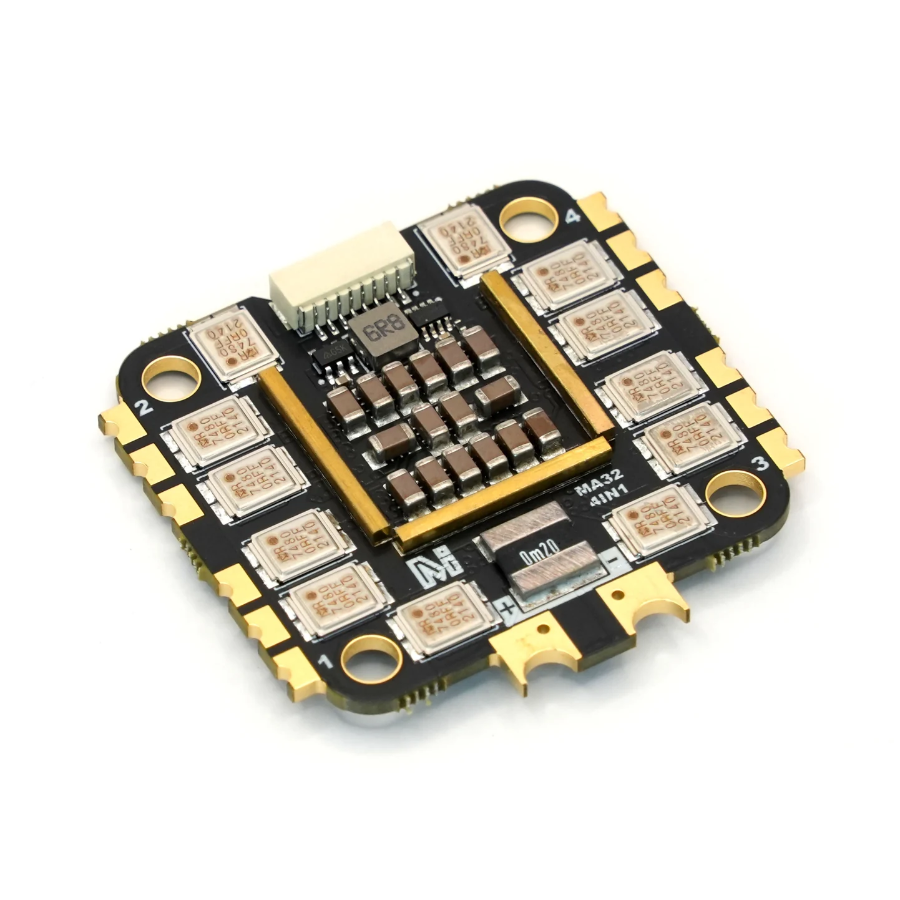

MicoAir AM32 70A 4-in-1 ESC
Description:
The MicoAir AM32 70A 4-in-1 ESC is a high-current electronic speed controller designed for FPV drones and multirotor UAV applications. It integrates four motor controllers into a single compact board, supporting up to 70A continuous current per channel. Powered by AM32 firmware and a 32-bit processor, it supports PWM, DShot300, and DShot600 protocols for responsive brushless motor control. Compatible with 3–6S LiPo batteries, this ESC is suitable for larger FPV freestyle, long-range, and multirotor drone builds. Its metal-packaged MOSFETs help improve heat dissipation during operation.
ESC Specifications
- ESC firmware: AM32_F4A_4IN1_F421_2.19
- PWM carrier frequency: 48 kHz
- ESC protocols: PWM / DShot300 / DShot600 (
DShot300recommended) - Power input: 3–6S
- Maximum continuous current: 70 A × 4 channels (adequate cooling is required; do not operate in a sealed enclosure)
- MOSFET: 40 V, 0.95 mΩ ultra-low on-resistance, metal package
- Current-sensor output: 10.2 mV/A
- Mounting pattern: 30.5 × 30.5 mm (4 mm holes)
- Weight: 14.5 g
- Recommended application: 5–12-inch FPV drones

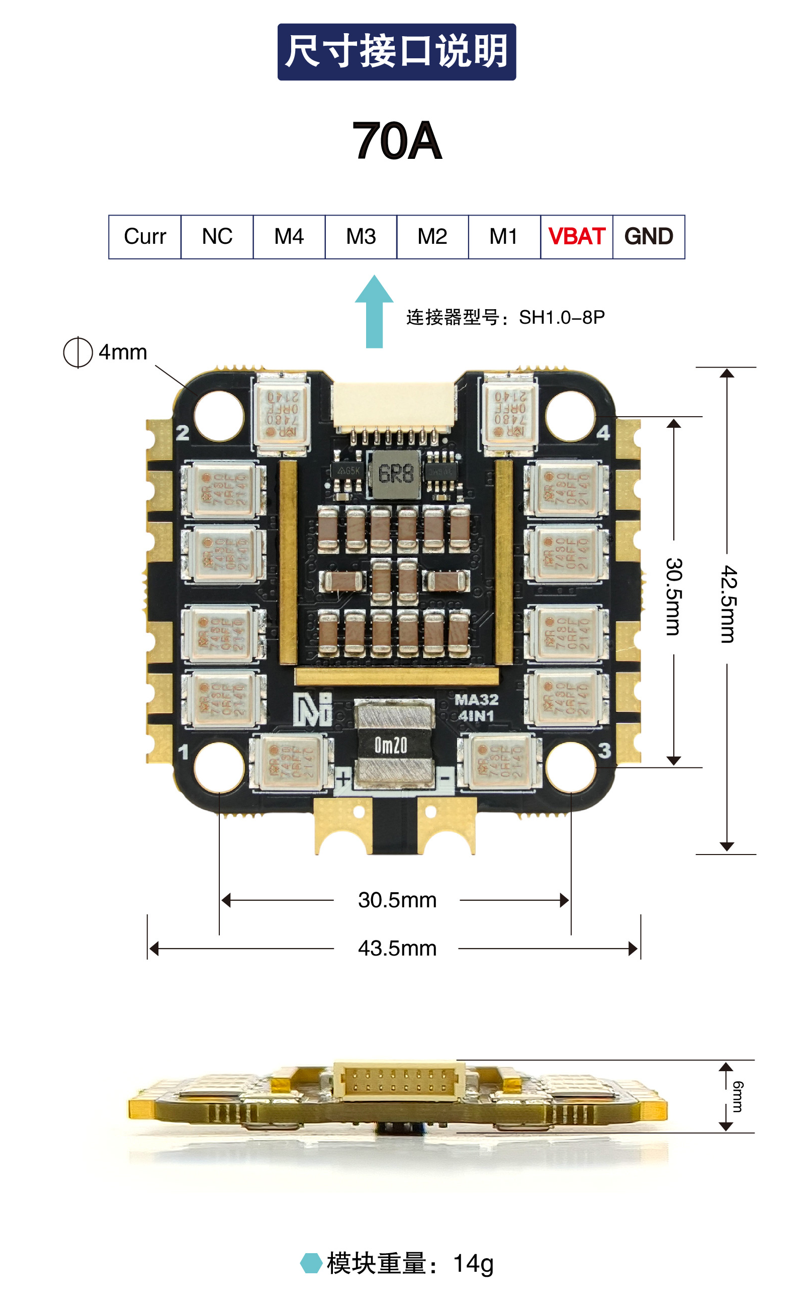

Dimensions and Connector Pinout
- Curr: Current-sensor output
- NC: No connection required
- M1–M4: Motor-control signal inputs
- VBAT: Battery-voltage output, normally used to power the flight controller. For example, with a 6S battery connected to the ESC, VBAT carries the full 6S battery voltage (22.2 V nominal).
- GND: Power ground
ESC Wiring Diagram
Package Includes:
1xMicoAir AM32 70A 4-in-1 ESC
Drone Payload Systems: How to Add a Camera Gimbal
Drone Payload Systems: How to Add a Camera Gimbal to Your Drone A camera gimbal transforms your drone...
Read More →
FPV Receiver Binding: ELRS, SBUS and SmartPort Explained
Table of Contents Understanding FPV Receiver Protocols ELRS (ExpressLRS) Binding Guide SBUS: Wiring and Configuration SmartPort Telemetry: Setup...
Read More →
Drone Spare Parts: Essential Replacements You Need
No matter how carefully you fly, crashes are inevitable when you are learning or pushing the limits of...
Read More →Technical Specifications
| Brand | MicoAir |
|---|---|
| Model | AM32 |
| Current Rating | 70A |
| SKU | AI8314 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MicoAir AM32 70A 4-in-1 ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
