GEPRC TAKER H743 MINI 32Bit 60A STACK
Description:

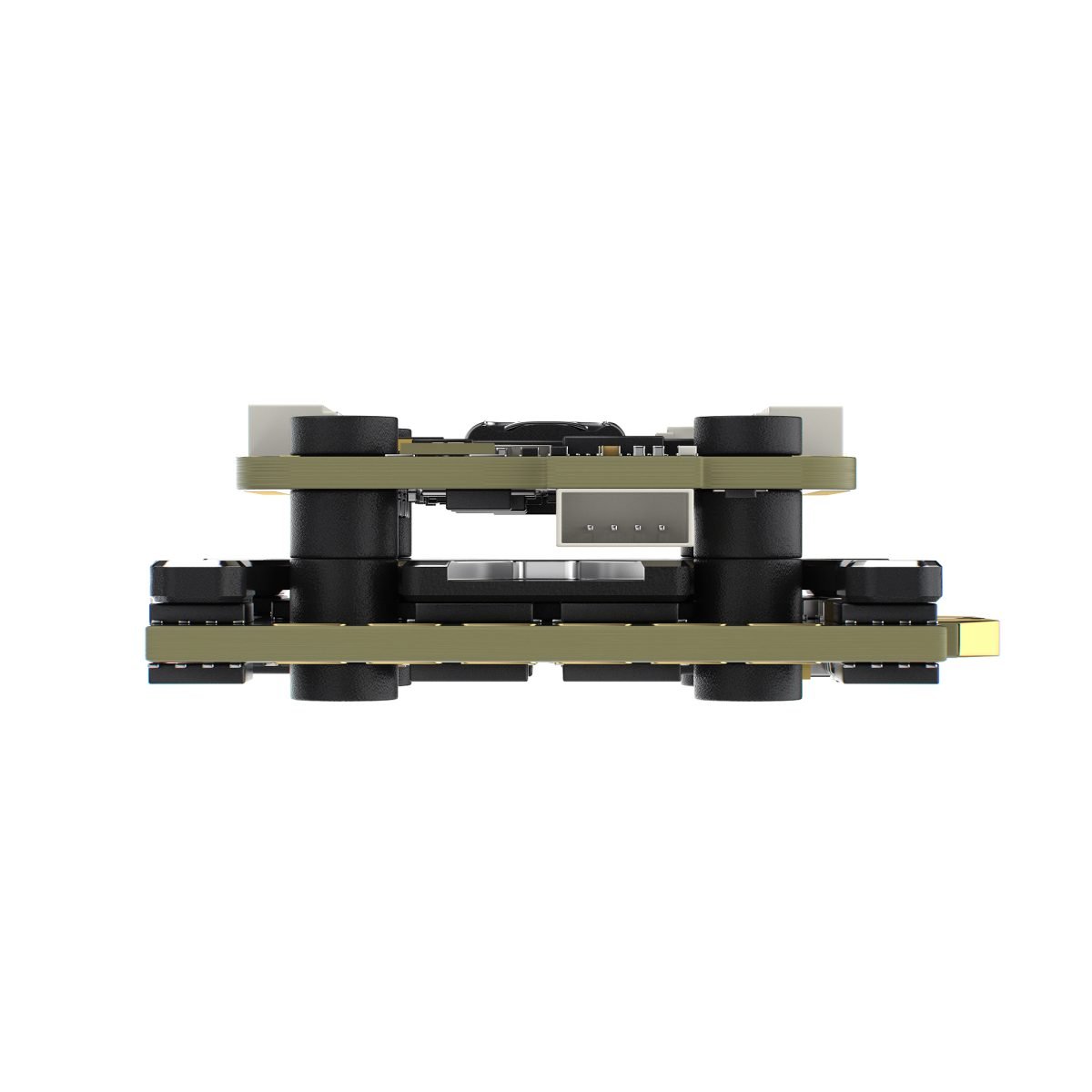

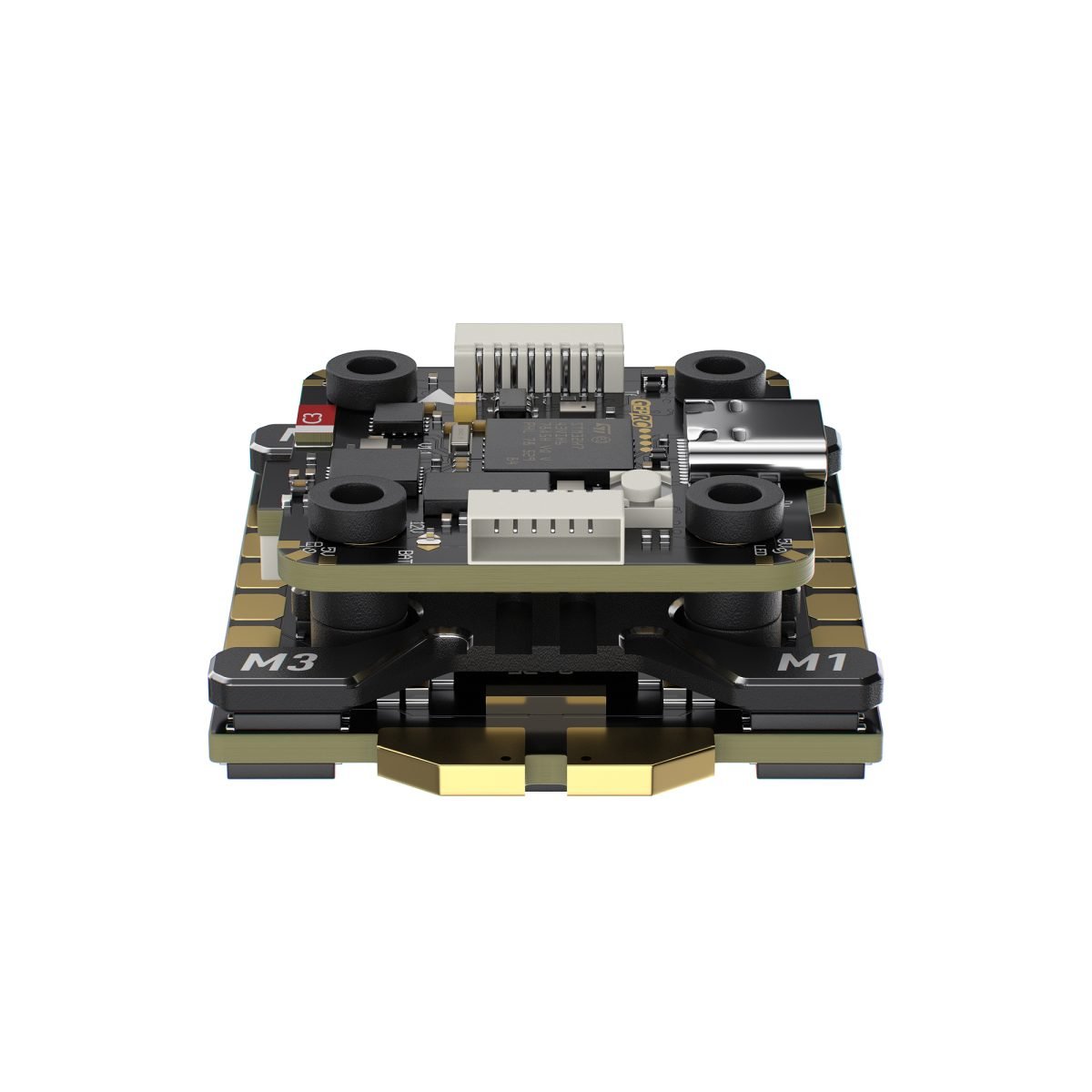

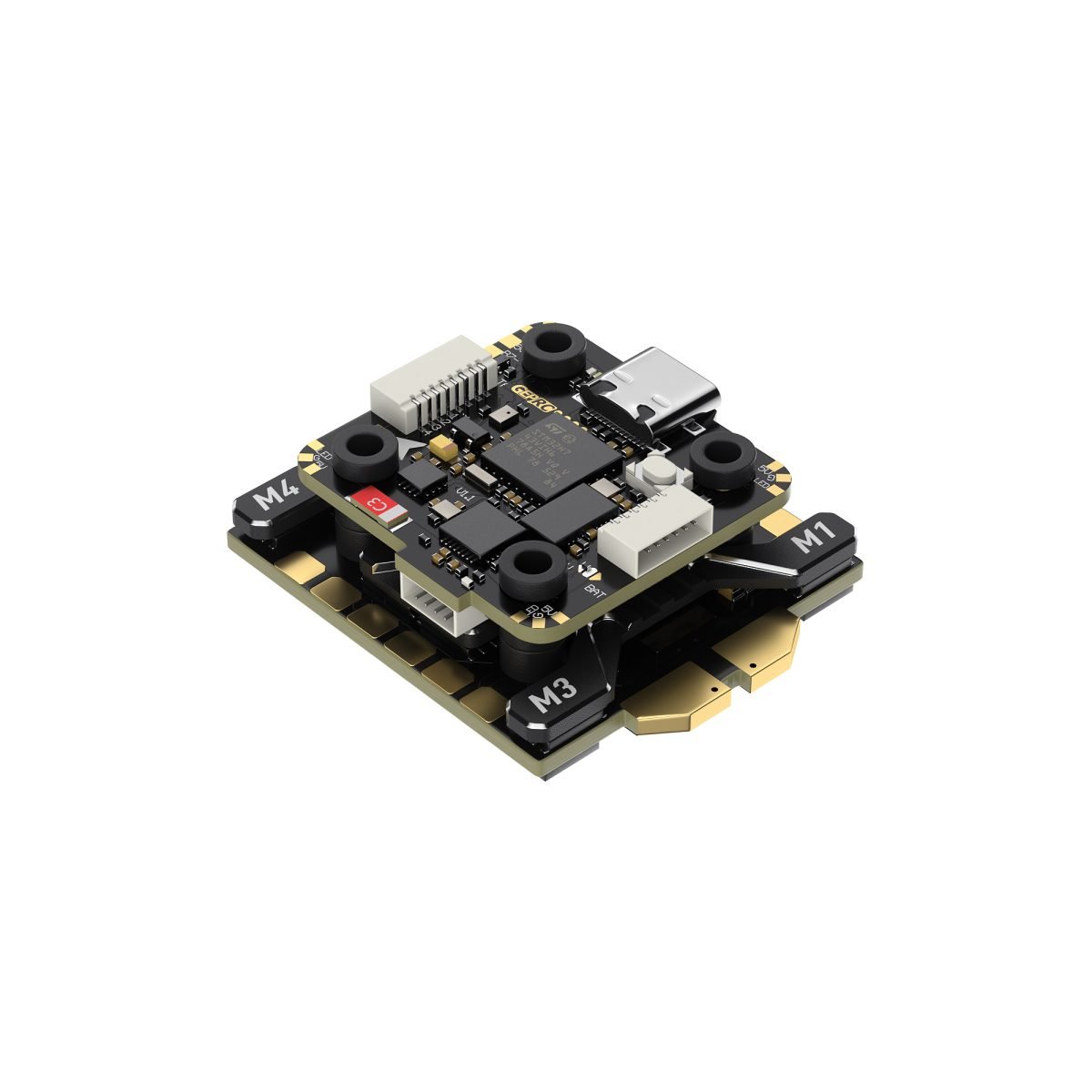

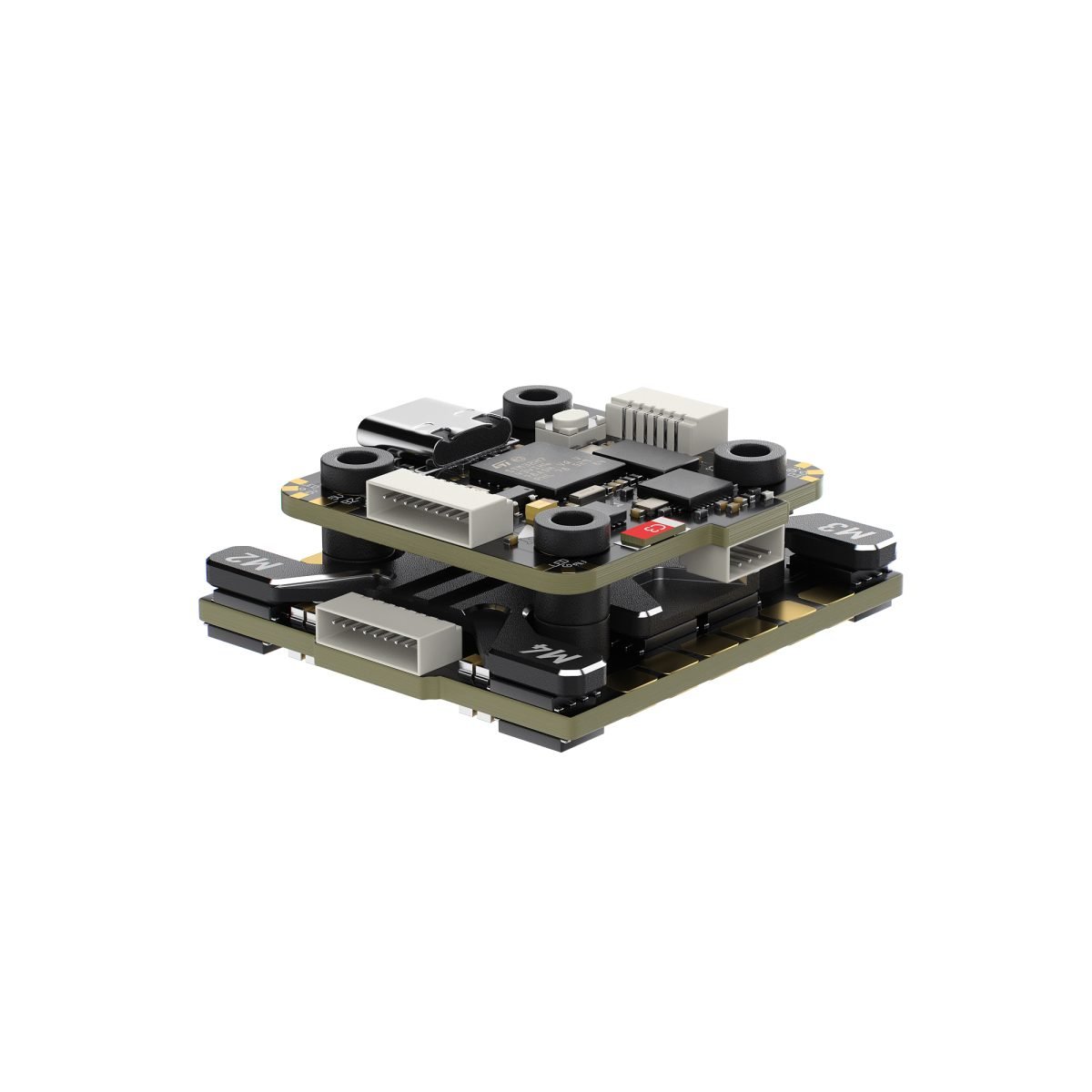

The GEPRC TAKER H743 MINI 32Bit 60A Stack is a compact, high-performance electronics stack designed for FPV drone builds. It combines a powerful H743 32-bit flight controller with a 60A 4-in-1 ESC, providing reliable flight control and high-current motor support in a space-saving design. It is suitable for demanding FPV applications where performance, compact size, and efficient power management are important.

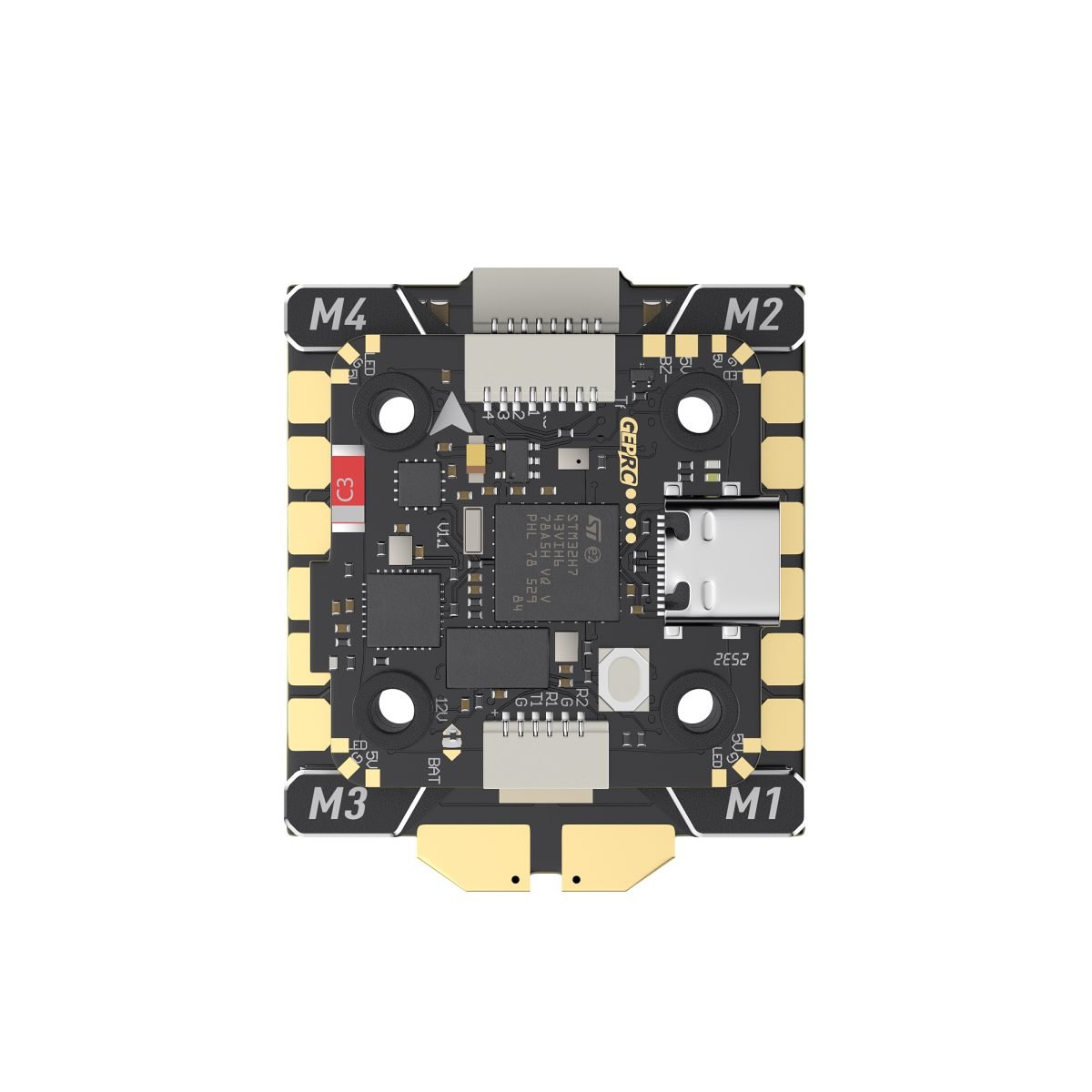

TAKER H743 MINI 32Bit 60A Stack is GEPRC’s next-gen mini flight stack, powered by an STM32H743VIH6 (Cortex-M7) MCU and ICM42688-P gyro. With high PSRR LDO filtering and external gyro clock support, it delivers stable and precise flight performance.

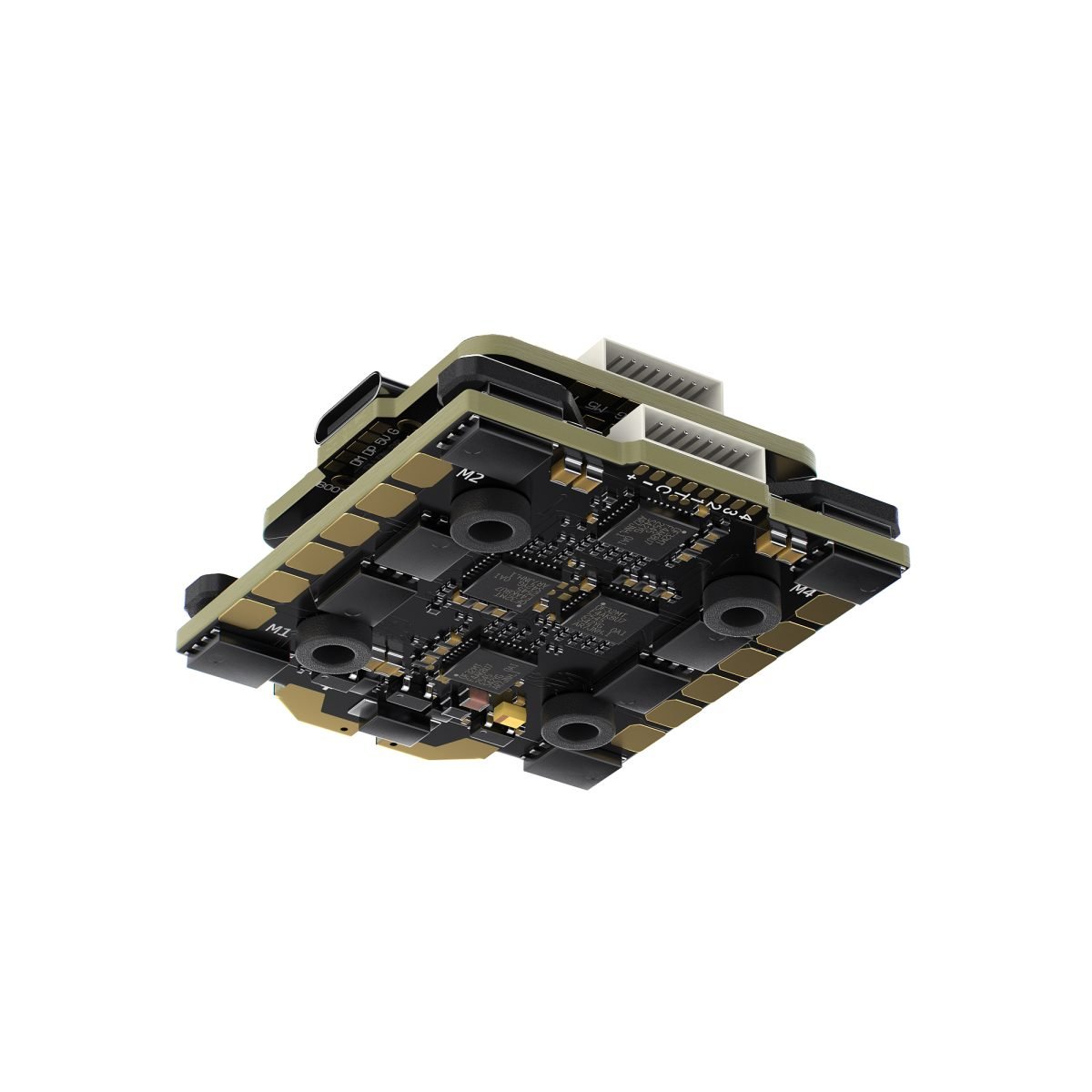

Paired with the TAKER H60 MINI 60A 4-in-1 ESC (AM32 pre-installed), supporting 3–8S LiPo input. High-spec MOSFETs and TVS protection ensure reliable power and fast response for smooth, controlled flight.
Feature:
- Equipped with ICM42688-P gyroscope
- Supports external gyro clock input
- Built-in 16MB Blackbox storage
- Bluetooth wireless tuning supported
Integrated barometer
- 8 motor outputs, supports X8 configuration
- Dual independent BEC: [email protected] + 5V@3A
- Onboard TVS spike protection design
Specifications :
GEPRC TAKER H743 MINI 32Bit 60A STACK
- FC Model: TAKER H743 MINI
- MCU: STM32H743
- IMU: ICM42688-P (Gyro)
- Air Unit Connector: DJI Plug & Play
- Blackbox: 16MB onboard
- Bluetooth: Supported
- BEC Output: 5V@3A, [email protected] (Dual)
- USB: Type-C
- OSD: Betaflight OSD AT7456E
- Barometer: Supported
- Firmware Target: GEPRC TAKER H743 MINI
- Input Voltage: 3–8S LiPo
- FC Dimensions: 31×31mm
- Mounting: 20×20mm
- Power Filtering: Integrated LC filter
- UART: 7 (UART8 reserved for Bluetooth)
- Weight: 6.1g
Package Includes :
1× TAKER H743 MINI Flight Controller
1× TAKER H60 MINI 32bit ESC
1× 50V 1000µF Capacitor
1× DJI Air Unit Cable (SH1.0-6P)
1× FC Cable (SH1.0-8P)
1× FC to GPS RX Cable (SH1.0-4P)
1× XT60 Power Cable (12AWG, 55mm)
10× M3 Silicone Dampers
5× M3*22 Stack Screws
6× M3 Nylon Lock Nuts
5× M3 Hex Nuts
Best Budget Drone Kits in India 2026: Complete Comparison
Finding the best budget drone kits in India for 2026 can be overwhelming with dozens of options available...
Read More →
How to Set Up Pixhawk Flight Controller Step-by-Step
Getting your Pixhawk setup right the first time saves hours of frustration and prevents crashes. The Pixhawk family...
Read More →
Drone Night Flying: Lights, Settings and DGCA Rules India
Drone Night Flying in India: Lights, Settings, and DGCA Rules Explained Flying your drone at night unlocks a...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 60A |
| SKU | AI5006 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER H743 MINI 32Bit 60A STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
