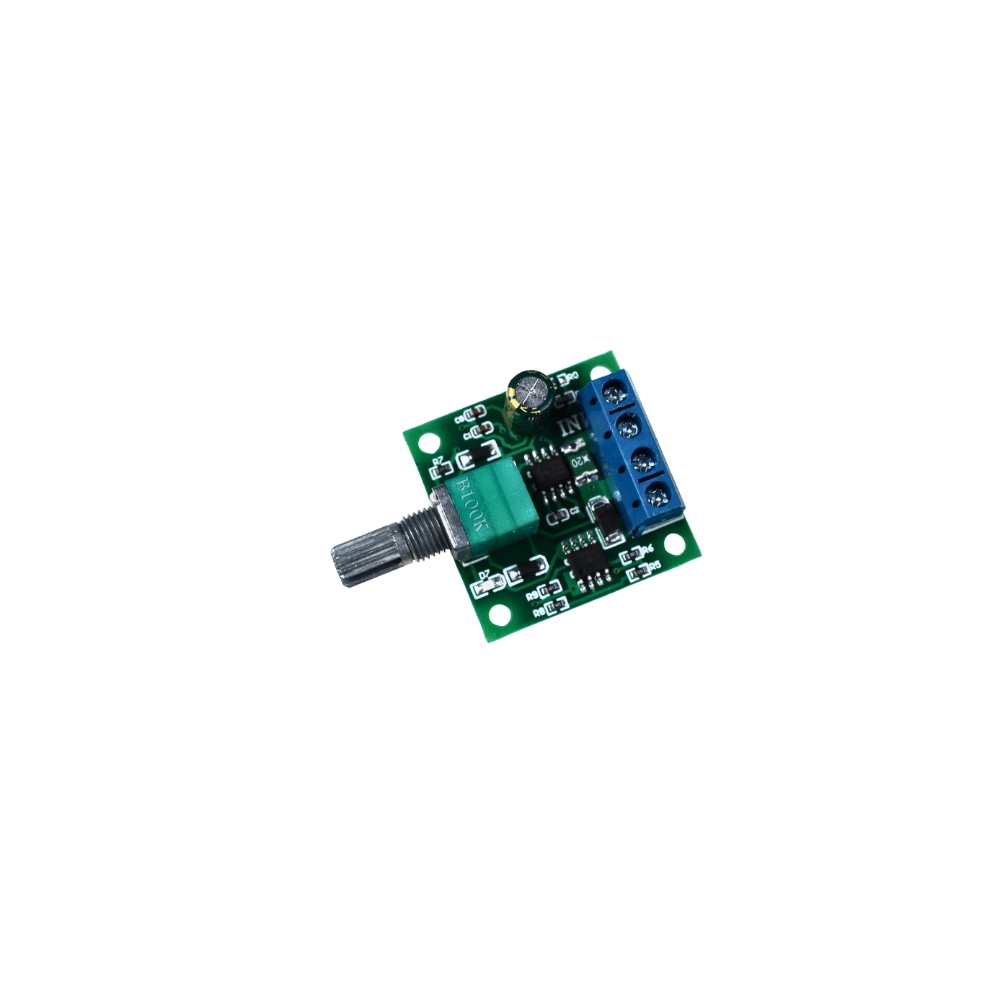

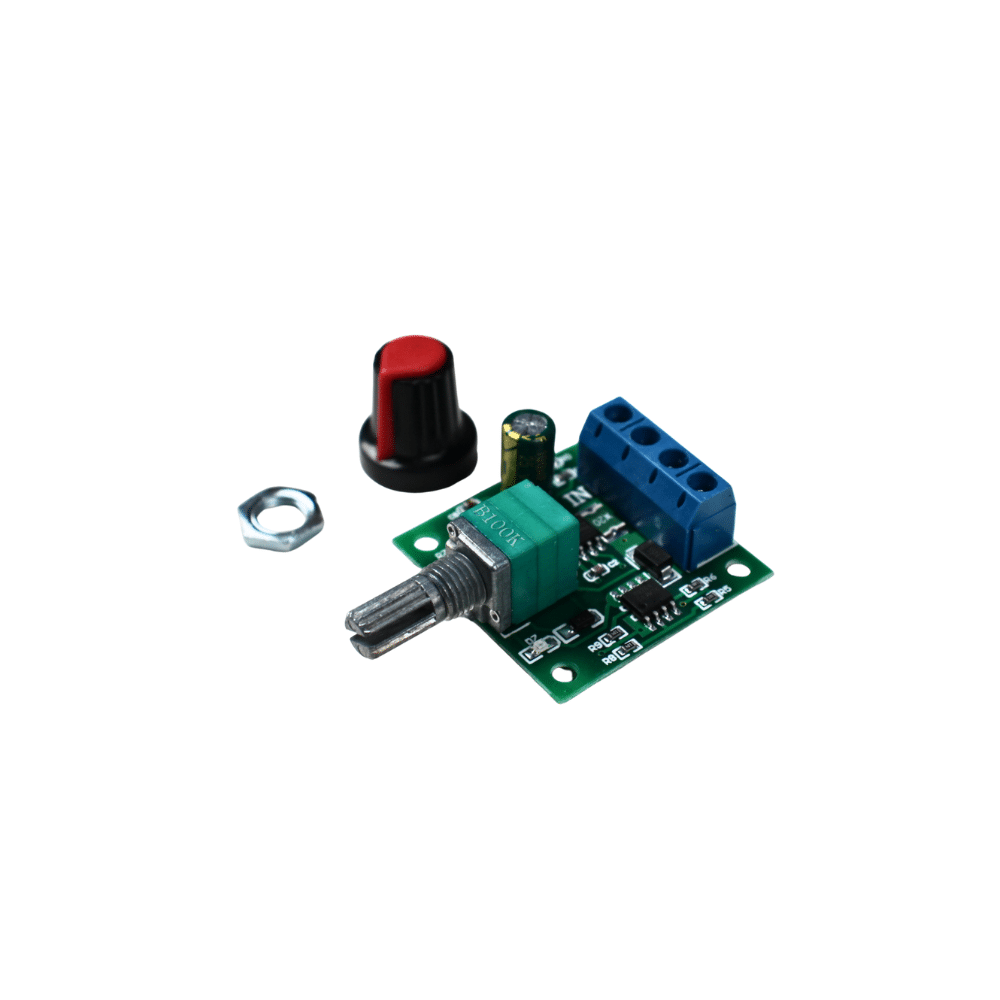

This is the 8V variant of the 1.8V – 12V/2A DC Motor PWM Speed Regulator in Brushed / Brushless DC motor Driver, (ESC) Drone Speed Controller. Available at ₹55.46 (₹47.00 + GST) with free shipping across India.
Product Description
The DC Motor PWM Speed Regulator 1.8V, 3V, 5V, 6V, 12V-2A speed control switch function for DC Motors allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.The motor speed controller can easily provide a continuous current of 2A to your DC motor or other DC load.
With a resettable fuse, it can automatically break the connection and automatically recover. With a LED indicator and a rotary switch, convenient to use.
Operating instruction:
1. Connect your DC motor (or DC load) to the motor terminals
2. Connect a voltage of 1.8V-15V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be the supply voltage applied to the circuit.
3. You can now control the speed of the motor through the potentiometer.
Features :
- Output current : 2A(Max).
- With resettable fuse.
- Equipped with LED indicator.
- Potentiometer with switch function for PWM adjustment.
Specification
| Item Type: | PWM Speed Regulator |
|---|---|
| Current Rating (A): | 2 |
| Voltage Rating (V): | 1.8 to 12 |
| Output Current (A): | 2A(Max). |
| Duty Cycle Adjustable (%) | 5%-100% |
| Diameter of PCB holes | 3mm |
| Pitch Terminal Block (mm) | 5.08mm |
| Weight (g): | 16 |
| Shipping Weight | 0.02 kg |
Package Includes :
1 x DC Motor PWM Speed Regulator
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →
Photogrammetry Drone Guide: Create 3D Maps with DJI or DIY Drone (2026)
Photogrammetry is the science of creating accurate 3D models and maps from overlapping aerial photographs. In India, this...
Read More →
FPV Simulator Training: Velocidrone and Liftoff Guide
Table of Contents Understanding FPV Simulator Training Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Voltage Range | 1.8V - 12V |
|---|---|
| Current Rating | 2A |
| SKU | AI2328 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 1.8V – 12V/2A DC Motor PWM Speed Regulator is a versatile brushed / brushless dc motor driver used across a wide range of applications including robot motor control, DC motor speed regulation, H-bridge circuits, electric vehicle drives, and conveyor belt control.
Common use cases:
- Bidirectional motor control for a robot
- PWM speed control of a DC motor
- Building a motorized platform
This product is ideal for robotics engineers and motor control enthusiasts.
Technical Tip: L298N is a classic dual H-bridge driver. For higher efficiency, consider MOSFET-based drivers like BTS7960.
