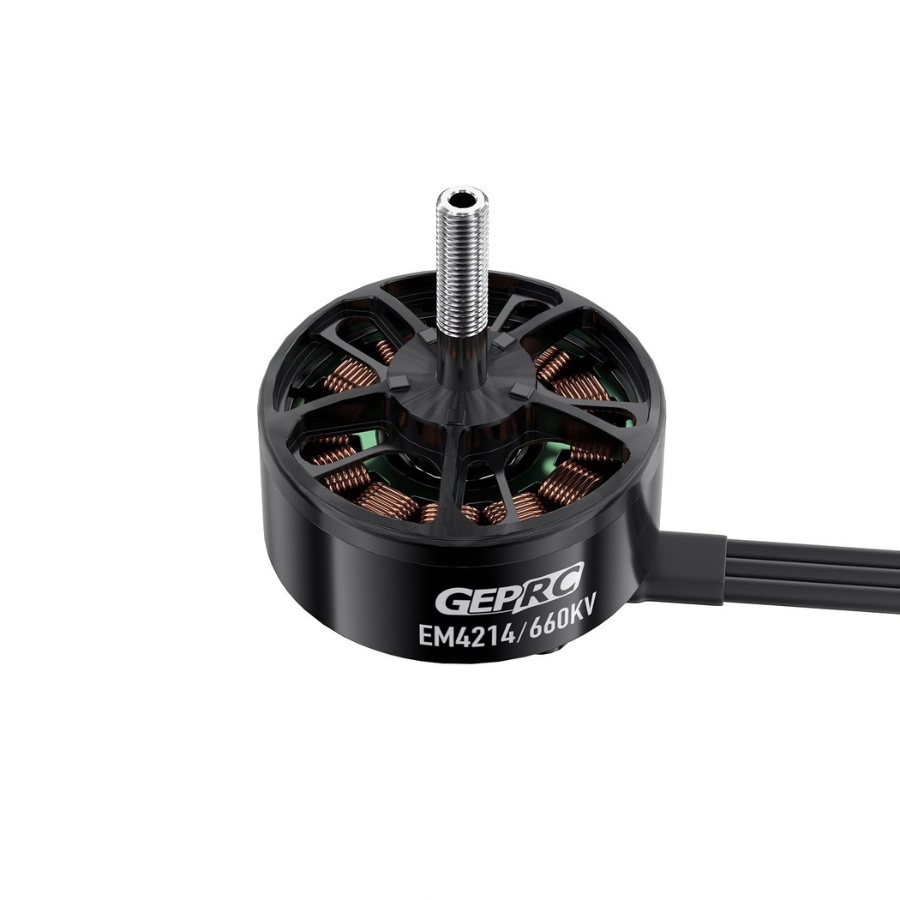

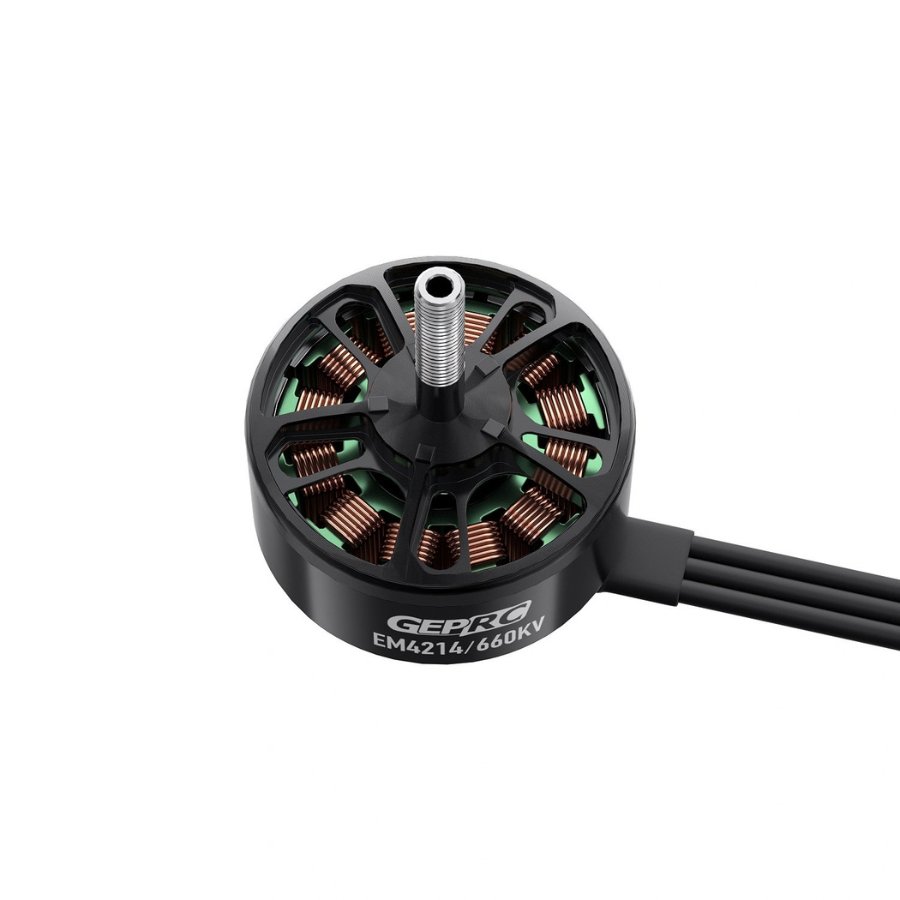

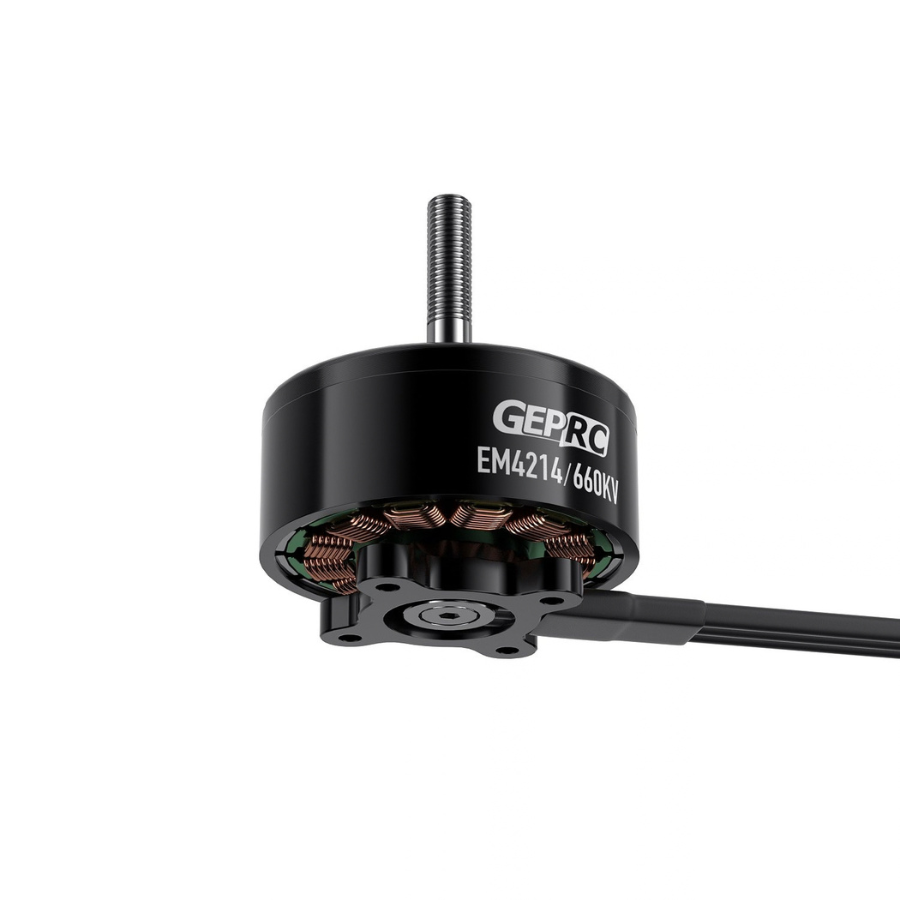

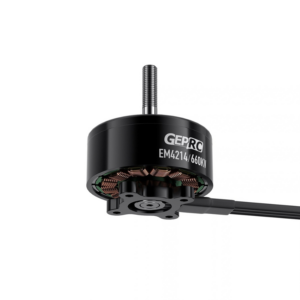

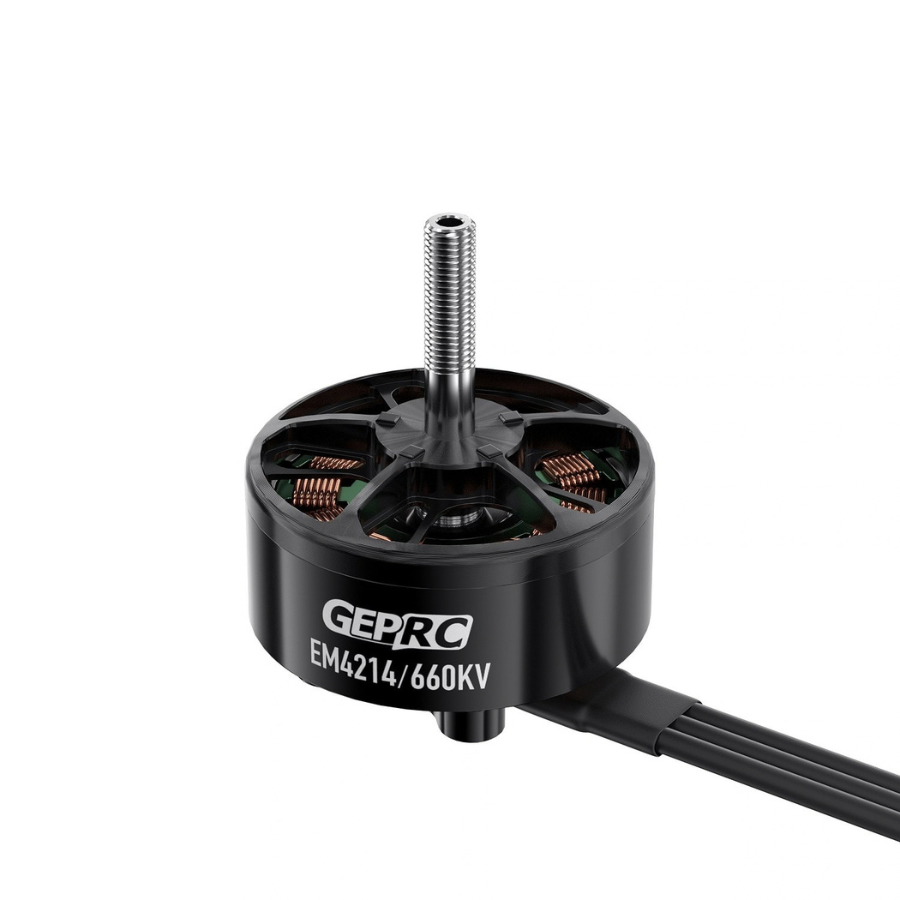

GEPRC EM4214 660KV motor
Description:
The GEPRC EM4214 660KV Brushless Motor is designed for compatible drones and UAV applications that require reliable power and efficient motor performance. Featuring a 660KV rating, this motor is suitable for drone configurations matched to the appropriate battery voltage, propeller size, and ESC specifications. Its brushless design supports smooth motor operation for aerial platforms and custom UAV builds.
Key Features
- Brand: GEPRC
- Model: EM4214
- Motor Type: Brushless DC Motor (BLDC)
- KV Rating: 660KV
- Application: Compatible drones and UAV systems
- Performance: Designed for responsive and efficient motor operation
- Compatibility: Requires a suitable ESC, battery, and propeller combination
- Usage: Custom drone builds and aerial applications
- New EM series motors designed for long-range FPV
- High-strength M6 steel shaft
- High torque magnetic circuit design
Specifications
-
Model: EM4214 660KV Motor
-
KV: 660KV
-
Max Watt: 2120W
-
Peak Current: 90A
-
Interphase Resistance: 25mΩ
-
Propeller: 12-14inch Propeller
-
Magnet: N52H
-
Bearing Type: NMB
-
Configuration: 12N14P
-
Dimension: φ49mmx32.5mm
-
Shaft Diameter: φ6mm
-
Shaft Protruding Length: 25.5mm
-
Mounting holes: 30mmx30mm
-
Lead: 800mm/14AWG
-
Compatible ESC: 80A-100A
-
Input Volts: 25.2V(6S LiPo)
-
Winding: Single-strand copper winding
-
Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)
-
Weight: 246g(included wire)
-
Compatible Models: 12-14 inch long-range FPV
Pacakge Includes
1 x EM4214 motor
4 x M4*12 round head screws
1 x M6 anti-slip nut
