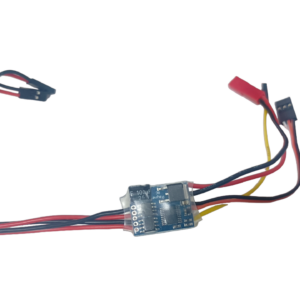

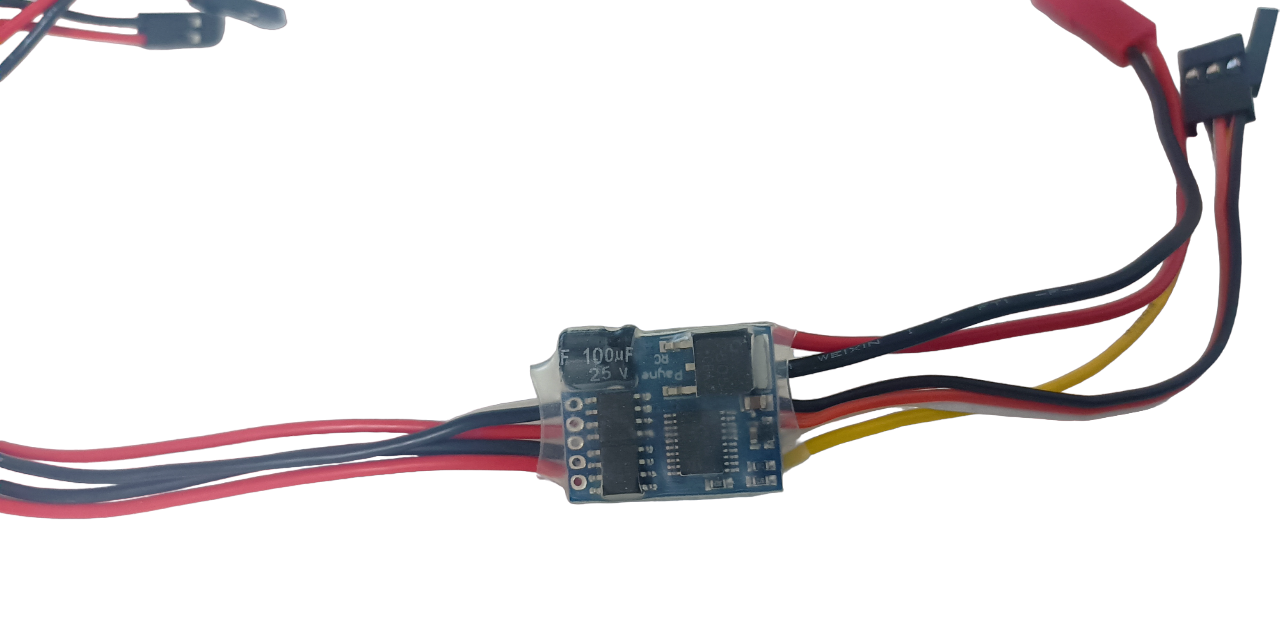

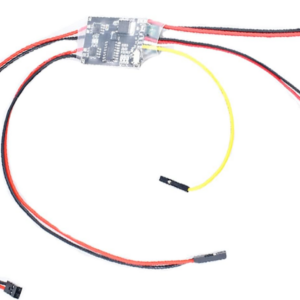

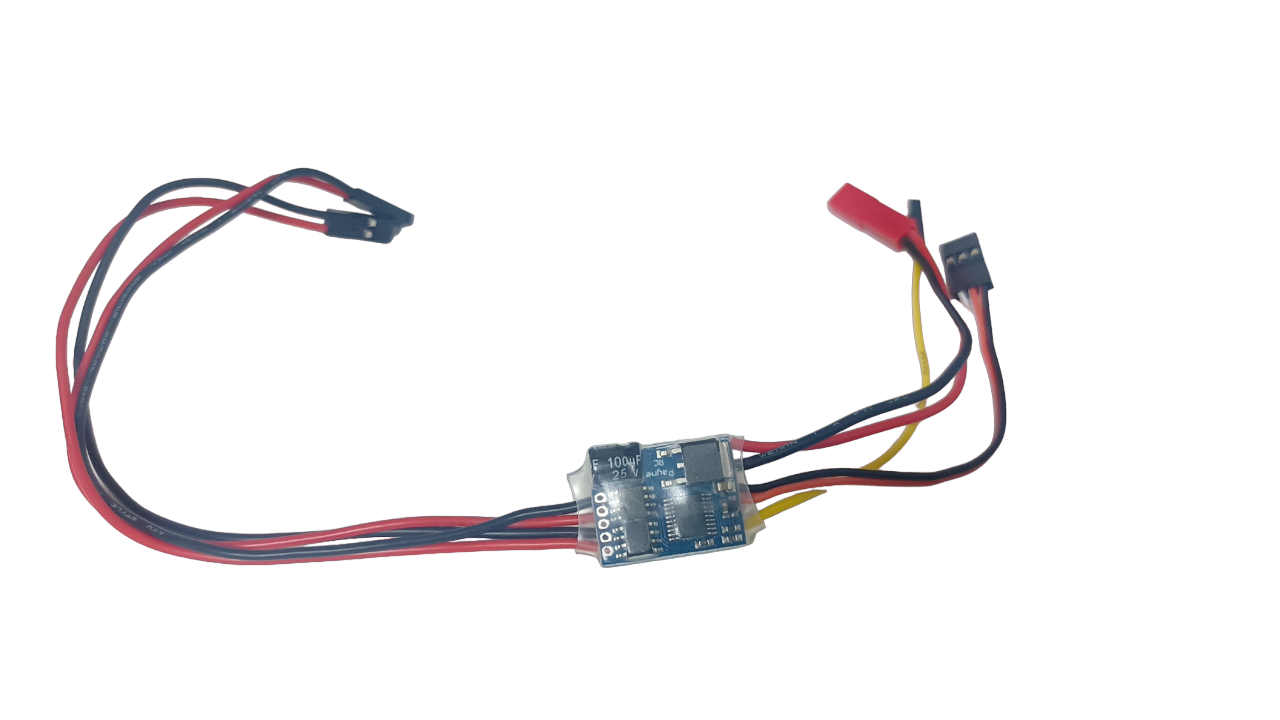

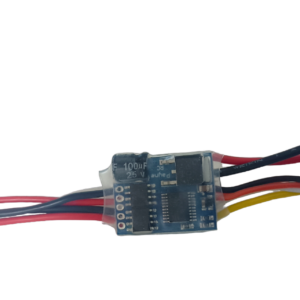

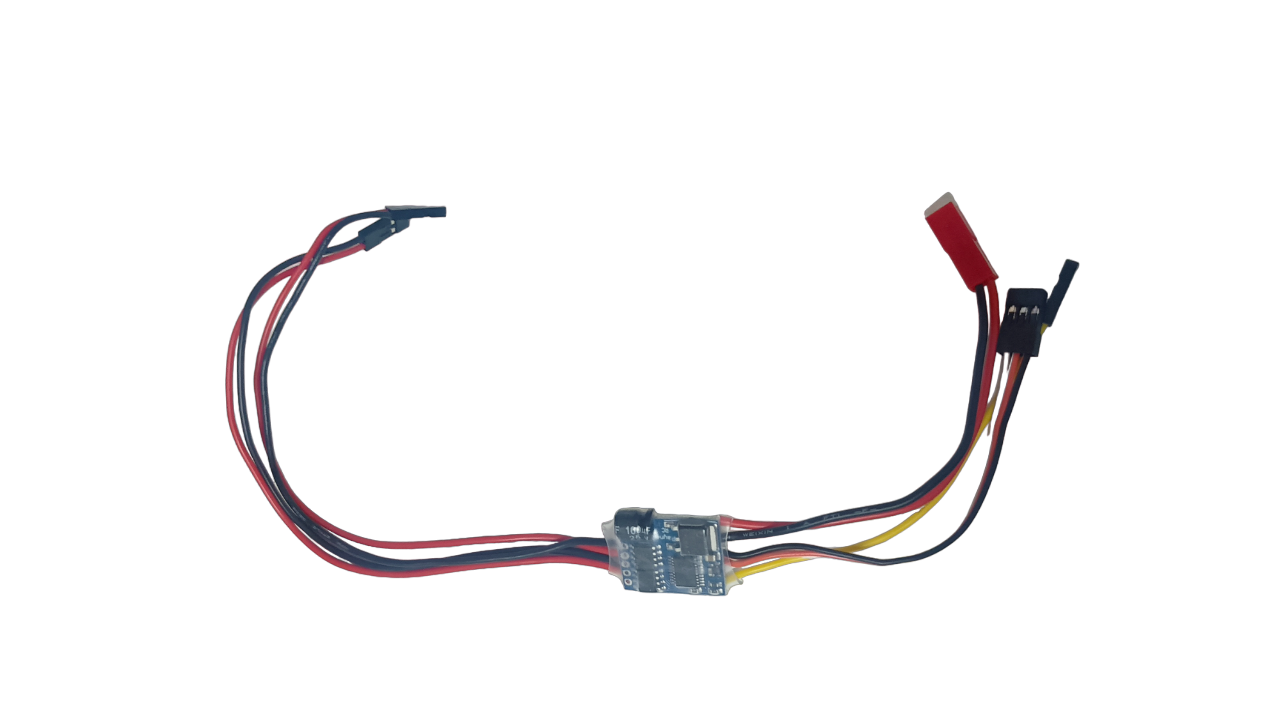

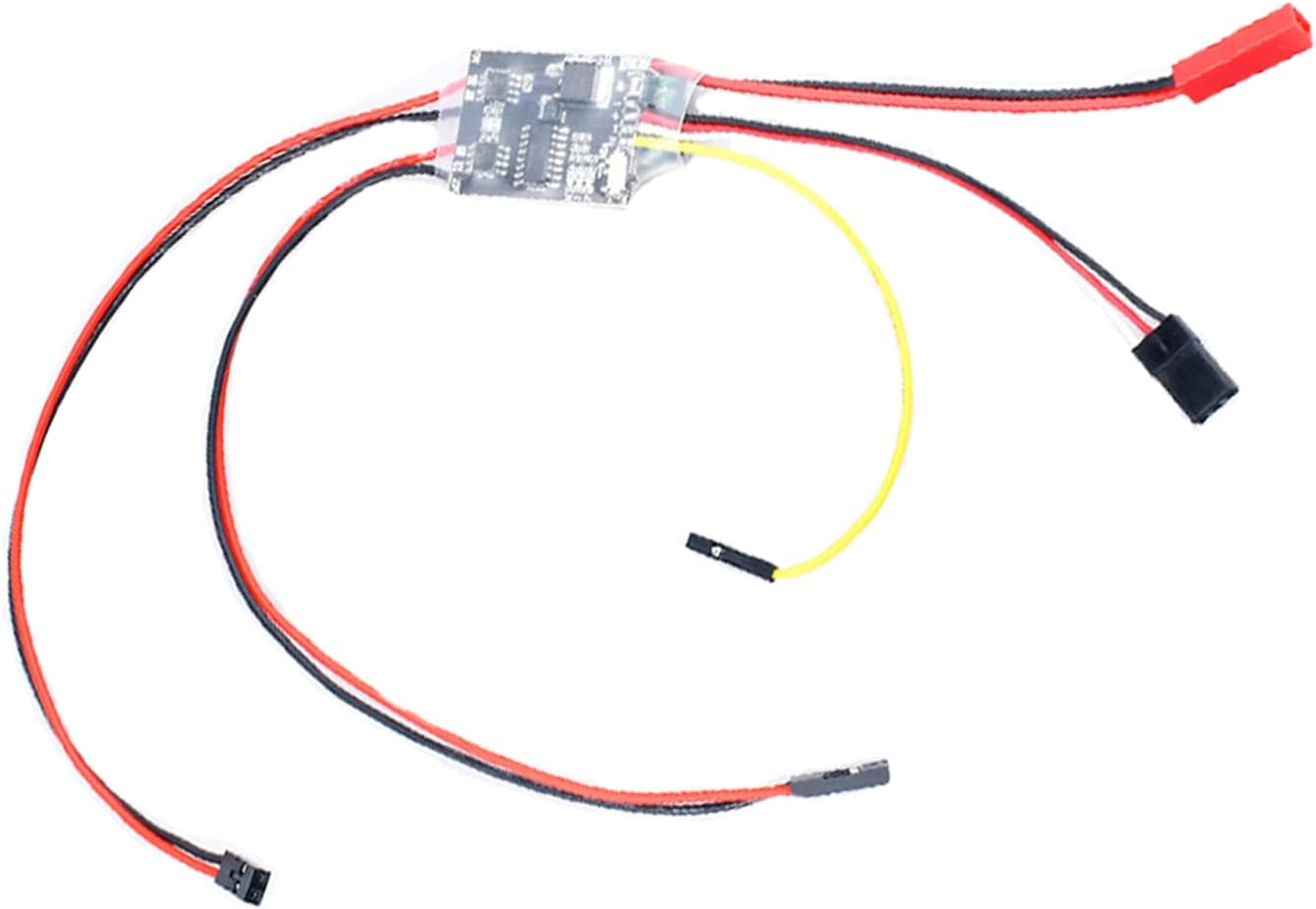

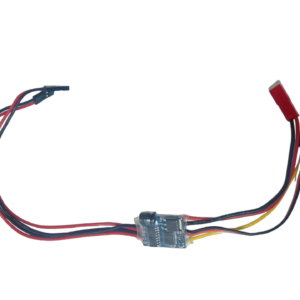

This is 2S-6S 2Ax2 Dual Way Bidirectional Brushed ESC is suitable for RC Car 370 520 Tracked Vehicle/Tank deceleration group, small current motor with rated current not exceeding 2A.
Kindly note: If you use a high-voltage battery (more than 4S) or a high-current servo, the ESC linear voltage regulator (the two large components above the ESC mode switch) are very hot, please use ubec to power the servo independently.
Features
- [With out-of-control protection] (lost signal (in the accident, the signal line was disconnected), for safety and motor protection, you need to return the throttle to the center and unlock it again.
- [Over-current protection] repeated over-current during use, also will be burnt. Connect a high-current motor such as 540, burn at your own risk in seconds.
- [With overheating protection] (130 degrees) , When running 2A, the aluminum heat sink will be hot, users need not pay attention.
Specifications:
Item name: 2S-6S 2Ax2 Dual Way Brushed ESC Bidirectional Electric Speed Controller
Board size: 25 x 16 mm
BEC output: 5v 1.5A max
Model: Brushed
6v-25v 2A (2A per channel), peak 4A
Weight: 19g
Application: suitable for RC Car 370 520 Tracked Vehicle/Tank deceleration group, small current motor with rated current not exceeding 2A.
Package Include :
1 x 2S-6S 2Ax2 Dual Way Brushed ESC Bidirectional Electric Speed Controller
