Product Description

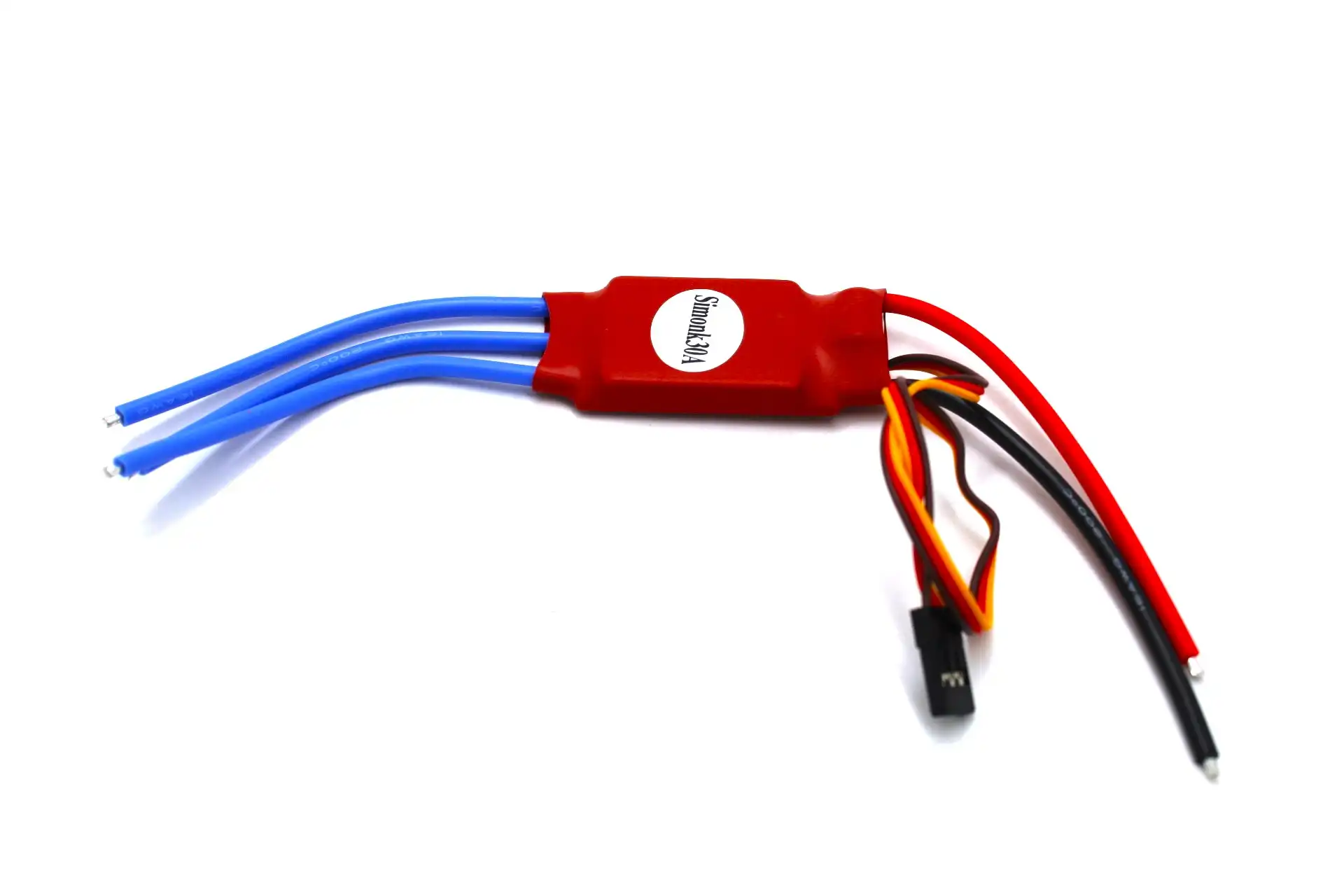

The Simonk 30A BLDC ESC Electronic Speed Controller is designed for quadcopters and multi-rotors. It provides faster and better motor speed control, which improves the flight performance compared to other ESCs.
The Simonk 30A BLDC ESC Electronic Speed Controller can drive motors with a current consumption of up to 30A. It operates on 2S-3S LiPo batteries. This ESC has a battery eliminator circuit (BEC) that supplies 5V and 2A to the receiver, eliminating the need for a separate receiver battery.
This version of the ESC also has backward-polarity protection and protection on the 5V receiver line. This means that attaching a battery backward will not damage your motor controller and other BECs will not interfere with the ESC.
Connections:

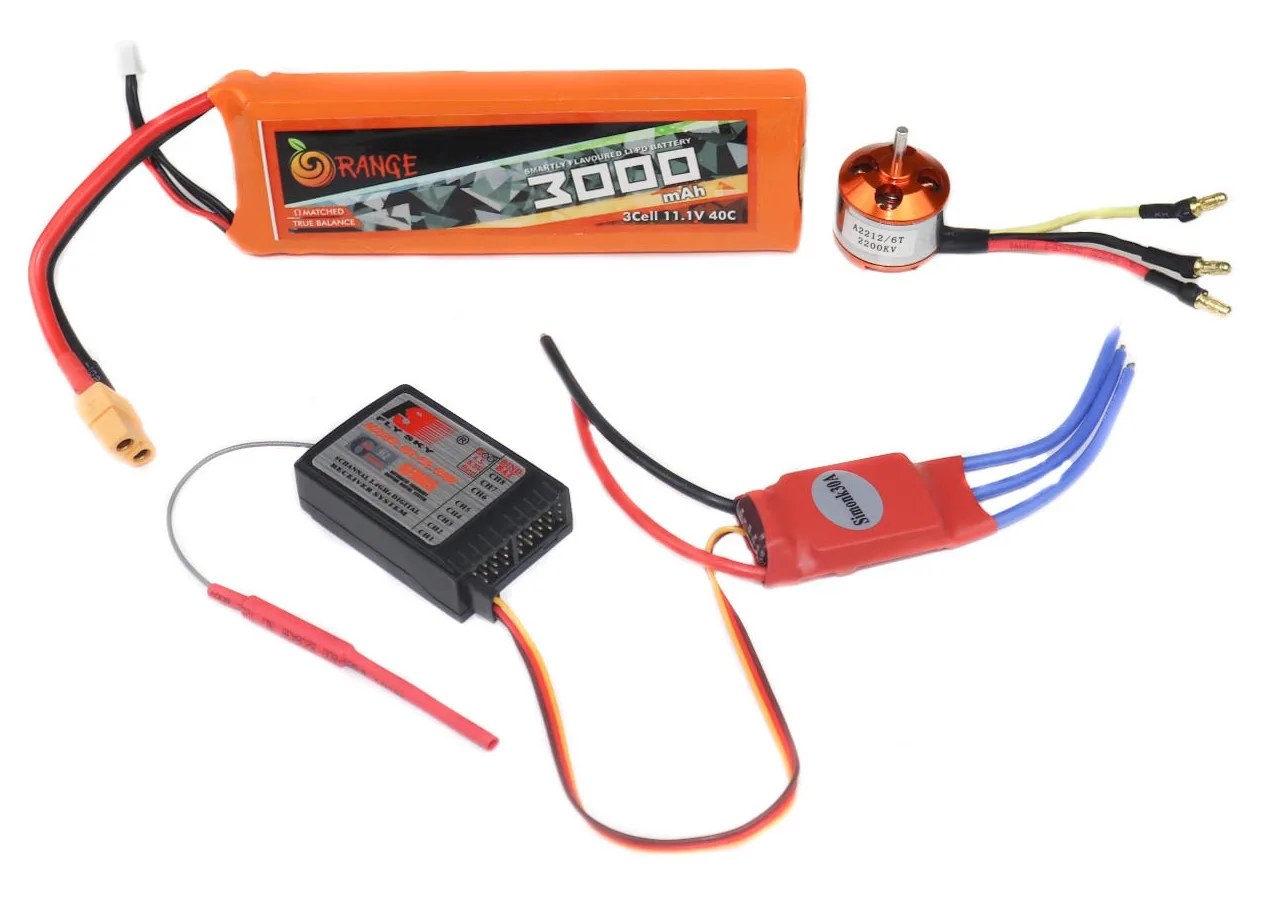

SimonK 30A BLDC ESC Connection (Other products not included in this package):
Warning: In case the BLDC ESC is connected directly to the remote control receiver, never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control, it may result in full throttle applied to the motor and it will rotate at full speed.
Features:
- High-quality MOSFETs for BLDC motor drive
- High-performance microcontroller for best compatibility with all types of motors at greater efficiency
- Fully programmable with any standard RC remote control
- Heat sink with high-performance heat transmission membrane for better thermal management
- 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters
- Throttle range can be configured to be compatible with any remote control available in the market.
Specification:
| Model | SIMONK 30A |
|---|---|
| Burst Current (A) | 40 |
| Constant Current (A) | 30 |
| BEC | Yes (5V/2A) |
| Suitable Lipo Batteries | 2 ~ 3S |
| Color: | Red |
| Dimensions (mm) LxWxH | 45 x 24 x 9 |
| Weight (g): | 23 |
| Application | BLDC Motors, Multirotors, Rc Planes etc. |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Package Includes:
1 x SimonK 30A BLDC ESC Electronic Speed Controller Without Connectors.
Video
HDZero VTX: Low-Latency Digital FPV for Racing
Table of Contents Understanding HDZero VTX Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
Drone FPV Camera: CMOS vs CCD, Latency, and FOV
Table of Contents Understanding Drone FPV Camera Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Octocopter Drone Build: Heavy Lift Platform for Industry
Octocopter Drone Build: Complete Guide to Heavy Lift Industrial Platforms When a quadcopter simply does not have enough...
Read More →Technical Specifications
| Current Rating | 30A |
|---|---|
| SKU | AI2824 |
| Weight | 0.020001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SimonK 30A BLDC ESC Electronic Speed Controller Without Connectors is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
