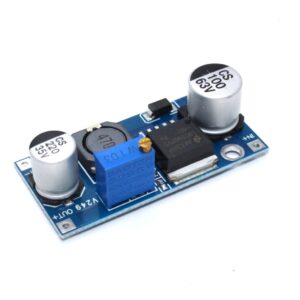

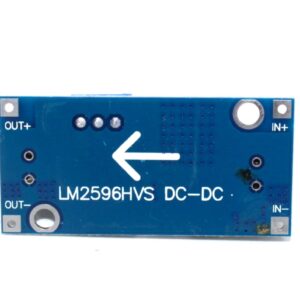

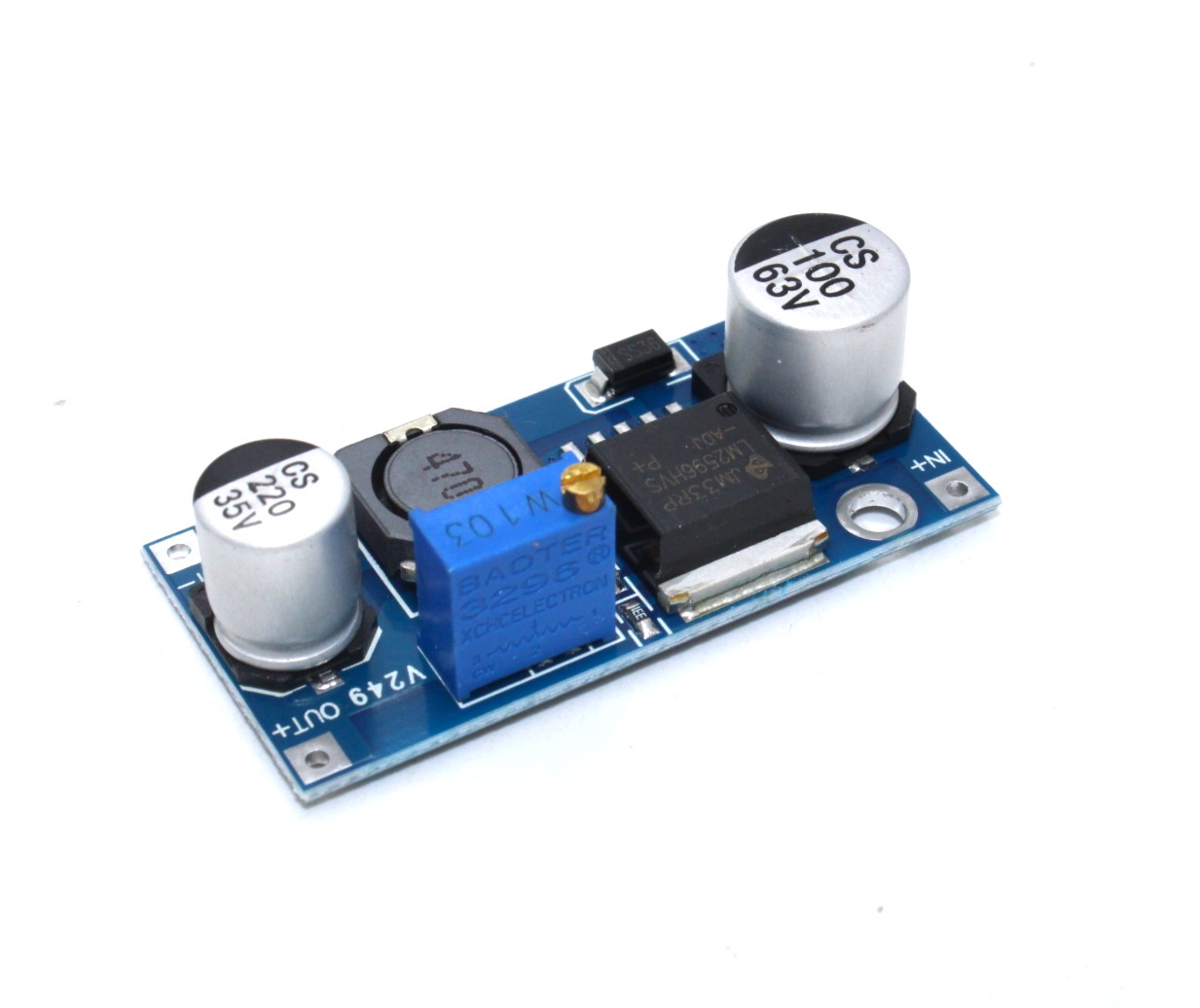

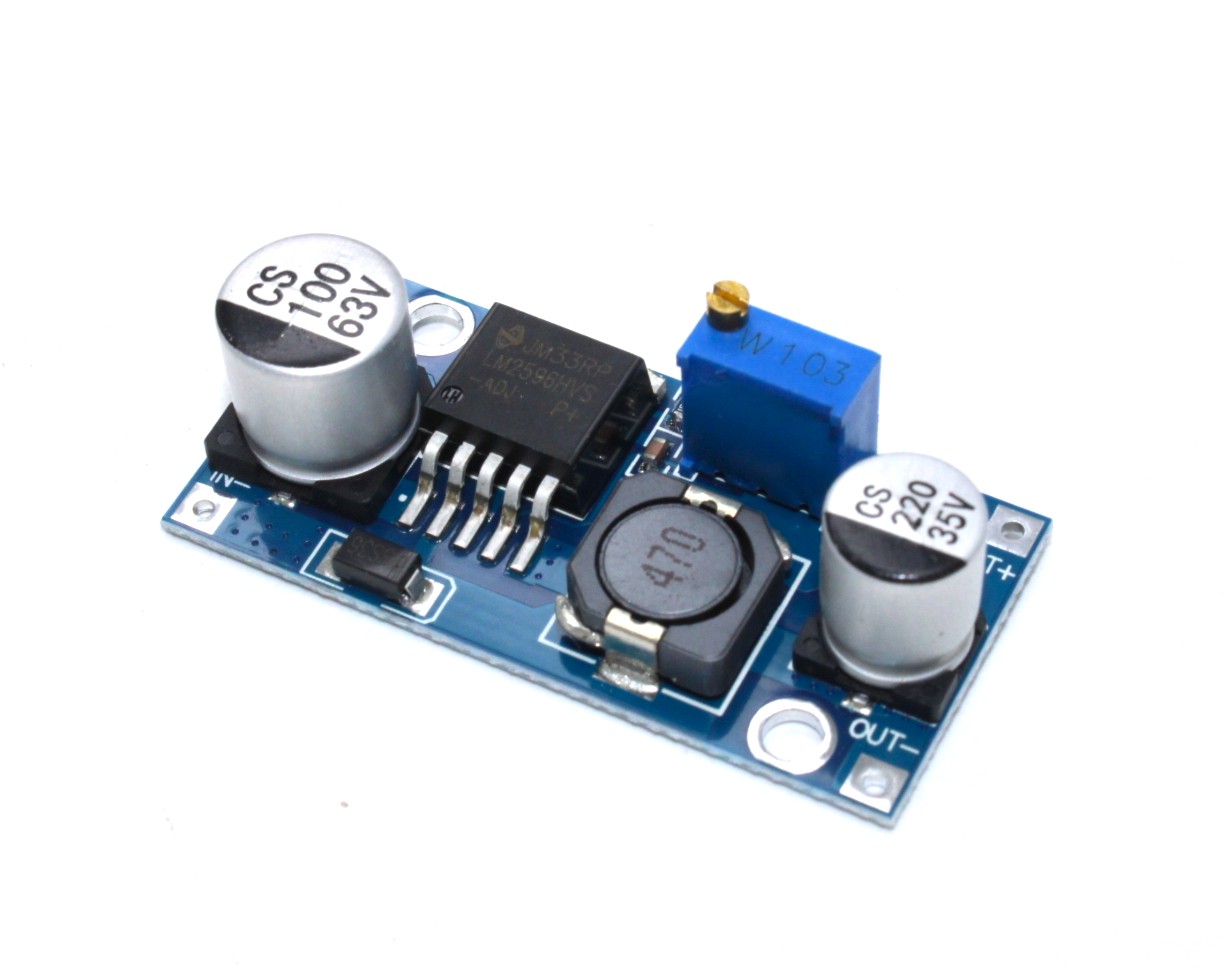

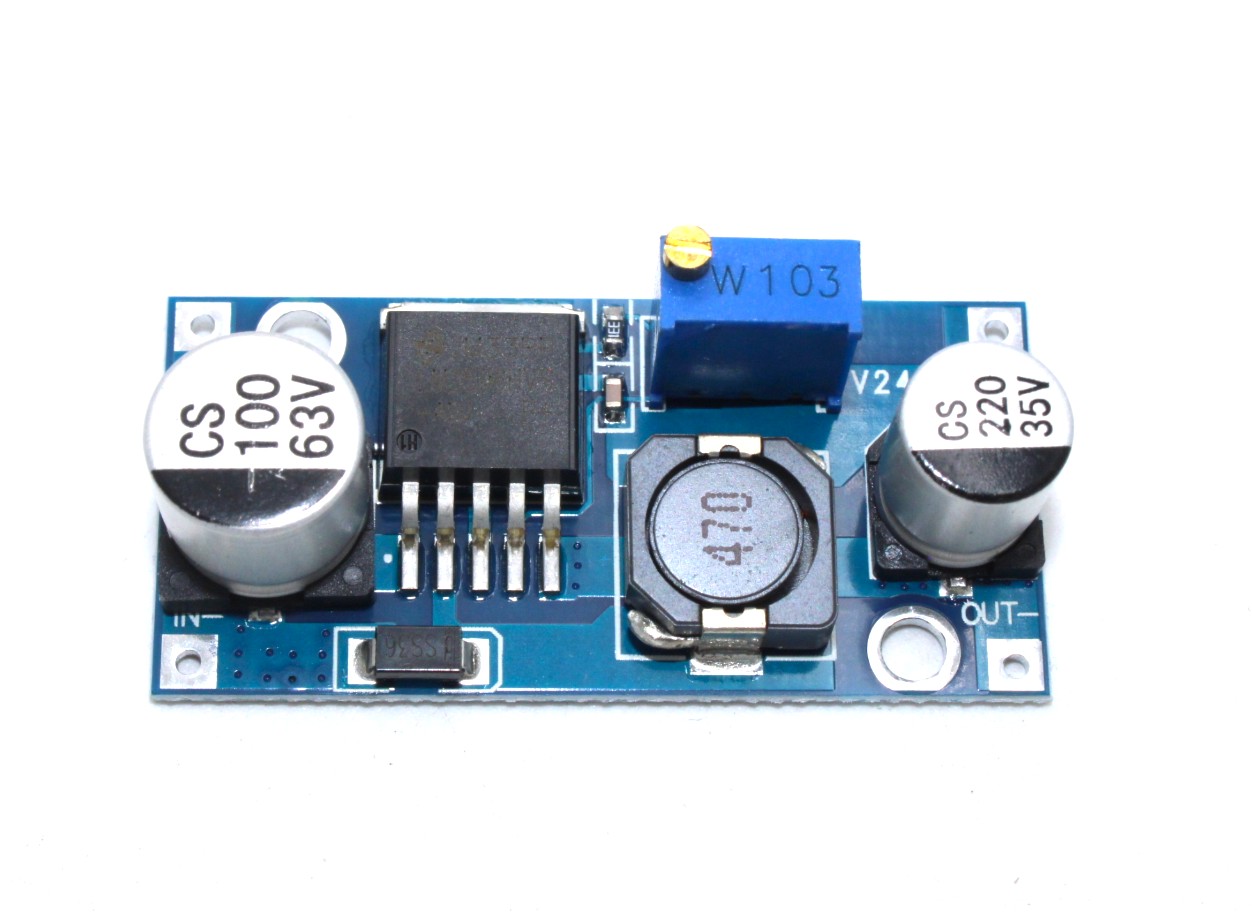

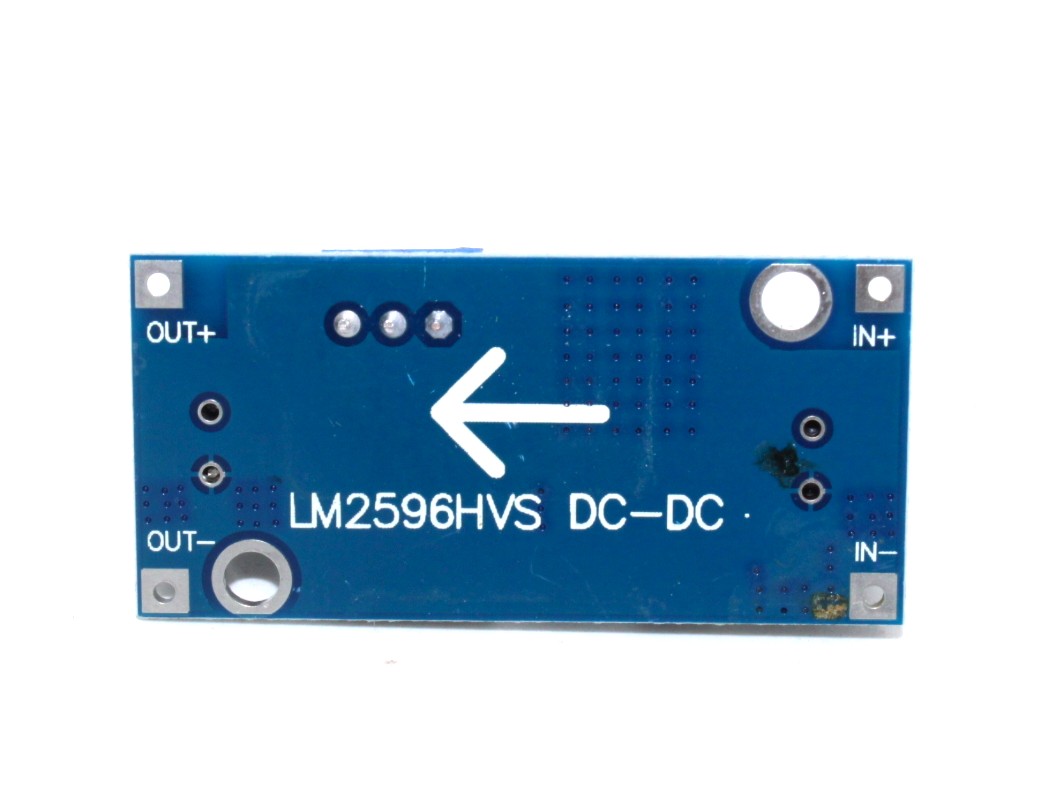

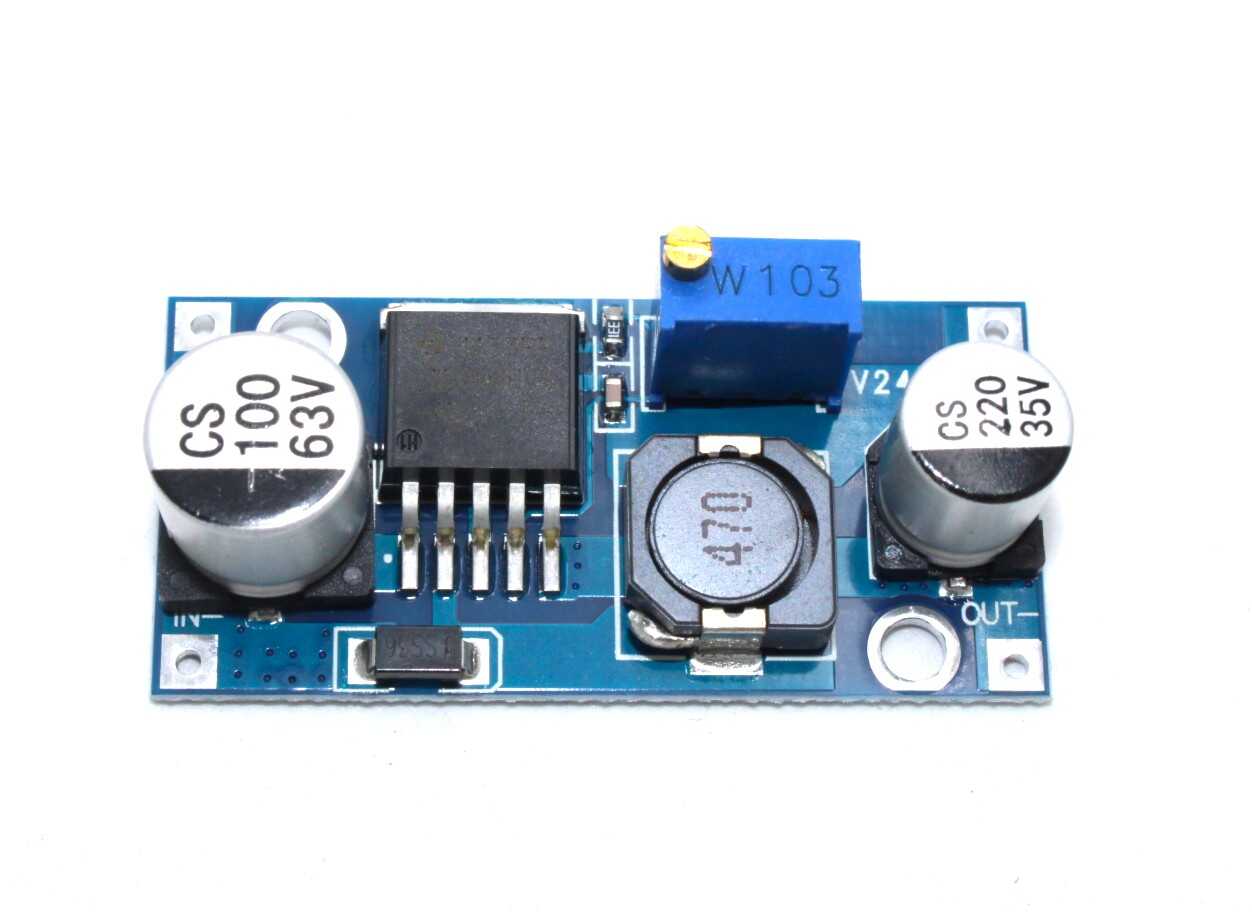

LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
The LM2596HVS module is an upgraded version of the standard LM2596, designed to handle higher input voltages. It is a DC-DC buck converter with an input voltage range of 4.5V to 50V, and a variable output range of 3V to 40V. The output voltage can be easily adjusted using the onboard multi-turn potentiometer, making it versatile for a variety of applications requiring different output voltages.
Features
High efficiency up to 92%.
4.5 Volt – 50 Volt adjustable input voltage range.
3 volt – 40 Volts adjustable output voltage range.
With over-current and over-temperature protection, safe for use.
Fine workmanship, long life span.
Can set the float voltage and charging current.
Special design enhanced heating radiating.
Specifications:
| Output Voltage(V) | 3 ~ 35 |
|---|---|
| Max. Output Current (Amp) | 3 |
| Conversion Efficiency | up to 92% |
| Switching Frequency (KHz) | 150 |
| Output Ripple | 30mA (maximum) |
| Load Regulation | ±1% |
| Voltage Regulation | ± 0.5% |
| Operating Temperature (°C) | -40 to 85 |
| Length (mm): | 43 |
| Width (mm): | 20 |
| Height (mm): | 12 |
| Weight (g): | 11 |
Package Includes
1 x LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
