This is the 5V variant of the 5V DD38LOSA DC-DC Converter, Voltage Stabilization Device,Input DC6-40V 5W, Power Supply Module （Without PIN and AMS1117） in Buck Converter, Buck Boost Voltage Regulators. Available at ₹182.90 (₹155.00 + GST) with free shipping across India.
Looking for Dd38losa Module 5v? 5V DD38LOSA DC-DC Converter, Voltage Stabilization Device,Input DC6-40V 5W, Power Supply Module （Without PIN and AMS1117） is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION

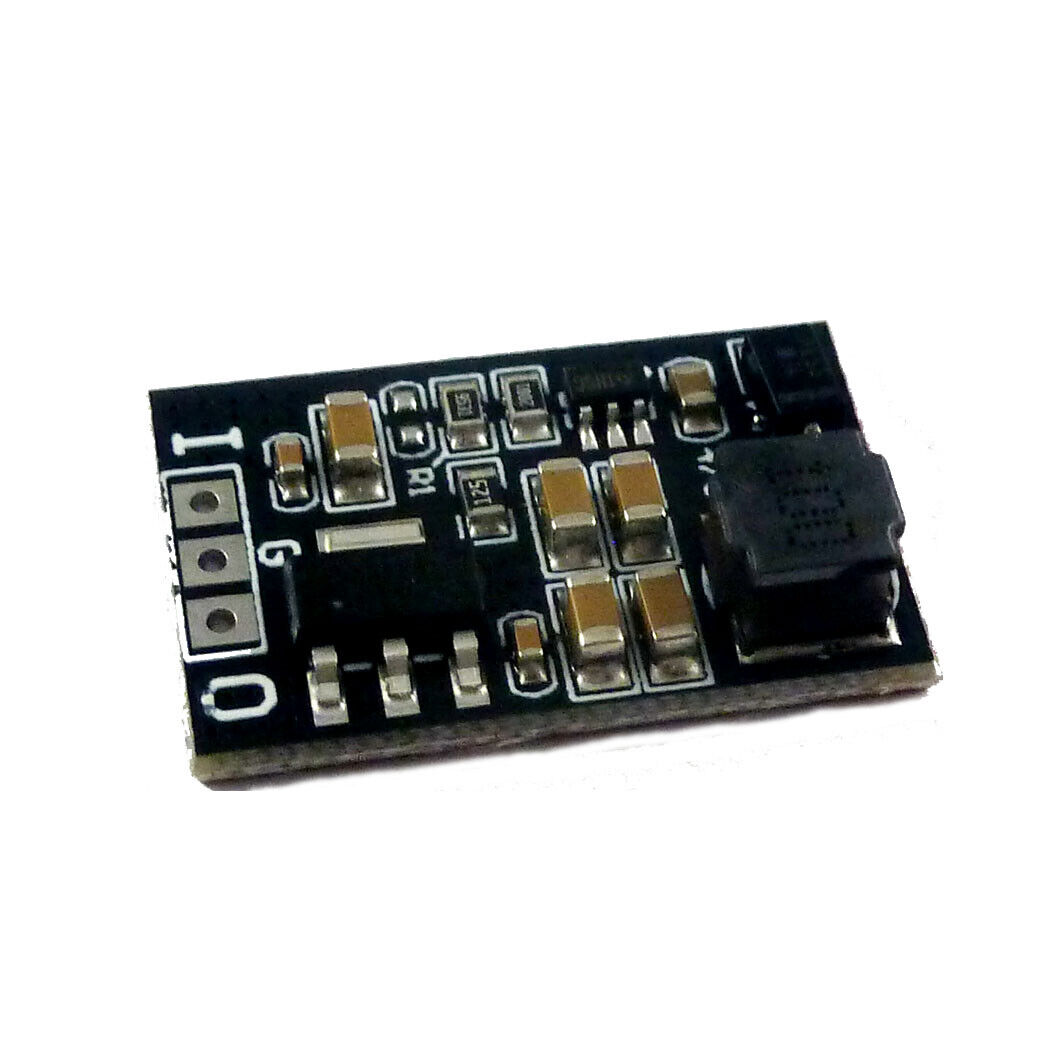

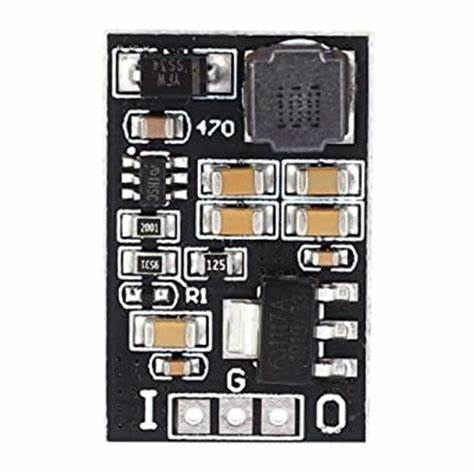

These modules are distinctive in that they combine a DC-DC converter, capable of handling a wide input voltage range, with an LDO linear regulator to ensure a stable and well-regulated output.
Features:
- 5V Output
- 8 to 40V Input
- 700mA continuous current independent of input voltage
- Up to 1A intermittent current
- Short circuit and thermal protection built-in
Specification:
- VIN Input Voltage Range 8 to 40V
- IO Maximum Output Current 700mA
- IPEAK Peak Surge Current 1000mA
- VO Output Voltage 5V
- IO Max Output Current (Continuous) 700mA
- Iq Quiescent current 5mA typical
- Dimensions L x W x H (not including header) 25 x 16 x 5.8mm
Package Includes:
1 x 5V DD38LOSA DC-DC Converter, Voltage Stabilization Device,Input DC6-40V 5W, Power Supply Module (Without PIN and AMS1117）
5V DD38LOSA DC-DC Converter, Voltage Stabilization Overview
The 5V DD38LOSA DC-DC Converter is a compact voltage stabilization module that delivers a steady 5V output from an input range of 6–40V DC. It’s ideal for maintaining reliable power in electronics projects, automotive systems, and embedded designs.
Key Features of 5V DD38LOSA DC-DC Converter, Voltage Stabilization
- Wide input range: 6–40V DC accepts batteries, adapters, and solar panels
- Stable 5V output up to 700mA continuous and 1A peak current
- Low quiescent current (~5mA) conserves power in standby
- Built-in short-circuit and thermal protection safeguards devices
- Module-only design; no header pins or AMS1117 included
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Powering microcontrollers, sensors, and development boards from 12V batteries
- Voltage regulation for Raspberry Pi and Arduino in automotive environments
- Supplying 5V to LED strips and small DC cooling fans in robotics projects
- Backup regulator in solar charge controllers and UPS systems
- Voltage conversion for DIY drone and RC vehicle electronics
How to Use 5V DD38LOSA DC-DC Converter, Voltage Stabilization

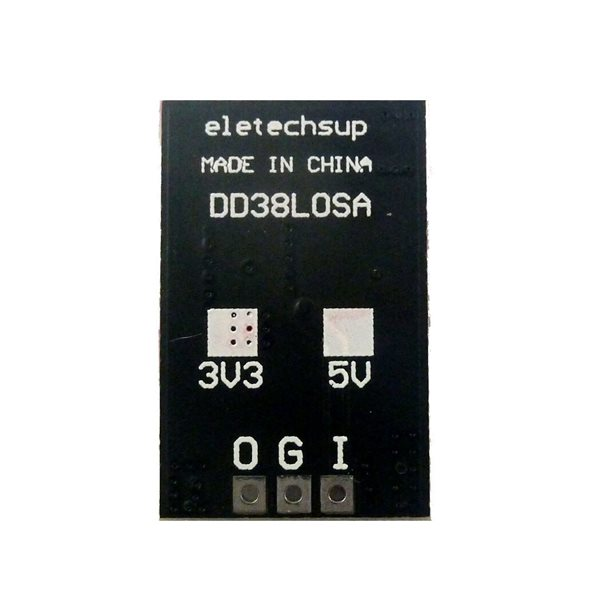

Solder header pins or wires to the VIN, GND, and VOUT pads according to the board markings. Connect your 6–40V DC source to VIN and GND, then attach your 5V load to VOUT and GND. Confirm secure connections, allow for airflow around the module, and power up your system.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the input voltage range for the DD38LOSA module?
The DD38LOSA accepts a DC input from 6V up to 40V, making it suitable for various power sources like car batteries, adapters, and solar panels.
How much current can this converter supply continuously?
This module delivers up to 700mA of continuous output current at 5V, with the ability to handle short-term surges up to 1A.
Are header pins and AMS1117 included?
No, this product is supplied as a bare module without pre-soldered header pins or an AMS1117 regulator; you need to solder your own connections.
Technical Specifications
| Model | DD38LOSA |
|---|---|
| Operating Voltage | 5V |
| Power Rating | 5W |
| SKU | AI2989 |
| Weight | 0.00455 kg |
| Availability | In Stock |
Applications & Use Cases
The 5V DD38LOSA DC-DC Converter, Voltage Stabilization Device,Input DC6-40V 5W, Power Supply Module （Without PIN and AMS1117） is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
