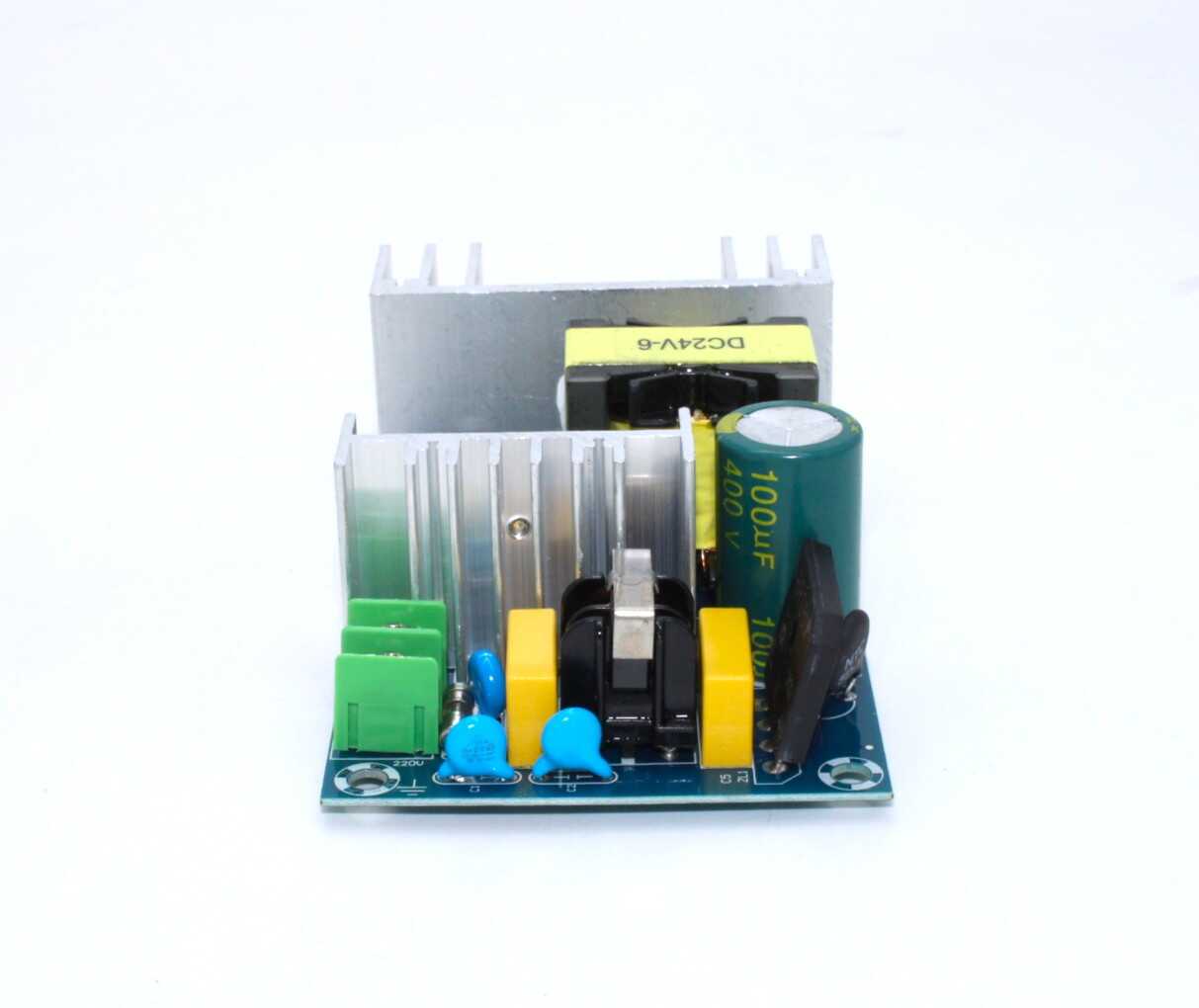

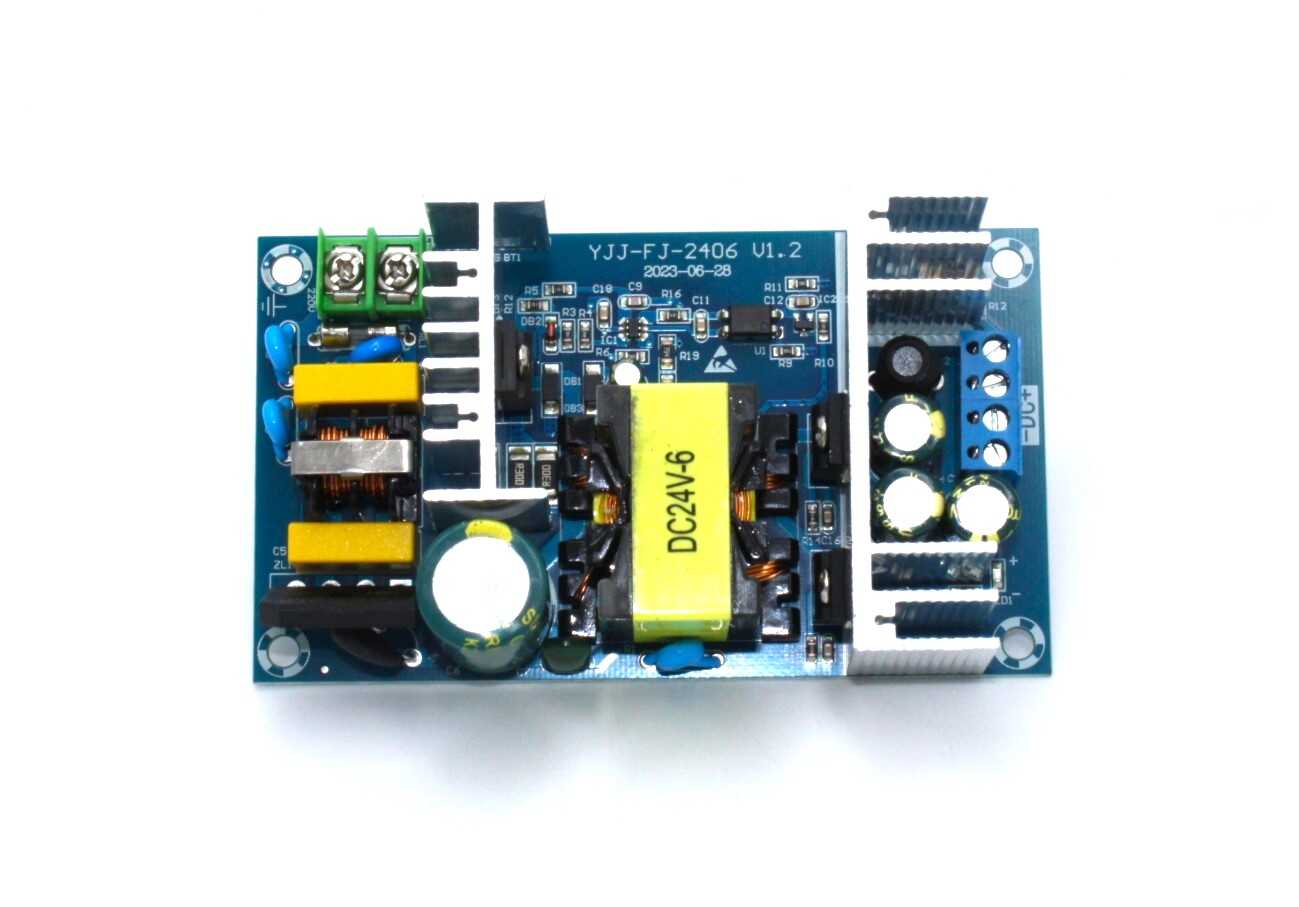

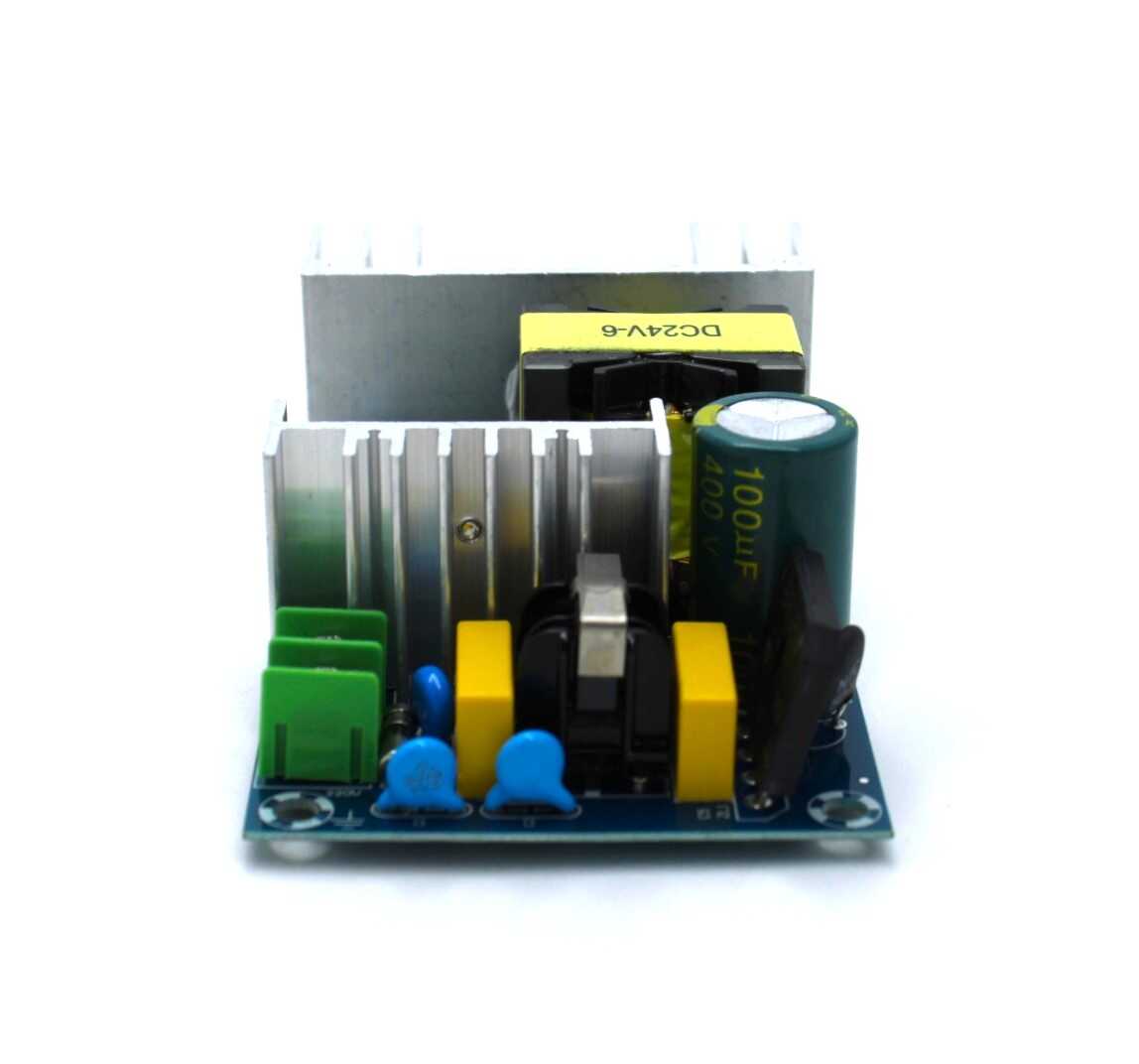

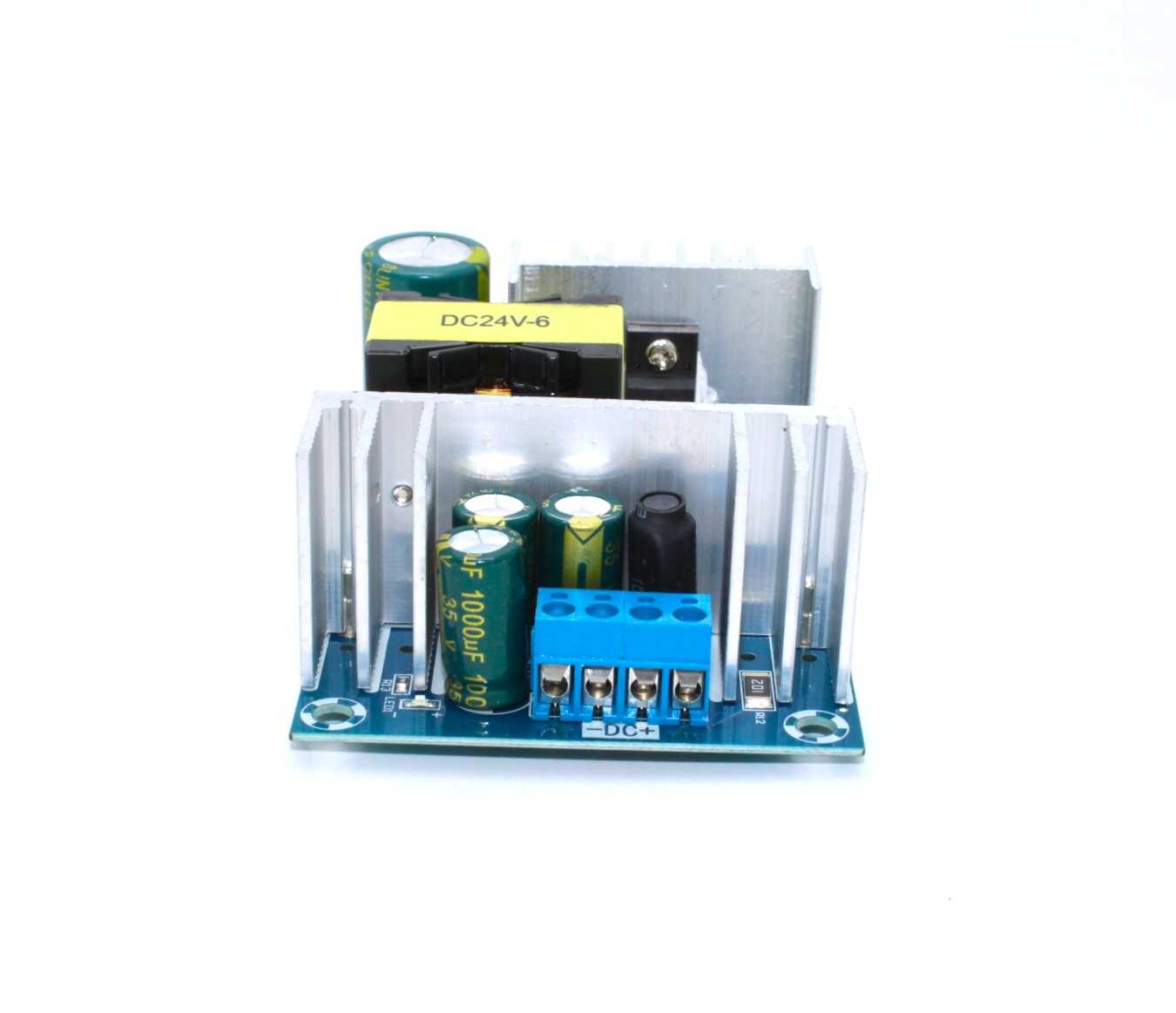

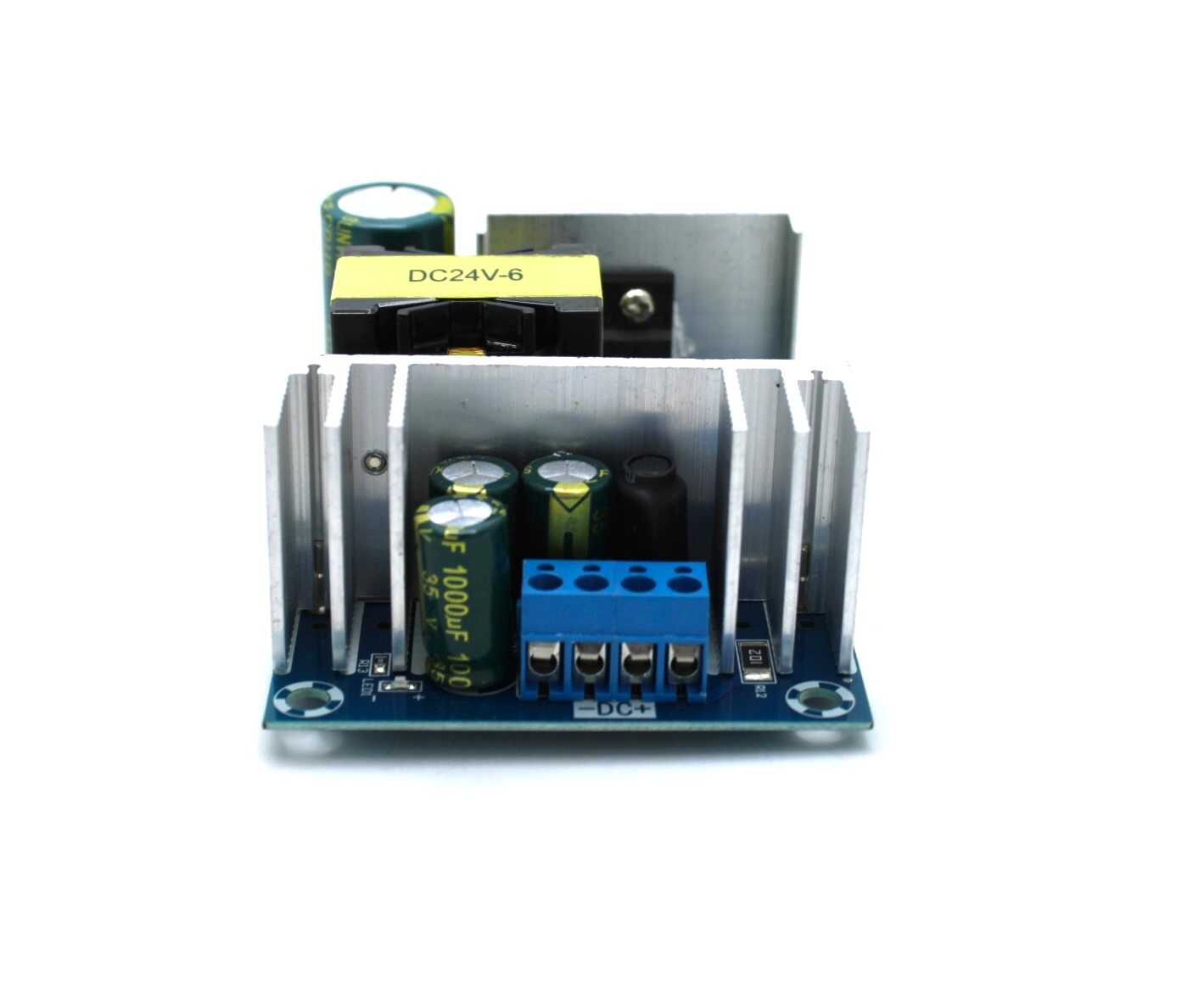

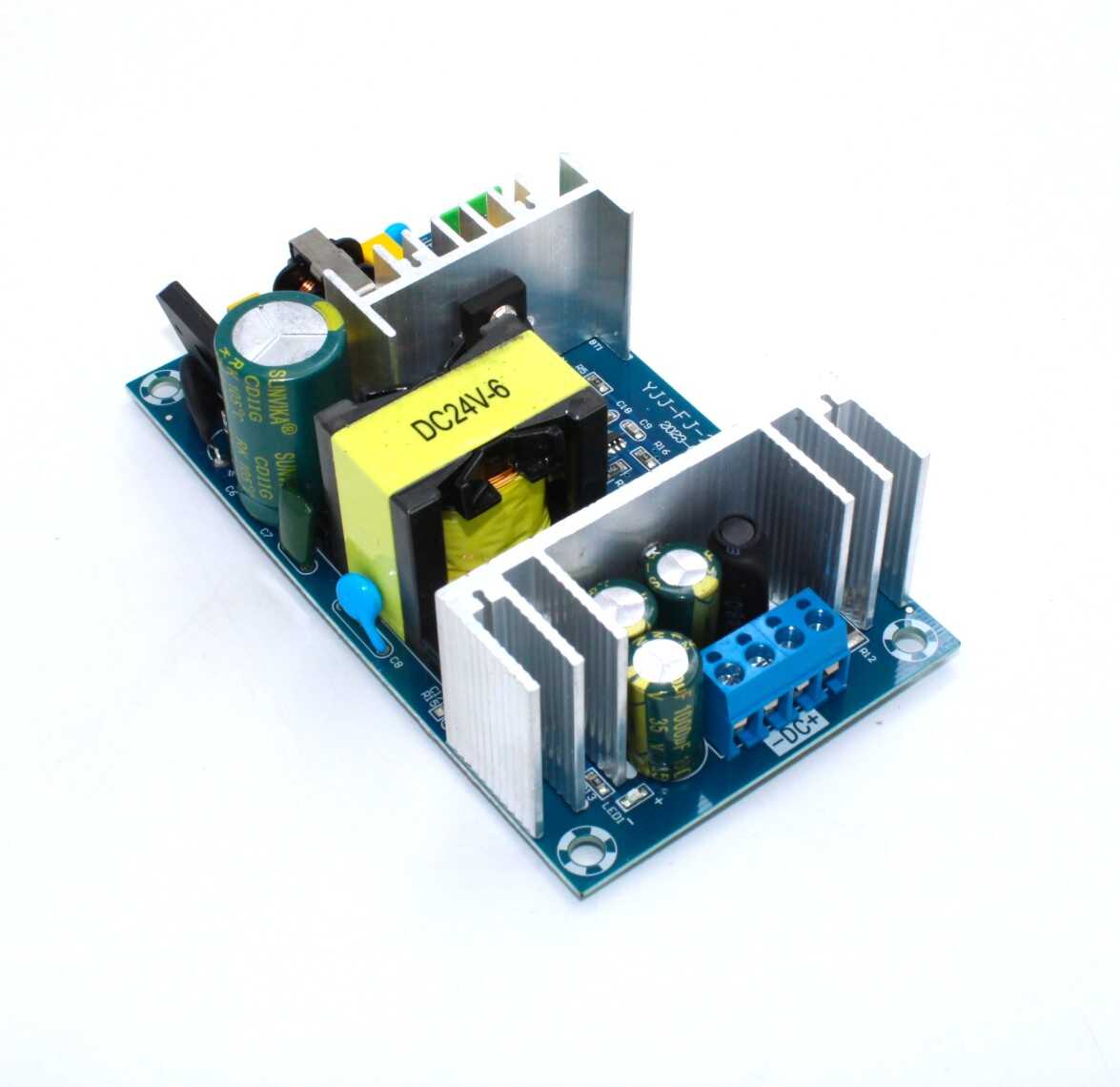

150W AC-DC Buck Converter 100V-240V to 24V 6A-9A Step Down Power Supply Module
The 150W AC-DC Buck Converter, designed for industrial control systems, features a double-sided PCB for enhanced stability and reliability. With an input range of 100V-240V to 24V 6A-9A, it includes a switching regulator for efficient power conversion. This module efficiently converts AC100V~240V (50HZ/60HZ) to a DC 24V output, similar to other power supplies.
Switching regulators are favored over linear regulators for their efficiency, smaller size, and lighter weight. The module is equipped with essential protection features, including over-voltage, over-current, and short-circuit safeguards. Additionally, it incorporates two heat sinks to better dissipate heat, ensuring consistent and reliable operation.
Features:
- High efficiency and low ripple.
- Maximum output 6A to 9A.

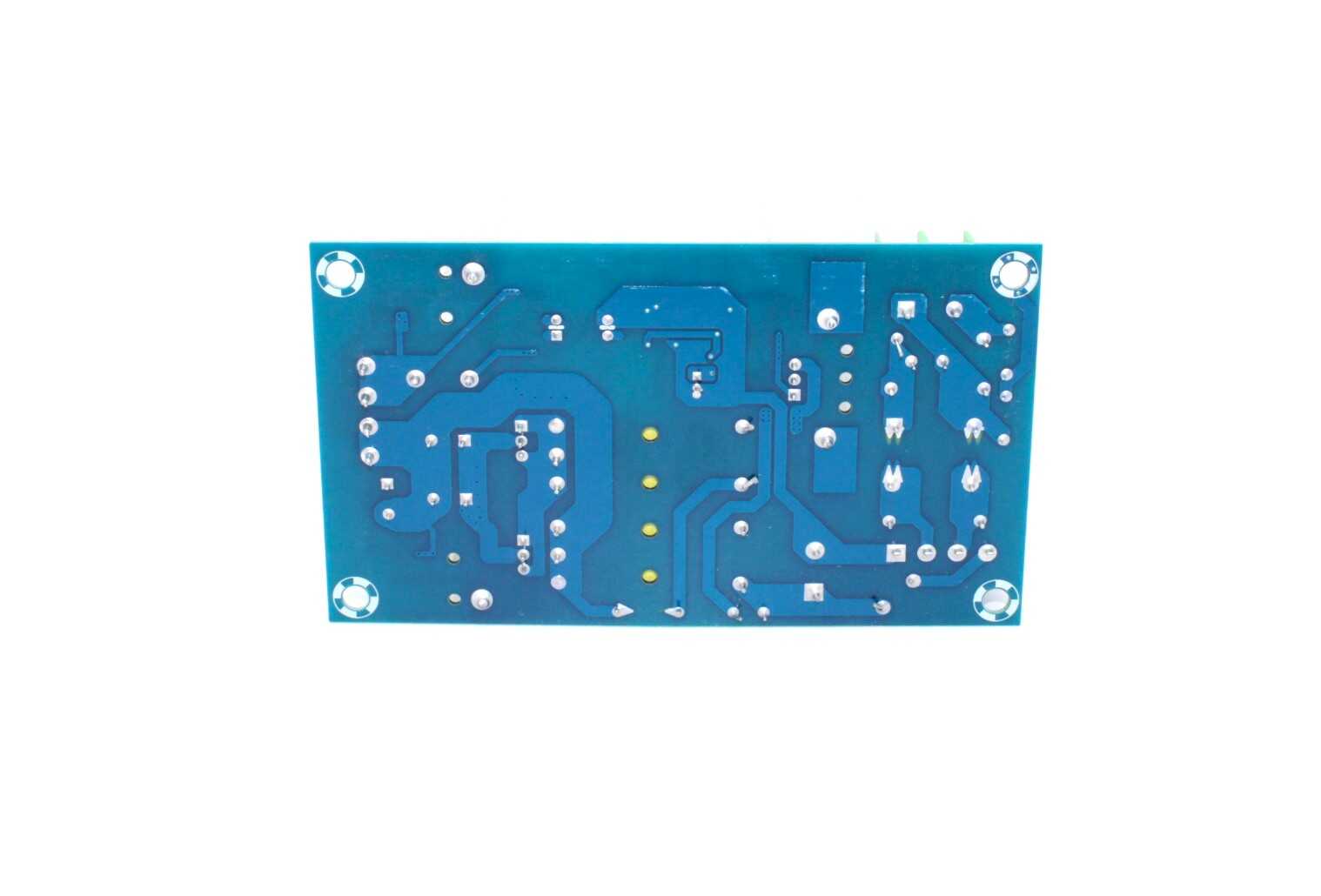

- Dual-side plate design.
- Easy to use handy Module.
Specification:
Input Voltage: AC 100 – 240 V (50 HZ/60 HZ).
Output Voltage: DC 24V.
Output Current: 6A to 9A (no voltage drop).
Output Power: 150W (maximum 220 W).
Overload Protection: Yes.
Over Current Protection: Yes.
Short Circuit Protection: Yes.
Package Includes:
1 x 150W AC-DC Buck Converter
