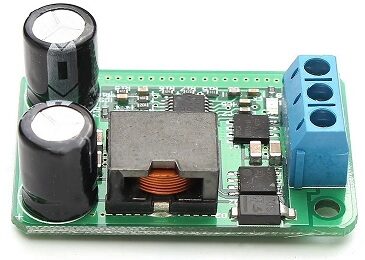

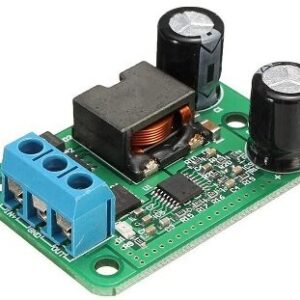

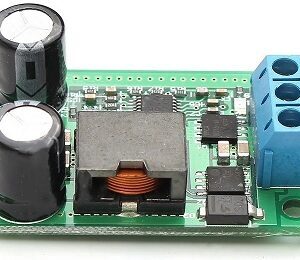

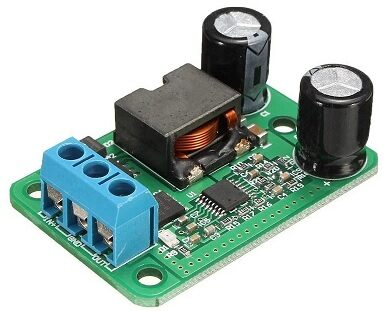

DC-DC Step-Down Buck Converter Power Supply Module 24V 12V 9V to 5V 5A 25W Replace LM2596S

DC-DC Step-Down Buck Converter Power Supply Module 24V 12V 9V to 5V 5A 25W Replace LM2596S

The DC-DC Step-Down Buck Converter Power Supply Module provides all the necessary functions for a step-down (buck) switching regulator, capable of driving a load of up to 5A with excellent line and load regulation. This module features variable input values, specifically 24V, 12V, and 9V, along with a fixed output voltage of 5V at 5A.

Requiring only a minimal number of external components, these regulators are user-friendly and incorporate internal frequency compensation and a fixed frequency oscillator, thereby serving as a replacement for the LM2596S.

Applications:

1. Simple High-Efficiency Step-Down (Buck)
   Regulator
2. On-Card Switching Regulators
3. Positive to Negative Converter

Note: Maximum limit of Input voltage is 35 v, please use in a safe range to avoid the damage.

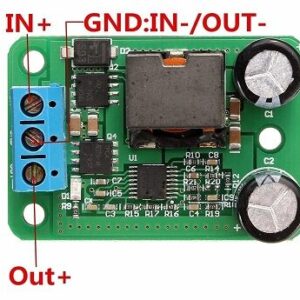

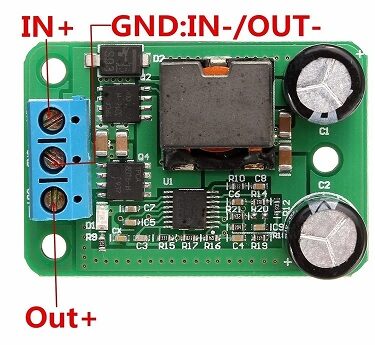

Pins Configuration:

In+: Input positive
Out+: Output positive
GND: IN-/OUT

Package Includes:
