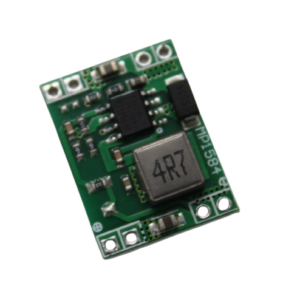

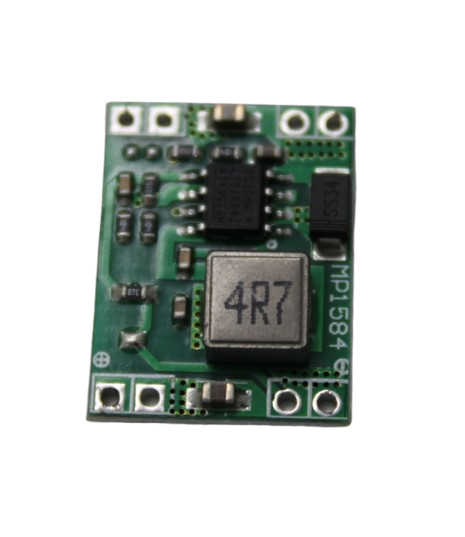

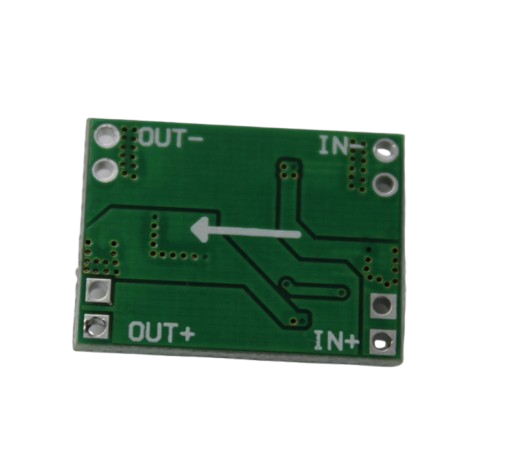

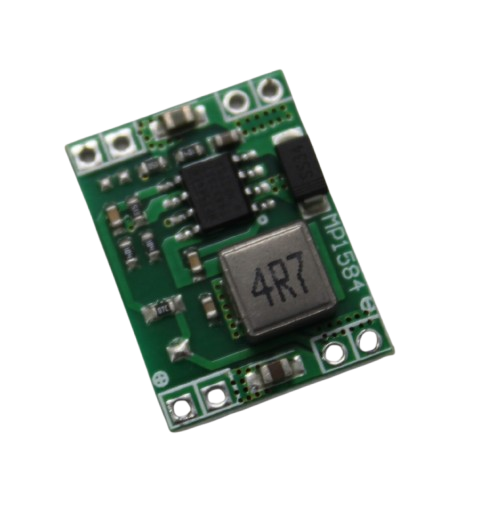

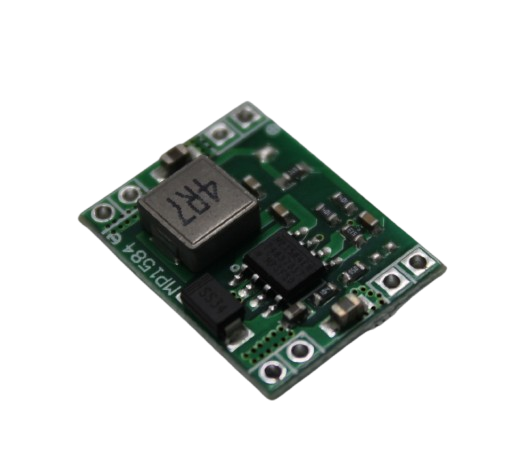

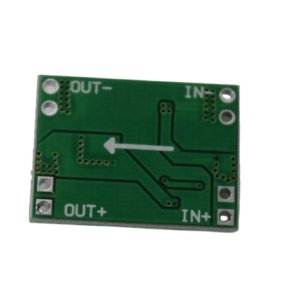

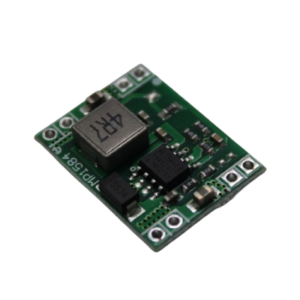

24V-12V 9V to 5V Fixed Output,3A Power Step-Down Adjustable Module(Chip is MP1584EN)
The Mini MP1584 DC-DC 3A Adjustable Buck module is a compact and versatile voltage converter designed for a wide range of applications. Utilizing an MP1584EN high-frequency switching regulator and integrated high-voltage power MOSFET, it delivers adjustable output voltage ranging from 0.8V to 20V.
This module incorporates essential protective features such as soft start, thermal shutdown, and under-voltage lockout (UVLO), safeguarding against insufficient supply voltage and ensuring reliable operation.
With its small size, light weight, and low internal power consumption, coupled with a wide input voltage range of 4.5V to 28V, the module is suitable for various applications requiring compact and lightweight voltage conversion. These applications include RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.
Overall, the Mini MP1584 DC-DC Adjustable Buck module offers efficient and reliable voltage conversion, making it an ideal choice for diverse electronic projects and applications.
Applications:
- DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
- Robotics
- Breadboard power supply
- Manual speed adjustment of small DC motors
- Power Supply for RC project planes, cars, helicopters
- Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
- Receiver/servo power supply
- Communications equipment power supply
- Mobile equipment power supplies
Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.
Features
- Wide 4.5V to 28V Operating Input Range
- High-Efficiency Pulse Skipping Mode for Light Load
- Ceramic Capacitor Stable
- Internal Soft-Start
- Internally Set Current Limit without a Current Sensing Resistor
Specification:
Input Voltage: 24V-12V.
Output Voltage: 0.8V – 20V.
Output Voltage Adjustment: On-board potentiometer.
Output Current: 1.8A (typical), 3.0A (max).
Ceramic Capacitor Stable
Internal Soft-Start
Internally Set Current Limit without a Current Sensing Resistor
Package Includes
1 x 24V-12V 9V to 5V Fixed Output,3A Power Step-Down Adjustable Module Chip is MP1584EN)
