XL6009 DC-DC Adjustable Step-Up Boost Power Converter Module

Rated 4.86 out of 5 based on 7 customer ratings
(7 customer reviews)

₹61.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
  • Switching frequency: 400KHz
  • Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Operating Temperature: -40  ~ 85

For B2B Enquiry Email Us:- [email protected]

143 in stock

Compare
Add to wishlist
SKU: AI0021 Categories: Electronic Modules, Step Up Boost Converters Tags: Boost Converter, DC Power Supply, Step Up Regulator, Voltage Regulator, XL6009
Share:
  • Description
  • Additional information
  • Reviews (7)
  • COO Info
Description

Product Description

XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage, high efficiency. It converts input voltage of 5-32V DC to an output voltage of 4-38V DC.

Features

  • Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
  • Wide Output voltage 5V ~ 35V;
  • Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
  • High switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz)

Test Results:-

Input 3V Output 12V 0.4A 4.8W

Input 5V Output 12V 0.8A 9.6W

Input 7.4V Output 12V 1.5A 18W

Input 12V Output 15V 2A 30W

Input 12V Output 16V 2A 32W

Input 12V Output 18V 1.6A 28.8W

Input 12V Output 19V 1.5A 28.5W

Input 12V Output 24V 1 A 24W



Vin * Iin * Efficiency = Vout * Iout



Vin: Input Voltage

Iin: Input current

Vout: Output Voltage

Iout: Output current

Technical Parameters:-

  • Module Properties: Non-isolated boost (BOOST)
  • Rectification: Non-Synchronous Rectification
  • Input Voltage Range: 3V ~ 32V
  • Output Voltage Range: 5V ~ 35V (Note: If you want to get the max voltage, you should make the input current as least 3A)
  • Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
  • Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
  • Switching frequency: 400KHz
  • Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Operating Temperature: -40 ~ 85
  • Dimensions: 43mm * 21mm * 14mm (L * W * H)

When using these modules remember that the output current will be a lot less than the input current, (remember – W = VA). For example, if you have a 10V output at 1A from a 5V input, the input current will be around 3.6A. The real-life maximum amount of power you can get out of these things is around 10W.

Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink.

Package Includes

  • 1 x XL6009 DC-DC Adjustable Step-Up Boost Power Converter Module
Additional information
Weight 0.01944 kg
Dimensions 4 × 4 × 3 cm
Reviews (7)

7 reviews for XL6009 DC-DC Adjustable Step-Up Boost Power Converter Module

  1. Rated 5 out of 5

    Mukesh Ranjan (verified owner) – March 17, 2021

  2. Rated 5 out of 5

    somnath Kashyap (verified owner) – May 4, 2021

  3. Rated 5 out of 5

    Nitesh Kumar (verified owner) – May 10, 2021

    Osm nice 👍 best product

  4. Rated 5 out of 5

    Rishabh K. (verified owner) – May 16, 2021

    All products really fantastic and excellent product..

  5. Rated 5 out of 5

    Santosh Bhalke (verified owner) – June 1, 2021

  6. Rated 5 out of 5

    Swamy R. (verified owner) – July 11, 2021

  7. Rated 4 out of 5

    Sandeep (verified owner) – November 19, 2022

    nice

Only logged in customers who have purchased this product may leave a review.

COO Info

Country Of Origin – China

Related products

Add to cart
Compare
Quick view
Add to wishlist

CD74HC4067 High Speed ​​CMOS 16-Channel Analog/Digital Multiplexer Breakout Module

Rated 4.50 out of 5
₹49.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

TTP224 4-way Capacitive Touch Switch Module

₹54.0 ( +GST 18% )
TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module
Add to cart
Compare
Quick view
Add to wishlist

TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module

Rated 3.00 out of 5
₹209.0 ( +GST 18% )
-11%
Add to cart
Compare
Quick view
Add to wishlist

PAM8403 Mini 5V Digital Amplifier Board With Switch Potentiometer

Rated 5.00 out of 5
₹53.0 ₹47.0 ( +GST 18% )
High-Sensitivity LM393 Sound Detection voice recording module Microphone Sensor
Add to cart
Compare
Quick view
Add to wishlist

LM393 Sound Detection Sensor Module

Rated 4.75 out of 5
₹48.0 ( +GST 18% )
XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB
Add to cart
Compare
Quick view
Add to wishlist

XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB

Rated 5.00 out of 5
₹41.0 ( +GST 18% )
-10%
Add to cart
Compare
Quick view
Add to wishlist

MT8870 DTMF Audio/Speech Decoding Telephone Module

₹83.0 ₹75.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

5V 7A DC Mini Power Relay

₹29.0 ( +GST 18% )
kisspng-computer-icons-scalable-vector-graphics-adobe-illu-thumb-svg-png-icon-free-download-148447-onlin-5c0598a80bc5f2.4617737315438706320482

High Quality

Buy high reliable products for your critical project.

kisspng-telephone-call-computer-icons-portable-network-gra-phone-call-svg-png-icon-free-download-518851-5b80a222402649.4360944515351567702628

Awesome Support

Our Support lines are open from 10 am to 6 pm, to support all your queries.

kisspng-delivery-computer-icons-encapsulated-postscript-5b1ed86cdf6f28.3572173215287481409152

Fast Delivery

99% of orders are shipped within 24Hours.

kisspng-computer-icons-padlock-icon-design-5b163a323d99c6.2970240315281833462523

Secure Payments

We follow highest security standards to make your transaction safe.

ZBOTIC
Goyal Industrial Complex
Above Jayaka Tea, J-514
Gawali Matha Chowk, Telco Road
Bhosari, Pune-411026, India


Phone: +91-7410737370
Email: [email protected]
Recent Posts
  • A preview image of Home automation using iot
    Home Automation Using IoT | IoT Project
    January 28, 2023 No Comments
  • Card Access Electronic Gate Lock RFID Access solenoid lock
    Door Security System Arduino RFID Project
    January 27, 2023 No Comments
My Account
  • My Account
  • Cart
  • Checkout
  • Wishlist
  • Payment Option
Information
  • About Us
  • Team
  • Career
  • Contact Us
  • FAQ
Policies
  • Privacy Policy
  • Terms and Conditions
  • GST Inputs Tax Credit
  • Shipping & Return Policy
  • Our Sitemap
© 2020 CREATED BY Zbotic. PREMIUM ELECTRONIC COMPONENTS SOLUTIONS.
payments
  • Menu
  • Categories
  • Development BoardsDevelopment Boards
  • Electronic ComponentsElectronic Components
  • Electronic ModulesElectronic Modules
  • SensorsSensors
  • IoT and WirelessIoT and Wireless
  • Display ModulesDisplay Modules
  • 3D Printer Parts3D Printer Parts
  • Motors and DriversMotors and Drivers
  • Wires and CablesWires and Cables
  • BatteriesBatteries
  • Drone PartsDrone Parts
  • Shop
  • Track order
  • Republic Day Sale
  • B2B
  • About Us
  • Blogs
  • Contact Us
  • Services
  • Wishlist
  • Compare
  • Login / Register
Shopping cart
close

Sign in

close

Lost your password?
Or login with
Google
OR
Don't have an account? Signup

No account yet?

Create an Account

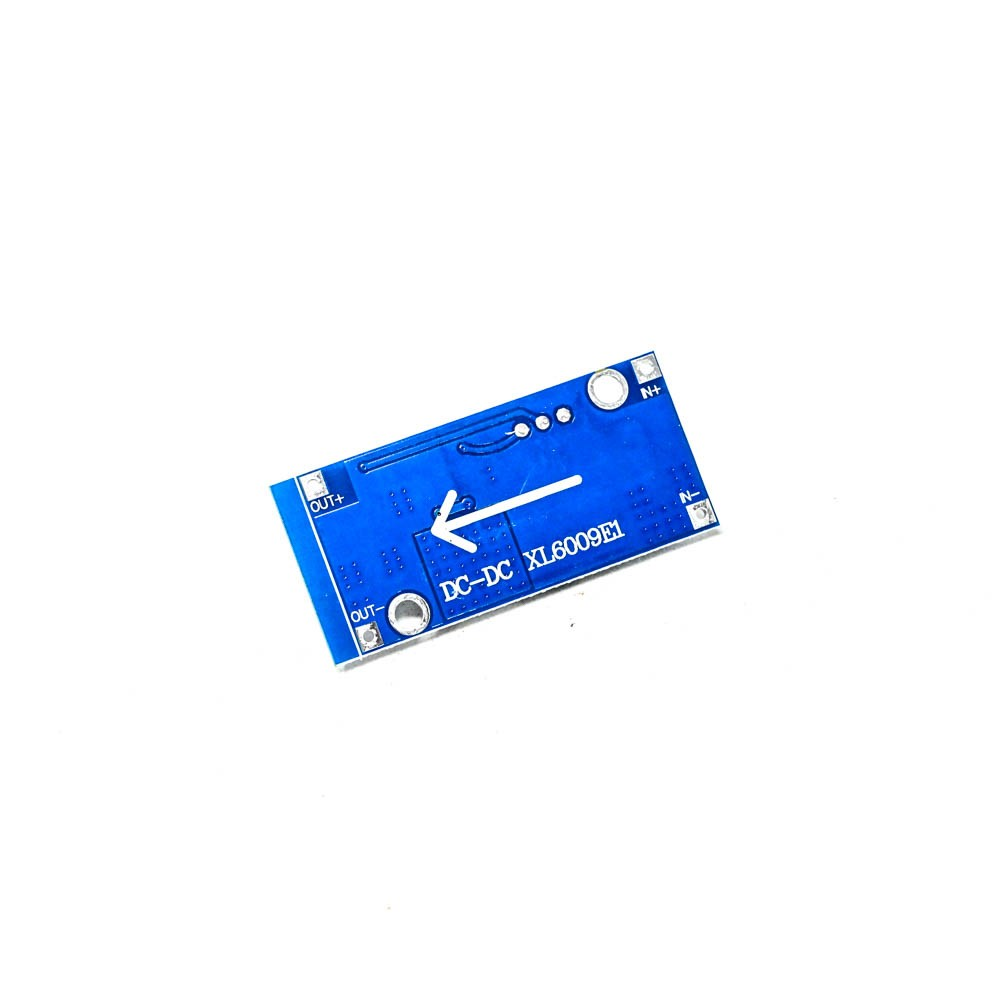

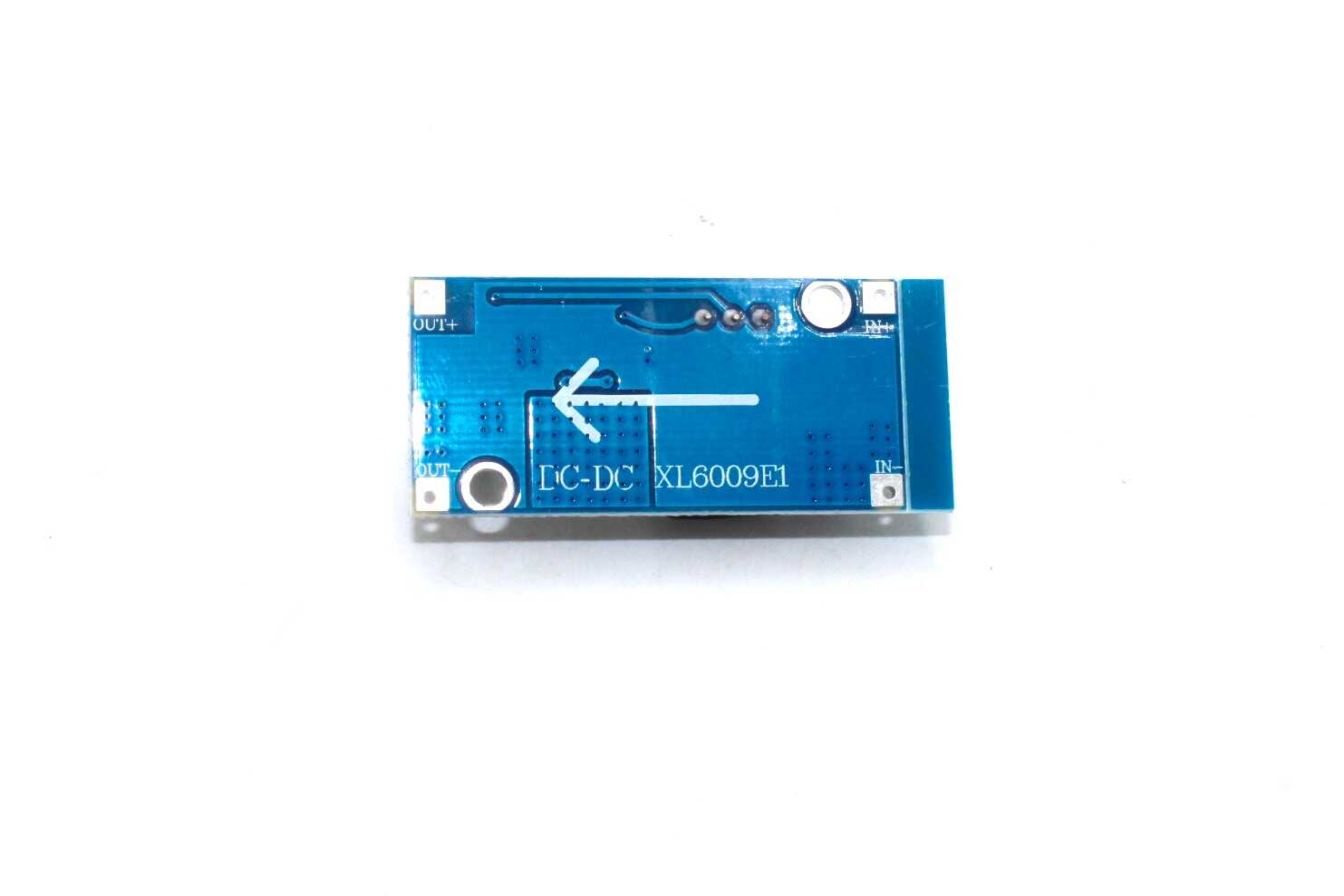

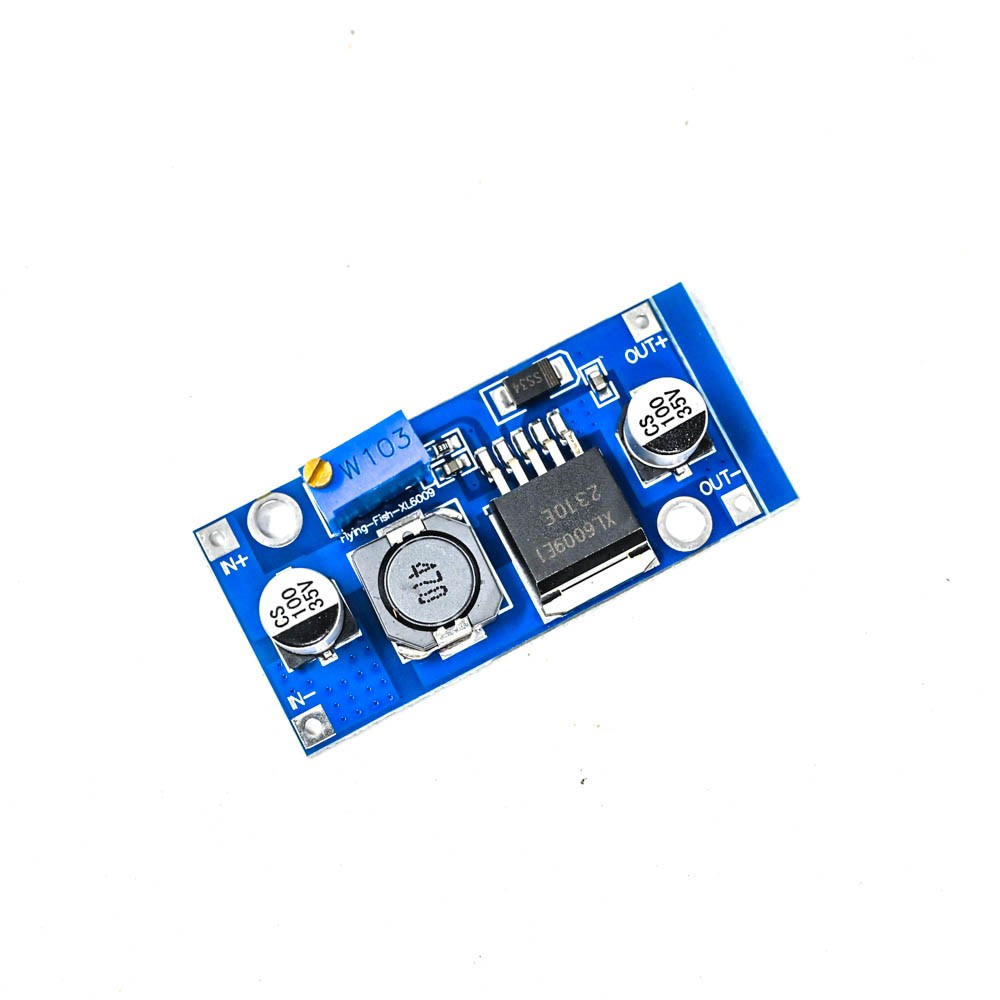

XL6009 DC-DC Adjustable Step-Up Boost Power Converter Module

Rated 4.86 out of 5
₹61.0 ( +GST 18% )

143 in stock

Compare
Add to wishlist
Shop
0 Wishlist
0 items Cart
My account
×

Back
