6 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse

This is the 24V variant of the 6 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse in Relay Modules. Available at ₹886.18 Original price was: ₹886.18.₹826.00Current price is: ₹826.00. (₹700.00 + GST) with free shipping across India.

Looking for 24v Module 457329? 6 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse is available at Zbotic with fast shipping across India.

PRODUCT DESCRIPTION

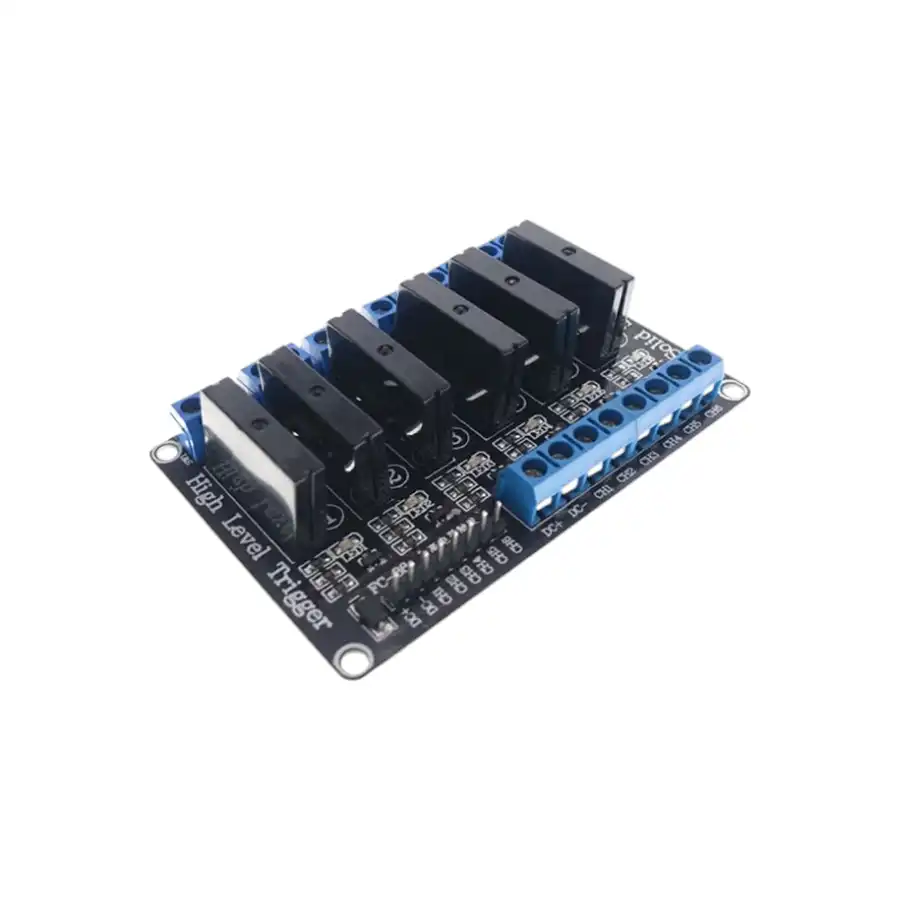

This is a 6 Channel 3-24V Solid State Relay Module. A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the contact, a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays.

A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay.

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

Input Parts :

1. DC+: connected to VCC (Supply power according to relay voltage)
2. DC-: connected to GND
3. IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
4. IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
5. IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level)
6. IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level)
7. IN5: CH5Signal triggering the end of 5-channel relay module (active at the high level)
8. IN6: CH6 Signal triggering the end of 6-channel relay module (active at the high level)

Features:

1. 6-channel 2 AMP Solid State Relay board.
2. Control 6 loads of up to 2 amps each at 50 V DC.
3. Good for lighting, Holiday displays, etc.
4. Has been assembled, and the electrical test passed.
5. Led indicator for each relay.
6. Use it to control various appliances and other equipment with a large current.
7. It can be controlled directly by a Microcontroller

PACKAGE INCLUDES

1 X 6 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse

6 Channel 3-24V Relay Module Solid State High Level SSR DC Overview

The 6 Channel 3-24V Relay Module Solid State High Level SSR DC is a compact board that lets you switch AC loads using low-voltage DC signals. Each of its six channels features a phototriac-isolated solid-state relay and built-in resistive fuse for safe, noise-free operation in automation and control systems.

Key Features of 6 Channel 3-24V Relay Module Solid State High Level SSR DC

• Six independent SSR channels with high-level trigger inputs (3–24 VDC)
• Wide DC supply range: 3–24 VDC at 160 mA total consumption
• Phototriac isolation ensures galvanic separation between control and load sides
• Integrated resistive fuses on each channel for over-current protection
• Solid-state design delivers silent switching and long life without mechanical wear
• Genuine product, fast shipping from Zbotic across India

Applications and Use Cases

• Home automation: control AC lights, fans and heaters via microcontrollers
• Industrial panels: noise-free switching of motors and solenoids
• CNC machines: isolate control boards from spindle and coolant pump circuits
• HVAC systems: reliable activation of compressors and blower units
• Laboratory setups: precise on/off control of AC heating elements

How to Use 6 Channel 3-24V Relay Module Solid State High Level SSR DC

Begin by wiring a regulated 3–24 VDC supply to the module’s VCC and GND pins. Connect each control signal (3–24 V high level) to the corresponding input pin. On the output side, wire your AC load in series with the module’s SSR terminals. When an input is driven high, the related channel closes its solid-state switch without audible noise.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What voltage range triggers each SSR channel?

Each channel accepts a high-level control input between 3 VDC and 24 VDC. Driving the input above 3 V turns on the corresponding solid-state relay.

How does the phototriac isolation improve safety?

The phototriac provides galvanic isolation between your low-voltage control circuitry and the high-voltage AC load, protecting microcontrollers from surges and noise.

What types of loads can I switch with this module?

This SSR module is suited for AC resistive and lightly inductive loads—such as lamps, heaters, fans, small motors and solenoids—within the built-in fuse-protected current limits.
