This is the 5V variant of the NE555 Delay Timer Switch Adjustable 5V Relay Module in Relay Modules. Available at ₹93.22 (₹79.00 + GST) with free shipping across India.

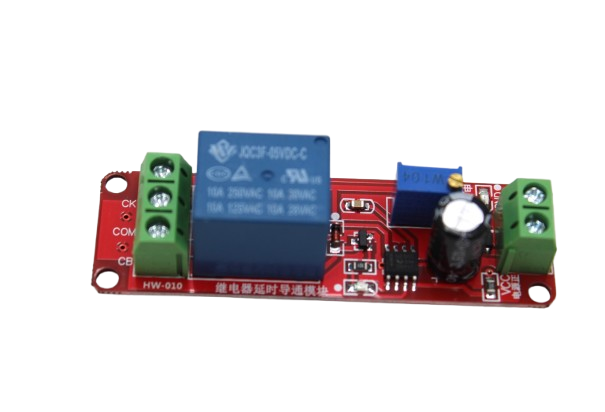

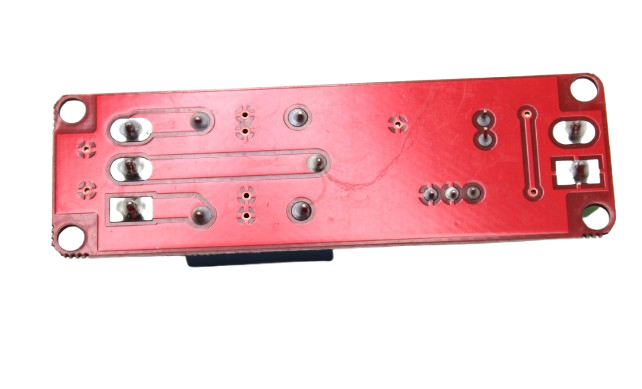

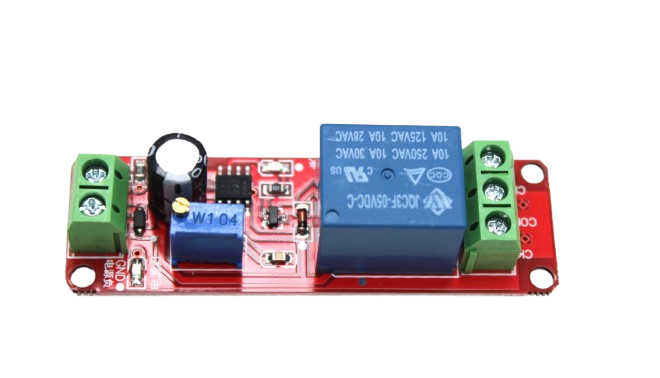

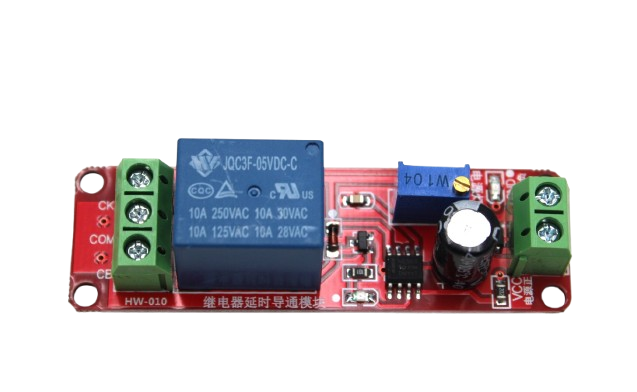

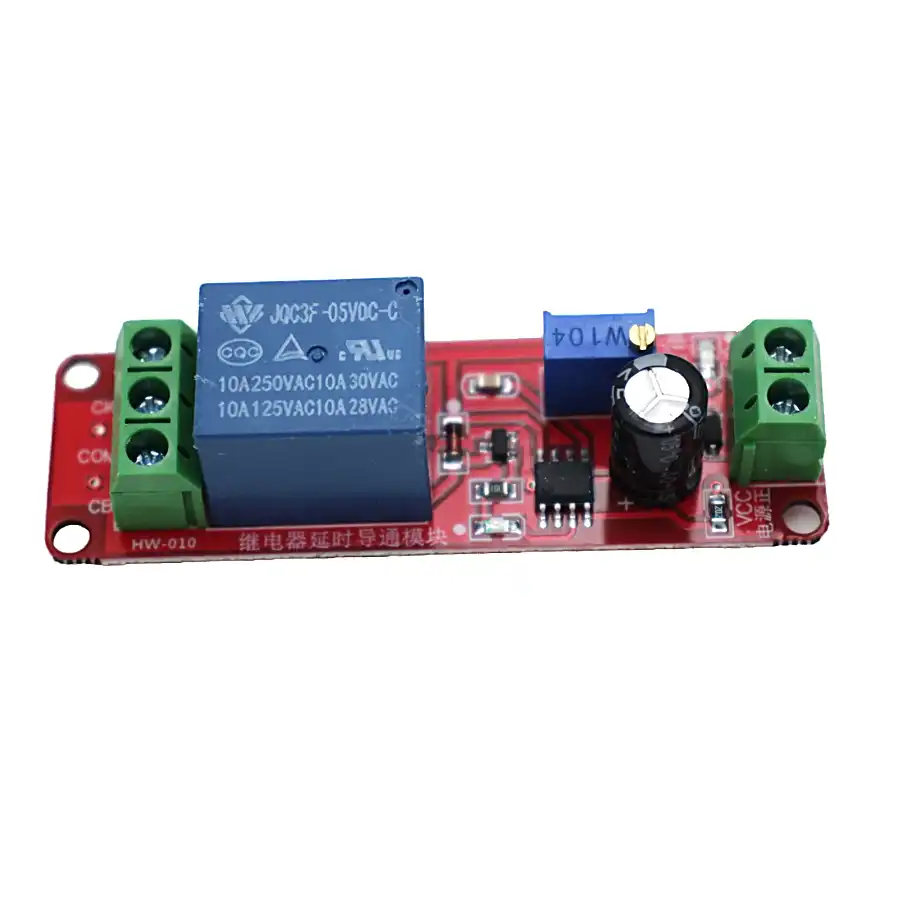

NE555 Delay Timer Switch Adjustable 5V Relay Module
Introducing the NE555 Delay Timer Switch Adjustable 5V Relay Module, your go-to solution for accurate timing control across various applications. Powered by the dependable NE555 chip, this module delivers excellent timing performance and features LED indicators to show power and timing status.
With adjustable timing options that range from microseconds to hours, you can easily customize the delay settings to meet your specific requirements. Whether you’re delaying car ignition to protect components or managing high-current devices, this timer switch is designed to handle your needs effectively.
Features:
- NE555 Chip: Ensures reliable timing performance.
- Input Voltage: DC 5V, providing compatibility with a wide range of power sources.
- Adjustable Time: Set delay time from 0 to 10 seconds using the potentiometer or capacitance adjustment.
- AC/DC Control Voltage: Supports control voltages up to 250V AC/30V DC, with a maximum load capacity of 2200W.
- Monostable Mode: Generates precise pulses or timings for various applications.
- Low Power Consumption: Does not consume power in standby mode, ensuring energy efficiency.
- Temperature Stability: Boasts excellent temperature stability of 0.005% per degree Celsius, maintaining accuracy under varying conditions.
Whether you need precise timing for industrial equipment, automotive applications, or DIY projects, the NE555 Delay Timer Switch Adjustable 5V Relay Module offers reliability, flexibility, and ease of use. Unlock precise control over your timing requirements with this versatile module.
Specifications:
| Specification | Details |
|---|---|
| Chip | NE555 |
| Input Voltage | DC 5V |
| Adjustable Time | 0-10 seconds |
| AC Control Voltage | 250V / max. 10A |
| DC Control Voltage | 30V / max. 10A |
| Maximum Load | 2200W |
| Mode | Monostable |
| LED Indicators | Power, Trigger Timing |
Package Includes
- 1 x NE555 Delay Timer Switch Adjustable 5V Relay Module
Home Assistant vs OpenHAB: Smart Home Platform Battle
Table of Contents Home Assistant Overview OpenHAB Overview Installation Comparison Device Compatibility Automation Capabilities Dashboard and UI Design...
Read More →
IoT Air Quality Network: City-Wide Pollution Monitoring
Table of Contents Air Pollution Crisis in Indian Cities Air Quality Sensors Explained Building an AQI Monitor Node...
Read More →
Troubleshoot ESP32 WiFi Drops and Reconnection Issues
If you are building an IoT project with an ESP32 and struggling with ESP32 WiFi disconnect troubleshoot fix...
Read More →Technical Specifications
| Model | NE555 |
|---|---|
| Operating Voltage | 5V |
| Interface / Protocol | BLE |
| SKU | AI0170 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The NE555 Delay Timer Switch Adjustable 5V Relay Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
