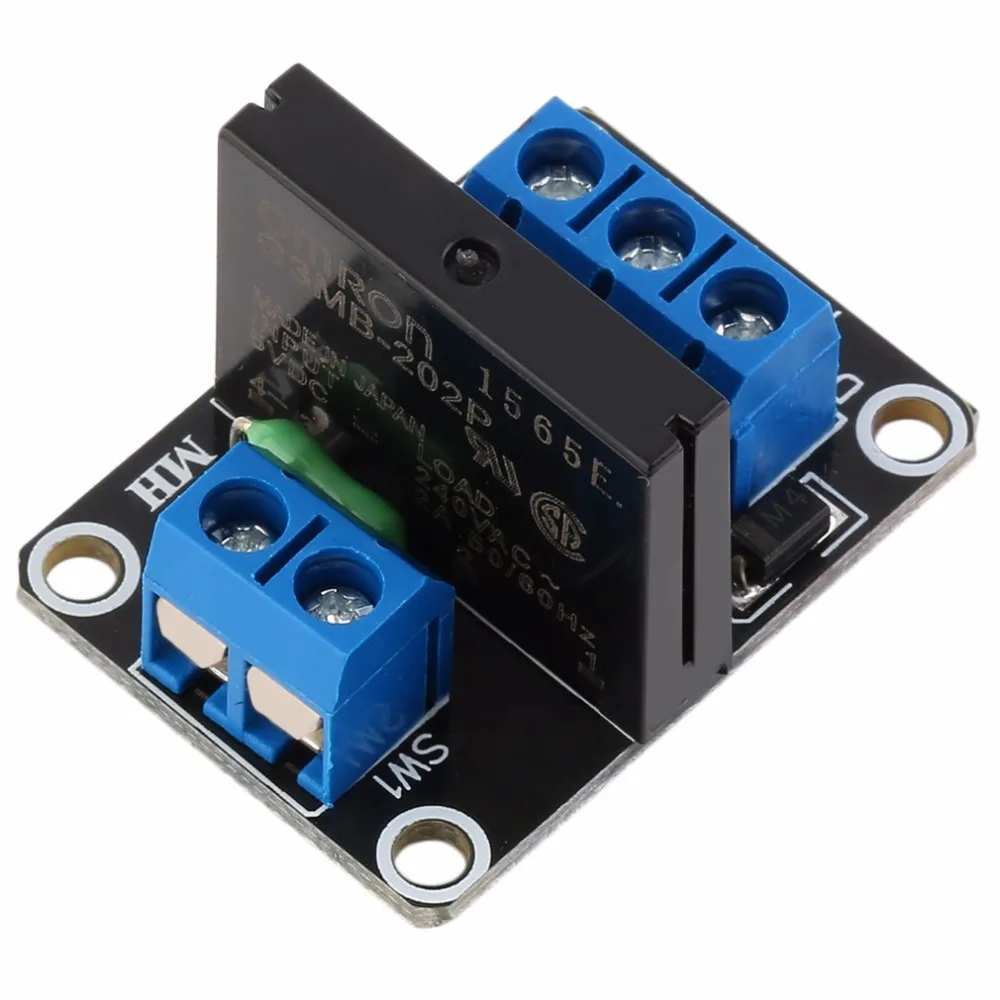

This is the 5V variant of the 1 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at Original price was: ₹142.78.₹94.40Current price is: ₹94.40. (₹80.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This text describes a 1 Channel 5V Solid State Relay Module. This is an electronic device that can switch high-voltage AC loads using low-voltage DC signals. Unlike a mechanical relay, which uses physical contacts to open and close a circuit, a solid-state relay uses an infrared LED and a photo Triac to create an optical connection. Solid-state relays have some advantages over mechanical relays, such as no noise and longer lifespan.
A Solid State Relay works in a similar way to a 1 Channel 5V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive, which is another type of electronic switch. When a digital signal is applied to the input, the relay changes its state. The NC (normally closed) terminal disconnects from the COM (common) terminal, breaking the circuit. The NO (normally open) terminal connects to the COM terminal, completing the circuit. This can turn on or off the load that is connected to the relay, depending on how it is wired.

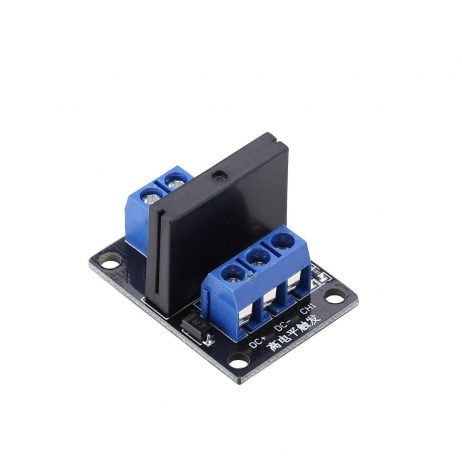

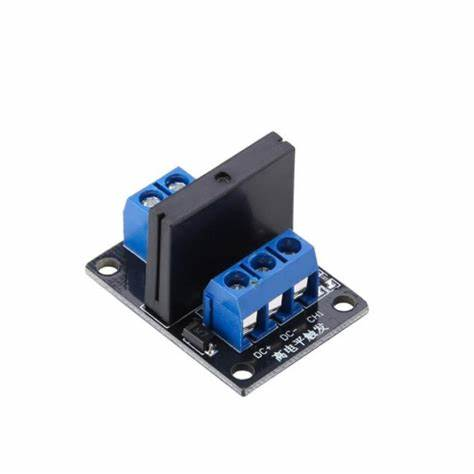

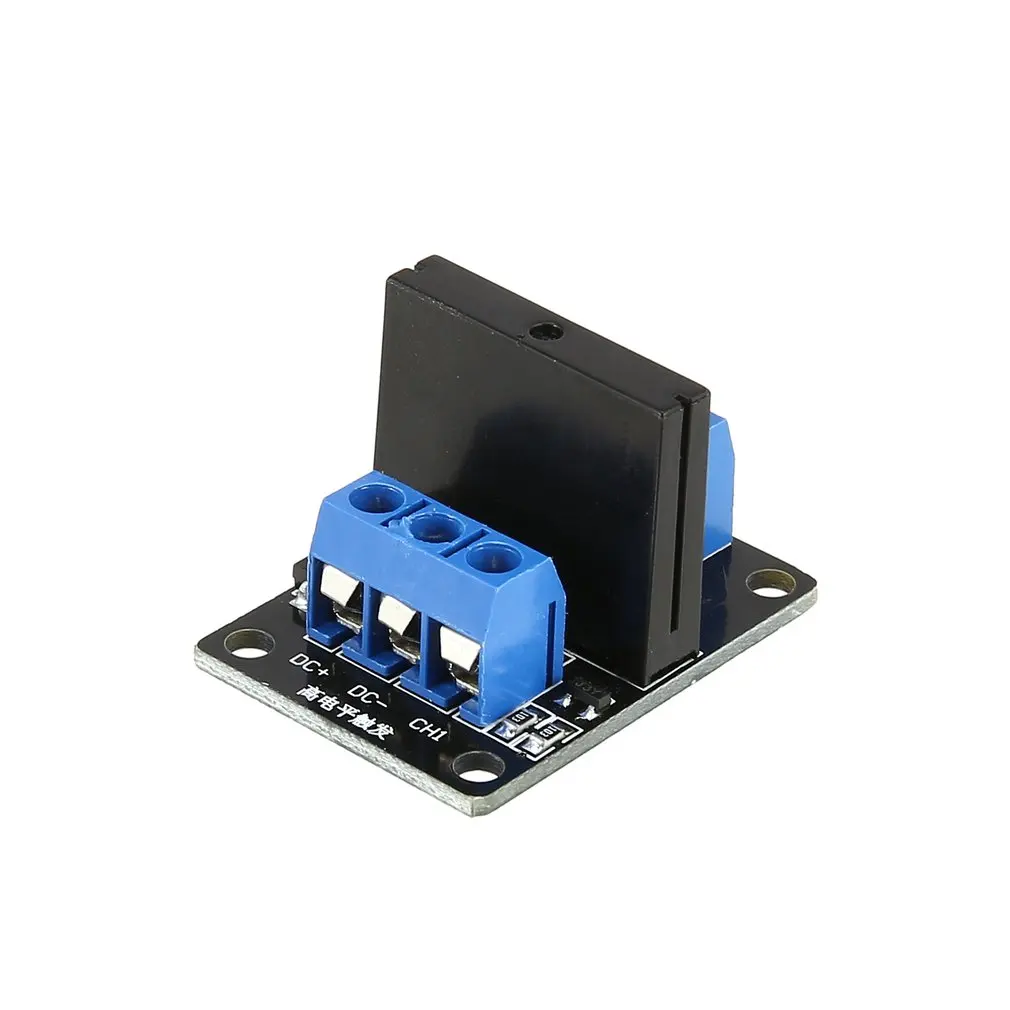

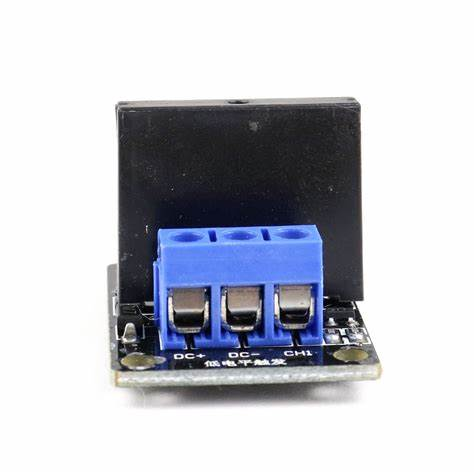

Input Parts :
- DC : connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND
- CH1: relay module signal trigger point (Effective high-level trigger)
Features:
- 1-channel 2 AMP Solid State Relay board.
- Control 1 load of up to 2 amps each at 240 V AC.
- Good for lighting, Holiday displays, etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller
Specification:

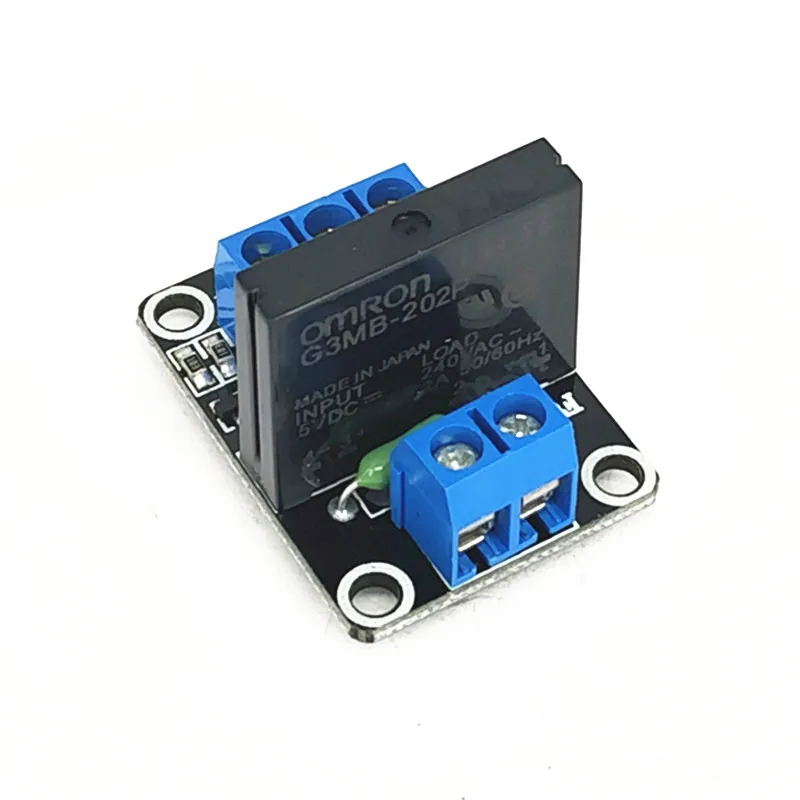

| Part Number | G3MB-202P |
|---|---|
| Power supply | 5VDC/160mA |
| Switching Voltage (VAC) | 240@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
Package Includes:
1 x 1 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
ESP32 USB HID: Emulate Keyboard and Mouse from Microcontroller
The ability to use ESP32 USB HID keyboard mouse emulation opens up a world of automation possibilities that...
Read More →
ESPHome: Easy ESP32 and ESP8266 Smart Home Devices
Table of Contents What is ESPHome Installing ESPHome Your First ESPHome Configuration Sensor Integration Examples Home Assistant Auto-Discovery...
Read More →
IoT Water Leak Detector: ESP32 + Sensor + Telegram Alert
Water damage is one of the most expensive and preventable disasters in Indian homes, offices, and factories. An...
Read More →Technical Specifications
| Voltage Range | 5V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 1-channel |
| SKU | AI2970 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 1 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
