This is the 5V variant of the 5V 2 channel USB PC Intelligent Control Relay Module in Relay Modules. Available at ₹404.74 (₹343.00 + GST) with free shipping across India.

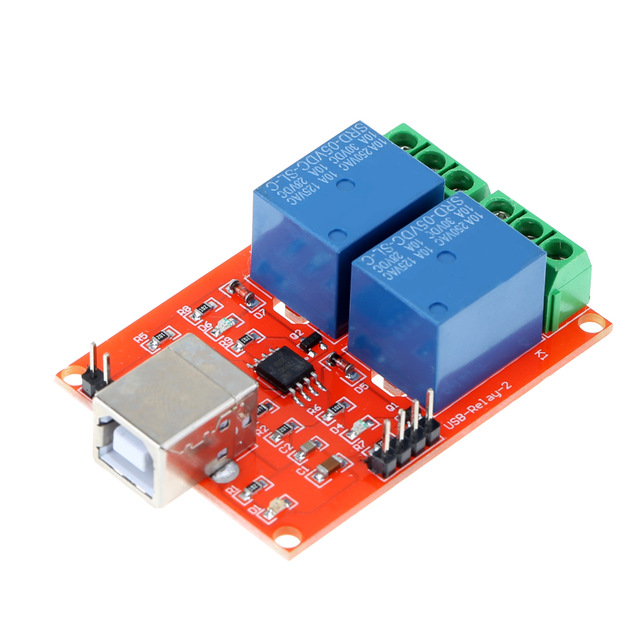

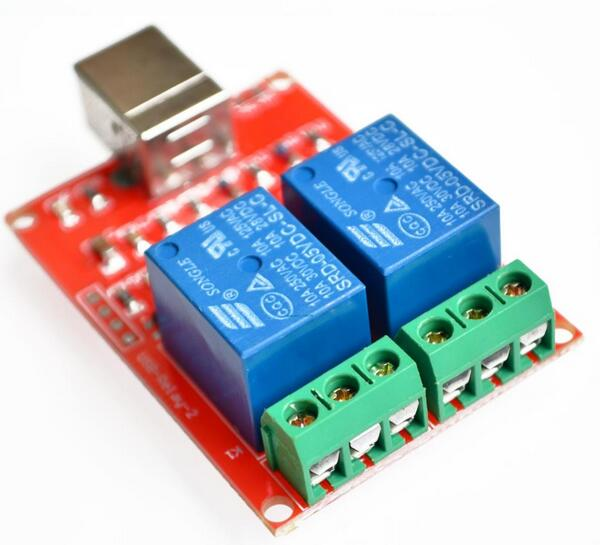

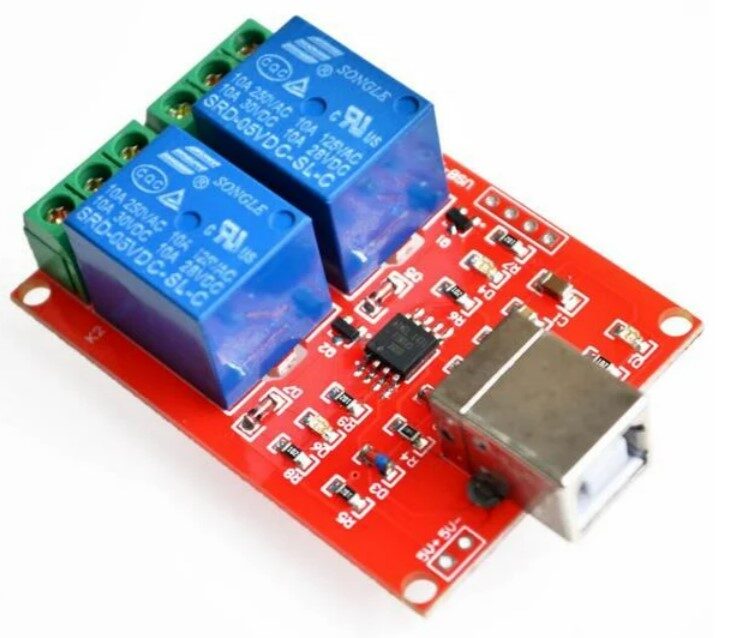

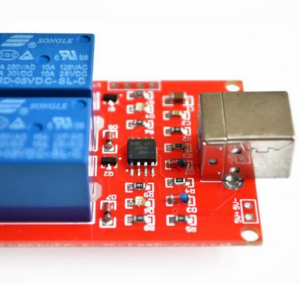

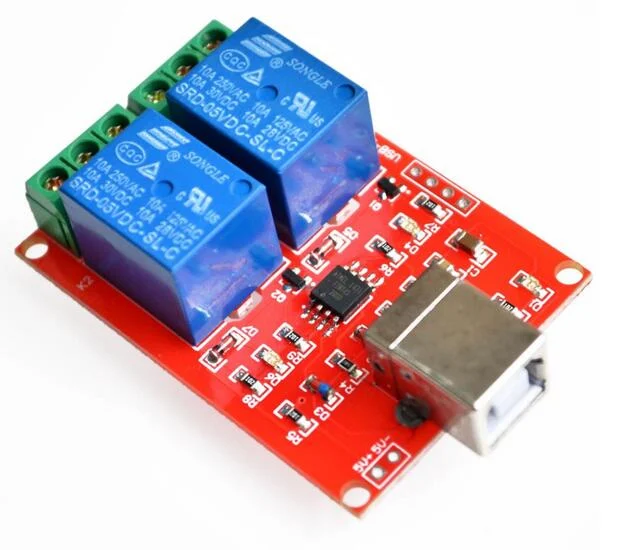

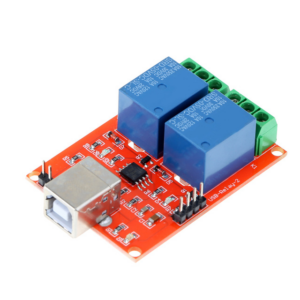

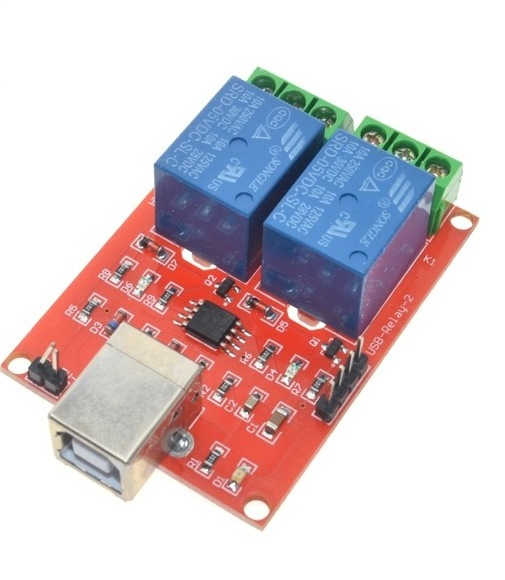

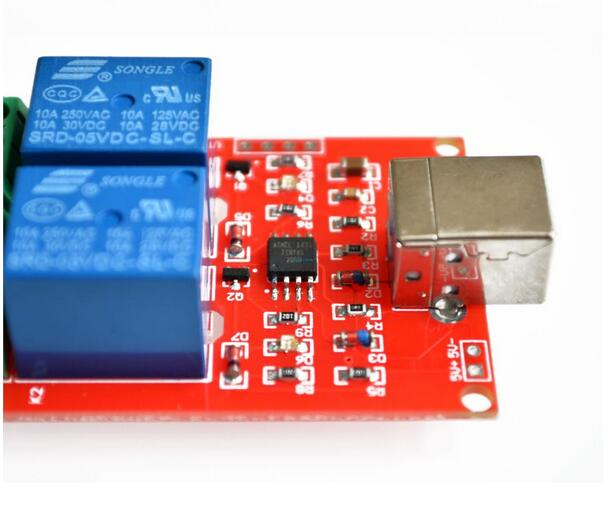

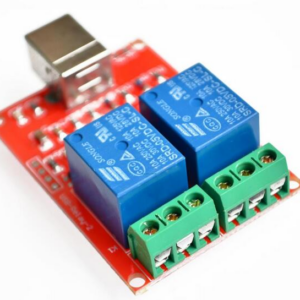

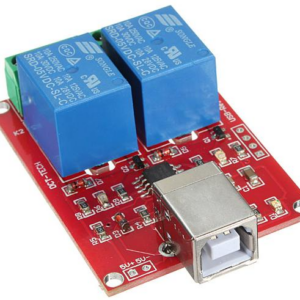

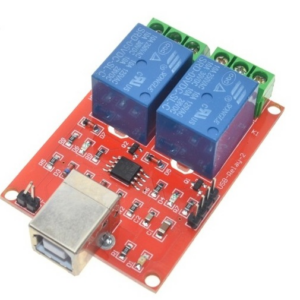

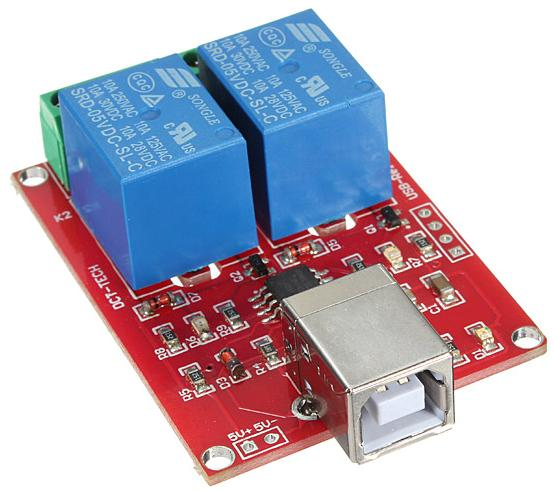

5V 2 channel USB PC Intelligent Control Relay Module
This is a 5V 2-channel USB PC Intelligent Control Relay Module that uses HID technology and high quality components. It does not require a driver. You only need to download the data from the application and plug it in. It is compatible with Windows 7 and XP 32 systems.
The module has a Songle relay and an imported high-performance USB Control Chip.
It has a military-grade PCB production. It also has a 4-channel or 8-channel power connector that can maintain the relay settings even if you unplug the USB or turn off the computer. The hole size for fixing is 3mm and the hole center distance is 52.2mm x 36.6mm.
Applications :
- Home automation
- Robotics Control
- Control doors and windows via windows system.
- Controller power supply etc.
Specifications:
| Operating Voltage (VDC): | 5 |
|---|---|
| Trigger Voltage (VDC) | 5 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | -40 to 80 |
| Operating Temperature (°C) | -40 to 85 |
| Length (mm): | 63 |
| Width (mm): | 41 |
| Height (mm): | 17 |
| Weight (g): | 30 |
Features
- Onboard square USB interface, stable connection.
- Use imported high-performance USB control chip.
- Application code: Green indicates that the relay is closed, the red disconnect
- Military grade PCB board production.
- Use genuine pine music relay
- Support Windows 7, XP 32-bit systems
Package Includes
1 x 5V 2 channel USB PC Intelligent Control Relay Module.
Useful Links :
5V 2 channel USB PC Intelligent Control Relay Module Overview
The 5V 2 channel USB PC Intelligent Control Relay Module is a plug-and-play interface for switching external circuits directly from a Windows PC. Using HID technology and a high-performance USB control chip, it provides two NC/COM/NO relays with LED status indicators for automation, robotics, door/window control and more.
Key Features of 5V 2 channel USB PC Intelligent Control Relay Module
- Two independent Songle relays with NC/COM/NO contacts for versatile switching
- Onboard square USB interface for stable plug-and-play connection (no driver required)
- Dual-color LEDs: green for closed (ON), red for open (OFF) relay status
- Imported high-performance USB control chip with HID protocol support
- External 4-pin (or optional 8-pin) power connector to maintain relay state when USB power is removed
- Military-grade PCB construction for reliable long-term operation
- Fast Shipping from Zbotic – dispatched within 24 hours
Applications and Use Cases
- PC-controlled home automation: lighting, fans, small appliances
- Robotics projects requiring on/off control of motors or actuators
- Automated door/window locking systems managed via software
- Laboratory test rigs switching power supplies or signal generators
- Industrial equipment control for non-critical loads
- Remote power cycling of devices through Windows applications
How to Use 5V 2 channel USB PC Intelligent Control Relay Module
Simply plug the module into a USB port on a Windows 7 or XP 32-bit PC, launch the supplied control application (no driver needed), and click to toggle each relay. Wire your load to the NC/COM/NO screw terminals according to your circuit. The green/red LEDs provide real-time feedback, and you can attach a 5V DC supply to the external power connector to hold relay states when USB power is lost.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Do I need to install any drivers for this relay module?
No, the module uses HID protocol, so it requires no driver installation on Windows 7 or XP 32-bit. Plug it in and launch the control software to start operating the relays.
What do the LED indicators signify?
The module features dual-color LEDs for each channel: green indicates the relay is closed (ON), and red indicates the relay is open (OFF).
How can I keep the relays energized when the PC is turned off?
By connecting a 5V DC supply to the onboard 4-pin (or optional 8-pin) external power connector, the module will maintain each relay’s last state even if the USB port loses power or the computer is shut down.
ESP32 Captive Portal: Wi-Fi Credentials Entry Without Code
An ESP32 captive portal for Wi-Fi credentials setup is an essential feature for any IoT product you plan...
Read More →
How to Build a Smart Home with ESP32 & Sensors
Building a smart home with ESP32 is one of the most rewarding IoT projects you can tackle. Whether...
Read More →
ESP32 Touch Sensor: Capacitive Input for Smart Switches
The ESP32 touch sensor (capacitive) is one of the most underappreciated built-in features of the ESP32 microcontroller. Unlike...
Read More →Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Channels | 2-channel |
| Interface / Protocol | USB |
| SKU | AI0842 |
| Weight | 0.036483 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5V 2 channel USB PC Intelligent Control Relay Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
