This is the 12V variant of the 8 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at Original price was: ₹755.20.₹713.90Current price is: ₹713.90. (₹605.00 + GST) with free shipping across India.
Looking for 12v Module? 8 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse is available at Zbotic with fast shipping across India.

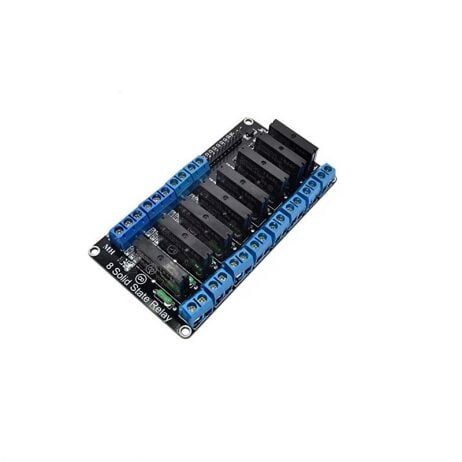

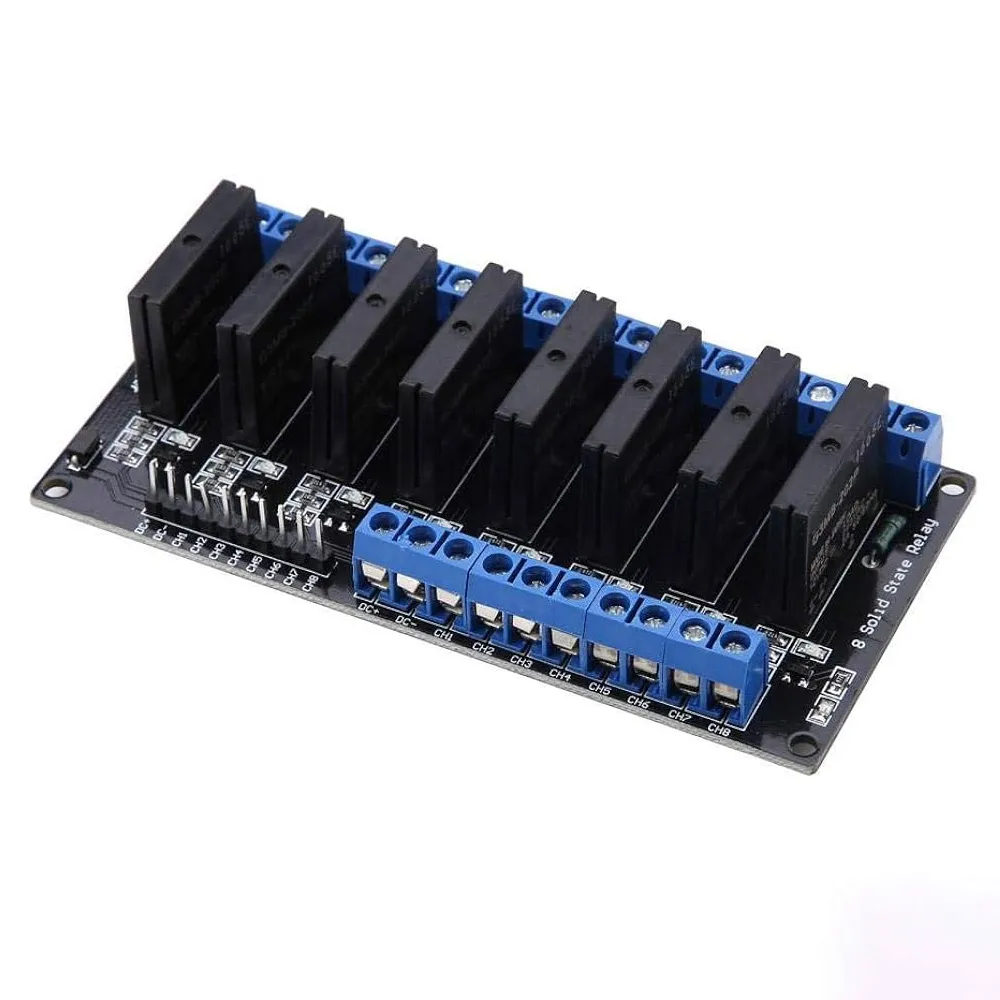

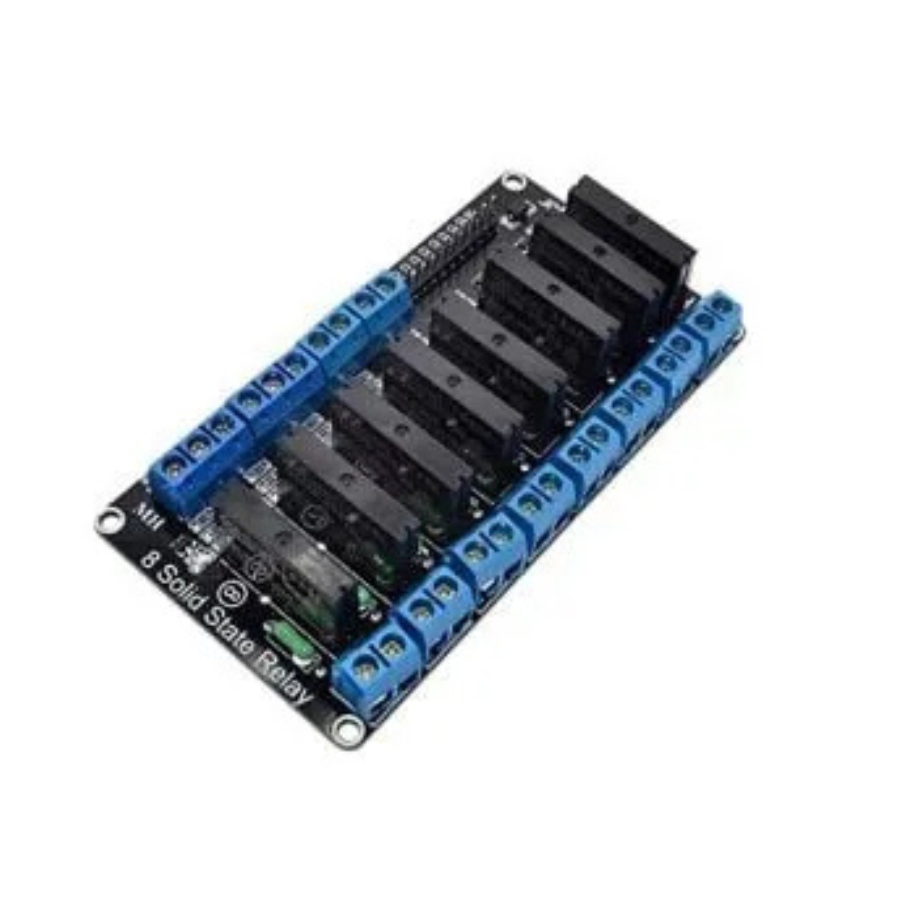

8 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
This is 8 Channel 12V Solid State Relay Module. A solid state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays.
A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay.
One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

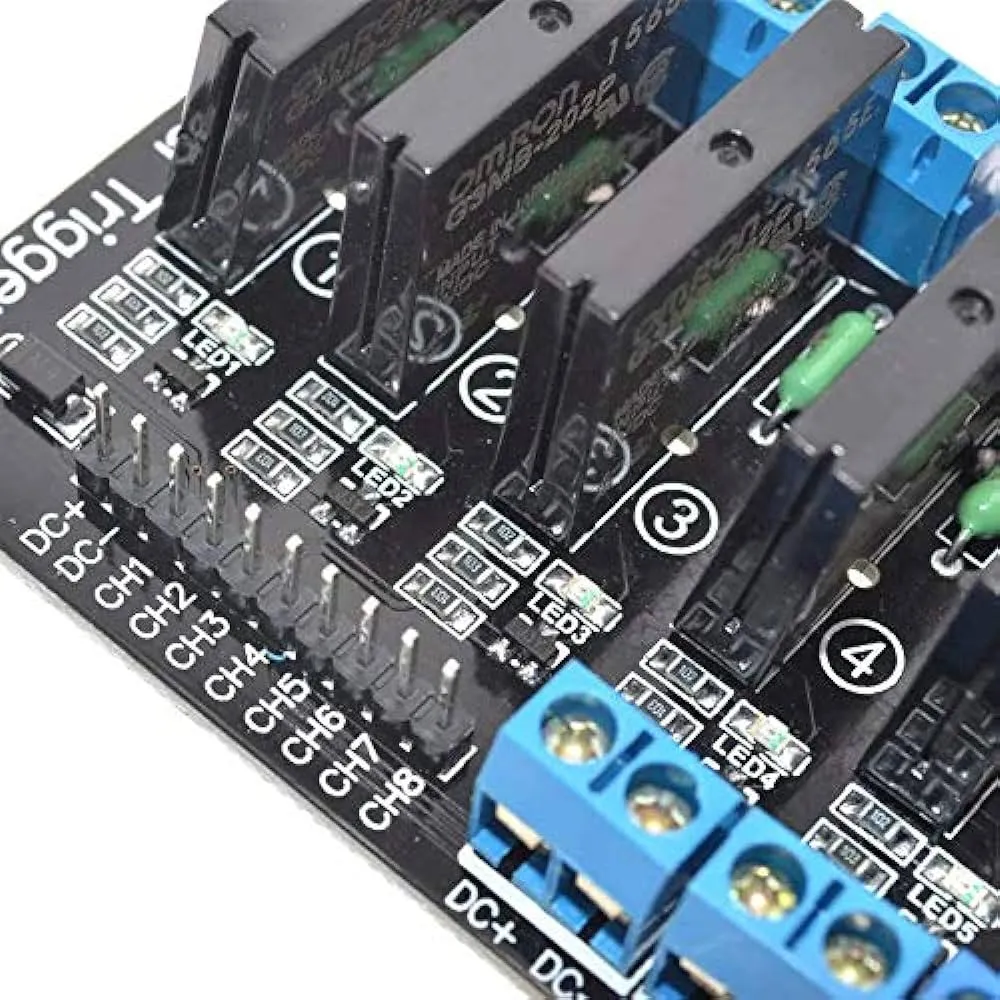

Input Parts :
- DC : connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
- IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level)
- IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level)
- IN5: CH5 Signal triggering the end of 4-channel relay module (active at the high level)
- IN6: CH6 Signal triggering the end of 4-channel relay module (active at the high level)
- IN7: CH7 Signal triggering the end of 4-channel relay module (active at the high level)
- IN8: CH8 Signal triggering the end of 4-channel relay module (active at the high level)
Features:
- 8-channel 2 AMP Solid State Relay board.
- Control 8 loads of up to 2 amps each at 240 V AC.
- Good for lighting, Holiday displays, etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller
- Input control signal voltage.
- 0-0.5V low stage SSR is OFF
- 0.5V – 2.5V (unknown state).
- 2.5-20V high stage SSR is ON
Specification:
Part Number: G3MB-202P
Power supply:12VDC/160mA
Trigger Voltage (VDC):12
Switching Voltage (VAC):240@2A
Isolation: Phototriac
Package Includes:
1 x8 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
8 Channel 12V Relay Module Solid State High Level SSR DC Overview
The 8 Channel 12V Relay Module Solid State High Level SSR DC Control is a multi-channel solid state relay board designed for switching AC loads up to 240VAC/2A via 12V DC control signals. It features phototriac isolation and built-in resistive fuses, making it ideal for reliable, low-noise operation in automation and control systems.
Key Features of 8 Channel 12V Relay Module Solid State High Level SSR DC
- Eight independent SSR channels using G3MB-202P phototriac modules
- 12VDC power supply requirement drawing 160mA total
- High-level 12V trigger inputs for direct interfacing with PLCs or driver circuits
- AC switching capability: up to 240VAC at 2A (resistive loads)
- Integrated resistive fuses on each channel for over-current protection
- Phototriac isolation ensures minimal electrical noise and high switching speed
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Home automation: control lighting circuits, heaters, and small appliances
- Industrial control panels for resistive load switching
- Laboratory setups requiring isolated on/off control of AC test fixtures
- Interfacing with Arduino, Raspberry Pi (via driver stage) or industrial PLCs
- Batch processing machines where silent, rapid switching is needed
- HVAC systems to switch fan motors or electric valves (with snubber where required)
How to Use 8 Channel 12V Relay Module Solid State High Level SSR DC
Connect a regulated 12VDC supply to VCC and GND on the module, then wire each AC load in series with the module’s output terminals. Drive an individual channel by applying a 12V input signal to its corresponding input pin; the internal phototriac will conduct, switching your AC load. Ensure wiring respects the 2A per-channel rating and observe proper isolation practices.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What types of loads can this SSR module switch?
The module switches resistive loads up to 240VAC at 2A per channel. Typical uses include incandescent lamps, heating elements, and resistive test loads. For inductive loads (motors, solenoids), add a snubber or choose SSRs rated for inductive applications.
How do I drive the high-level inputs correctly?
Each channel input requires a 12V DC drive signal referenced to module GND. When the input sees 12V, the internal IR LED activates the phototriac, closing the AC output. Use driver transistors or level shifters if your logic supply is lower than 12V.
Is there built-in over-current protection?
Yes, each channel includes a resistive fuse that limits current in fault conditions, protecting the SSR and your connected load from over-current damage.
NodeMCU ESP8266 Tutorial: WiFi IoT Made Easy
The NodeMCU ESP8266 is where most Indian makers begin their IoT journey — and for good reason. For...
Read More →
Digital Twin: Create Virtual Models of Physical Devices
Table of Contents What is a Digital Twin Creating Virtual Models Sensor Data Integration Real-Time Synchronisation Simulation and...
Read More →
ESP32 Sensor Fusion: Combine IMU, Baro and GPS Data
Building an accurate navigation or orientation system with ESP32 sensor fusion using IMU and GPS data is one...
Read More →Technical Specifications
| Voltage Range | 12V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 8-channel |
| SKU | AI3693 |
| Weight | 0.0897 kg |
| Availability | In Stock |
Applications & Use Cases
The 8 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
