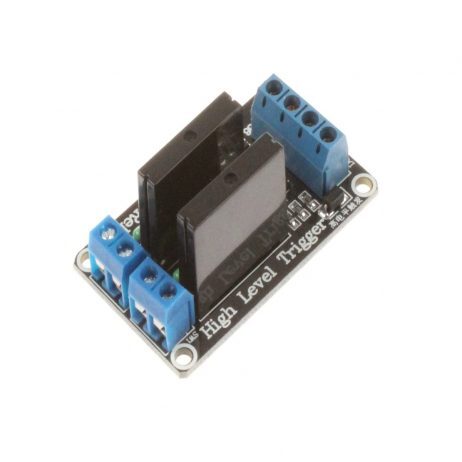

2 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
Upgrade your control system with the 2-Channel 3-24V Solid State Relay Module, offering reliable switching capabilities for high-voltage DC loads from lower-voltage DC control circuitry. Featuring solid-state relay (SSR) technology, this module ensures noise-free operation and an extended lifespan compared to traditional mechanical relays.
Features:
- Solid State Relay Technology: Utilizes solid-state relay technology, featuring an IR LED and a photo Triac sealed in a compact enclosure for reliable performance.
- 2-Channel Configuration: Control up to 2 independent loads with ease, providing versatility in your applications.
- High Load Capacity: Each channel supports loads of up to 2 amps at 50VDC, making it suitable for various lighting, holiday displays, and other applications.
- LED Indicator: Equipped with LED indicators for each relay, allowing for easy status monitoring.
- Assembled and Tested: The module comes assembled and has undergone electrical testing to ensure reliable performance.
- Microcontroller Compatibility: Can be controlled directly by a microcontroller, offering seamless integration into your control setup.
- Convenient Input Connectivity: Features DC and DC- terminals for power connection, as well as CH1 and CH2 terminals for input control signal connection.
- Versatile Applications: Ideal for controlling various appliances and equipment with large currents, providing flexibility in usage scenarios.
Input Parts:
- DC: Connects to VCC for power supply according to the relay voltage.
- DC-: Connects to GND for the ground connection.
- CH1 and CH2: Individual relay module signal trigger points, effective at the low level, facilitating precise control over each channel.
Enhance your control capabilities with the 2-Channel 3-24V Solid State Relay Module, offering reliable switching performance and versatility for a wide range of DC load control applications. Whether you’re controlling lighting systems, holiday displays, or other equipment, this module provides an efficient and durable solution for your needs.
Specifications:
| Part Number | H3MB-052DP |
|---|---|
| Power Supply | 3-24VDC/160mA |
| Switching Voltage (VAC) | 50@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Length (mm) | 35 |
| Width (mm) | 25 |
| Height (mm) | 24 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 6 × 4 × 1 cm |
Package Includes:
1 x 2 Channel 3-24V Relay Module Solid State High-Level SSR DC Control DC with Resistive Fuse
2 Channel 3-24V Relay Module Solid State High Level SSR DC Overview
The 2 Channel 3-24V Solid State Relay Module (Part Number: H3MB-052DP) is designed for reliable DC-to-DC switching using high-level control signals. Ideal for noise-free operation and extended lifetime, it isolates your low-voltage control circuitry from the switched load using phototriac technology.
Key Features of 2 Channel 3-24V Relay Module Solid State High Level SSR DC
- Two SSR channels for independent DC load control
- Wide input range: 3–24VDC high-level trigger, 160mA per channel
- Switching capacity up to 50 V (AC) at 2 A per channel for resistive loads
- Phototriac isolation with IR LED driver for noise suppression
- Built-in resistive fuse for overcurrent protection
- Compact form factor with screw-terminal connections
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Home automation: control LED strips, DC fans and pumps
- Industrial automation: switch small DC motors and solenoid valves
- Robotics projects: drive actuators and gear motors cleanly
- Prototyping and testing: isolate sensors and modules in development
- Renewable energy setups: switch auxiliary circuits in solar systems
- Security systems: actuate door locks or alarm sirens
How to Use 2 Channel 3-24V Relay Module Solid State High Level SSR DC
Provide a stable 3–24VDC supply to the module’s VCC and GND pins, then drive each input pin with a high-level control signal to turn its corresponding SSR channel on. Connect your DC load between the module’s output terminals and your load supply, ensuring it does not exceed 50 V/2 A. Use proper wiring and secure the module via its mounting holes.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can this module switch DC loads, and what is its maximum rating?
Yes. Each channel can switch up to 50 V (AC) at 2 A on resistive DC loads, making it suitable for small motors, lamps, and solenoids.
What input voltage and current does the module require?
The control inputs accept a high-level trigger from 3 VDC up to 24 VDC, drawing about 160 mA per channel when activated.
How does the built-in resistive fuse protect the module?
The resistive fuse limits current flow and will blow in case of an overload, safeguarding both the SSR elements and your connected equipment from excessive currents.
