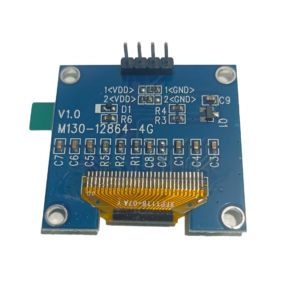

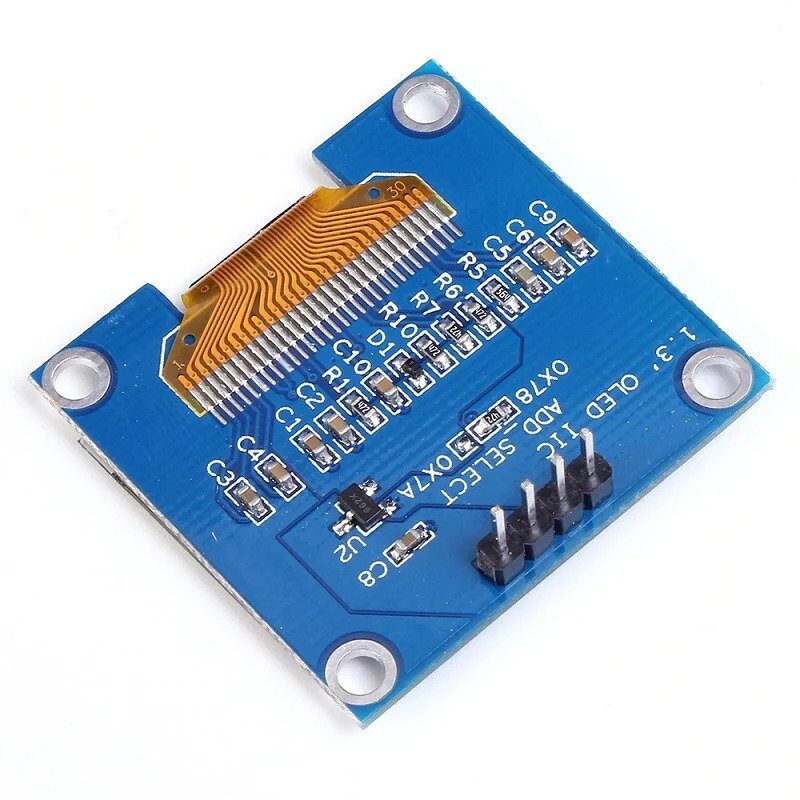

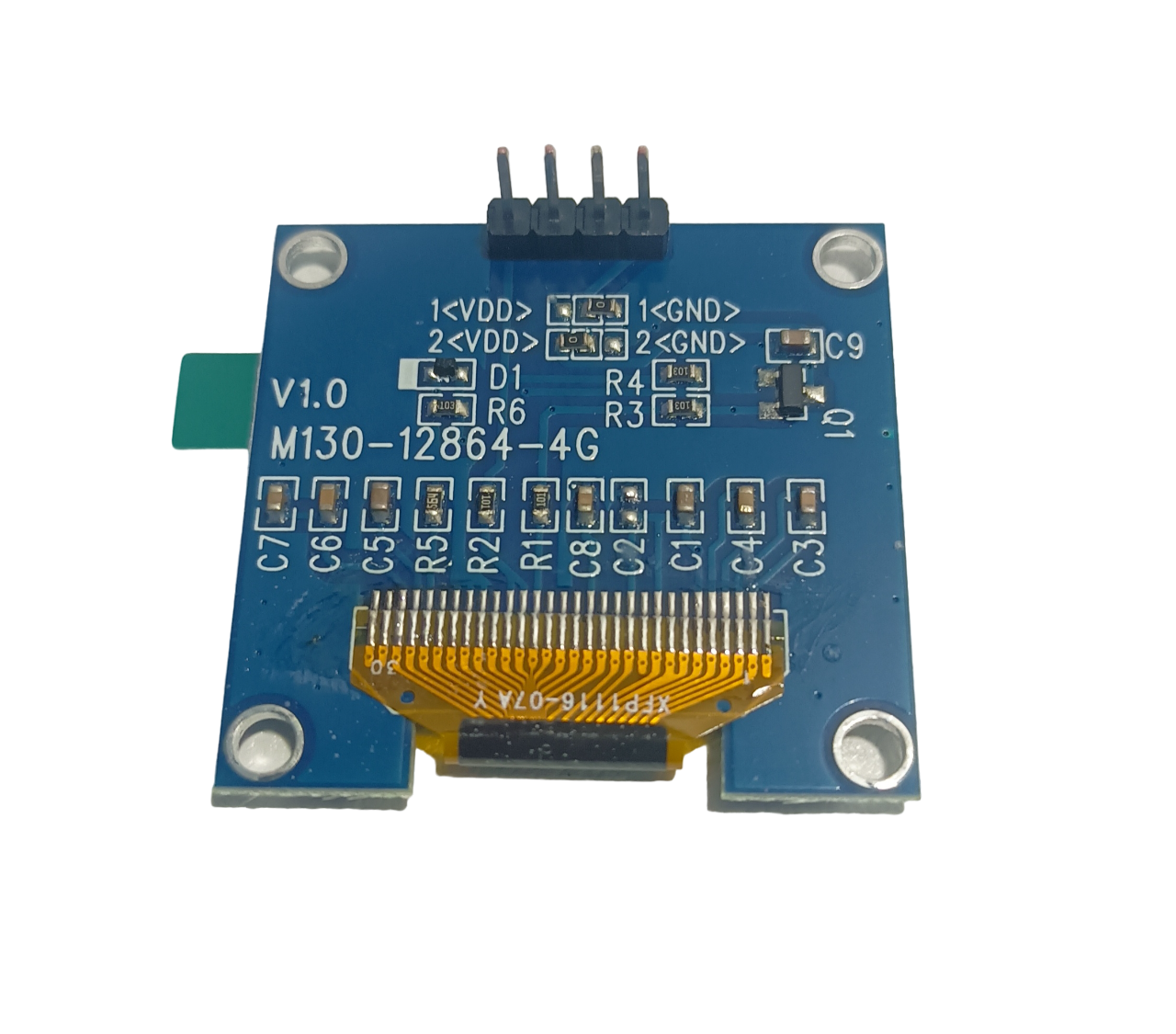

1.3 Inch I2C/IIC 128 x 64 -WHITE OLED Display Module 4pin
The 1.3″ I2C OLED Display is a compact monochrome module featuring a 128×64 dot resolution and an I2C interface, making it perfect for applications that require a small display. OLED screens provide numerous advantages over LCDs, including higher brightness, self-emission, superior contrast ratios, a slim profile, wide viewing angles, a broad temperature range, and lower power consumption.
This display module is compatible with any 3.3V-5V microcontroller, including Arduino, ensuring versatility and ease of integration for a variety of projects.

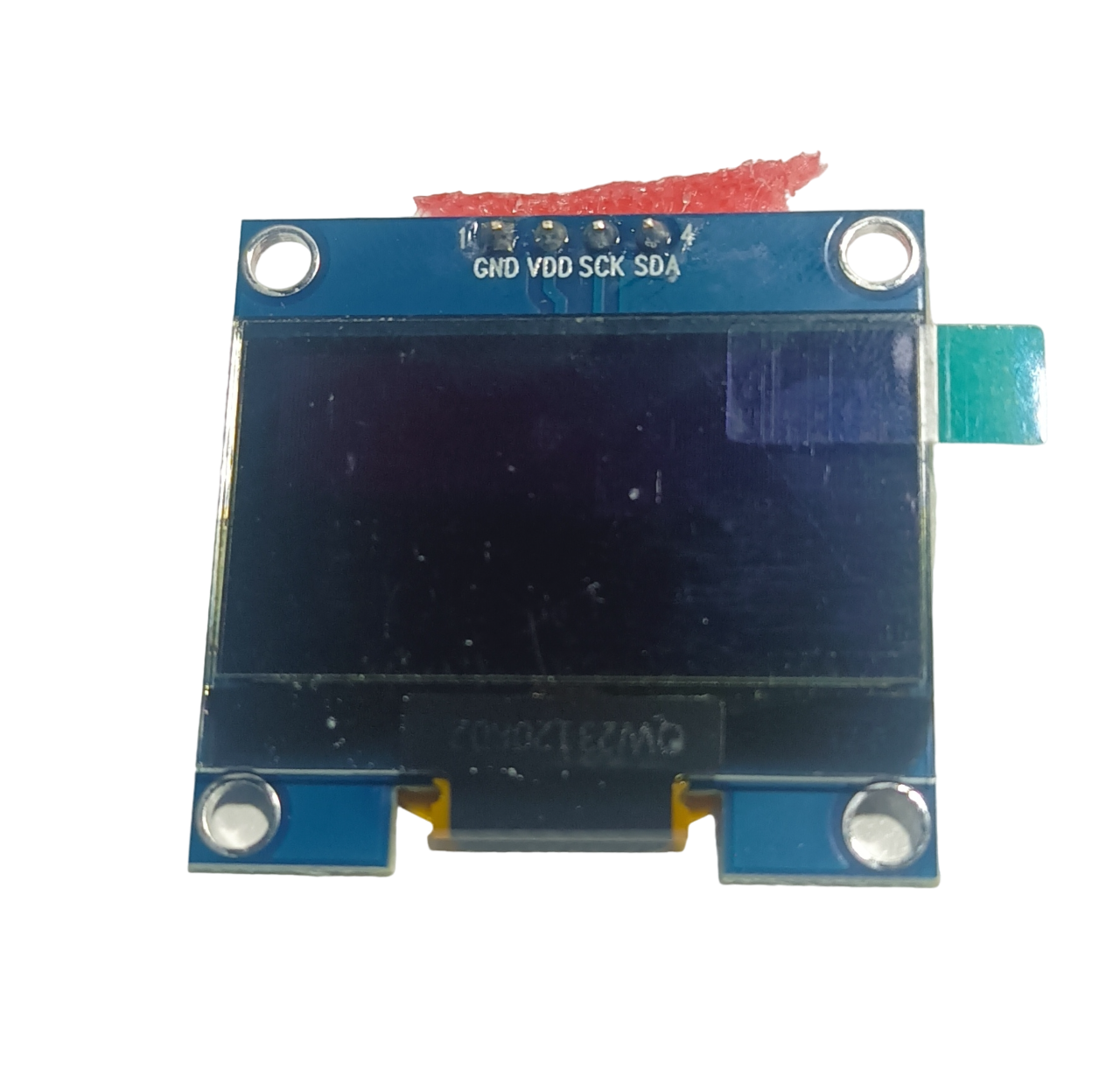

Pin Description:.GND: Power Ground
OLED Display Module to Arduino
1.GND: Power Ground
2.VCC: Power Positive
3.SCL: Clock wire
4.SDA: Data wire.
Features
- No need of the backlight
- The display is self-illuminating
- Power requirement is low.
- They are offering the large viewing angle.
- Display size-Length-3.3cm x width-3.5cm
Note: Actual product may vary in terms of version.
Specification:
Resolution | 128 x 64 Pixels |
---|---|
Controlling Chip | SSH1106 |
Display Area | 34.5 x 19mm |
Driving Voltage | 3.3-5V |
Operating Temperature | -40º~70º Celsius |
Interface Type | IIC |
Pixel Color | White |
Length (mm): | 35.5 |
Width (mm): | 33.5 |
Height (mm): | 4 |
Weight (g): | 7 |
Package Includes
1 x 1.3 Inch I2C/IIC WHITE OLED Display Module 4pin
Arduino Library
