This is the 43inch variant of the Waveshare RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip without case in IoT Development Boards. Available at ₹2,592.46 (₹2,197.00 + GST) with free shipping across India.
Waveshare RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip without case

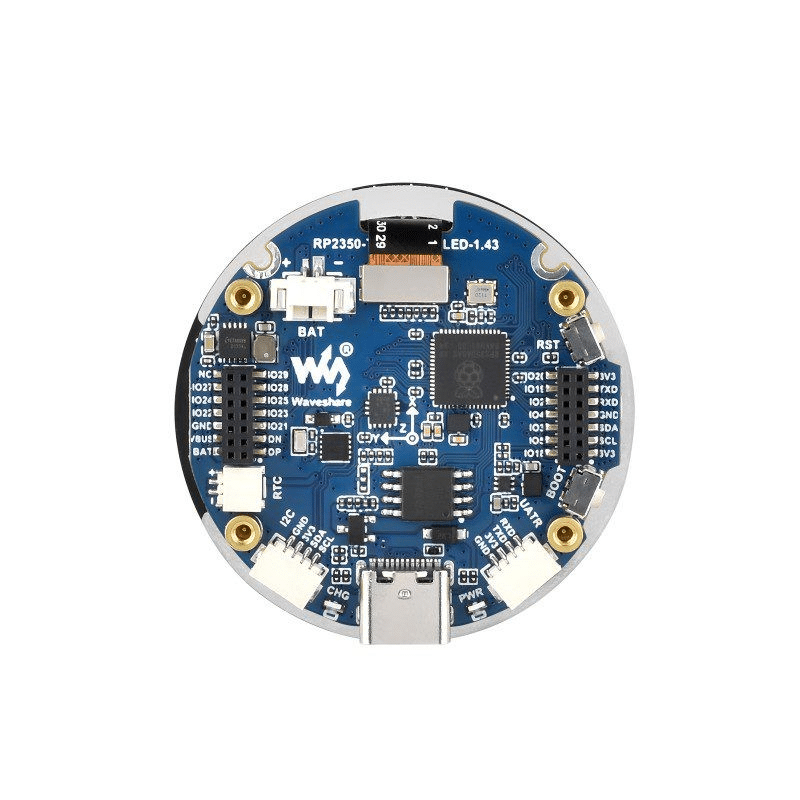

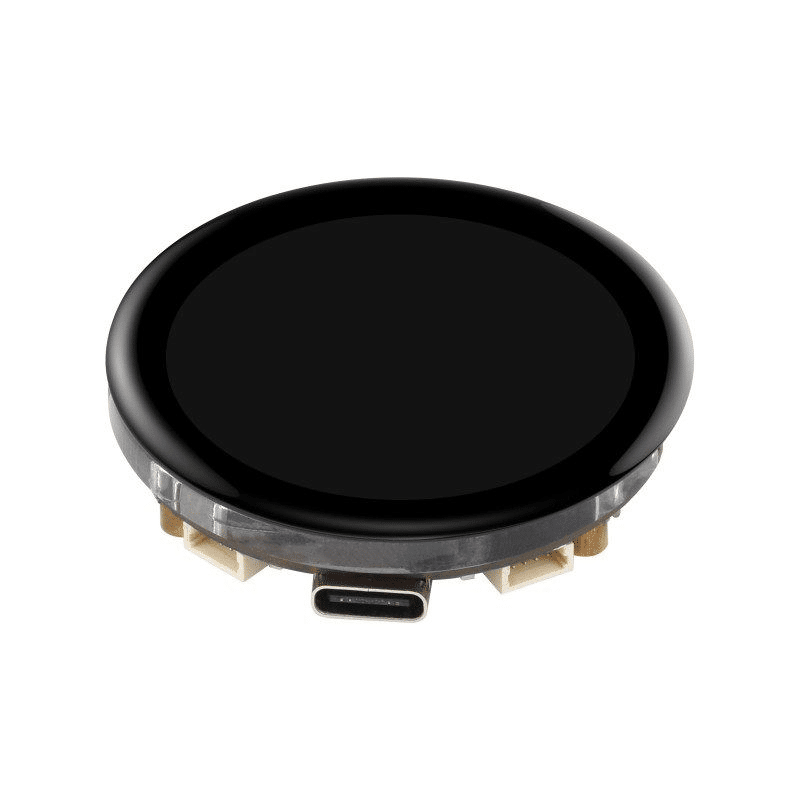

1.43inch AMOLED Display Development Board product adopts RP2350 chip with built-in high-capacity Flash memory, onboard 1.43inch AMOLED display, capable of smoothly running GUI applications such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong expandability. It is suitable for the quick development of the RP2350 HMI applications.
Features:
-
Adopts unique dual-core and dual-architecture design: dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
-
520KB SRAM and 16MB onboard Flash memory
-

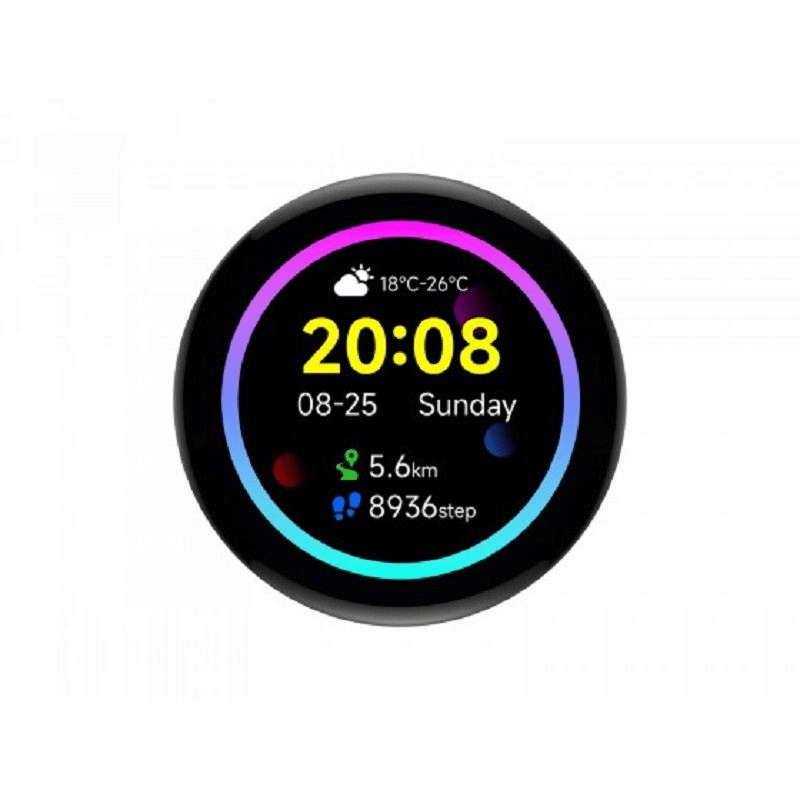

Onboard 1.43inch AMOLED display, SPI interface, 466 × 466 resolution, 16.7M color
-
Supports capacitive touch controlled via I2C interface, with interrupt support
-
Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
-
Onboard PCF85063 RTC chip with reserved SH1.0 battery header (supports charging)
-
Onboard RST and BOOT buttons
-
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
-
Onboard TF card slot for external storage
-
Onboard USB Type-C port for power, program download, and debugging
-
Onboard UART and I2C SH1.0 4-PIN connectors, reserved 2 × 14-PIN 1.27mm GPIO headers
-
Optional CNC metal case with labeled back cover
Specification:
| Item Type: | Development Board |
|---|---|
| Model: | AMOLED Display Development Board |
| Model No.: | RP2350 |
| Display Size (Inch): | 1.43 |
| Display Panel | AMOLED |
| Resolution: | 466×466 |
| Display Color | 16.7M |
Package Includes:
-
1 × RP2350-Touch-AMOLED-1.43
-
2 × SH1.0 4-PIN cables(~100mm)
Node-RED Dashboard: Visualise ESP32 Sensor Data Local
Node-RED dashboard ESP32 sensor data local visualisation is one of the most powerful combinations available to Indian IoT...
Read More →
Smart Temple IoT: Crowd Monitoring and Donation Counter
Table of Contents IoT for Religious Institutions Crowd Monitoring and Safety Digital Donation Counter Environment and Heritage Preservation...
Read More →
ESP32 Provisioning App: Configure WiFi Without Hardcoding
If you've ever built an ESP32 project, you know the frustration of hardcoding WiFi credentials into your firmware....
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | RP2350 |
| Display Size | 1.43" |
| Interface / Protocol | SPI |
| SKU | AI7766 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip without case is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
